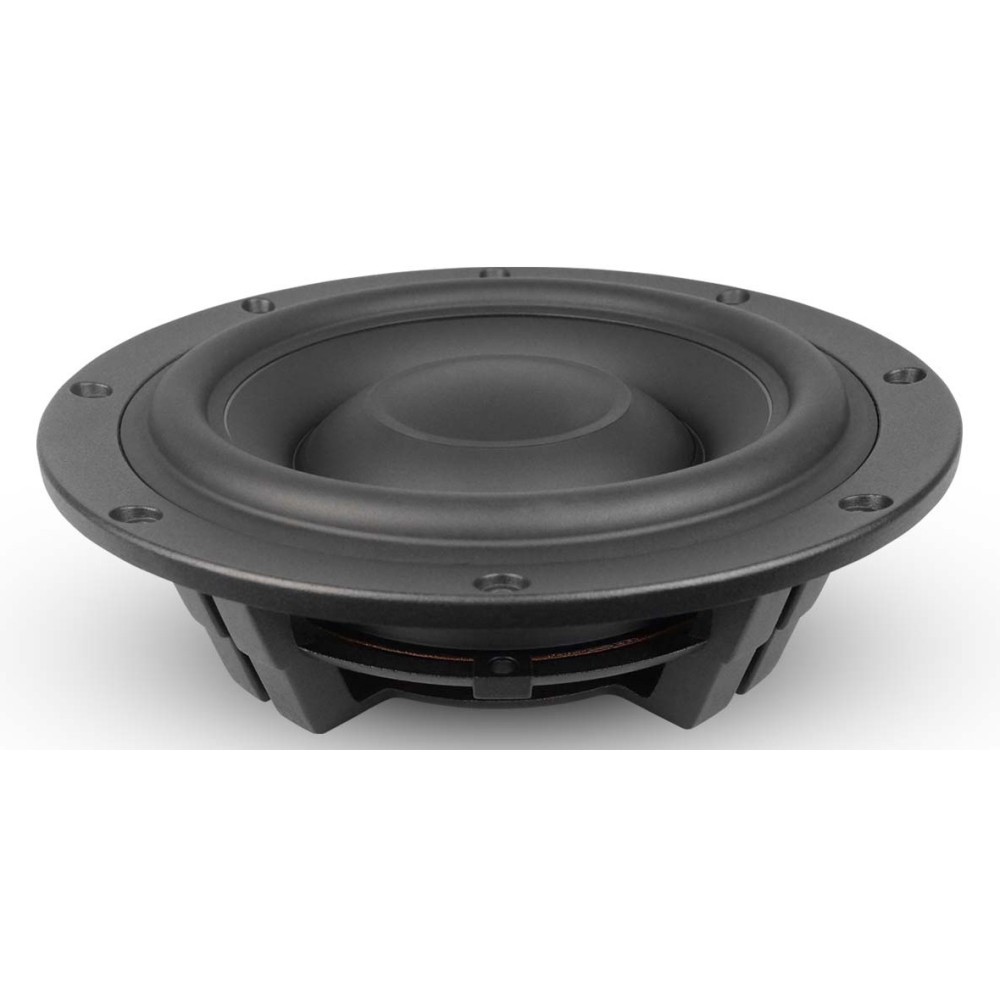

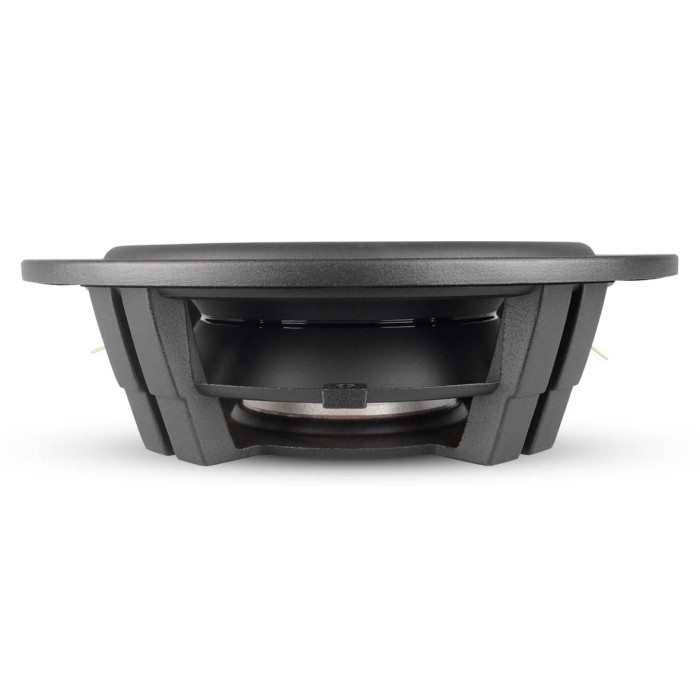

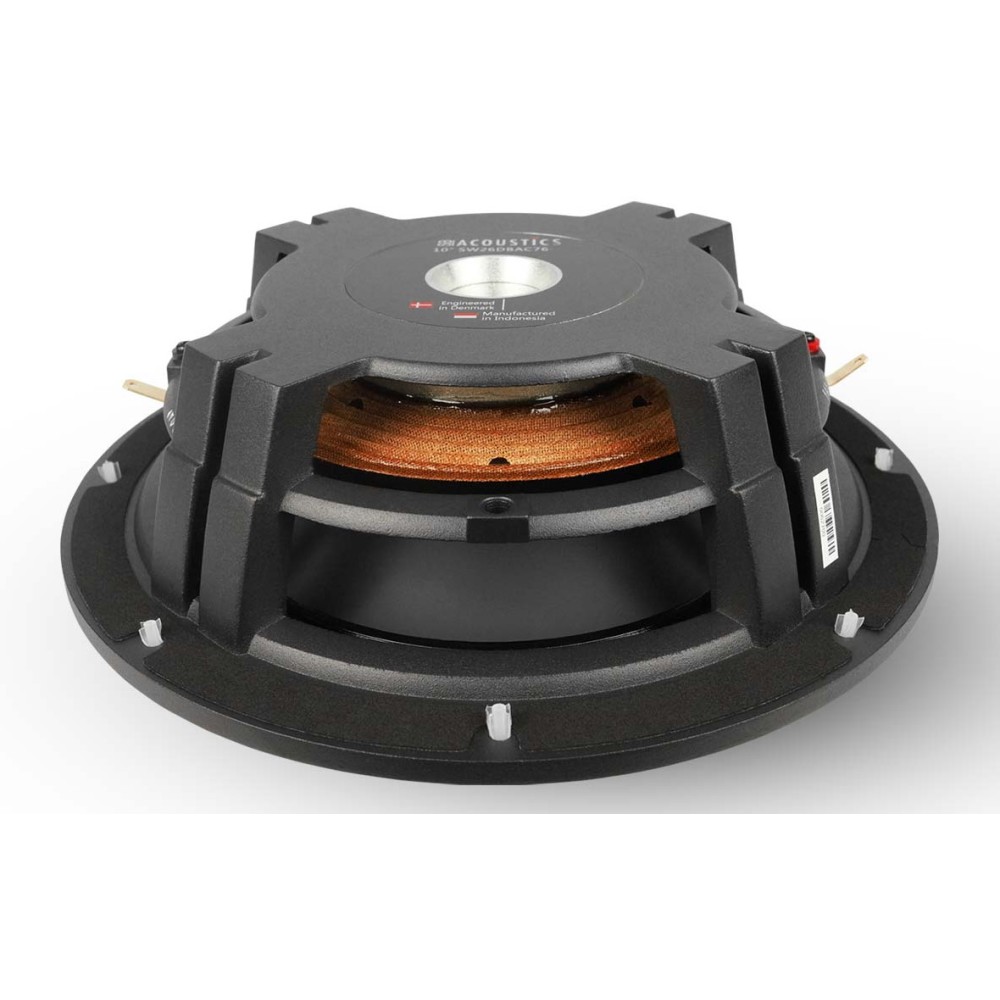

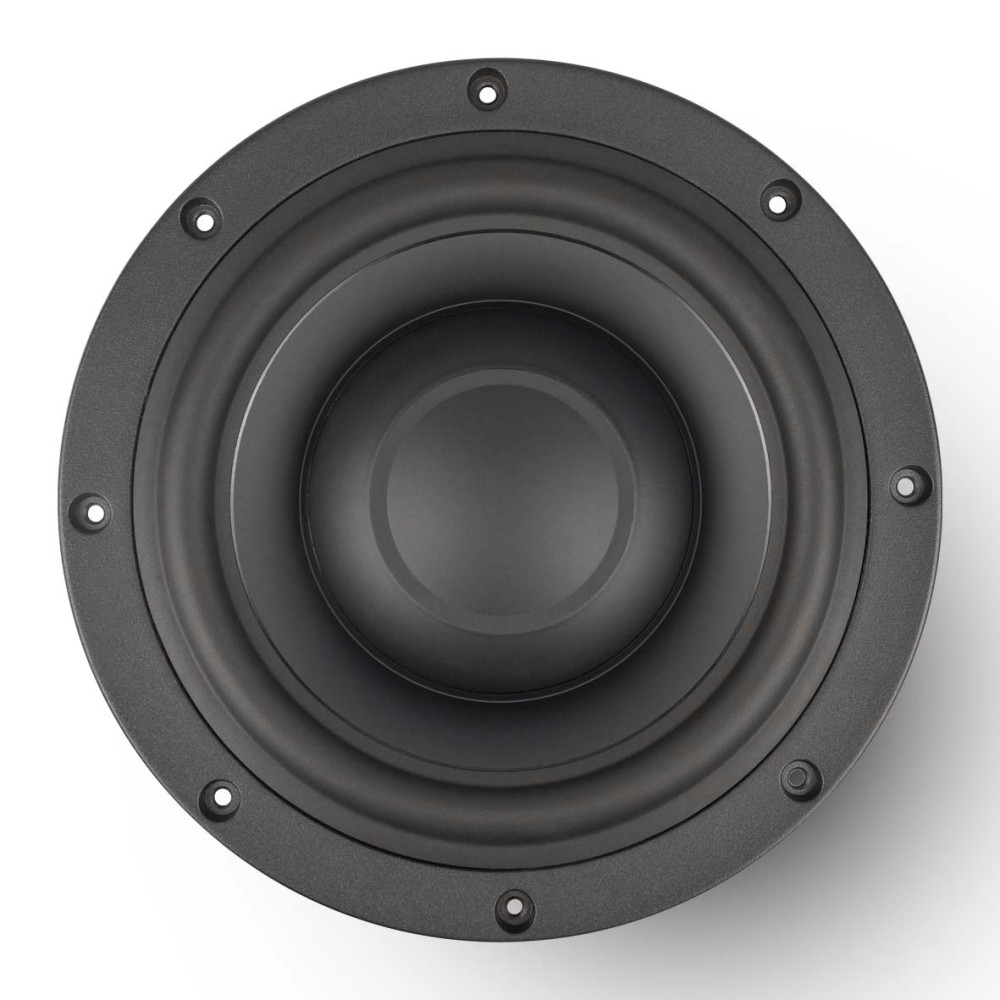

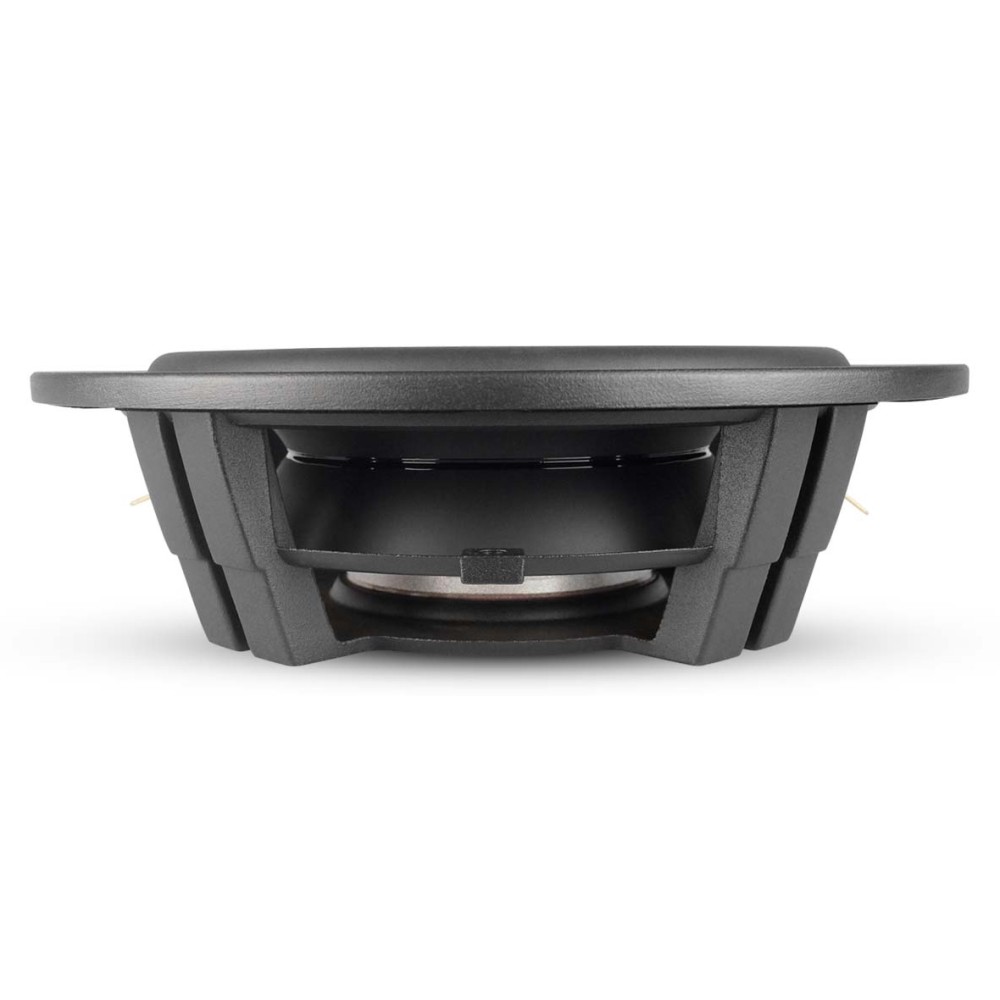

SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm
SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm

SB Acoustics SW26DBAC76-8 10" Subwoofer 8 ohm

Pre- order product
€ 279.00
Tax included

Features

  • Unique patented long throw shallow design
  • Vented cast aluminum chassis for optimum strength and low compression
  • Dual rigid aluminum cone structure
  • Non-conducting fiber glass coil former for minimum damping
  • Shorting ring in motor system for reduced distortion
  • 3 copper voice coil for improved power handling
  • Long life insulated silver lead wires
  • Powerful neodymium motor system
Quantity Unit discount You Save
3 10% € 83.70
6 20% € 334.80

(0)
10" | 8 Ω | 200 W

Brand



Specs

Nominal Impedance 8 Ω

DC resistance, Re 6.4 Ω

Effective piston area, Sd 312 cm2

Voice coil diameter 75.5 mm

Voice coil height 30 mm

Air gap height 6 mm

Linear coil travel (p-p) 24 mm

Magnetic flux density 1.0 T

Magnet weight 281 g

Net weight 3.43 kg

Free air resonance, Fs 19.5 Hz

Sensitivity (2.83V/1m) 83 dB

Mechanical Q-factor, Qms 4.4

Electrical Q-factor, Qes 0.29

Total Q-factor, Qts 0.28

Moving mass incl. air,Mms 172 g

Force factor, Bl 21.4 Tm

Equivalent volume, Vas 54 ltr.

Compliance, Cms 0.39 mm/N

Mechanical loss, Rms 4.8 kg/s

Rated power handling* 250 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

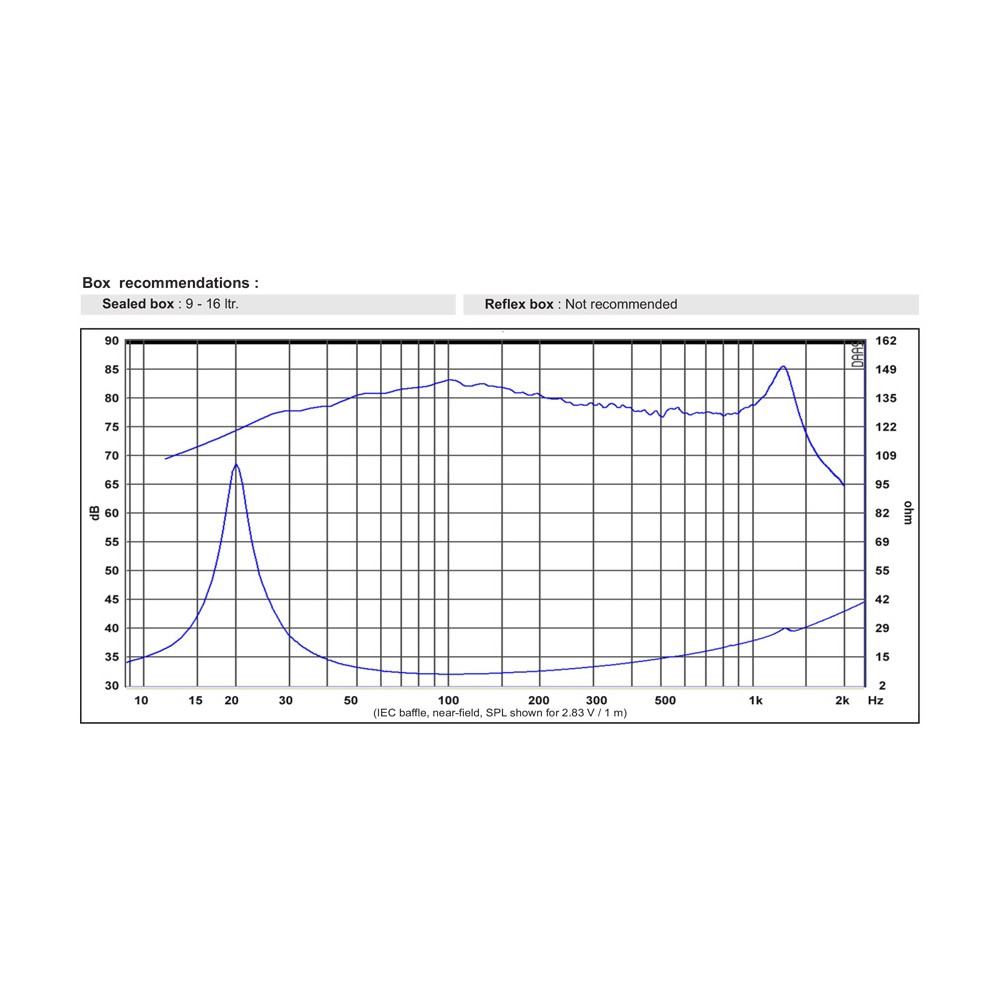

Unique shallow design! Recommended for sealed box applications.

If used in a 0.5 cubic foot sealed box (add for amp volume) and a plate amplifier, your F3 will be about 27Hz.  Without a plate amp and boost, the F3 is about 55Hz.

Diameter
10"
Impedance
8 Ω
Power
200 W
Material
Aluminum
