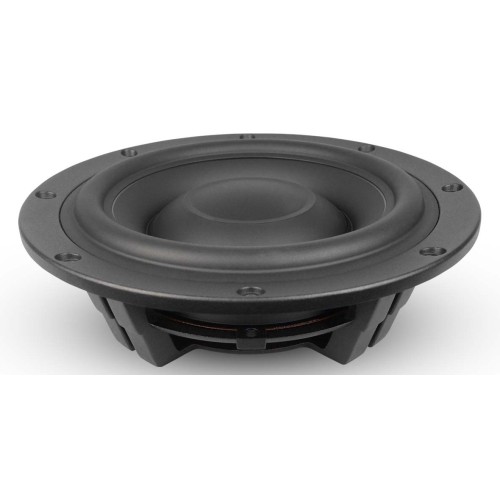

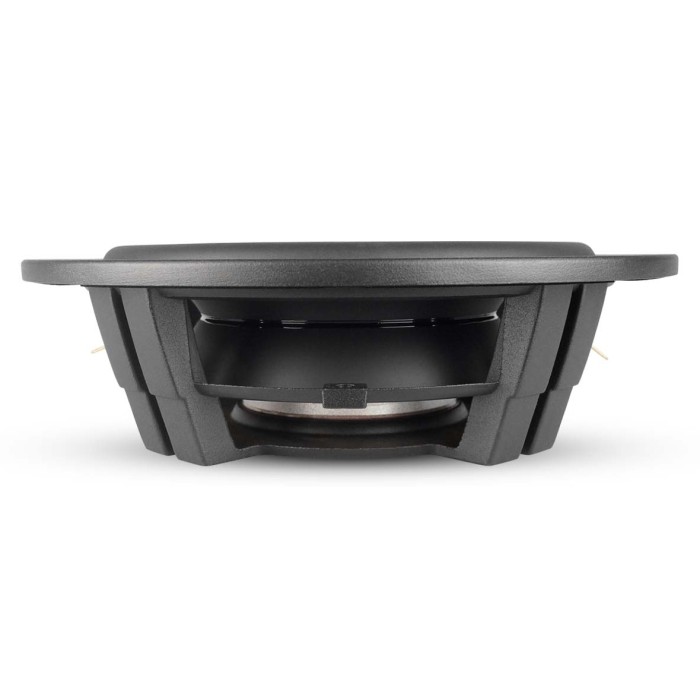

SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm
SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm

SB Acoustics SW26DBAC76-4 10" Subwoofer 4 ohm

2 pcs.
In Stock
€ 279.00
Tax included

Features

  • Unique patented long throw shallow design
  • Vented cast aluminum chassis for optimum strength and low compression
  • Dual rigid aluminum cone structure
  • Non-conducting fiber glass coil former for minimum damping
  • Shorting ring in motor system for reduced distortion
  • 3 copper voice coil for improved power handling
  • Long life insulated silver lead wires
  • Powerful neodymium motor system
(0)
10" | 4 Ω | 200 W

Brand



Specs

Nominal Impedance 4 Ω

DC resistance, Re 3.2 Ω

Effective piston area, Sd 312 cm2

Voice coil diameter 75.5 mm

Voice coil height 30 mm

Air gap height 6 mm

Linear coil travel (p-p) 24 mm

Magnetic flux density 1.0 T

Magnet weight 281 g

Net weight 3.43 kg

Free air resonance, Fs 22 Hz

Sensitivity (2.83V/1m) 86 dB

Mechanical Q-factor, Qms 4.5

Electrical Q-factor, Qes 0.51

Total Q-factor, Qts 0.46

Moving mass incl. air,Mms 134 g

Force factor, Bl 10.8 Tm

Equivalent volume, Vas 54 ltr.

Compliance, Cms 0.39 mm/N

Mechanical loss, Rms 4.1 kg/s

Rated power handling* 200 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

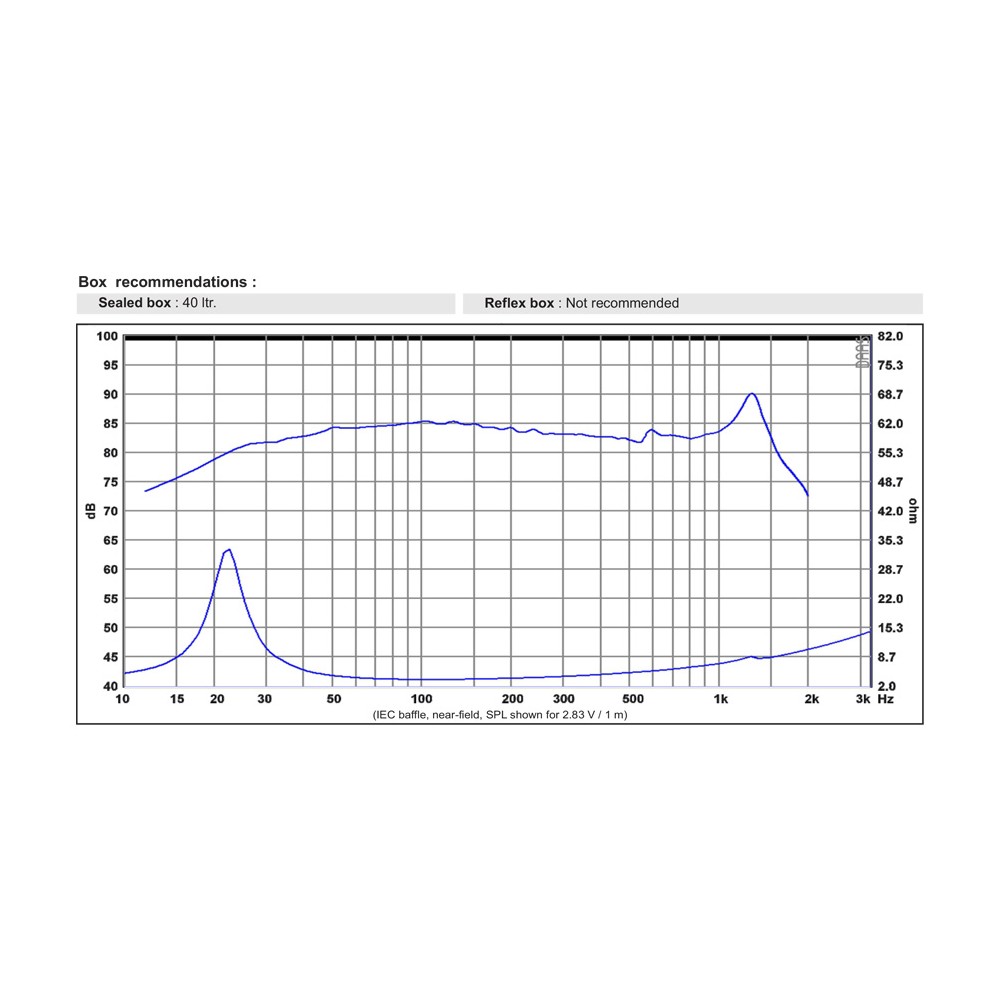

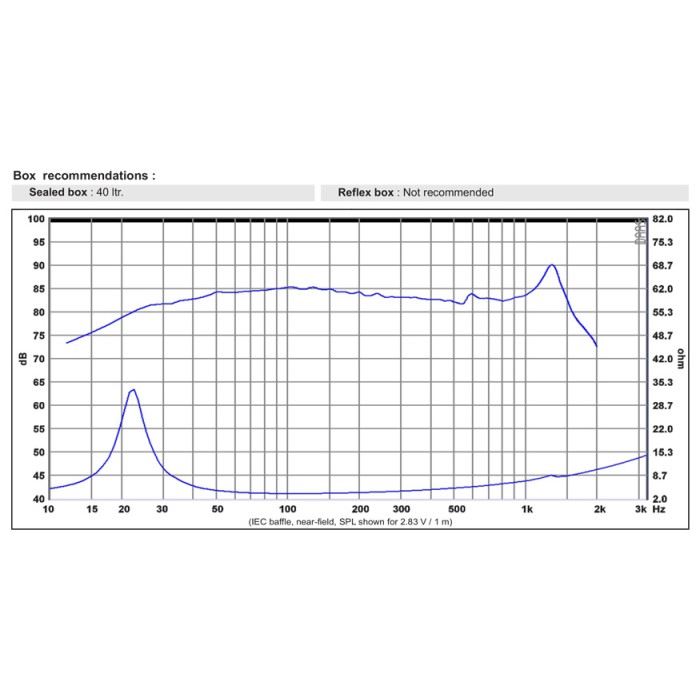

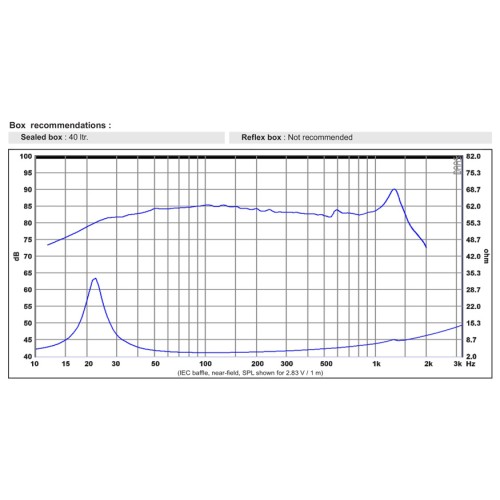

Unique shallow design! Recommended for sealed box applications.

If used in a 1.2 cubic foot sealed box your F3 will be about 35Hz. If used with a plate amplifier with 25Hz boost, your F3 will be about 24Hz. An in car response with 6dB of cabin gain should get you below 20Hz.

Diameter
10"
Impedance
4 Ω
Power
200 W
Material
Aluminum
