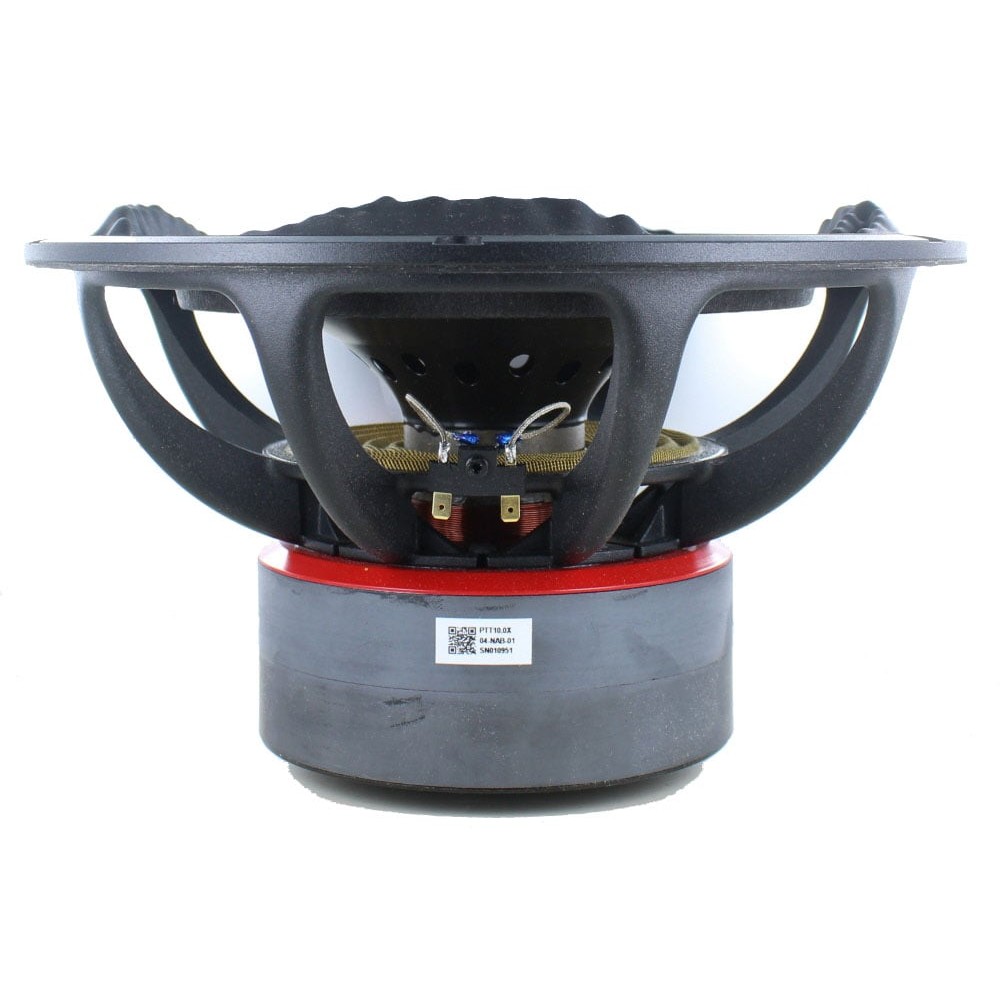

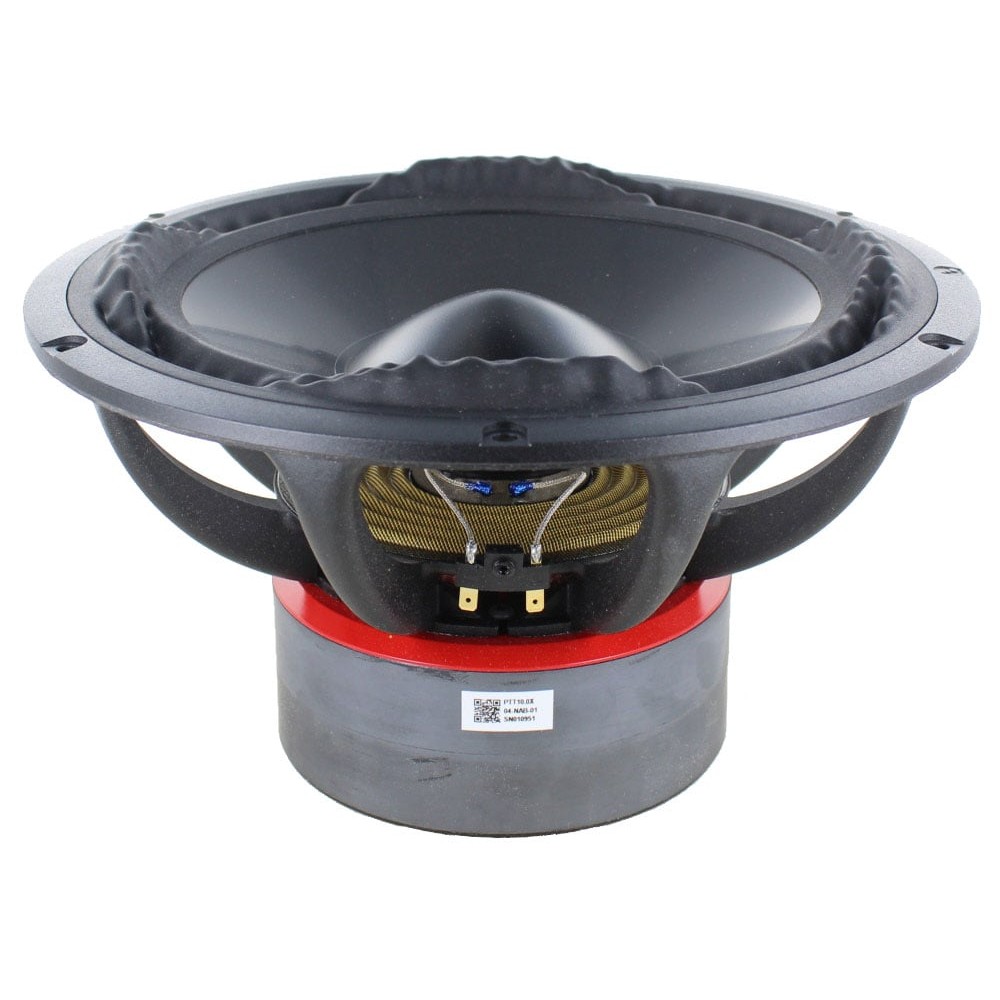

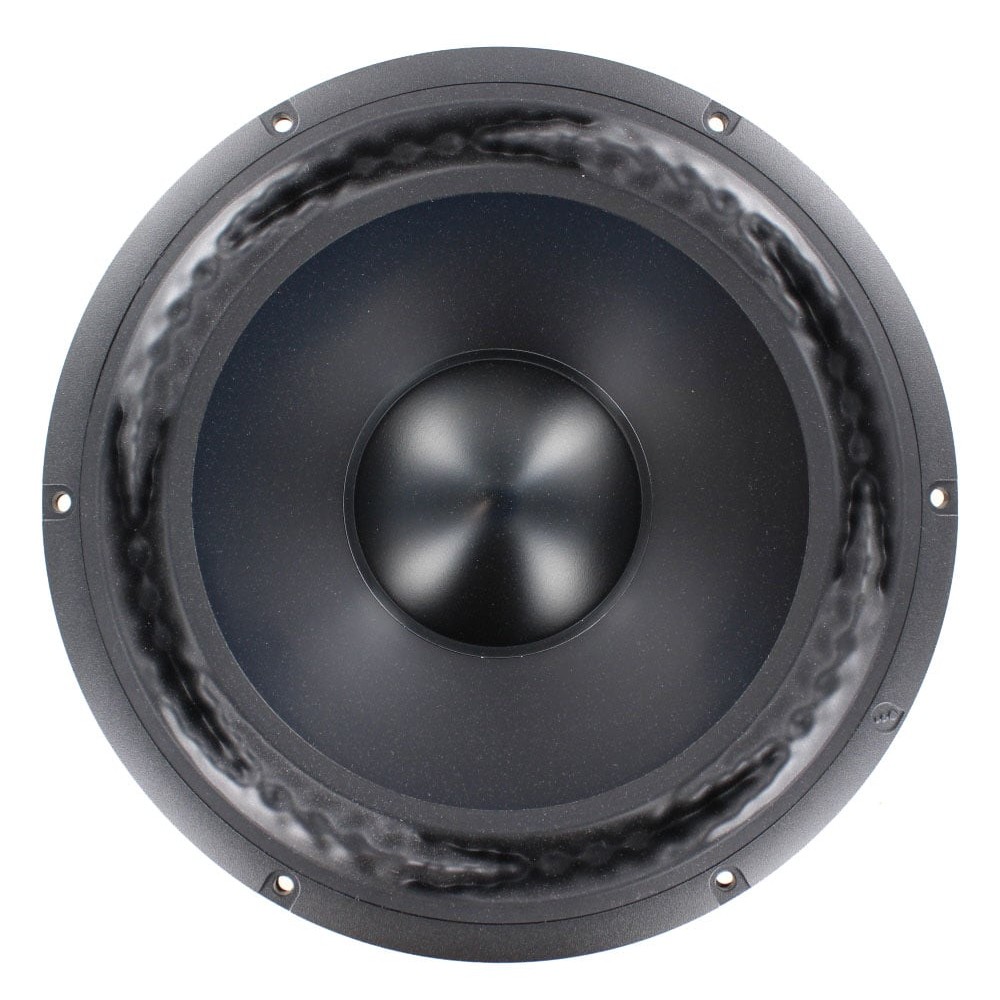

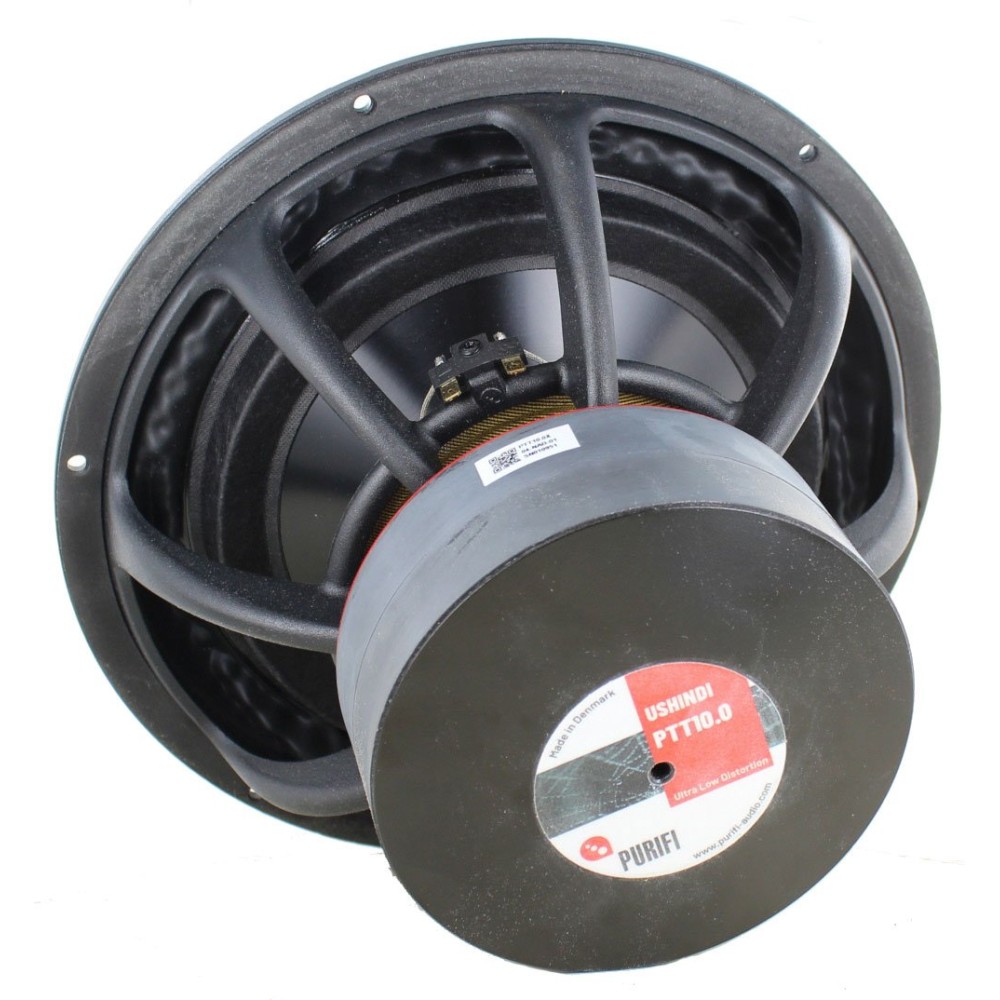

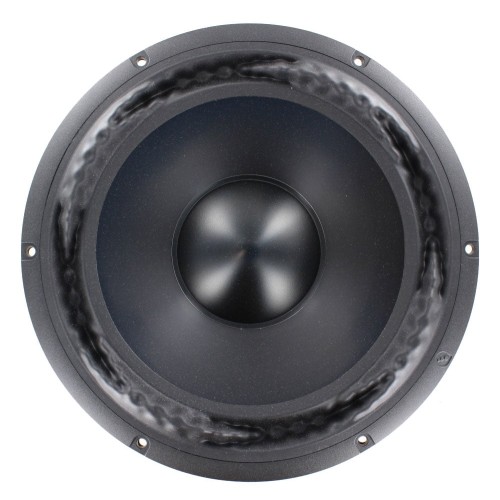

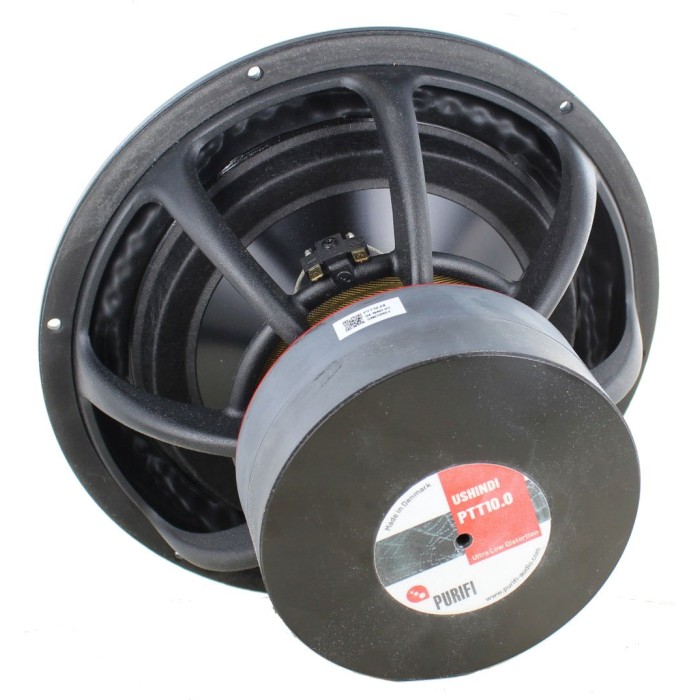

PURIFI PTT10.0X04-NAB-01 10-inch mid-range woofer

PURIFI PTT10.0X04-NAB-01 10-inch mid-range woofer

Pre-order product

€ 894.76

Tax included

This 10" is a member of the ultra low distortion extended-stroke woofer family from PURIFI. The driver incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear PURIFI PureDrive motor system working in concert to enable record-breaking linearity specifications over an extended bandwidth.

The minimum purchase order quantity for the product is 2.

(1)

Read reviews

Hi-Fi Compass Review

The PTT10.0X04-NAB-01 features:

Vibroacoustic optimized cone and dust cap in black anodized aluminum
Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
Ultra Low Magnetic Hysteresis Distortion (MHD)
"Real" long-stroke performance with distortion remaining low over full excursion
Designed and manufactured in Denmark

Sample Box Tunings:

.5 cf3 sealed, well-damped, F3 about 66 Hz.
1.0 cf3 vented, moderate damping, Fb 28 Hz, F3 38 Hz with 2" double-flared vent 8.3" length
1.5 cf3 vented, moderate damping, Fb 25 Hz, F3 33 Hz with 2" double-flared vent 6.5" length
2.0 cf3 vented, moderate damping, Fb 24 Hz, F3 31 Hz with 2" double-flared vent 5.4" length

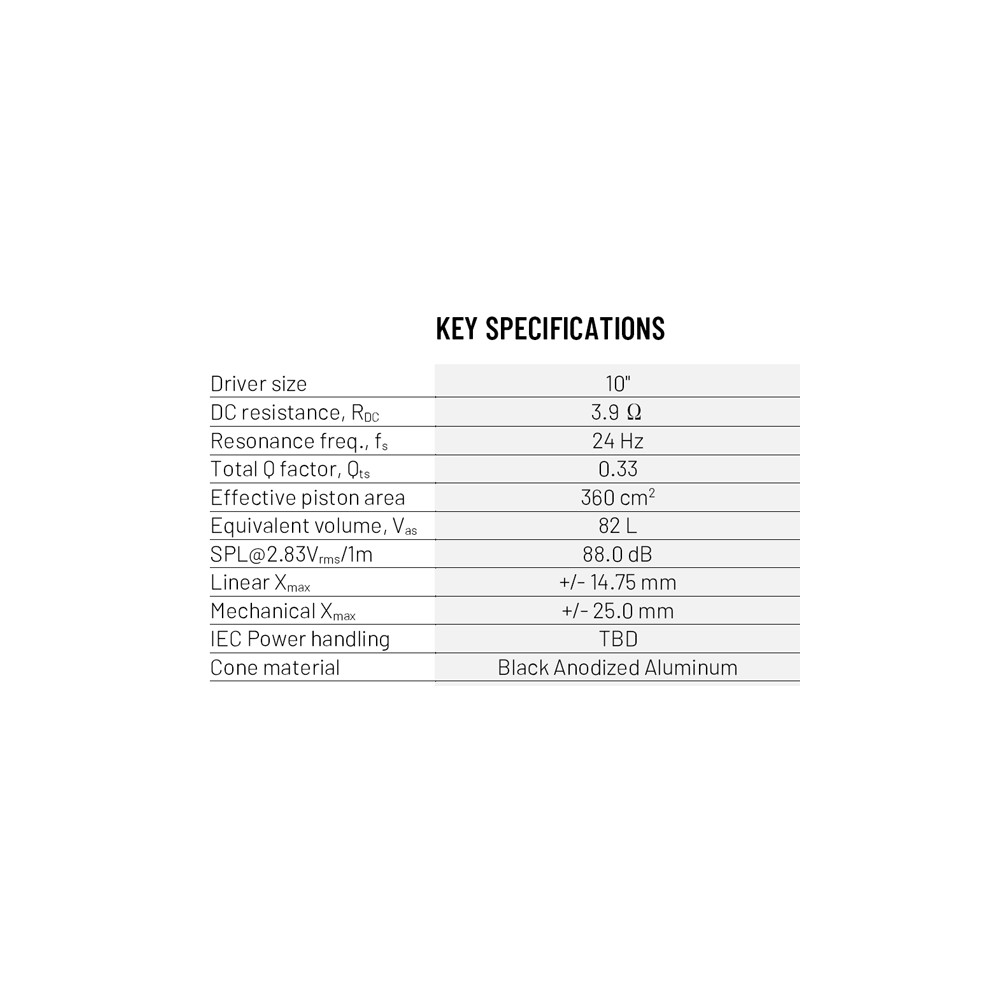

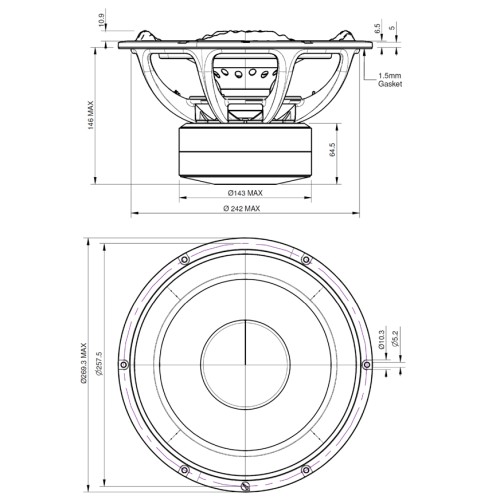

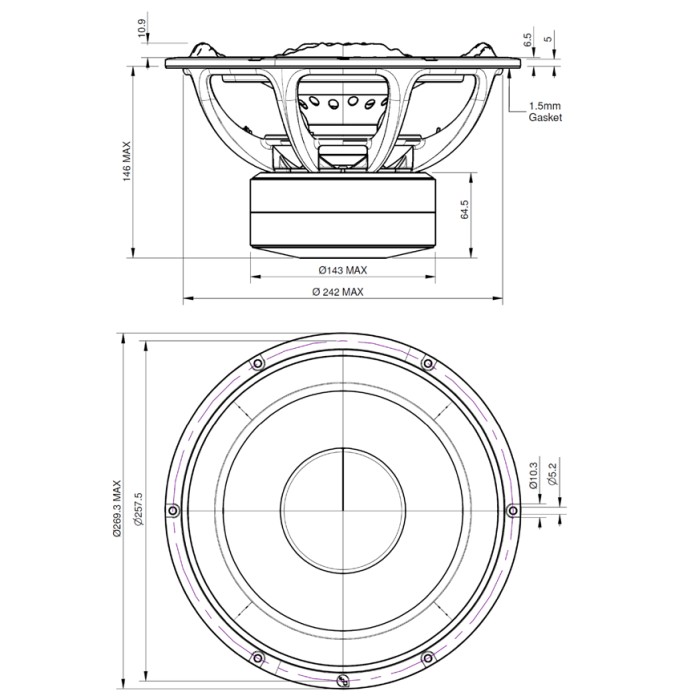

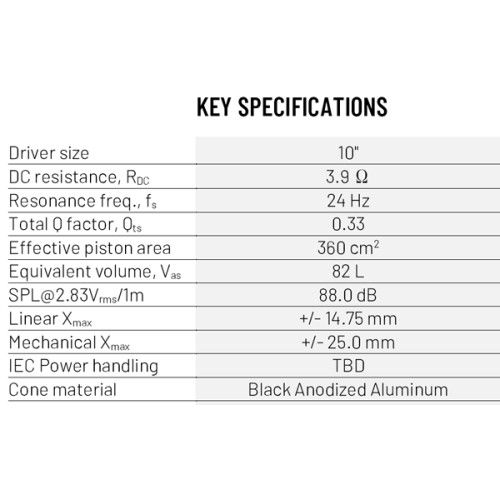

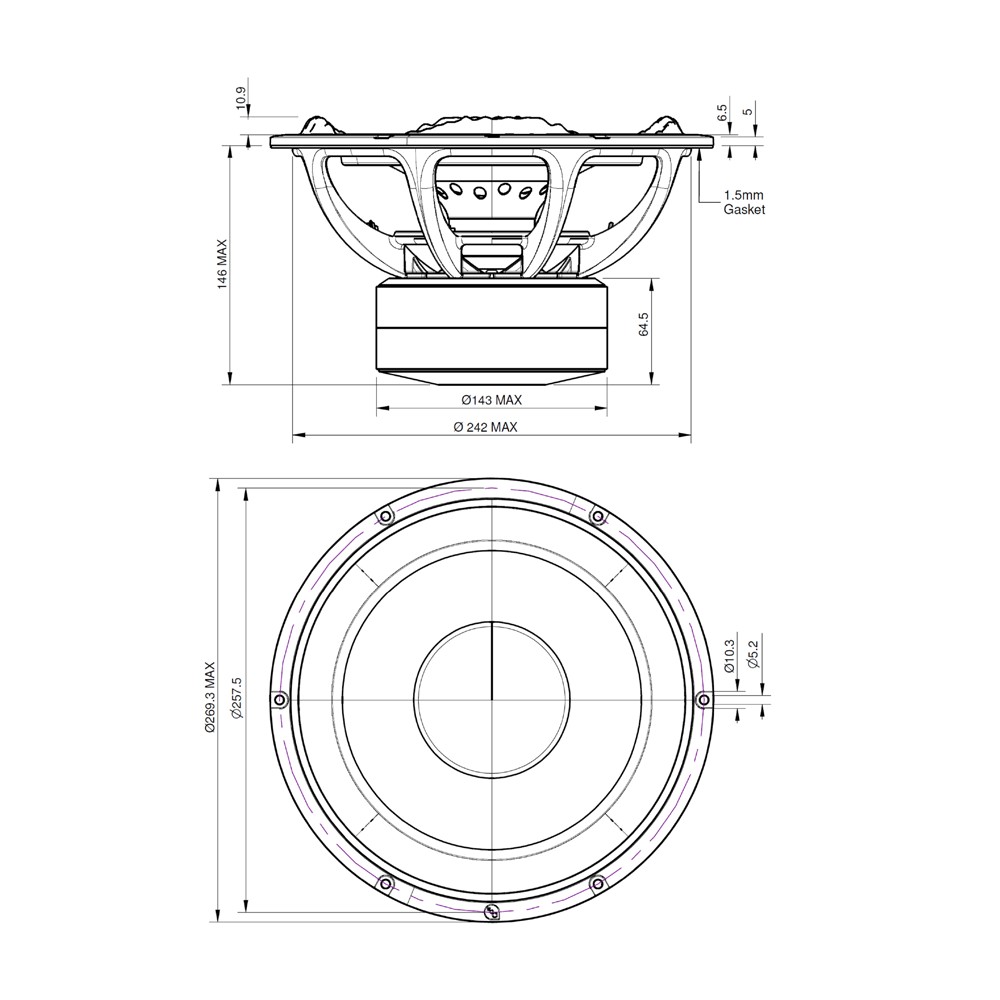

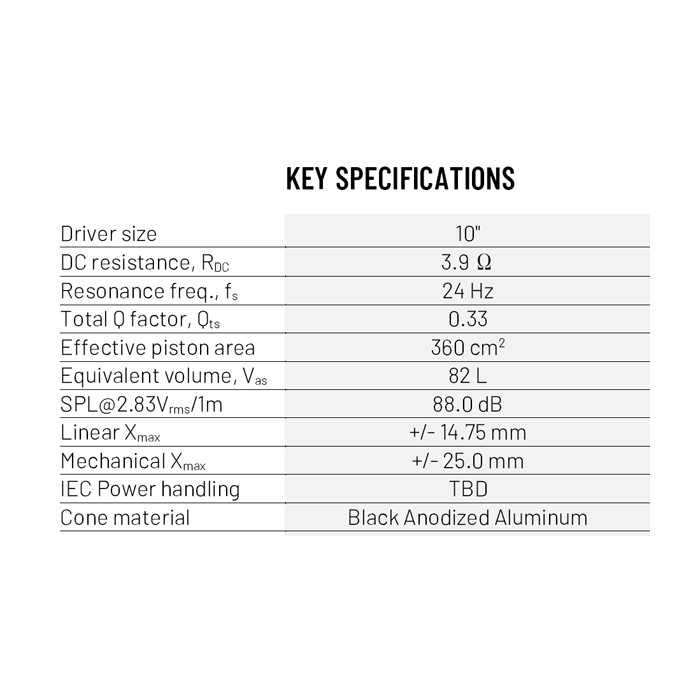

Diameter: 10"
Impedance: 4 Ω
Power: 250 W
Material: Aluminum

PURIFI PTT10.0X04-NAB-01

Download (3.09MB)

Summary

(1 Reviews)

Select a row below to filter reviews.

5

(1)
4

(0)
3

(0)
2

(0)
1

(0)

You cannot post a review because you are not logged as a customer

Sort By

Grade

Иван Г

09/09/2026

Verified Purchaser

Неверятен говорител! Свири чудесно до 800хц. Има защо да е толкова пари. Неприятното е, че за да се ползва в подходяща система изисква переферия на същото ниво за да има смисъл.

Recommended to buy: Yes
