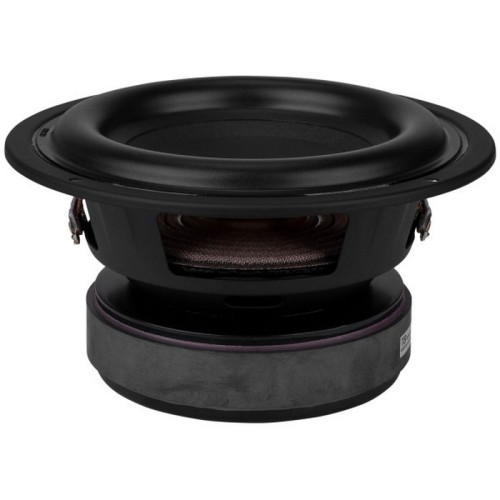

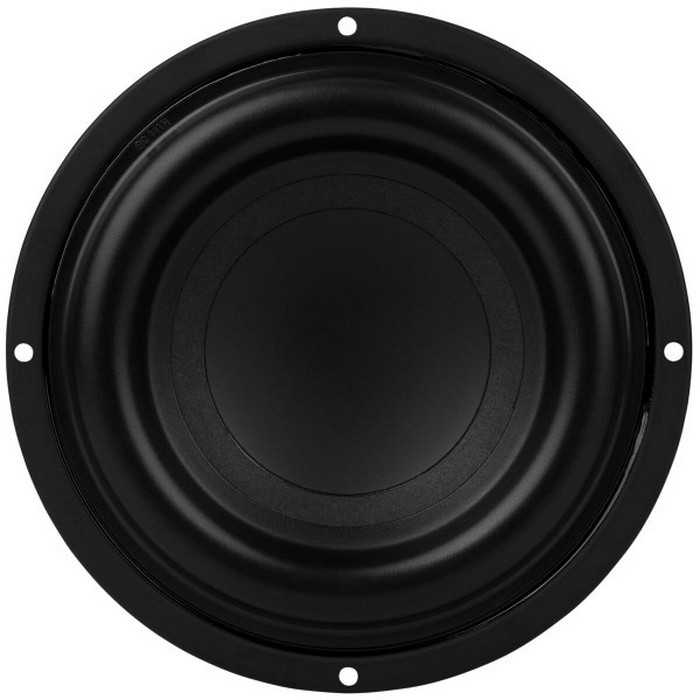

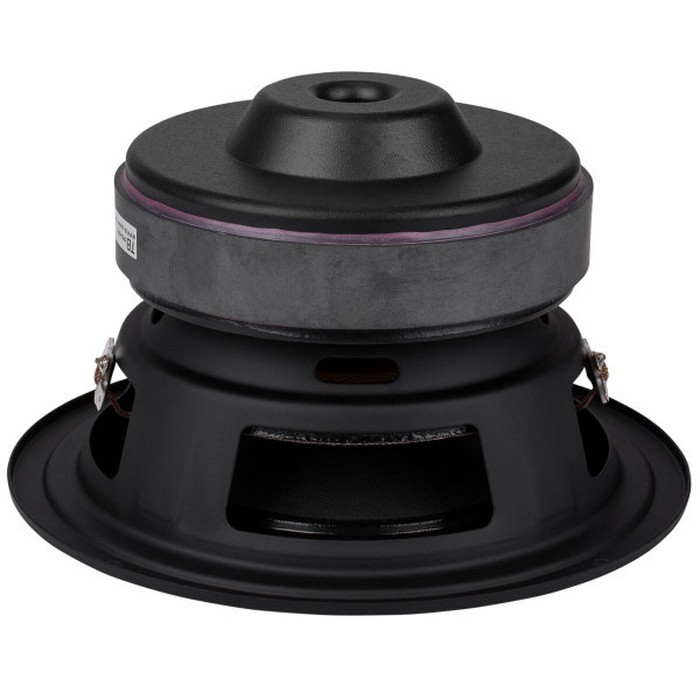

Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker
Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker

Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker

PROD195
4 pcs.
In Stock
€ 117.09
Tax included

The Tang Band W6-1139SIF 6-1/2" driver will surprise and impress when installed in subwoofer systems for compact home theater systems, multimedia setups, and mobile audio installations.

Key Features

  • 11.5 mm xmax, amazing low frequency capability for a driver this small!
  • Wide half-roll surround, raised flat spider, and large 1-1/2" 4-layer voice coil ensure exceptional output
  • Vented pole piece and vented spider promote voice coil cooling
  • Features a rugged stamped steel basket and bumped back plate
(0)
6.5" | 4 Ω | 50 W

Brand



Resonant frequency fS 35 Hz

Electrical Q QES 0.47

Mechanical Q QMS 2.65

Total Q factor QTS 0.40

Suspension equivalent air volume VAS 11.78 litres

DC resistance RE 3.6 Ω

Maximum impedance Zmax 39.0 Ω

Voice coil inductance LE 0.47 mH

Force factor B·l 8.47 T·m

Suspension mechanical resistance RMS 3.3 N·s/m

Suspension mechanical compliance CMS 599 µm/N

Moving mass MMD 38.6 g

Moving mass (including airload) MMS 39.91 g

Surface of the diaphragm SD 140 cm²

Effective diaphragm diameter Ø 13.4 cm

Maximum linear excursion Xmax ± 11.5 mm

Displacement volume at Xmax VD 161 cm³

Efficiency η₀ 0.1 %

Efficiency bandwidth product EBP 74

Diameter
6.5"
Impedance
4 Ω
Power
50 W
Material
Metal
Paper
