Monacor SPH-300TC
Monacor SPH-300TC
Monacor SPH-300TC
Monacor SPH-300TC
Monacor SPH-300TC
Monacor SPH-300TC

Monacor SPH-300TC

PROD229
2 pcs.
In Stock
€ 278.66
Tax included

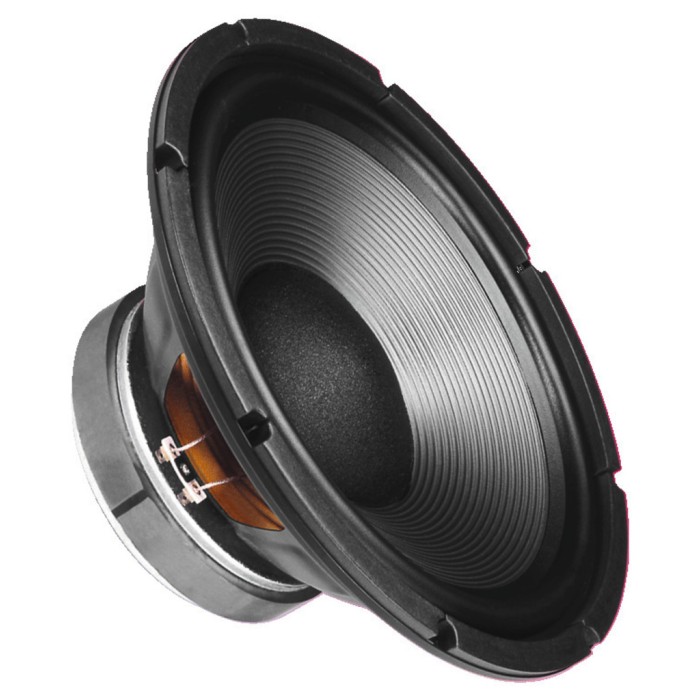

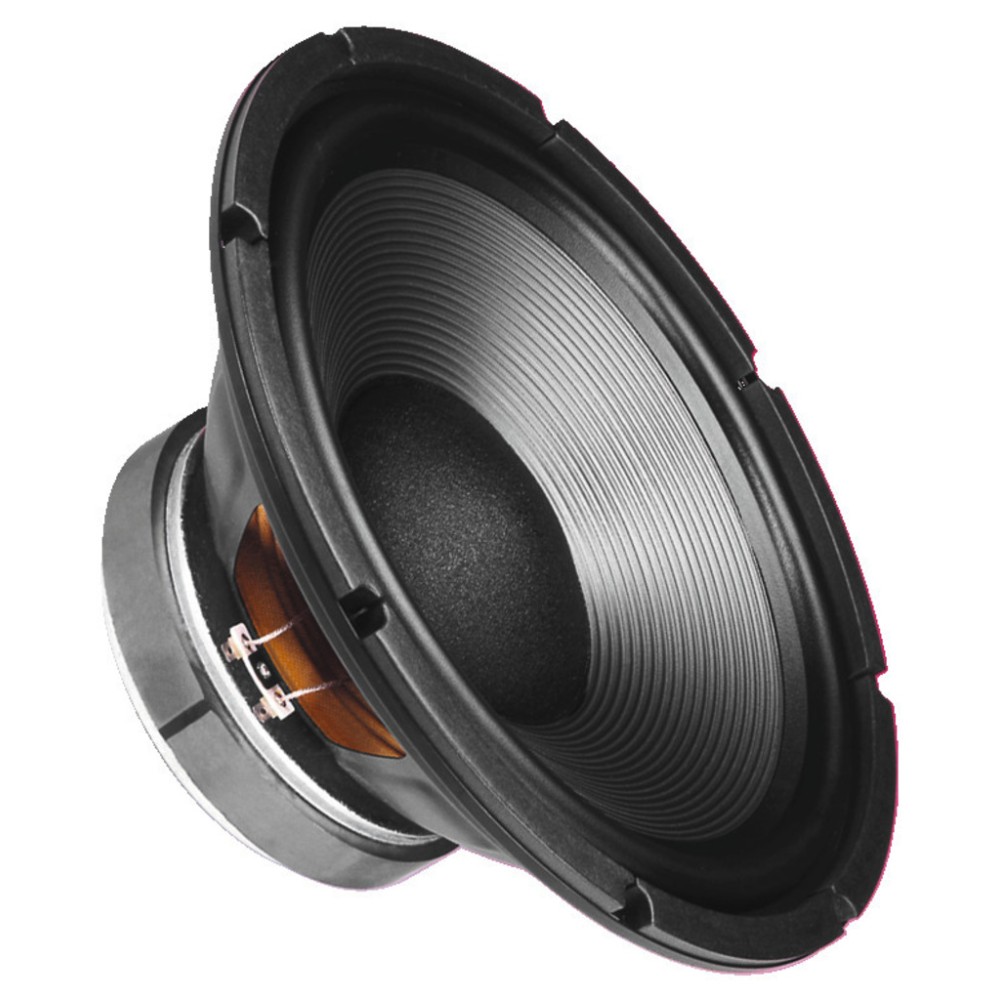

SPH-300TC

  • Hi-fi subwoofer, 2 x 120 W, 2 x 8 Ω
  • Stabilised polypropylene cone
  • Dual voice coil
  • Perfect parameters for a deep bass reproduction in compact bass-reflex cabinets and band-pass cabinets
  • For any hi-fi, home cinema and car hi-fi application of high requirements
(0)
12" | 2x8

Brand



Technical specifications SPH-300TC

  • SPH-300TC
  • Impedance (Z) 2 x 8 Ω
  • Frequency range f3-2,000 Hz
  • Resonant frequency (fs) 23 Hz
  • Power rating (RMS) 2 x 120 W
  • Peak music power output (MAX) 2 x 250 W
  • SPL 91 dB/W/m
  • Suspension compl. (Cms) 0.85 mm/N
  • Moving mass (Mms) 68 g
  • Mech. Q factor (Qms) 3.03
  • Electr. Q factor (Qes) 0.26
  • Total Q factor (Qts) 0.24
  • Equivalent volume (Vas) 290 l
  • DC resistance (Re) 2 x 6.3 Ω/3.2 Ω
  • Force factor (BxL) 10.30 Tm
  • Voice coil induct. (Le) 2 x 1.0 mH/1.0 mH
  • Voice coil diameter Ø 50 mm
  • Voice coil former
  • Linear excursion (XMAX) ± 4 mm
  • Eff. cone area (Sd) 495 cm2
  • Magnet weight 1.4 kg
  • Magnet diameter Ø 156 mm

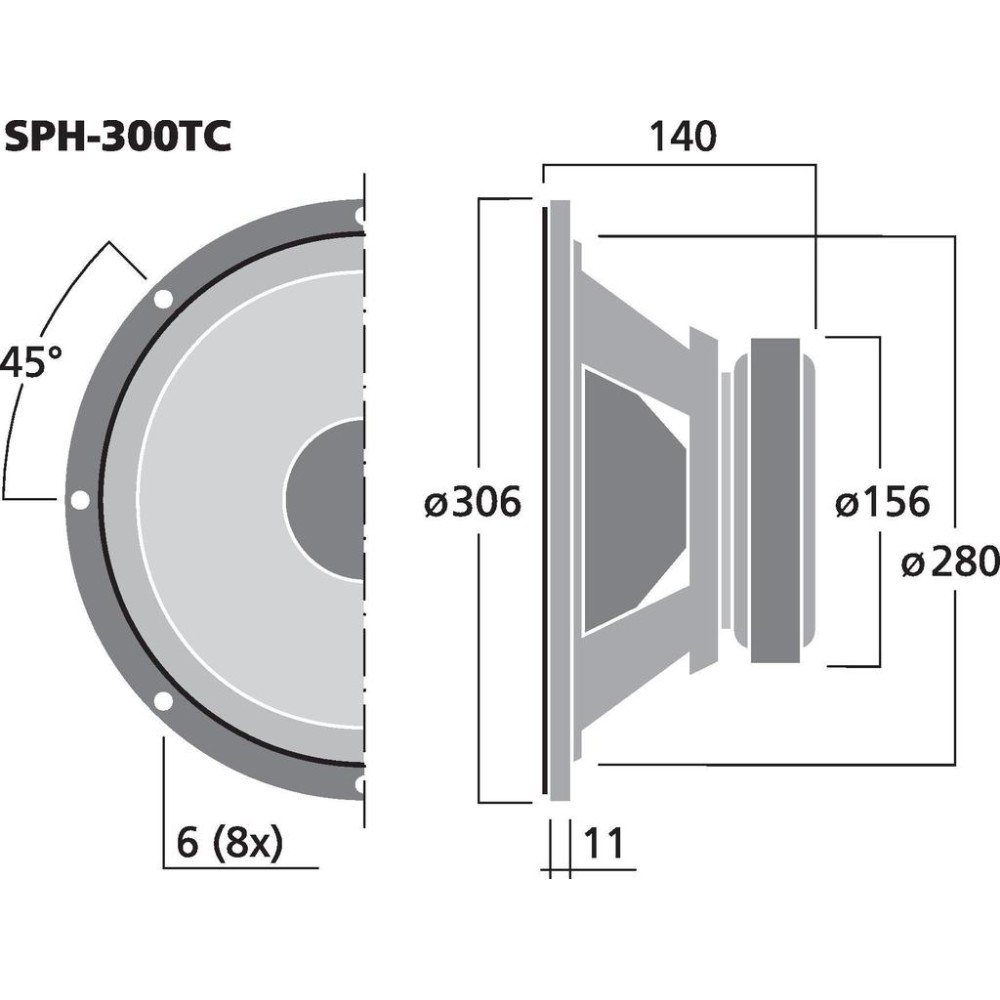

  • Mounting cutout Ø 280 mm
  • Mounting depth 129 mm
  • Dimensions Ø 306 mm x 140 mm
  • Outside diameter Ø 306 mm
  • Width Ø 306 mm
  • Depth 140 mm
  • Colour black
  • Admiss. ambient temp. 0-40 °C
  • Weight 4.245 kg
  • Packing unit 1
  • Type of speaker 12"
  • Packing dimensions (W x H x L) 0.32 x 0.17 x 0.32 m
  • Gross weight 4.72 kg
  • Net weight 4.245 kg
Diameter
12"
Impedance
2x8
