PROD237
Temporarily out of stock
€ 149.00
Tax included

SPH-220HQ

High-quality hi-fi bass speaker, 100 W, 8 Ω

200 mm (8") bass speaker

  • Further development of the classic speaker SPH-212
  • Diecast basket
  • Rear-ventilated centering spider and drilled pole core for minimum mechanical loss
  • High-quality coated paper cone of low resonance
  • Low-loss rubber surround
  • Wide and linear radiation range

Ideally suited for 3-way systems and also suitable for traditional 2-way systems in an application range of up to 2,000 Hz and beyond

HOBBY HIFI 04/2013

“Excellent sound, powerful bass reproduction and good level stability. It features an outstanding frequency response with perfect linearity. The SPH-220HQ allows for an exceptionally efficient radiation and even the use of a first-order crossover network for an ideal sound.”

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)

Brand



Technical specifications SPH-220HQ

  • SPH-220HQ
  • Impedance (Z) 8 Ω
  • Frequency range f3-4,000 Hz
  • Resonant frequency (fs) 30 Hz
  • Power rating (RMS) 100 W
  • Peak music power output (MAX) 180 W
  • SPL 90 dB/W/m
  • Suspension compl. (Cms) 1.06 mm/N
  • Moving mass (Mms) 24.7 g
  • Mech. Q factor (Qms) 3.06
  • Electr. Q factor (Qes) 0.46
  • Total Q factor (Qts) 0.40
  • Equivalent volume (Vas) 80 l
  • DC resistance (Re) 6.1 Ω
  • Force factor (BxL) 7.63 Tm
  • Voice coil induct. (Le) 0.9 mH
  • Voice coil diameter Ø 37 mm
  • Voice coil former
  • Linear excursion (XMAX) ± 5.5 mm
  • Eff. cone area (Sd) 232 cm2
  • Magnet weight 550 g

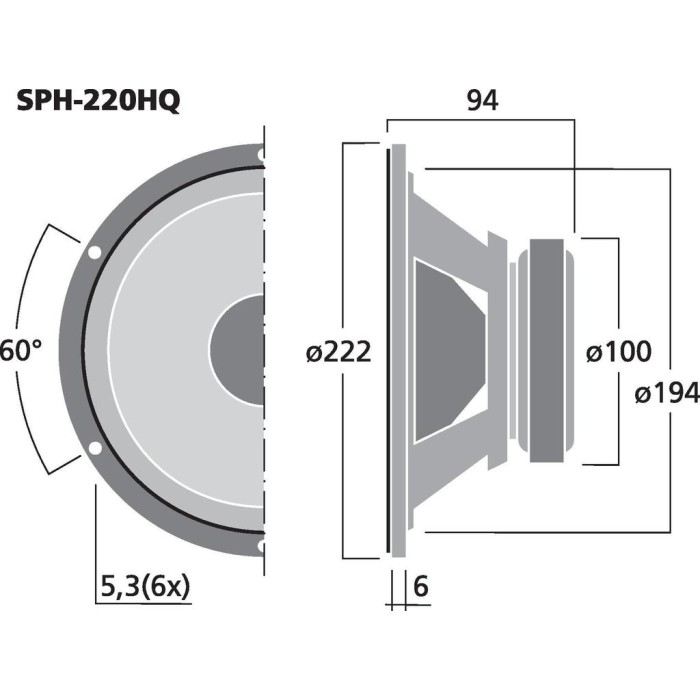

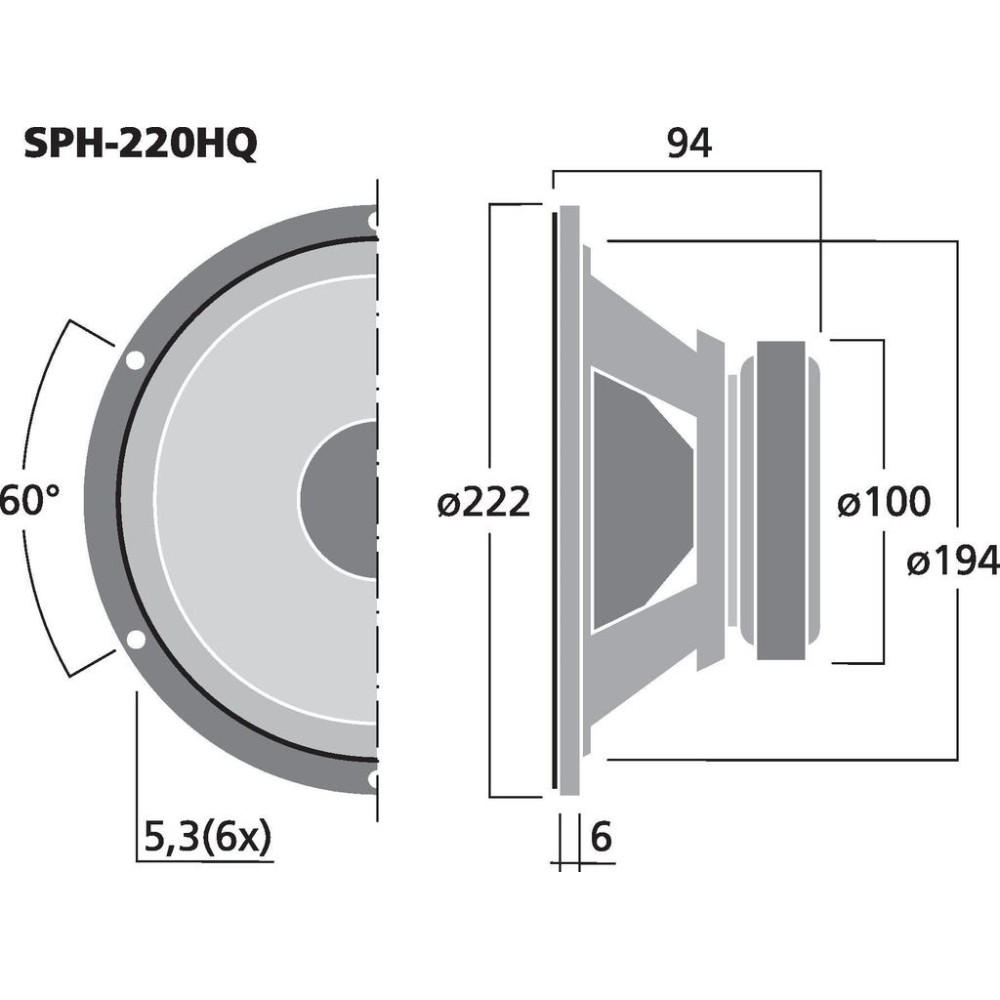

  • Magnet diameter Ø 100 mm
  • Mounting cutout Ø 194 mm
  • Mounting depth 88 mm
  • Mounting hole diameter Ø 212 mm
  • Dimensions Ø 222 mm x 94 mm
  • Outside diameter Ø 222 mm
  • Width Ø 222 mm
  • Depth 94 mm
  • Colour black
  • Admiss. ambient temp. 0-40 °C
  • Weight 1.83 kg
  • Packing unit 1
  • Type of speaker 8"
  • Packing dimensions (W x H x L) 0.25 x 0.18 x 0.25 m
  • Gross weight 2.25 kg
  • Net weight 1.834 kg
