SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm
SB Acoustics SW26SFC38-4 10" woofer 8 ohm

SB Acoustics SW26SFC38-4 10" woofer 8 ohm

IMPORTED_SB_ACOUSTIC_76
Temporarily out of stock
€ 93.57
Tax included
  • Shallow light weight design
  • Hard pressed vented paper cone (made in-house)
  • Inverted low damping rubber surround
  • Symmetric suspension
  • Stacked neodymium motor with built-in soft limiting
  • Non-conducting fiber glass coil former
  • long life lead wires

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)
10" | 8 Ω | 80 W

Brand


  • Nominal impedance, 8 Ω
  • DC resistance, Re 6.0 Ω
  • Voice coil inductance, Le 1.38 mH
  • Effective piston area, Sd 340 cm2
  • Voice coil diameter 38.5 mm
  • Voice coil height 16 mm
  • Air gap height 9 mm
  • Linear coil travel (p-p) 7 mm
  • Magnetic flux density 0.72 T
  • Magnet weight 0.1 kg
  • Net weight 0.94 kg
  • Free air resonance, Fs 28.5 Hz
  • Sensitivity (2.83 V / 1 m) 89 dB
  • Mechanical Q-factor, Qms 5.18
  • Electrical Q-factor, Qes 0.38
  • Total Q-factor, Qts 0.35
  • Moving mass incl.air, Mms 63.7 g
  • Force factor, BI 13.5 Tm
  • Equivalent volume, Vas 80 liters
  • Compliance, Cms 0.49 mm/N
  • Mechanical loss, Rms 2.2 kg/s
  • Rated power handling* 80 W

* IEC 268-5, T/S parameters measured on drive units that are broke in.

Diameter
10"
Impedance
8 Ω
Power
80 W
Series
SFC/Paper
Material
Metal
Paper

Summary

0

(0 Reviews)

Select a row below to filter reviews.

  • 5
    (0)
  • 4
    (0)
  • 3
    (0)
  • 2
    (0)
  • 1
    (0)
You cannot post a review because you are not logged as a customer

Log in / sign up
Sort By

No customer reviews for the moment.

More products from this categoty:

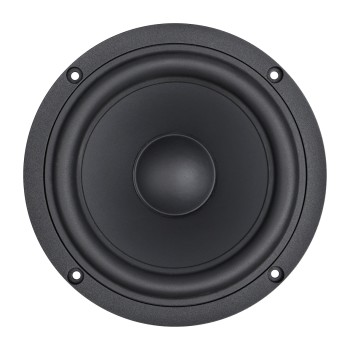

Monacor SPH-170 Monacor SPH-170 2
