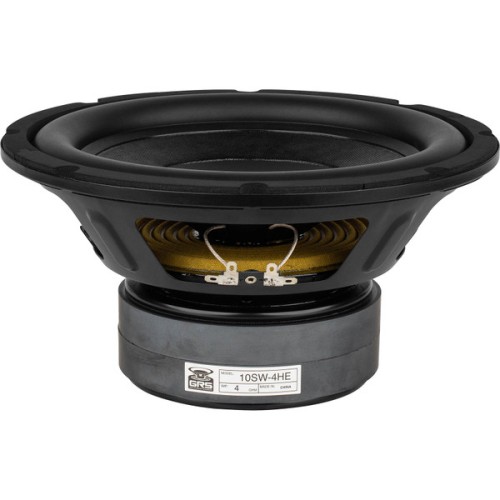

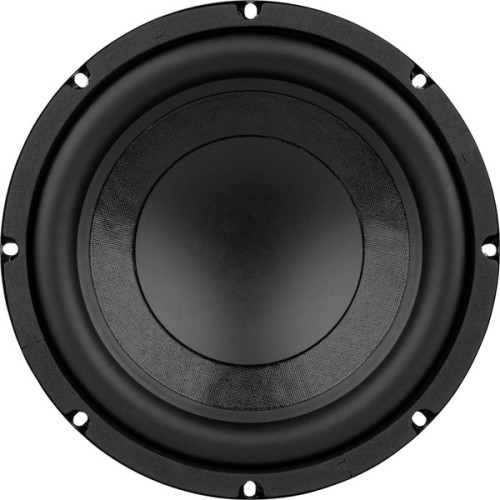

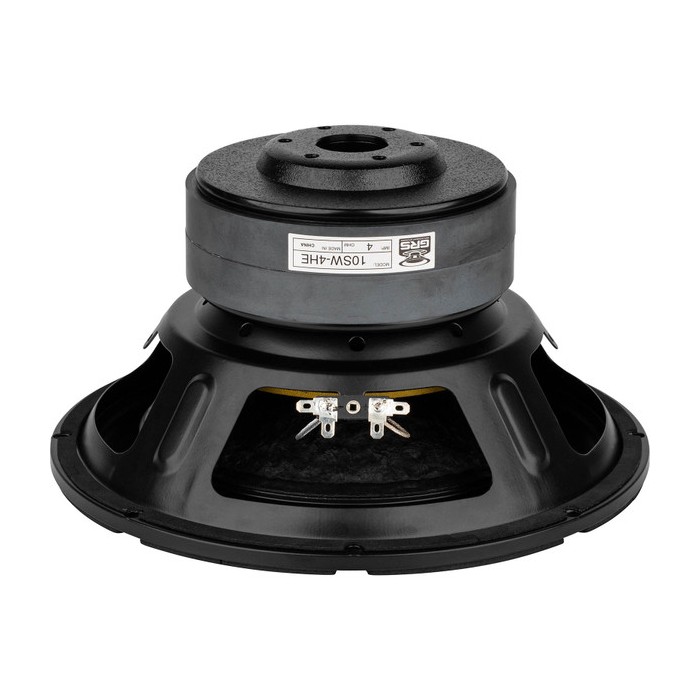

GRS 10SW-4HE-10" Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm

GRS 10SW-4HE-10" Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm

Name: GRS 10SW-4HE-10" Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
Brand: GRS
SKU: PROD187
Price: 89.48 EUR
Availability: InStock

Reference PROD187

In stock 1 pcs.

In Stock

€ 89.48

Tax included

Product description

The versatile 10SW-4HE 10” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 10.5 mm of excursion the 10SW-4HE is built for remarkable bass response on a budget.

Highlights

High excursion and low Fs to produce powerful low frequency output
2” voice coil on a thick aluminum former to handle up to 200 watts RMS
Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation
Durable reinforced paper cone with rubber surround produces reliable and consistent performance
Extended frame and bumped back plate allow ample clearance for high excursion

(0)

10" | 4 Ω | 200 W

Accents

High excursion and low Fs to produce powerful low frequency output

2” voice coil on a thick aluminum housing to handle up to 200 watts RMS

Ventilation under the spider, through the pole piece and in the magnetic gap for excellent heat dissipation

Durable reinforced paper cone with rubber cover ensures reliable and consistent performance

The elongated frame and protruding rear area allow enough clearance for a large deflection

Product information

GRS 10SW-4HE 10" high excursion 4 ohm subwoofer

The GRS 10SW-4HE 10” High Excursion Subwoofer from GRS is an ideal driver to replace existing subwoofer systems or an excellent choice for new budget designs. Capable of producing powerful bass response in both sealed and vented designs, the 10SW-4HE is suitable as a replacement for most existing 10-inch subwoofers.

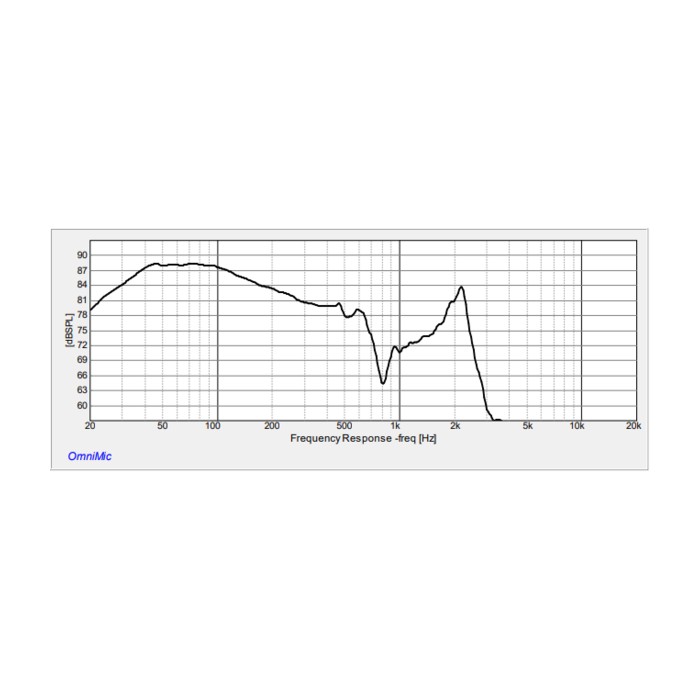

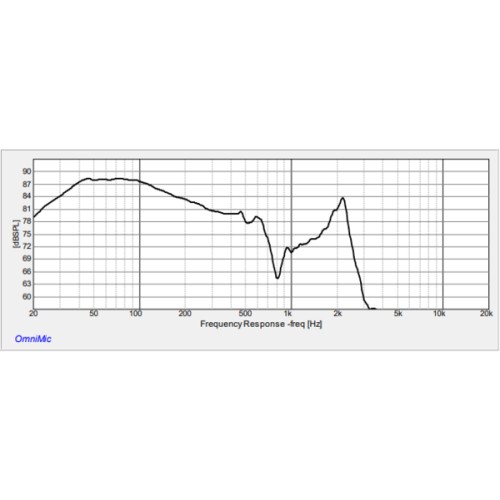

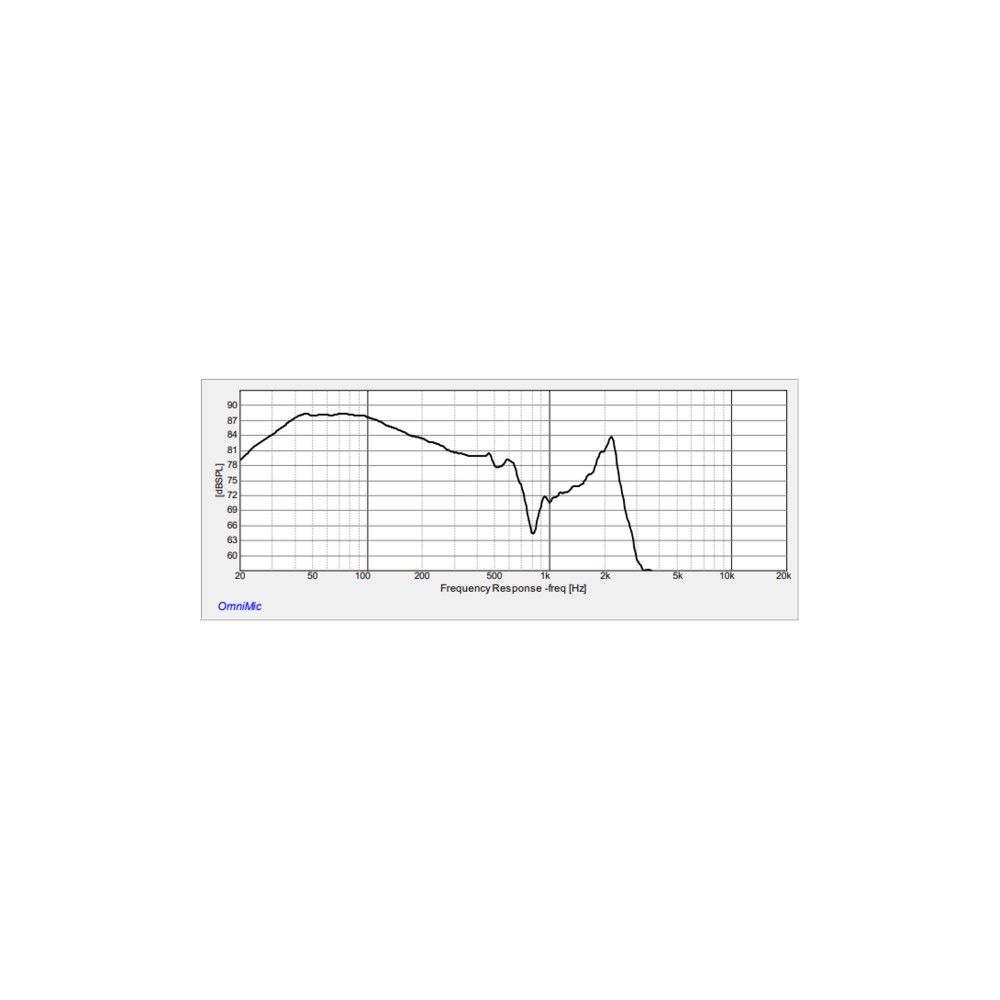

Frequency response and impedance curve

The GRS 10SW-4HE has a bass-centric response from 20Hz to 800Hz and is highly efficient in its passband. This efficiency and low QTS holds up well on both vented and sealed subwoofers for incredibly deep bass from a 10-inch driver.

Extensive ventilation through the frame, pole piece and magnetic gap through the dissipated heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber jacket to maintain linear deflection while providing reliable operation. With a high temperature 2” voice coil wound on a thick aluminum housing, the 10SW-4HE can comfortably handle up to 200 watts RMS power.

Product Specifications

Nominal Diameter 10"

Bolt Circle Diameter 9.64

Power Handling (RMS) 200 Watts

Power Handling (MAX) 400 Watts

Impedance 4Ω

Frequency Response 26 to 500Hz

Sensitivity 87.5dB 2.83V/1m

Voice Coil Diameter 2"

Thiele-Small Parameters

Resonant Frequency (Fs) 25.2Hz

DC Resistance (Re) 3.8Ω

Voice Coil Inductance (Le) 3mH

Mechanical Q (Qms) 4

Total Q (Qts) 0.5

Compliance Equivalent Volume (Vas) 2.14ft³

Mechanical Compliance of Suspension (Cms) 0.36mm/N

BL Product (BL) 10.8T·m

Diaphragm Mass Inc. Airload (Mms) 110.7g

Maximum Linear Excursion (Xmax) 11mm

Surface Area of Cone (Sd) 346.4cm²

Materials of Construction

Cone Material Coated Paper

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Basket / Frame Material Steel

Magnet Material Ferrite

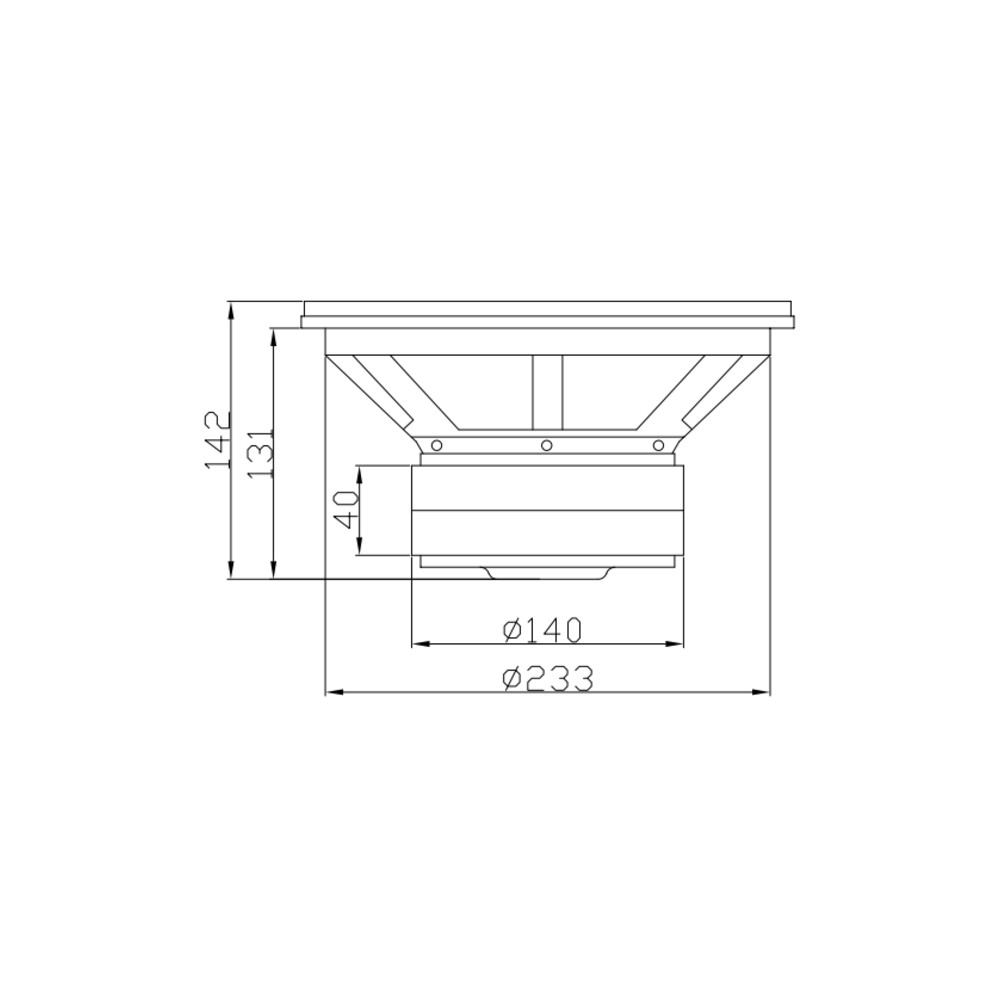

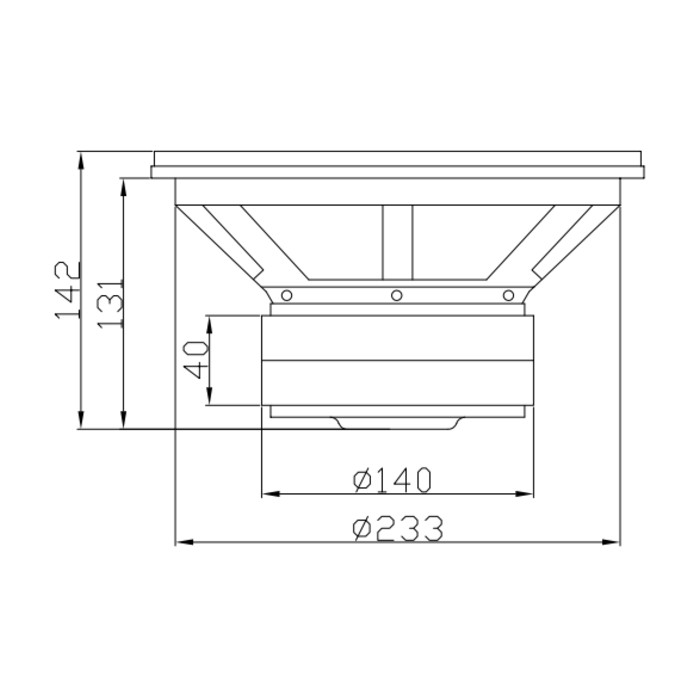

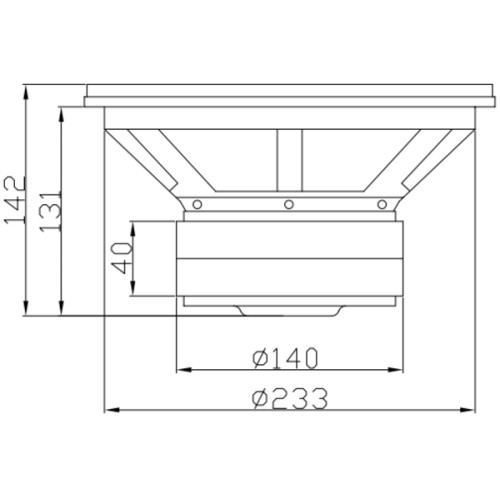

Mounting Information

Overall Outside Diameter 10.11"

Baffle Cutout Diameter 9.18"

Depth 5.15"

# Mounting Holes 8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume 1ft³

Sealed F3 43Hz

Vented Volume 2ft³

Vented F3 25Hz

Diameter: 10"
Impedance: 4 Ω
Power: 200 W
Material: Paper

GRS 10SW-4HE

Download (594.95KB)
