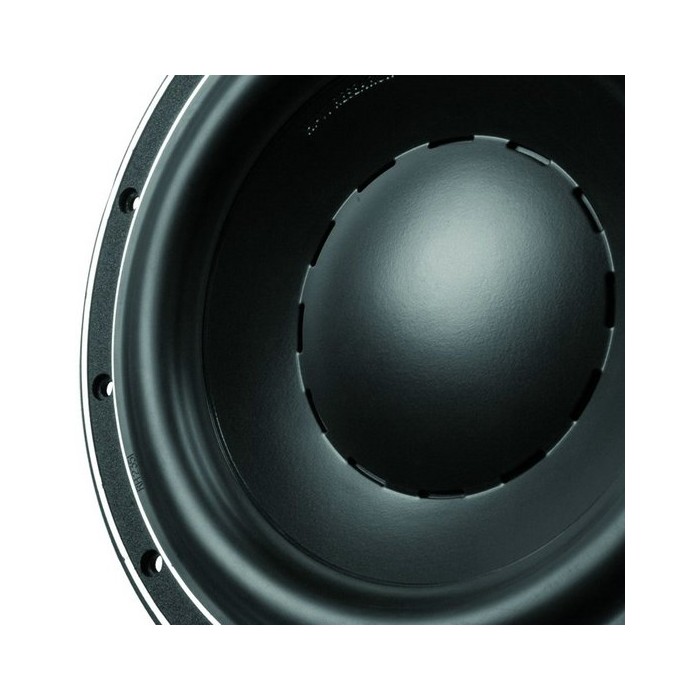

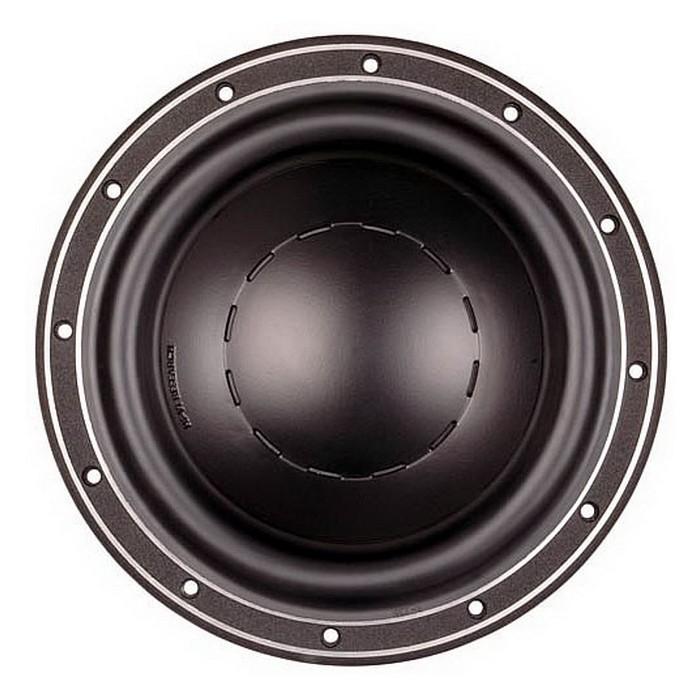

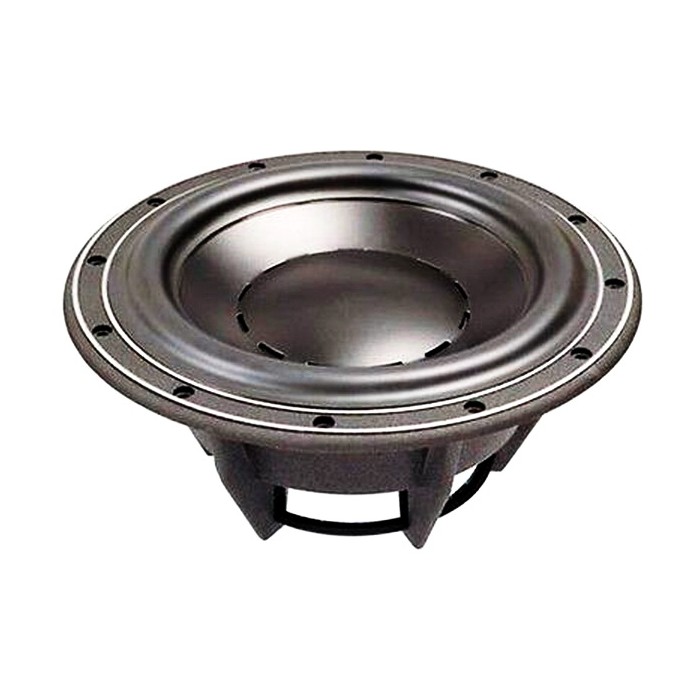

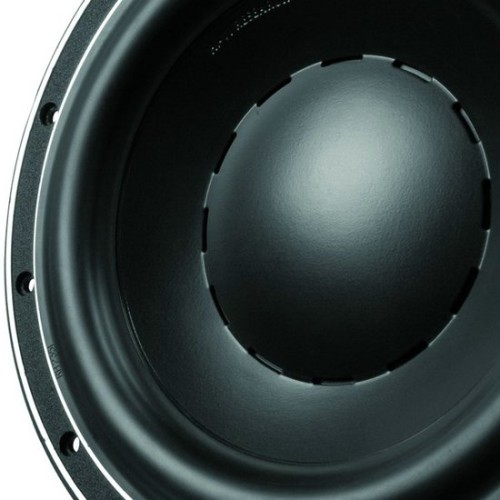

HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass
HiVi D8.8+ Poly Shielded Midbass

HiVi D8.8+ Poly Shielded Midbass

PROD66
6 pcs.
In Stock
€ 215.00
Tax included

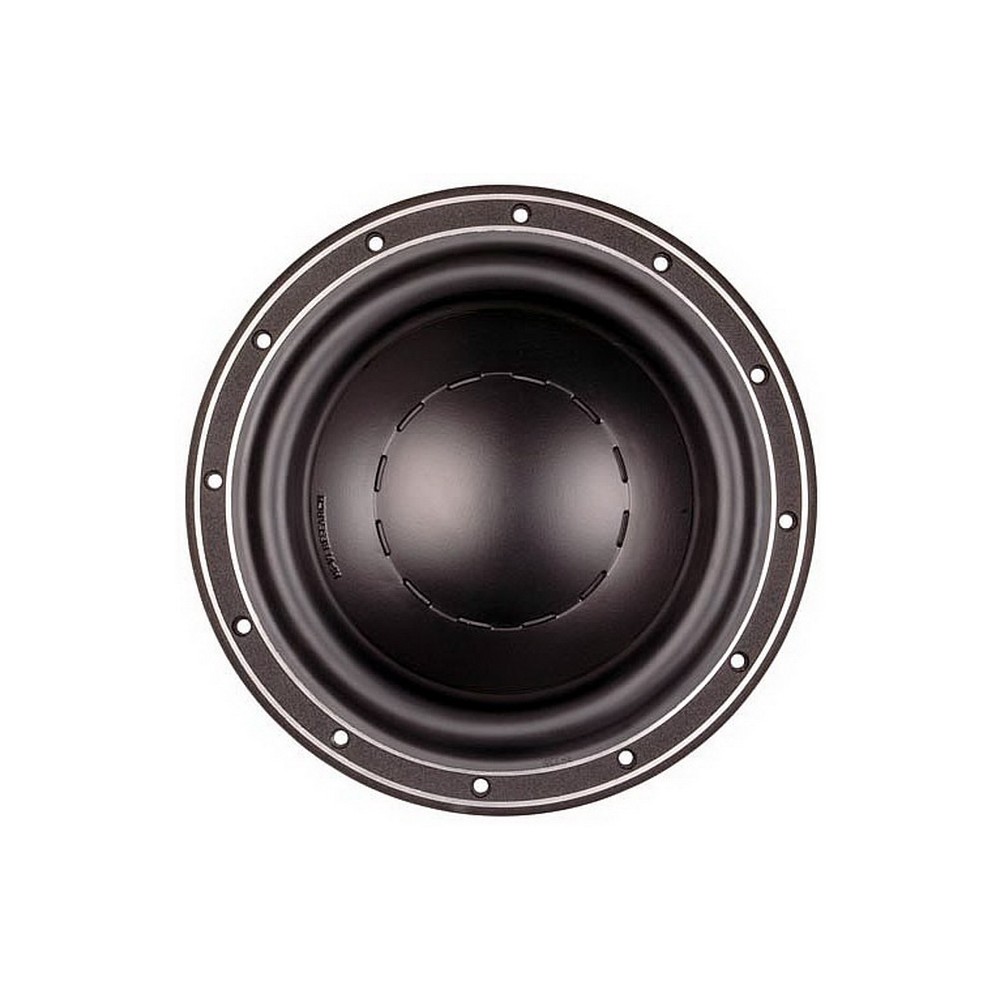

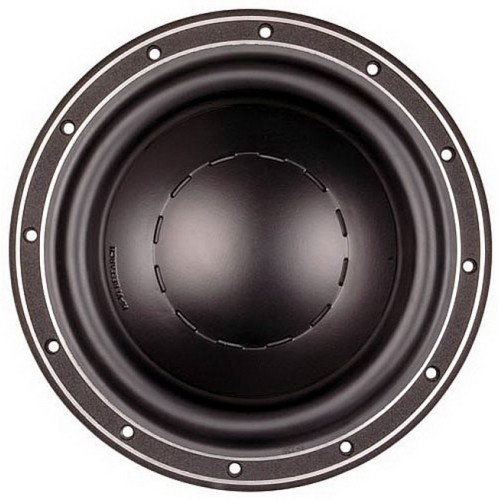

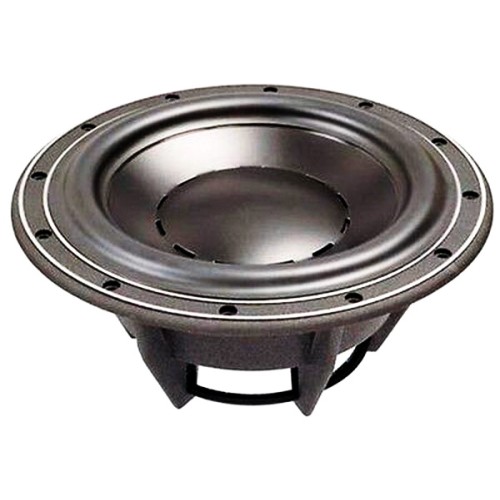

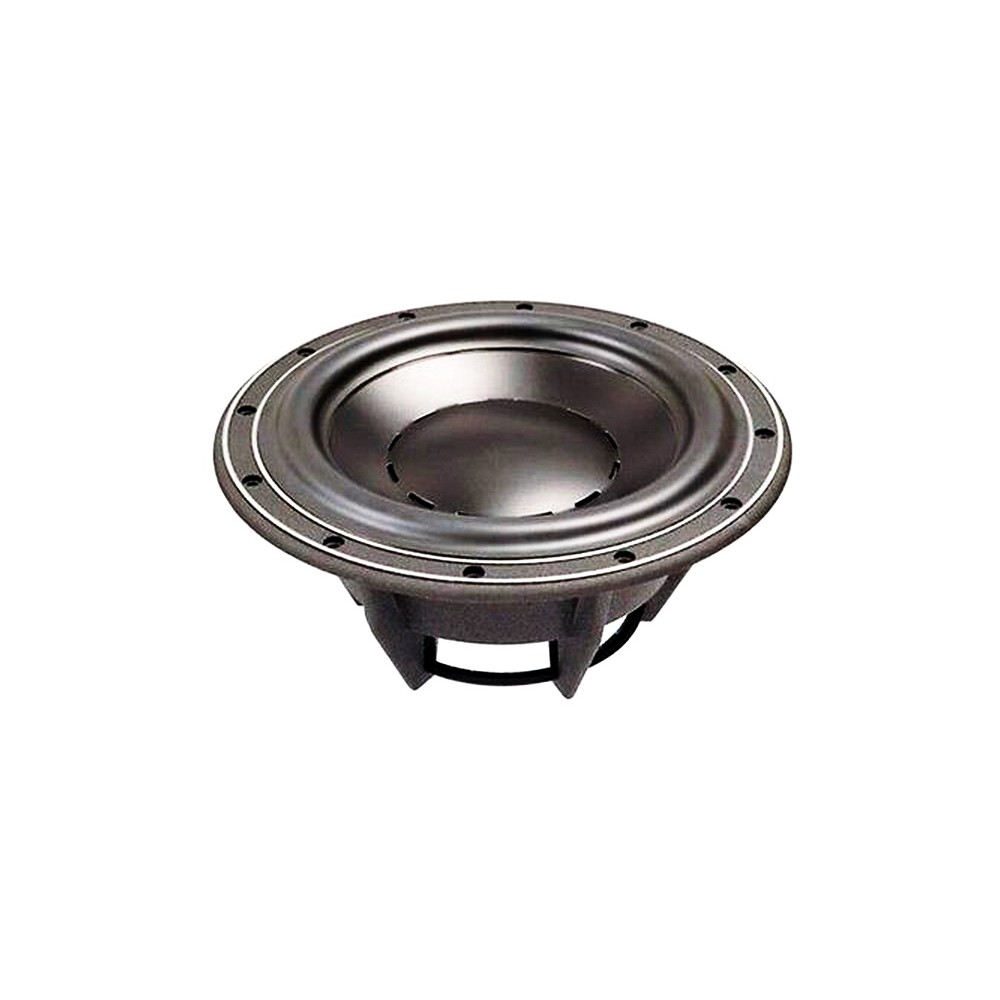

The HiVi D8.8+ is an excellent 8" woofer for high power "no compromise" audiophile speaker systems. It may also be used as a subwoofer in various configurations.

Key Features

  • Shallow mineral-filled polypropylene cone
  • Fatigue resistant rubber surround
  • Shielded vented magnet system with a huge neodymium magnet
  • Long-throw symmetrically driven motor structure
  • Extreme power handling voice coil with a 100 mm black anodized aluminum former
  • High density aluminum die-cast frame
  • Progressive spider with decompressed rear volume
Quantity Unit discount You Save
4 16% € 137.60
6 20% € 258.00

(0)
9" | 8 Ω | 150

Brand



Specifications

  •  Nominal Impedance (Z)(Ω) : 8
  •  Resonance Frequency (Fs)(Hz) : 31
  •  Nominal Power Handling (Pnom)(W) : 150
  •  Max Power Handling(Pmax)(W) : 300
  •  Sensitivity (2.83v/1m)(dB) : 86
  •  Weight (M)(Kg) : 4.2
  •  VC Diameter (mm) : 100
  •  DC (Re)(Ω) : 6.5
  •  VC Length (H)(mm) : 23
  •  VC Former : CCAW
  •  VC Frame : Kapton
  •  Magnet System : Inside
  •  Magnet Former : Neodymium
  •  Force Factor (BL)(N/A) : 13.3
  •  Gap Height (He)(mm) : 8
  •  Linear Excursion (Xmax)(mm) : 7.5
  •  Suspension Compliance (Cms)(uM/N) : 425
  •  Mechanical Q (Qms) : 6.16
  •  Electrical Q (Qes) : 0.44
  •  Total Q (Qts) : 0.4
  •  Moving Mass (Mms)(g) : 62.7
  •  Effective Piston Area (Sd)(m2) : 0.0241
  •  Equivalent Air Volume (Vas)(L) : 34.9
  •  Cabinet Type : Vented
  •  Recommended Box Volume(Vb)(L) : 40
  •  Tuning Frequency(Fb)(Hz) : 30
  •  -3dB Cut-Off Frequency(F3)(Hz) : 28
Diameter
9"
Impedance
8 Ω
Power
150
Series
HIVI D
Material
Aluminum
Polypropylene
