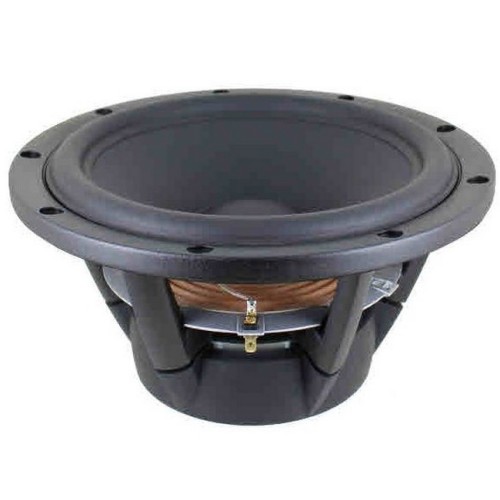

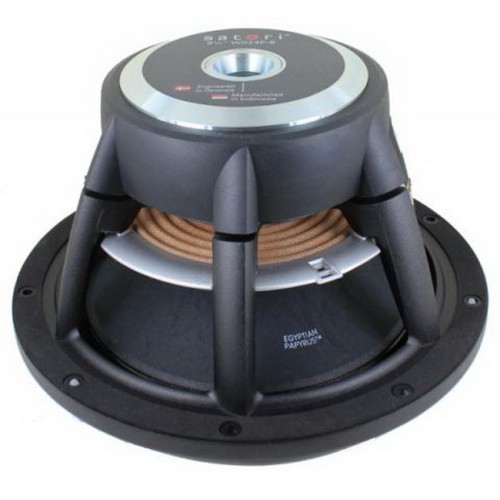

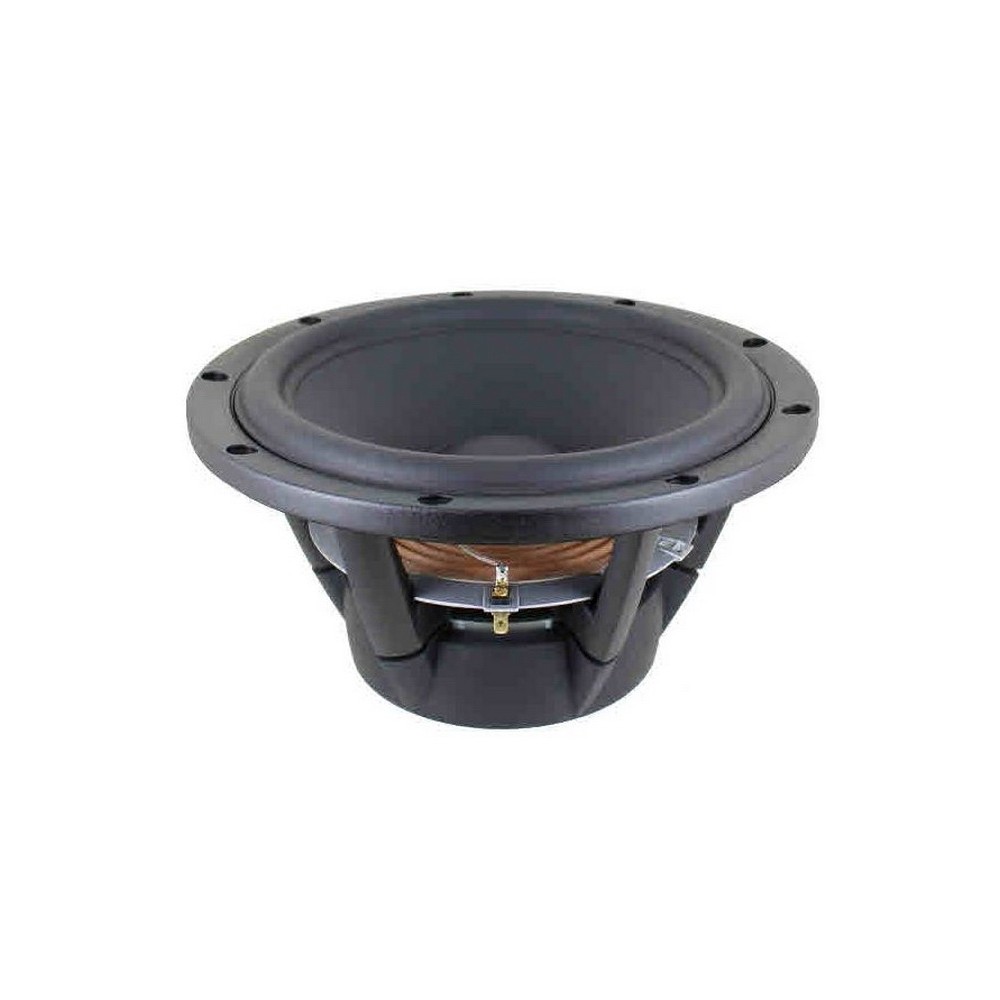

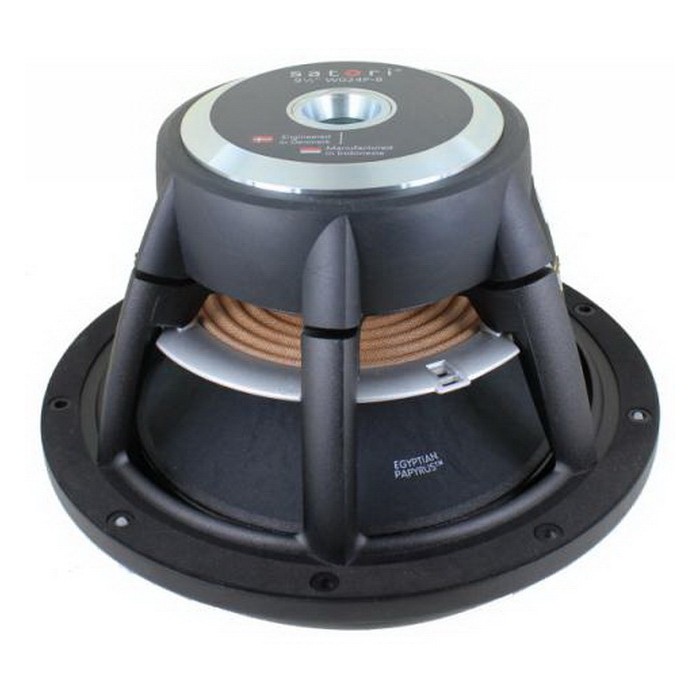

SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer
SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer

SB Acoustics SATORI WO24P-8 9½″ Egyptian Papyrus Cone Wоofer

IMPORTED_SB_ACOUSTIC_132
2 pcs.
In Stock
€ 235.00
Tax included
  • Hard paper cone for improved piston operation (made in-house)
  • Large optimized motor system with under-cut pole piece and dual shorting rings
  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Soft low damping rubber surround for optimum transient response
  • Linear symmetric suspension design for improved dynamic performance
  • Non-conducting fibre glass voice coil former for minimum damping
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece for reduced compression
  • Low piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
Quantity Unit discount You Save
3 10% € 70.50
6 15% € 211.50
8 20% € 376.00

9.5" | 8 Ω | 90 W

Brand


  • Nominal Impedance 8 Ω
  • DC resistance, Re 5.8 Ω
  • Voice coil inductance, Le 0.56 mH
  • Effective piston area, Sd 255 cm2
  • Voice coil diameter 49.5 mm
  • Voice coil height 23 mm
  • Air gap height 6 mm
  • Linear coil travel (p-p) 17 mm
  • Magnetic flux density 1.1 T
  • Magnet weight 1.36 kg
  • Net weight 3.7 kg
  • Free air resonance, Fs 24.5 Hz
  • Sensitivity (2.83V/1m) 88 dB
  • Mechanical Q-factor, Qms 5.7
  • Electrical Q-factor, Qes 0.41
  • Total Q-factor, Qts 0.38
  • Moving mass incl. air,Mms 44.5 g
  • Force factor, Bl 9.9 Tm
  • Equivalent volume, Vas 87.5 liters
  • Compliance, Cms 0.95 mm/N
  • Mechanical loss, Rms 1.2 kg/s
  • Rated power handling* 90 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

Diameter
9.5"
Impedance
8 Ω
Power
90 W
Series
SATORI
Material
Aluminum
Egyptian Papyrus

Summary

5

(1 Reviews)

Select a row below to filter reviews.

  • 5
    (1)
  • 4
    (0)
  • 3
    (0)
  • 2
    (0)
  • 1
    (0)
You cannot post a review because you are not logged as a customer

Log in / sign up
Sort By
Grade
09/26/2026

Nice woofer that works well in both closed and vented boxes. Quality of manufacturing is high and consistent unit to unit specifications.

Recommended to buy: Yes
