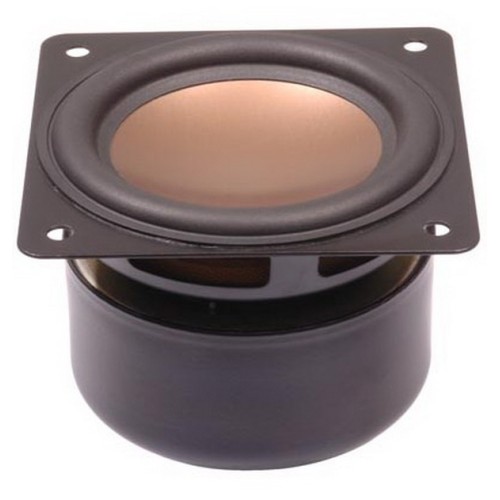

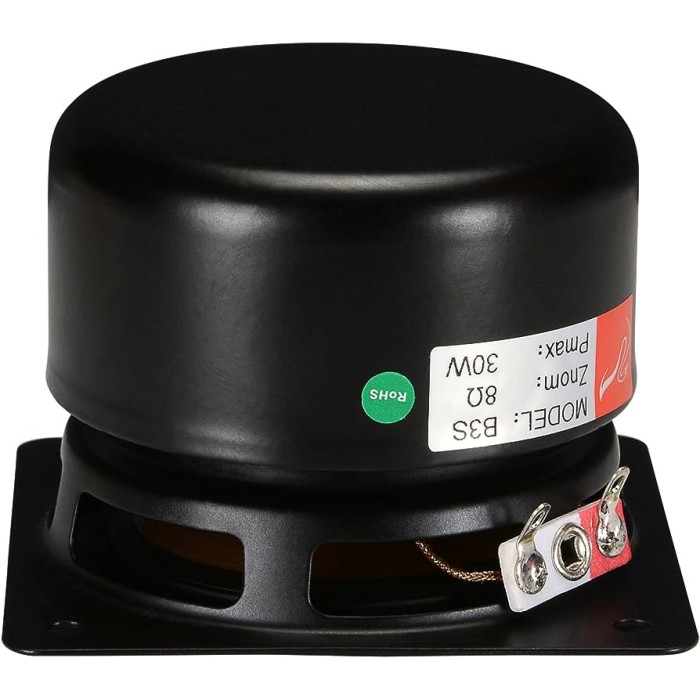

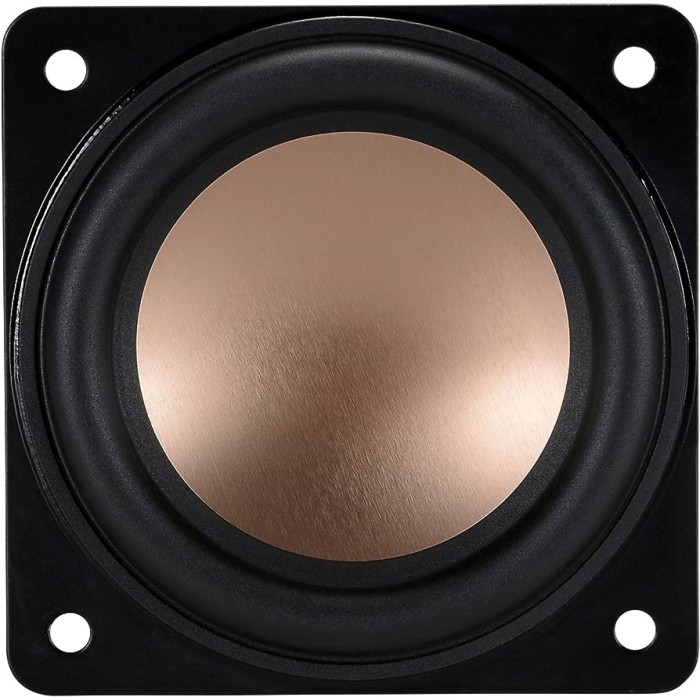

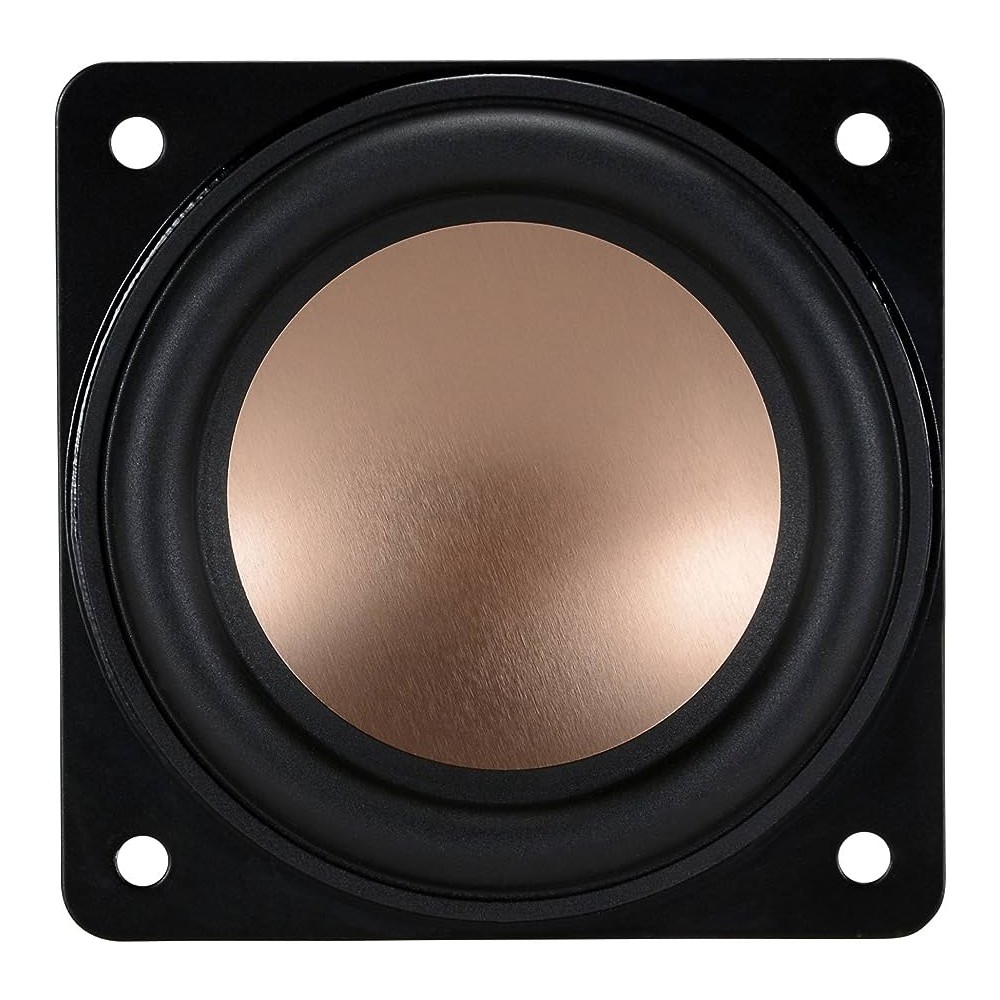

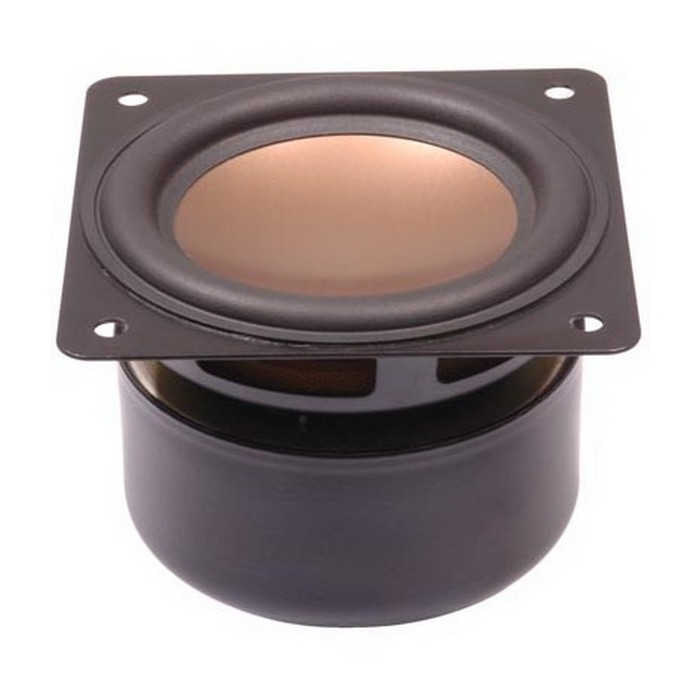

HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone
HIVI B3S Full Range, Copper Color Cone

HIVI B3S Full Range, Copper Color Cone

PROD164
60 pcs.
In Stock
€ 19.94
Tax included

Characteristics

  •    Nominal Impedance (Z)(Ω): 8
  •    Resonant Frequency (Fs)(Hz): 100
  •    Rated power (Pnom)(W): 15
  •    Maximum power (Pmax) (W): 30
  •    Sensitivity (2.83v/1m)(dB): 82
  •    Weight (M) (Kg): 0.53
  •    VC diameter (mm): 20
  •    DC (Re)(Ω): 6.5
  •    VC Length (H) (mm): 9
  •    VC Former : SV
  •    VC frame: Kapton
  •    Magnetic system: shielded
  •    Magnet former: ferrite
  •    Force Factor (BL) (N/A): 3.06
  •    Gap Height (He) (mm): 3
  •    Linear deviation (Xmax) (mm): 3
  •    Suspension Compliance (Cms) (uM/N): 920
  •    Mechanical Q (Qms): 3.75
  •    Electrical Q (Qes): 1.15
  •    Total Q (Qts): 0.88
  •    Rolling mass (Mms) (g): 2.6
  •    Effective piston area (Sd)(m2): 0.003
  •    Equivalent air volume (Vas)(L): 1.19
  •    Cabinet Type: Sealed
  •    Recommended box volume (Vb) (L): 2
  •    Tuning Frequency (Fb) (Hz): ---
  •    -3dB Cutoff Frequency (F3)(Hz): 80
Quantity Unit discount You Save
6 10% € 11.96
8 15% € 23.93

(0)
3" | 8 Ω | 15 W

Brand


Diameter
3"
Impedance
8 Ω
Power
15 W
Series
HIVI M
Material
Aluminum
Magnesium
