PROD136
6 pcs.
In Stock
€ 29.14
Tax included

Quick Overview

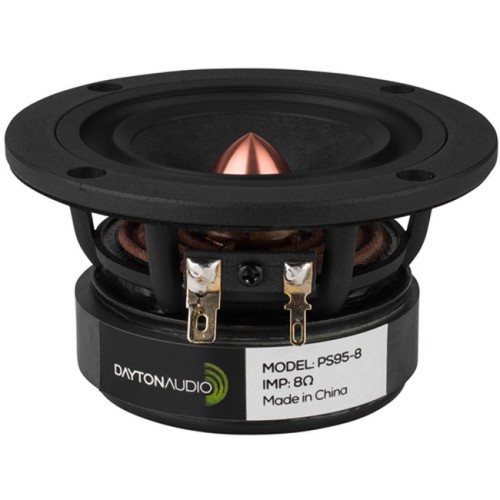

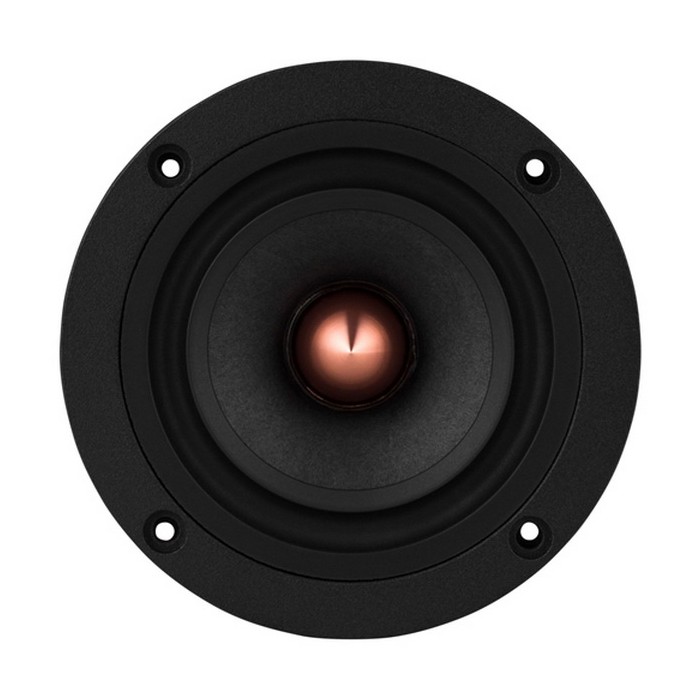

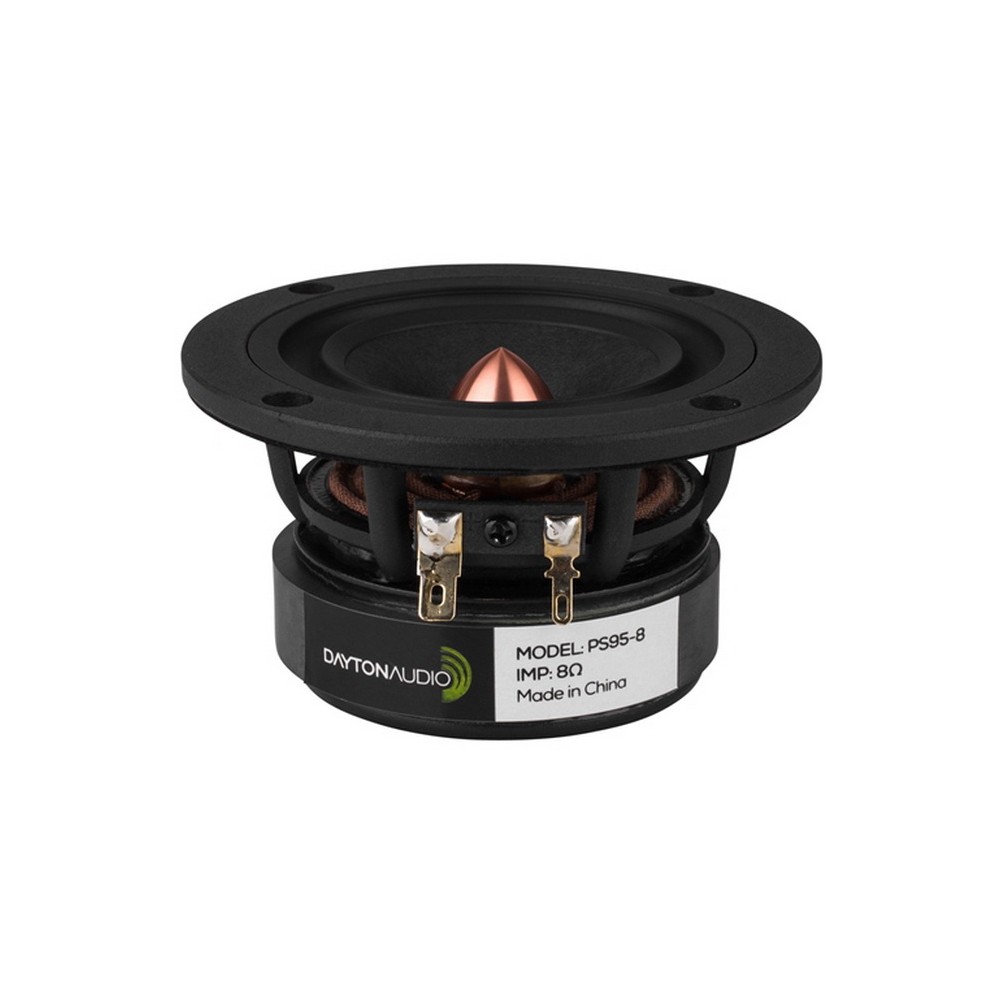

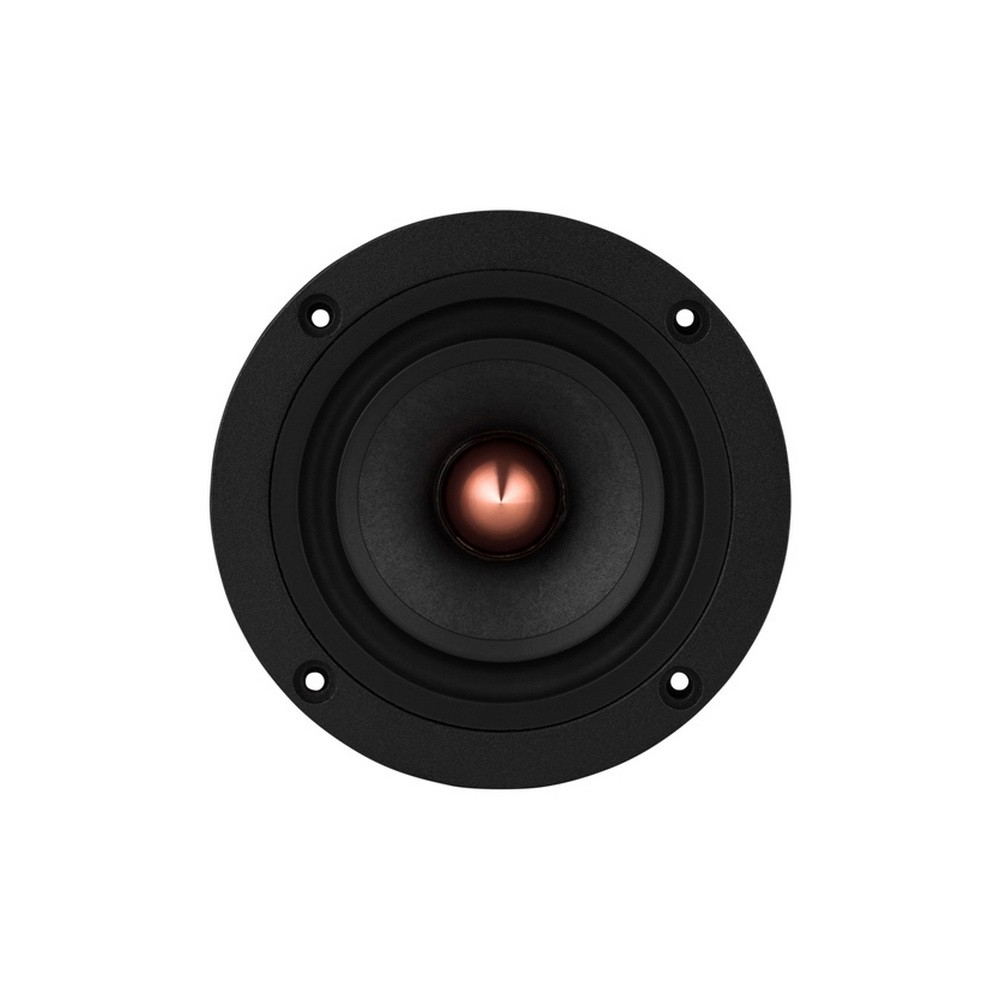

Dayton Audios PS95-8 3-1/2" point source full-range driver delivers the full spectrum of sound – including clear, natural highs – with excellent detail and articulation. No tweeter required!

Product Highlights

  • Detailed, natural sounding full-range audio performance without distortion
  • Classy copper-anodized phase plug spreads dispersion and avoids resonance
  • Non-resonant cast frame enhances clarity and dynamics
  • Low-mass voice coil and paper cone produce detailed, non-fatiguing sound
  • Copper pole cap in motor assembly reduces inductance and distortion
(0)
3.5" | 8 Ω | 10 W

Brand



Product Details

Speaker Series Point Source Series

Model Number PS95-8

Color Black

Unit of Measure Each

UPC 848791001673

Warranty - Parts 5 Years

Warranty - Labor 5 Years

Product Shipping Weight (lbs.) 1.4

Speaker Type Full-Range

Nominal Diameter 3.50"

Power Handling (RMS) 10 watts

Power Handling (max) 20 watts

Continuous Program Power --

Impedance 8 ohms

Sensitivity 85.56 dB @ 2.83V/1m

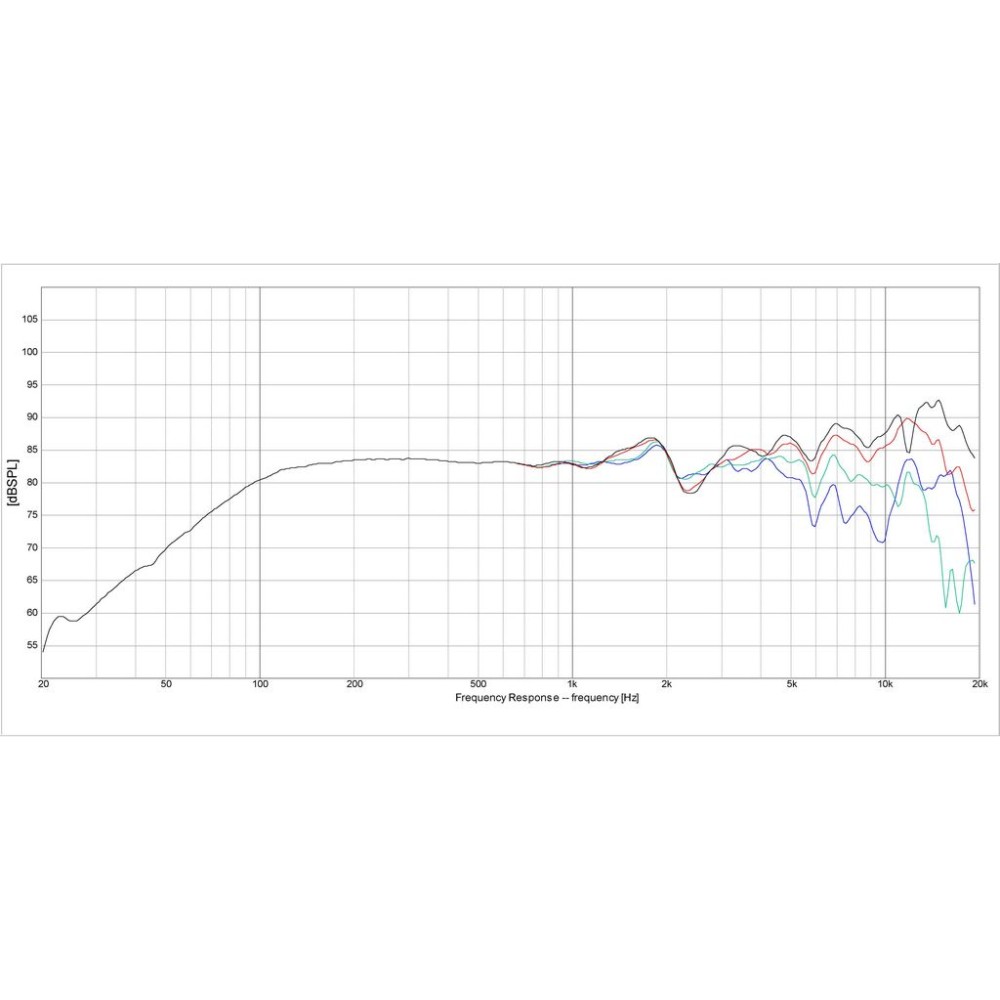

Frequency Response 110 - 20,000 Hz

Voice Coil Diameter 20 mm

Magnet Weight --

DC Resistance (Re) 7.1 ohms

Voice Coil Inductance (Le) 0.63 mH @ 1 kHz

Resonant Frequency (Fs) 119.8 Hz

Mechanical Q (Qms) 7.33

Electromagnetic Q (Qes) 0.8

Total Q (Qts) 0.72

Diaphragm Mass Inc. Airload (Mms) 2.2g

Moving Mass Of Diaphragm (Mmd) --

Mechanical Compliance of Suspension (Cms) 0.79 mm/N

Surface Area Of Cone (Sd) 28.3 cm²

Volume of Displacement (Vd) 7.08 cm³

BL Product (BL) 3.83 Tm

Compliance Equivalent Volume (Vas) 0.94 liters

Maximum Linear Excursion (Xmax) 2.5 mm

Drivers Mechanical Losses (Rms) --

Cone / Diaphragm Material Polypropylene

Entry / Exit Diameter --

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Slit Kapton

Basket/Frame Material Cast Aluminum

Magnet Material Ferrite

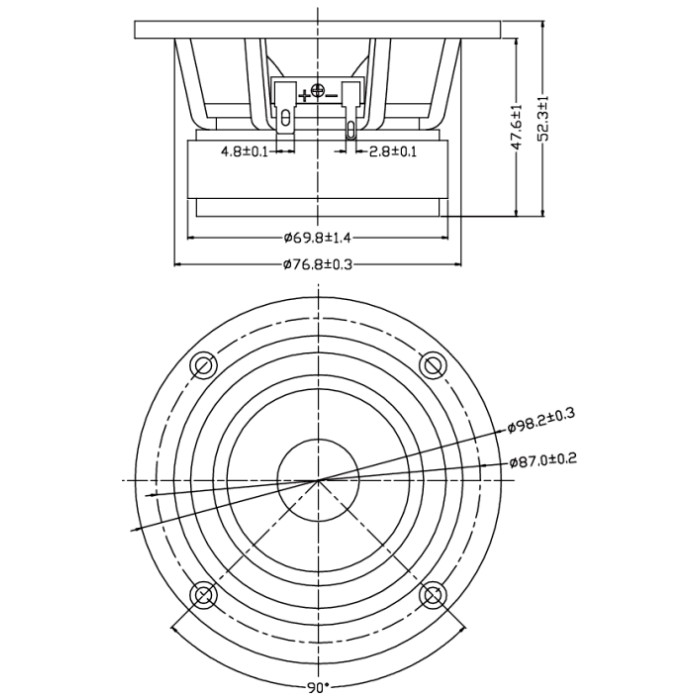

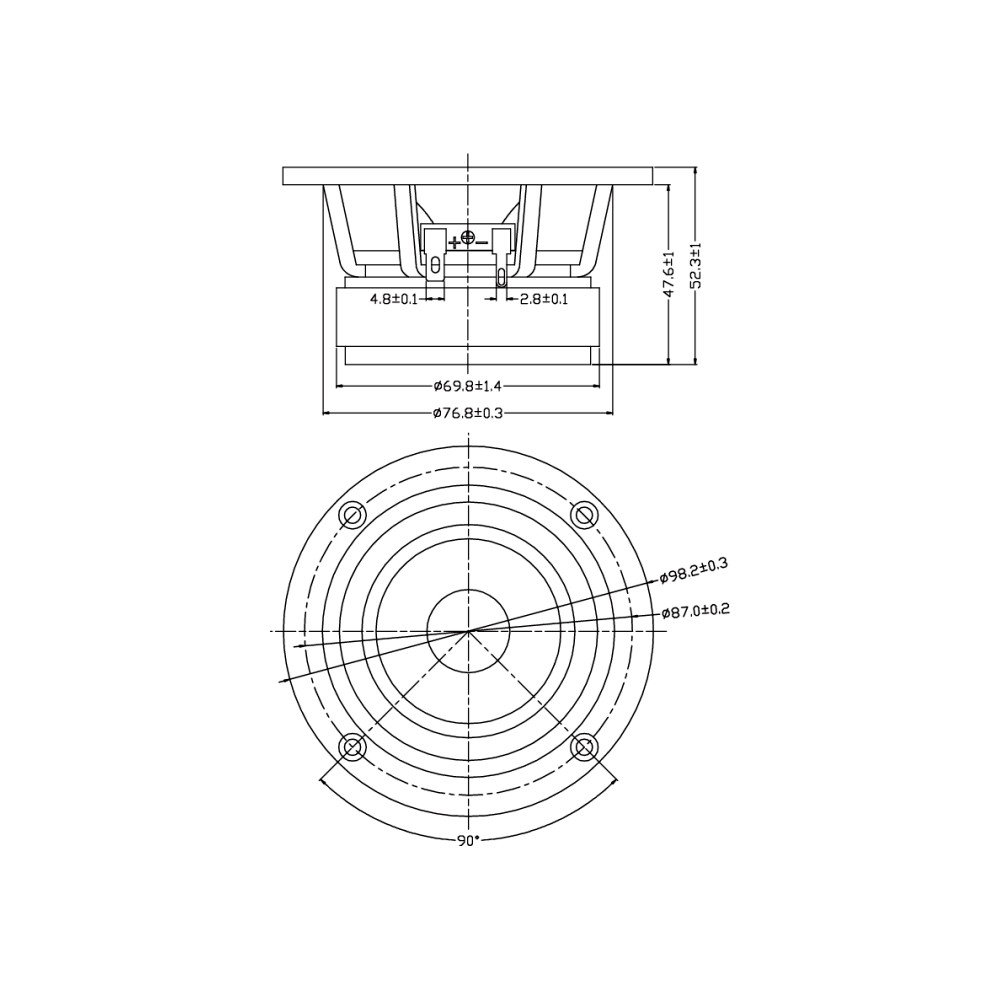

Overall Outside Diameter 76.8 mm

Overall Depth 52.3 mm

Baffle Cutout Diameter 69.8 mm

# Mounting Holes 4

Mounting Hole Diameter --

Bolt Circle Diameter --

Product Weight --

Diameter
3.5"
Impedance
8 Ω
Power
10 W
Material
Aluminum
Paper
