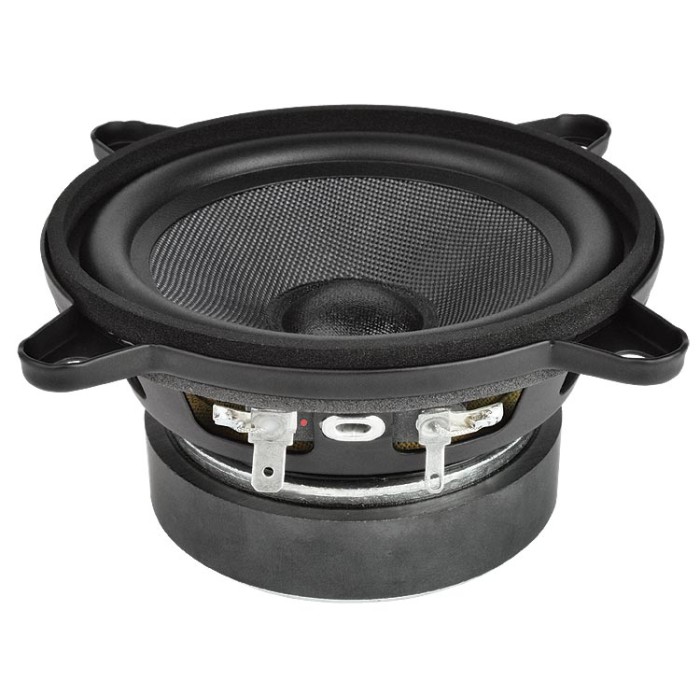

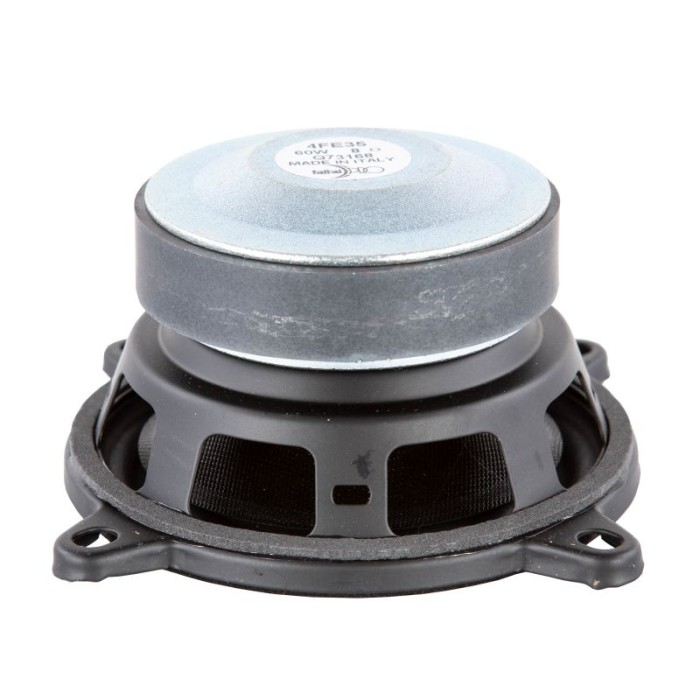

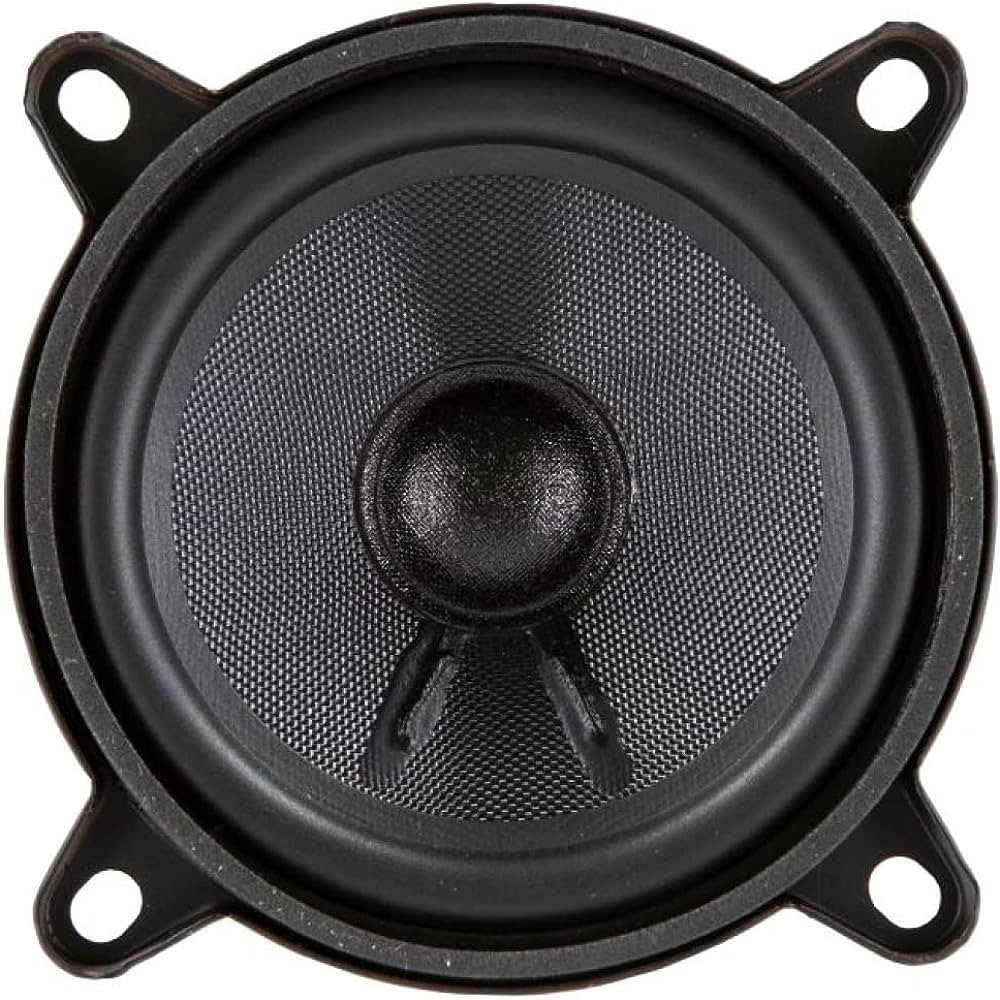

Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35
Faital PRO 4FE35

Faital PRO 4FE35

PROD149
Temporarily out of stock
€ 36.81
Tax included

TECHNICAL PARAMETERS

  • Nominal Impedance 8 Ohm
  • Minimum Impedance 7.2 Ohm
  • AES Power Handling (1) 30 W
  • Maximum Power Handling (2) 60 W
  • Sensitivity (1W/1m) 91 dB

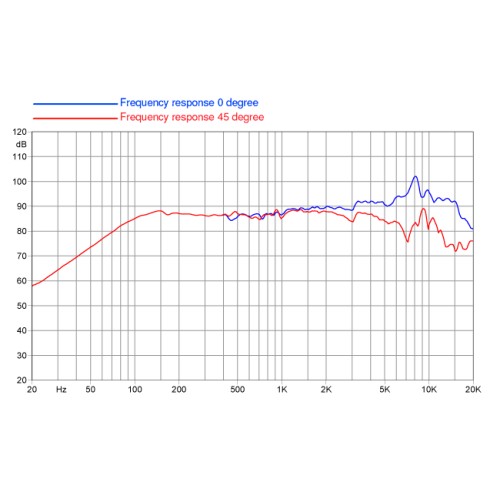

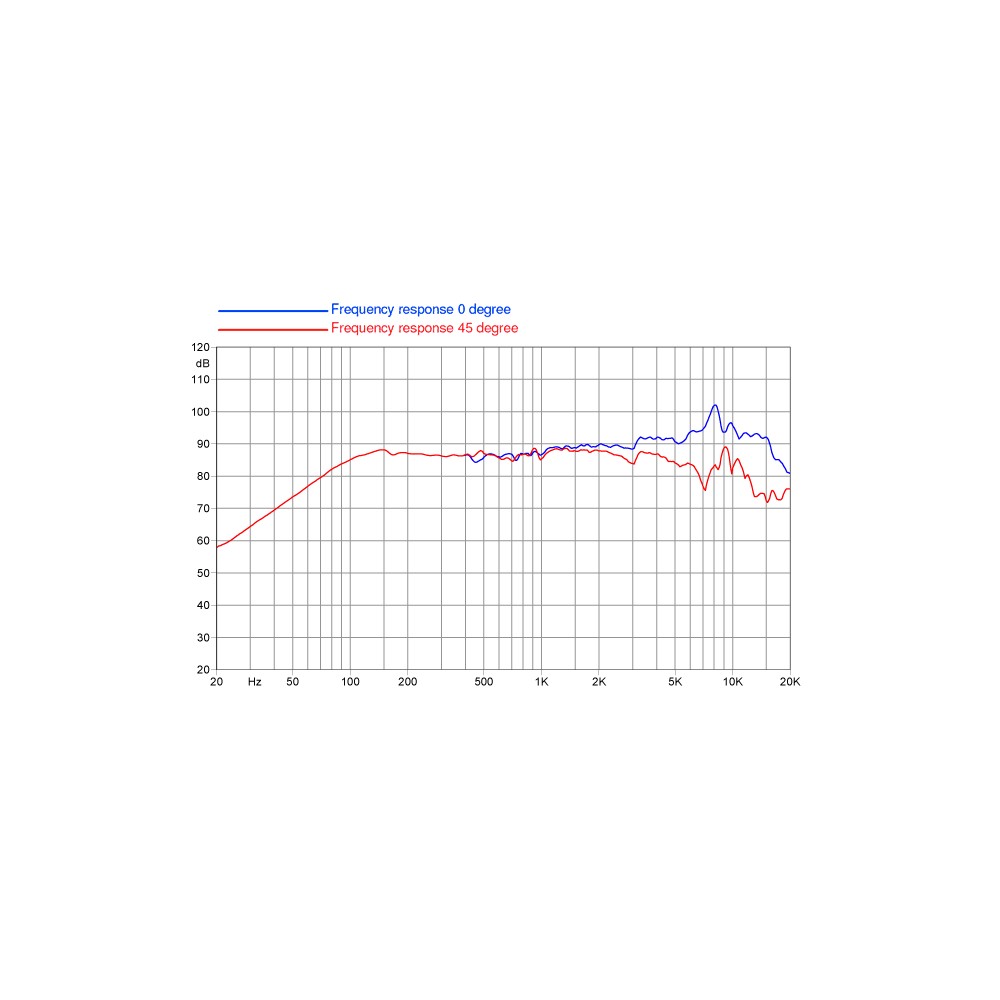

  • Frequency Range 90÷20000 Hz
  • Voice Coil Diameter 19 mm (0.75 in)
  • Winding Material Al
  • Former Material Kapton
  • Winding Depth 6.8 mm (0.27 in)
  • Magnetic Gap Depth 4 mm (0.16 in)
  • Flux Density 1.1 T
  • Magnet Ferrite Ring
  • Basket Material Steel
  • Demodulation Copper Cap
  • Cone Surround (3) Half Roll
  • NET Air Volume filled by Loudspeaker 0.150 dm^3 (0.005 ft^3)
  • Spider Profile 1x constant height waves

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)
4" | 8 Ω | 30 W

Brand

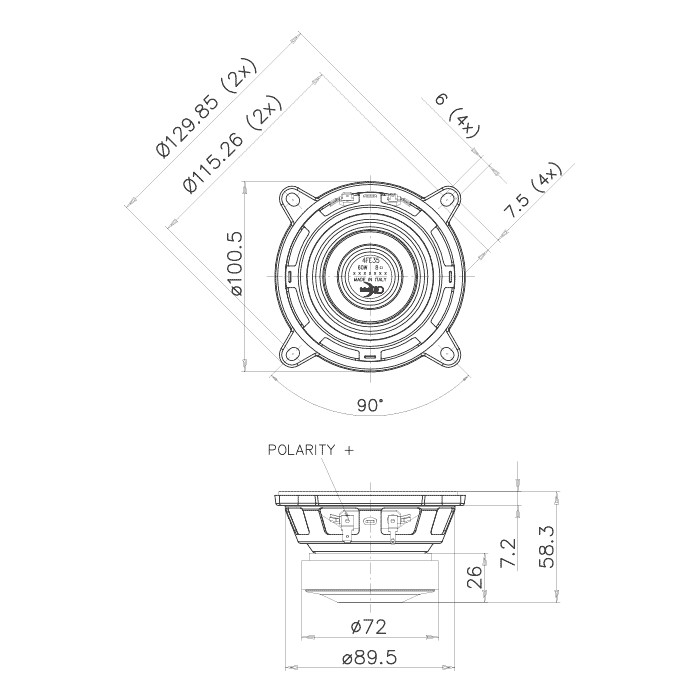

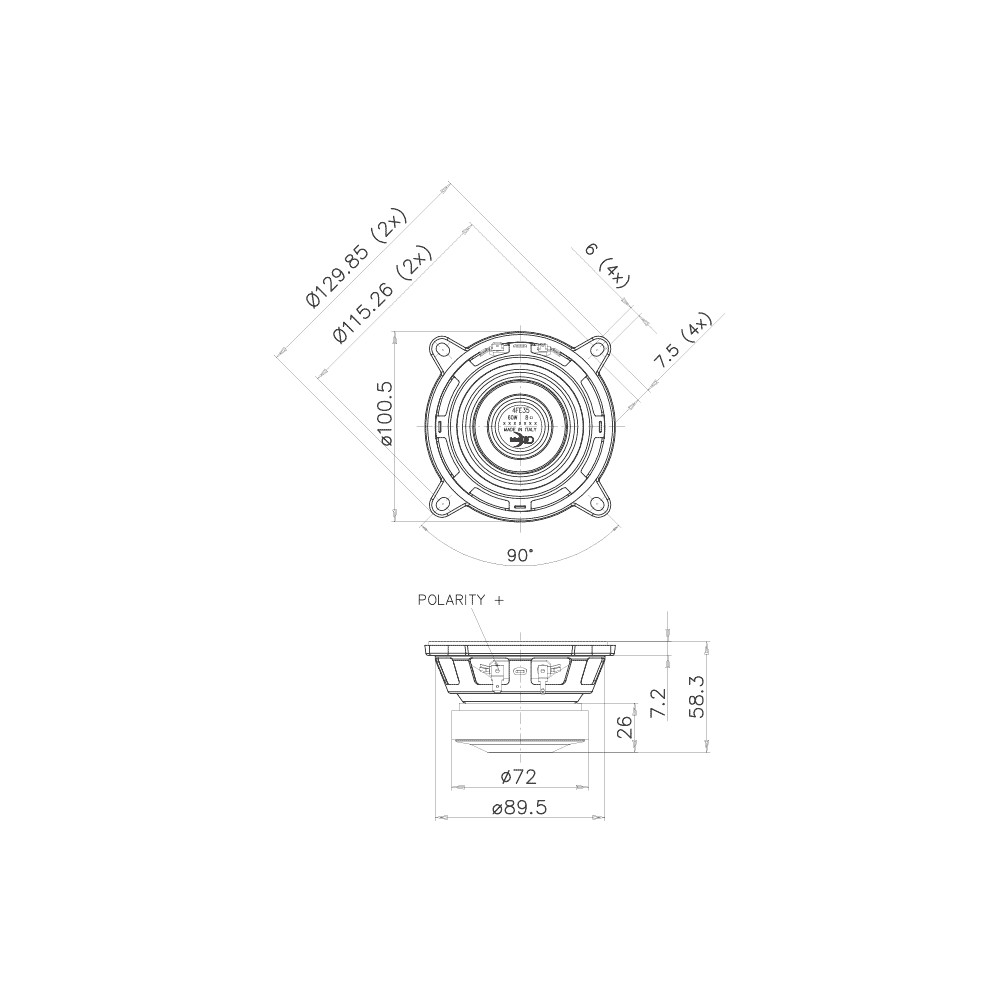

NOMINAL SPECIFICATIONS

Nominal Diameter 100 mm (4 in)

Overall Diameter 129.85/100.5 mm (5.11/3.96 in)

Bolt Circle Diameter 115.26 mm (4.54 in)

Baffle Cutout Diameter 91.5 mm (3.60 in)

Depth 58.3 mm (2.30 in)

Flange and Gasket Thickness 7.2 mm (0.28 in)

Net Weight 570 g (1.3 lb)

Shipping Box

(Single Carton Box - 8 units) 225 x 225 x 150 mm

(8.9 x 8.9 x 5.9 in)

Shipping Weight (8 units) 5 kg (11.0 lb)

THIELE AND SMALL PARAMETERS

Fs 100 Hz

Re 6.5 Ohm

Qes 1.04

Qms 4.2

Qts 0.83

Vas 2.4 dm^3 (0.07 ft^3)

Sd 51.9 cm^2 (8.04 in^2)

Xmax (4) 2.73 mm

Xdamage (5) 6.8 mm

Mms 3.9 g

Bl 3.9 N/A

Le 0.1 mH

Mmd 3.5 g

Cms 0.65 mm/N

Rms 0.6 kg/s

Eta Zero 0.23 %

EBP 96 Hz

PART NUMBER (P/N)

Faston Terminals - 8 Ohm Version 01004086

Diameter
4"
Impedance
8 Ω
Power
30 W
Material
Carbon
