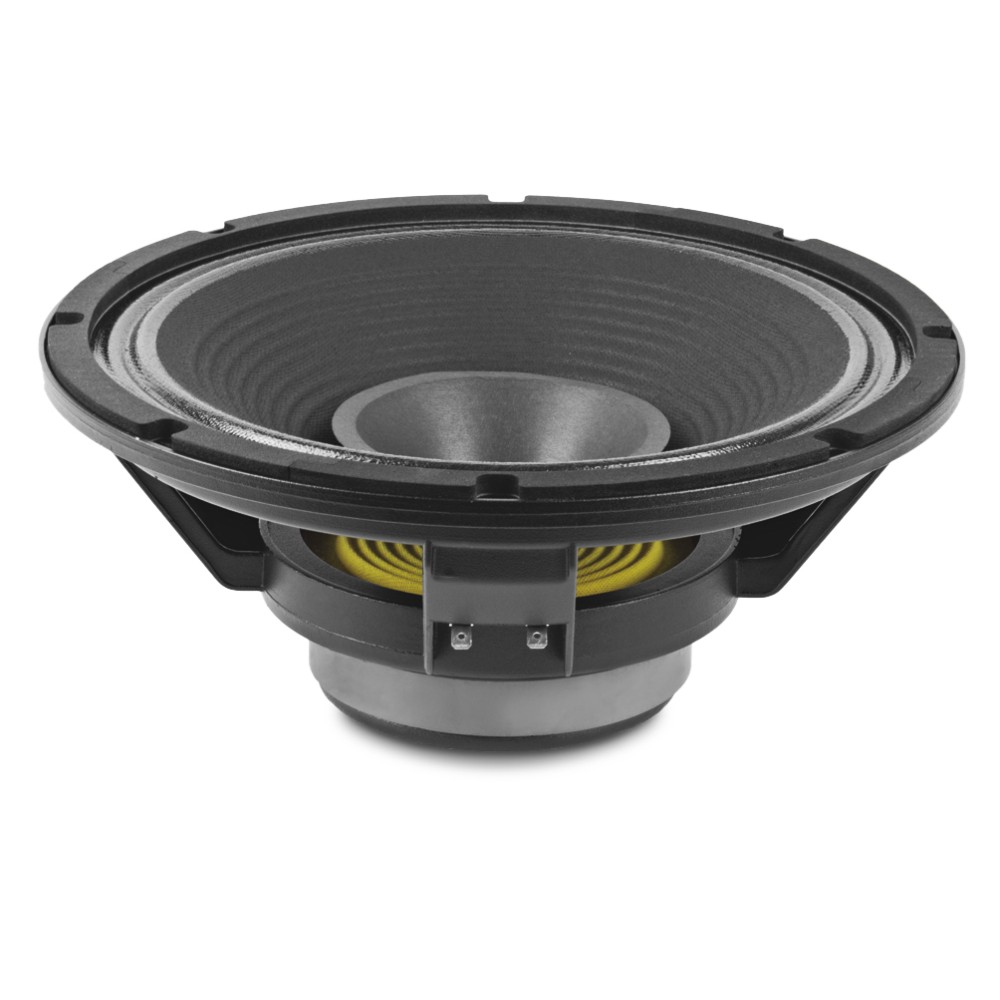

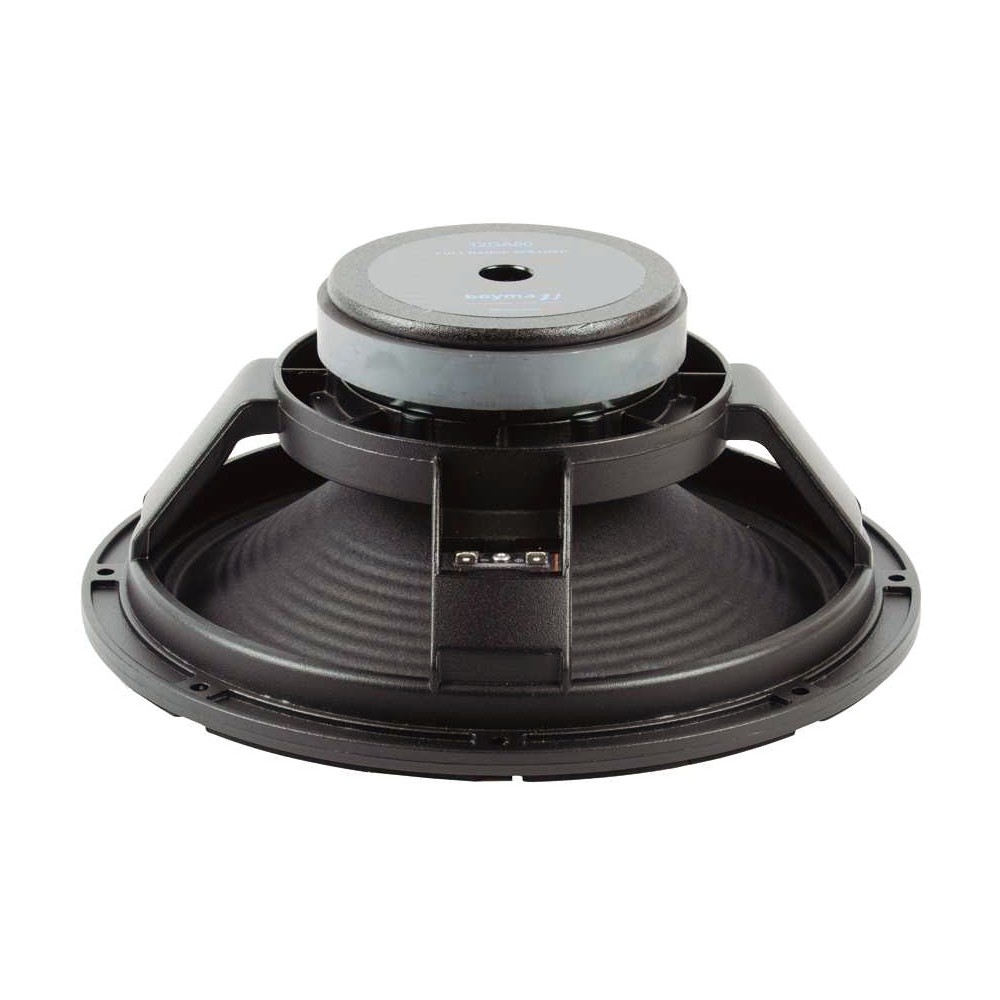

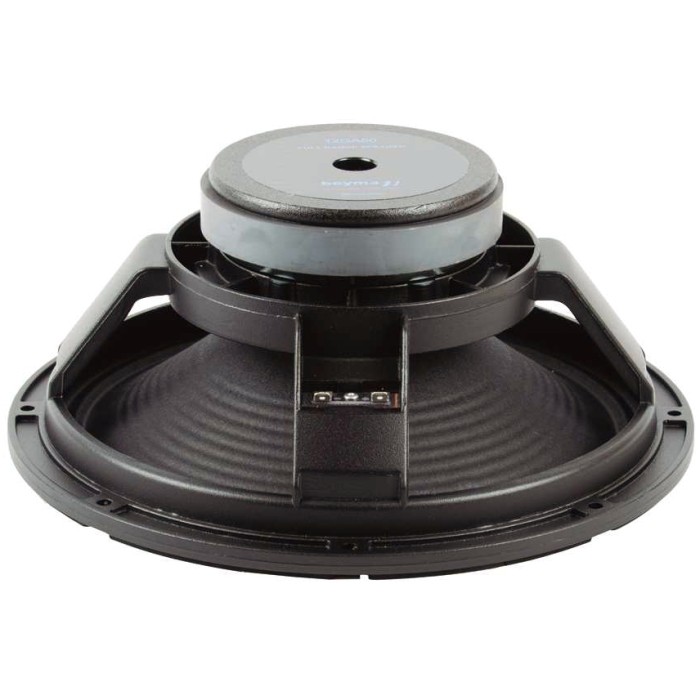

Speaker Beyma 12GA50, 8 ohm, 12 inch

Name: Speaker Beyma 12GA50, 8 ohm, 12 inch
Brand: Beyma
SKU: PROD145
Price: 106.86 EUR
Availability: InStock

Reference PROD145

In stock 2 pcs.

In Stock

€ 106.86

Tax included

Features

Product type Bicone driver
Brand Beyma
Reference 12GA50
Product code 112GA508
Informations
Nominal impedance 8 ohm
Dimensional category 12.5 inch
Frequency coverage type Fullrange
Manufacturer sensitivity 102 dB
Calculated sensitivity 94.78 dB
Nominal power handling 250 W

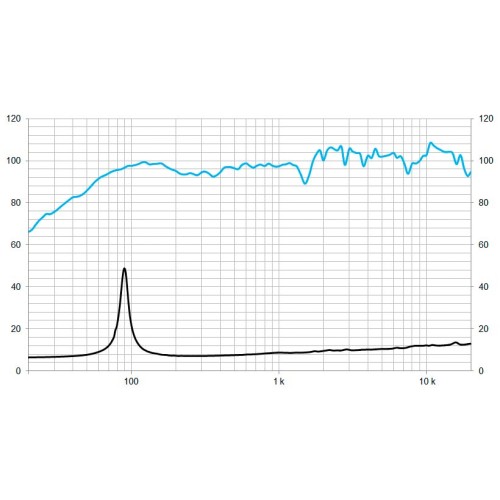

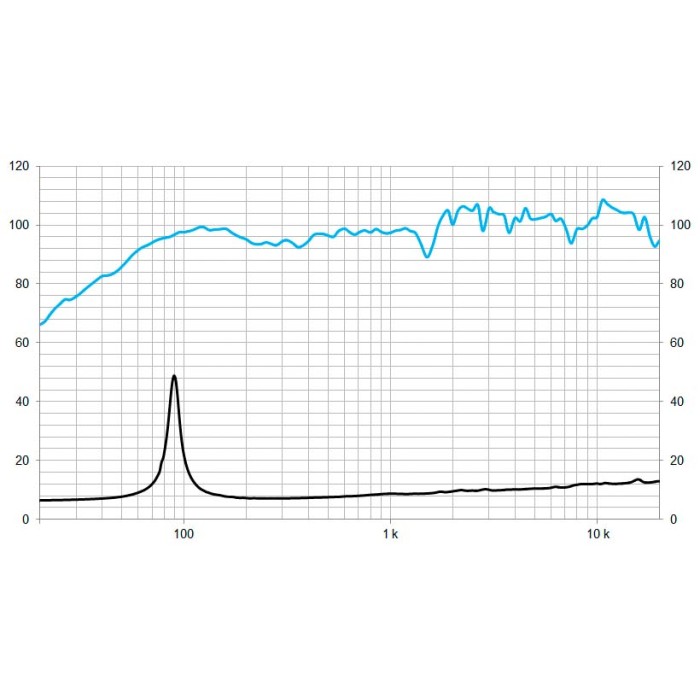

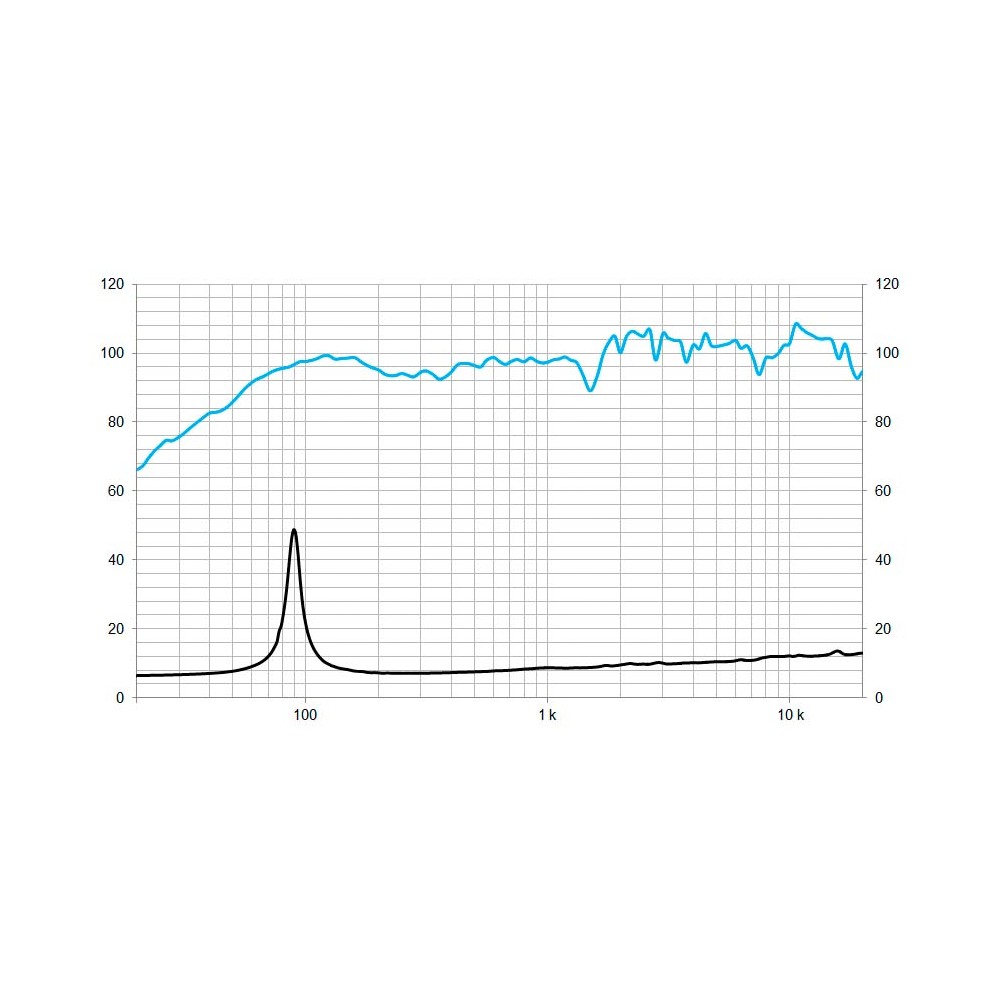

Bandwidth 100÷18000 Hz

(0)

12" | 8 Ω | 40 W

Fundamental parameters
Mms	34 gr
Cms	87 µm/N
Le	0.6 mH
Re	6.2 ohm
BL	10 T.m
Small signal parameters
Fs	90 Hz
Qes	1.26
Qms	14.8
Qts	1.16
Vas	34 L
Datas
Xmax	±3 mm
Calculated Xmax	±3.3333 mm
EBP	71 Hz
Zmin	6.8 ohm
Fs / Qts	78 Hz
Vas * Qts²	45.76 L
Efficiency	2.1 %
Calculated efficiency	1.89 %

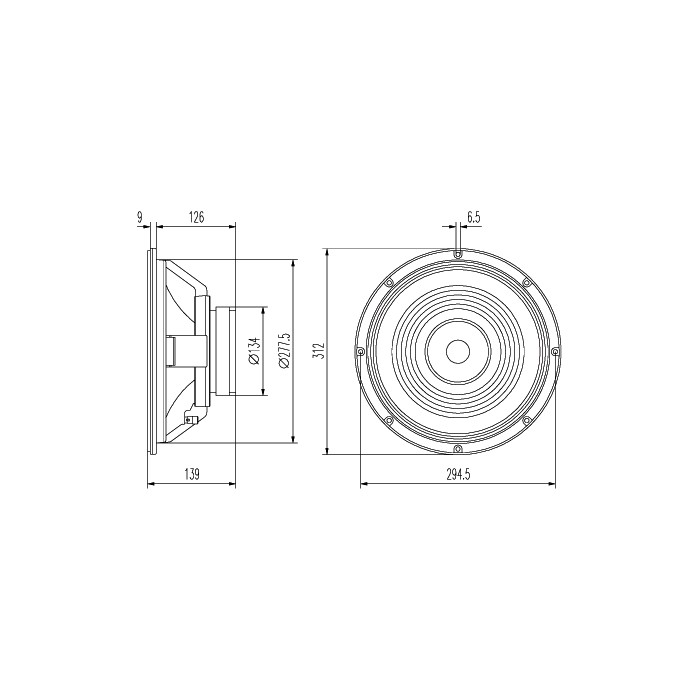

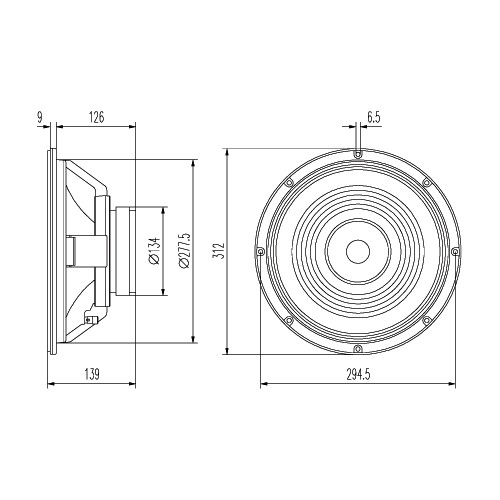

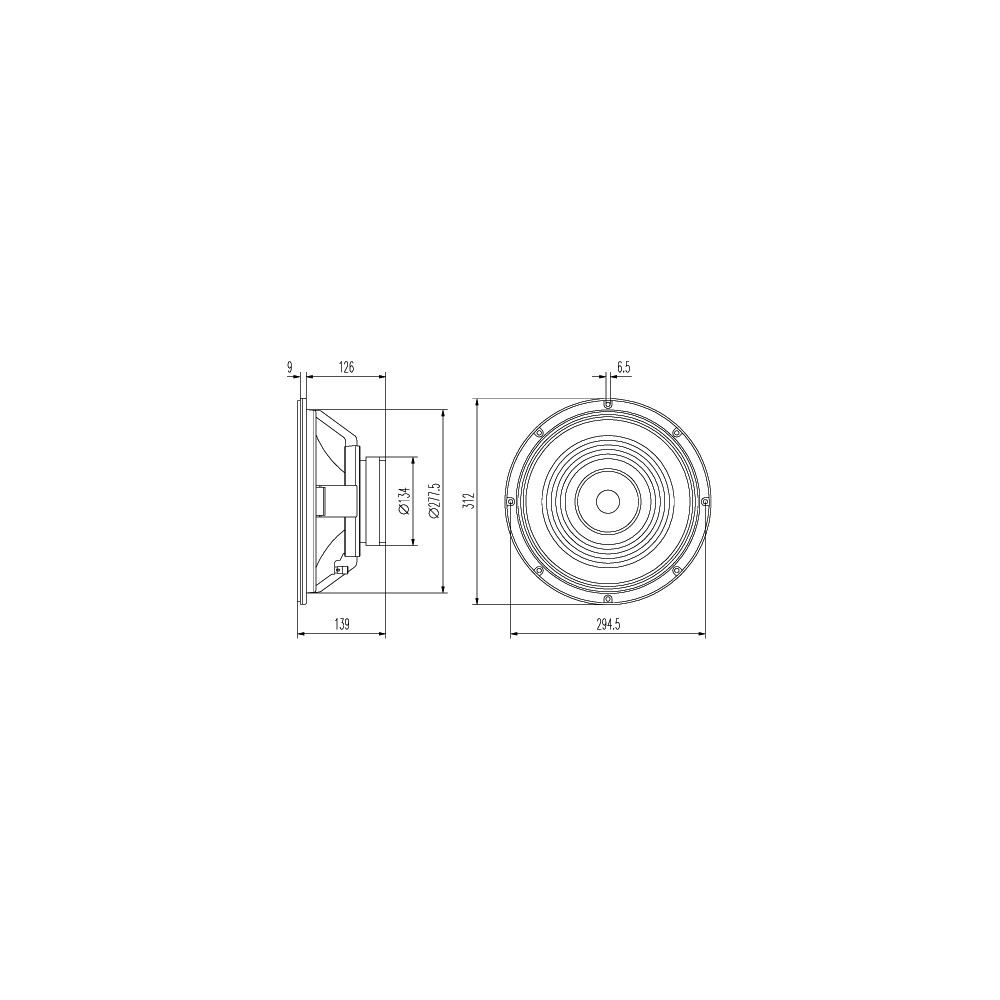

Dimensions
Voice coil diameter	2 inch
Winding depth	9 mm
Gap height	7 mm
Outside diameter	312 mm
Baffle cutout diameter	277.5 mm
Depth	139 mm
Shape & Materials
Front chape	Cylindrical
Magnet type	Ferrite
Basket masterial	Aluminium
Winding material	Aluminium

High Sensitivity (102 dB 2.83v @ 1m @ 2pi) and double cone for an extended bandwidth coverage. Special treated surround to obtain an extremely linear frequency response. Short-circuit copper ring for low harmonic distortion and constant impedance modulus. 2" aluminium voice coil with kapton former

Designed for high quality full-range reproduction and music instruments reinforcement.

This fullrange transducer offers two main points of interest: an extremely high sensitivity (102dB) and an extended frequency response. Both characteristics make it suitable for high quality systems. Moreover, its versatile design allows it to be used as a full-range transducer in guitar or organ amplification or in sound reinforcement systems.

Beyond its frequency response advantages, this loudspeaker offers more: it takes profit of the improvements achieved in our low frequency-high power transducers. Thus, it incorporates a high quality voice coil made of high temperature magnet wire and kapton former. Thanks to this design concept of strengthens, the 12GA50 reaches a great power handling.

Diameter: 12"
Impedance: 8 Ω
Power: 40 W
Material: Aluminum
Paper

Beyma 12GA50

Download (230.45KB)
