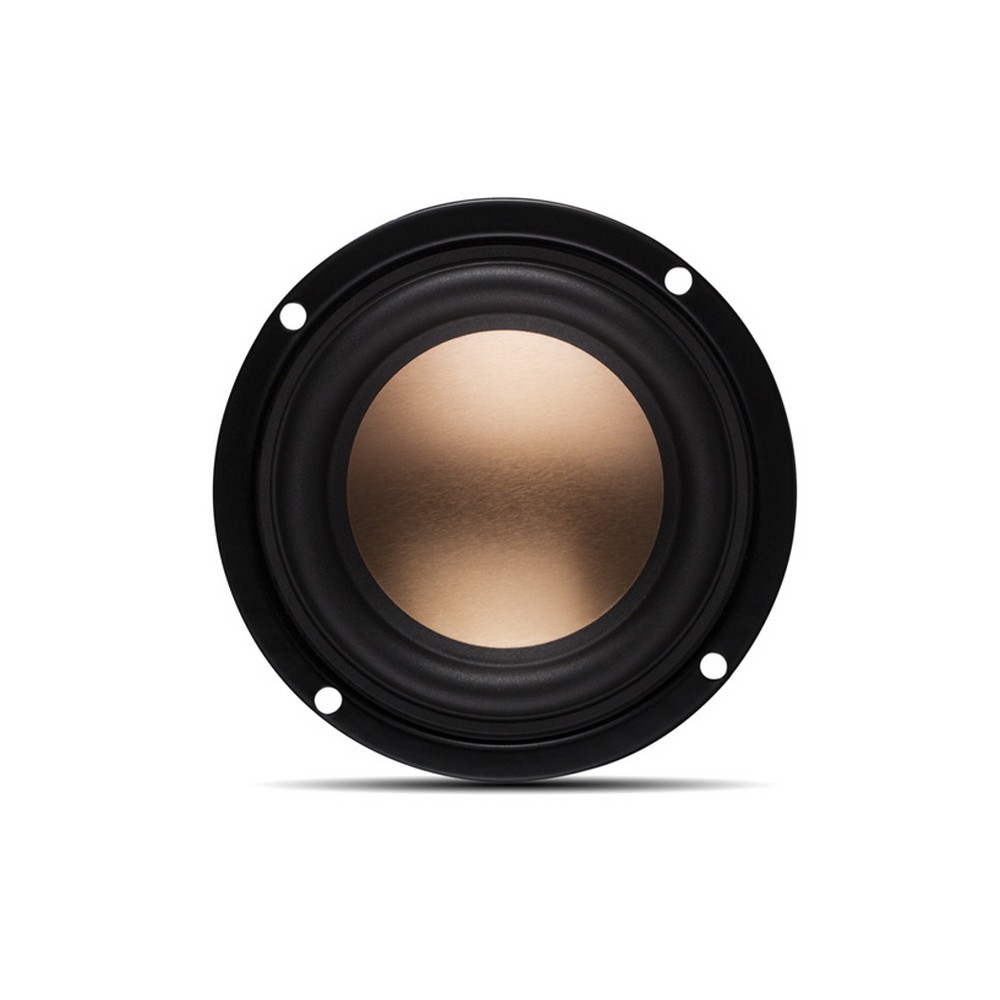

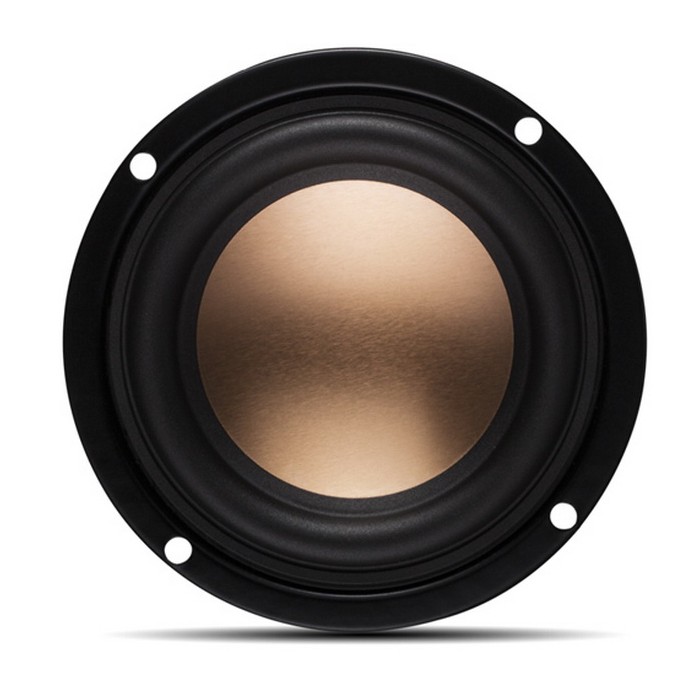

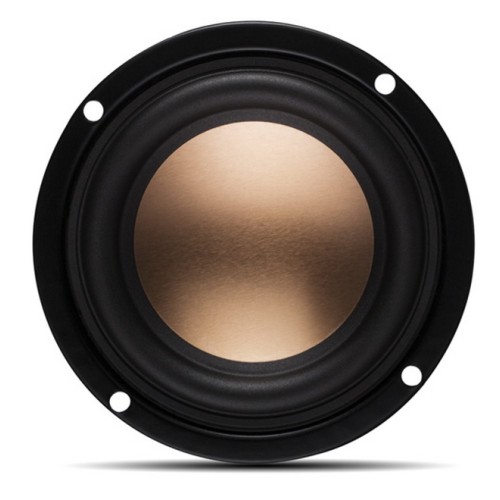

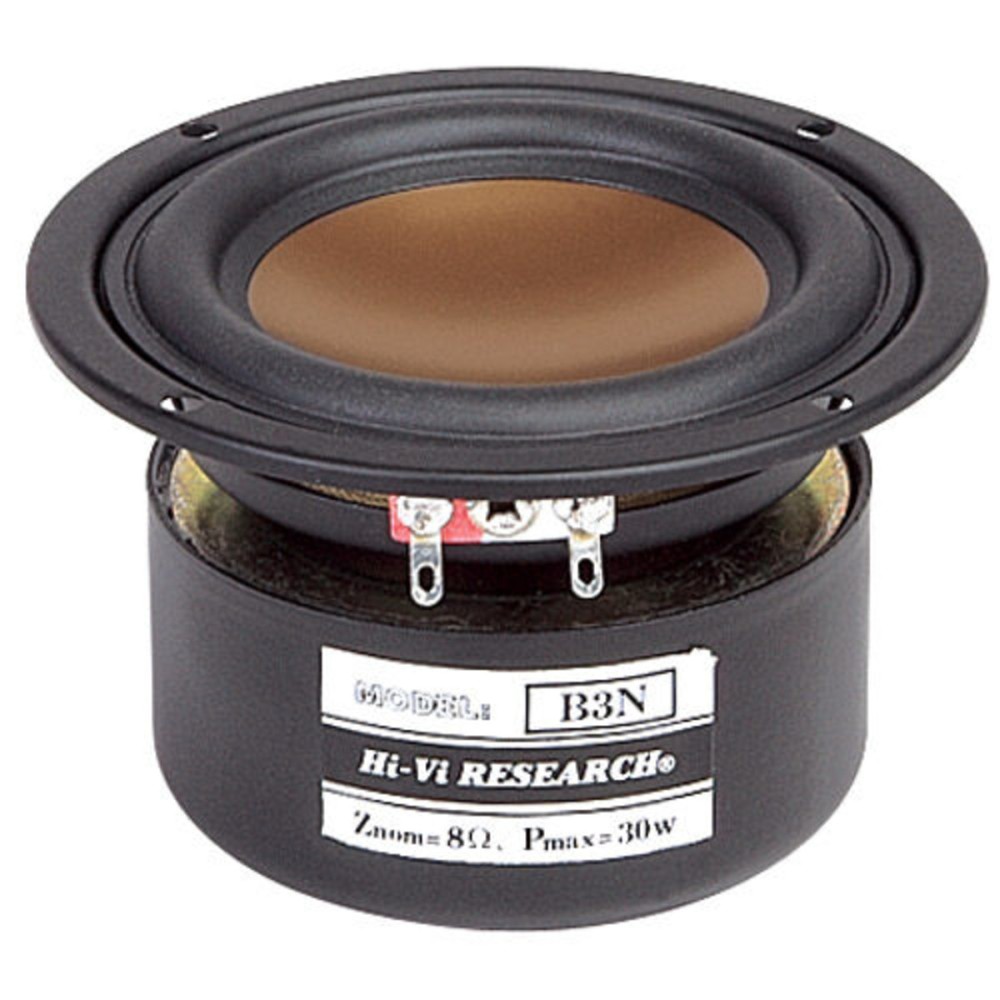

Hi-Vi B3N 3" Round Full Range, Copper Color Cone

Hi-Vi B3N 3" Round Full Range, Copper Color Cone

Name: Hi-Vi B3N 3" Round Full Range, Copper Color Cone
Brand: HIVI
SKU: PROD137
Price: 19.94 EUR
Availability: InStock

Reference PROD137

In stock 7 pcs.

In Stock

€ 19.94

Tax included

Nominal Impedance (Z)(Ω) : 8
Resonance Frequency (Fs)(Hz) : 77
Nominal Power Handling (Pnom)(W) : 15
Sensitivity (2.83v/1m)(dB) : 81
Weight (M)(Kg) : 0.55
VC Diameter (mm) : 20 CCAW
DC (Re)(Ω) : 6.5
VC Length (H)(mm) : 9
VC Former : Kapton
VC Layers : 2
Magnet System : Shielded Ferrite
Force Factor (BL)(N/A) : 3.1
Gap Height (He)(mm) : 3.0
Linear Excursion (Xmax)(mm) : 3.0
Suspension Compliance (Cms)(uM/N) : 1320
Mechanical Q (Qms) : 4.48
Electrical Q (Qes) : 1.07
Total Q (Qts) : 0.86
Moving Mass (Mms)(g) : 3.2
Effective Piston Area (Sd)(m2) : 0.0030
Equivalent Air Volume (Vas)(L) : 1.7
Cabinet Type : Sealed
Recommended Box Volume(Vb)(L) : 2
-3dB Cut-Off Frequency(F3)(Hz) : 80

Quantity	Unit discount	You Save
4	10%	€ 7.98
8	15%	€ 23.93

(0)

3" | 8 Ω | 15 W

Hi-Vi B3N 3" Round Full Range, Copper Color Cone

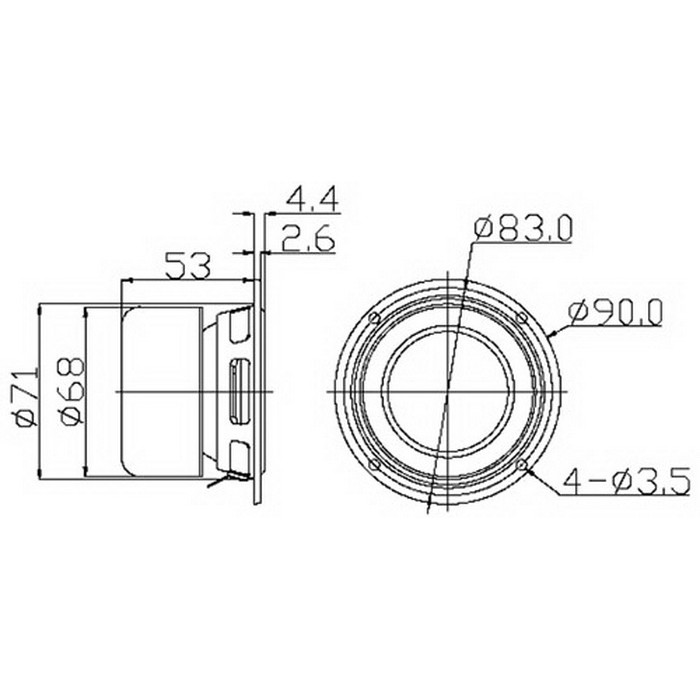

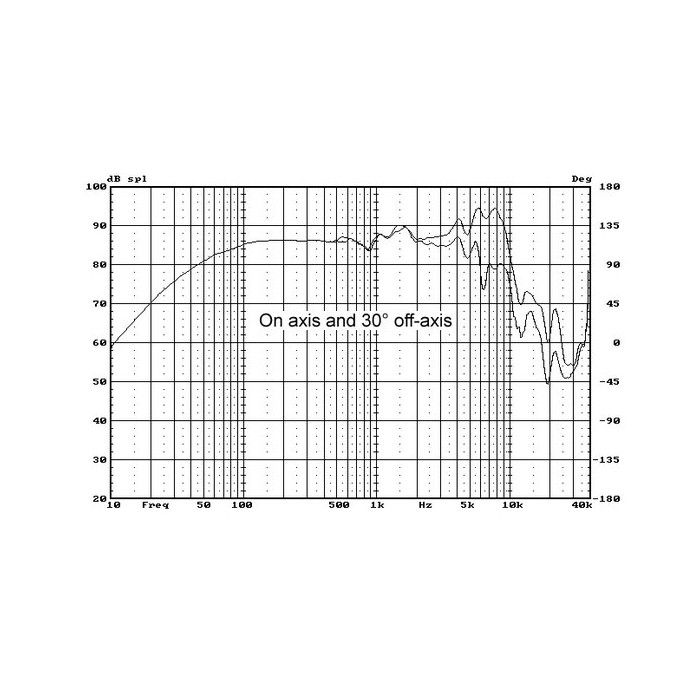

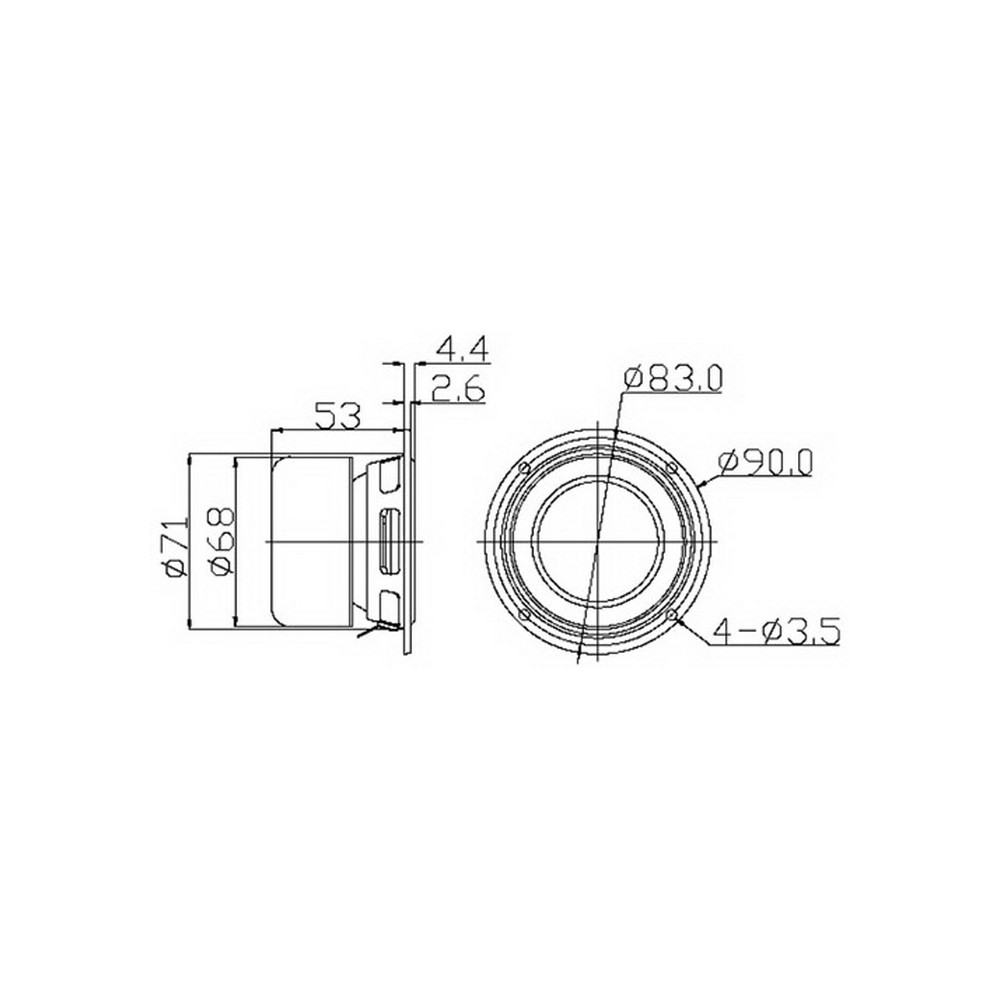

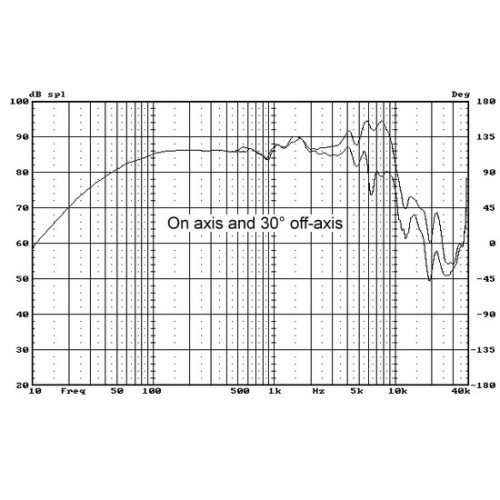

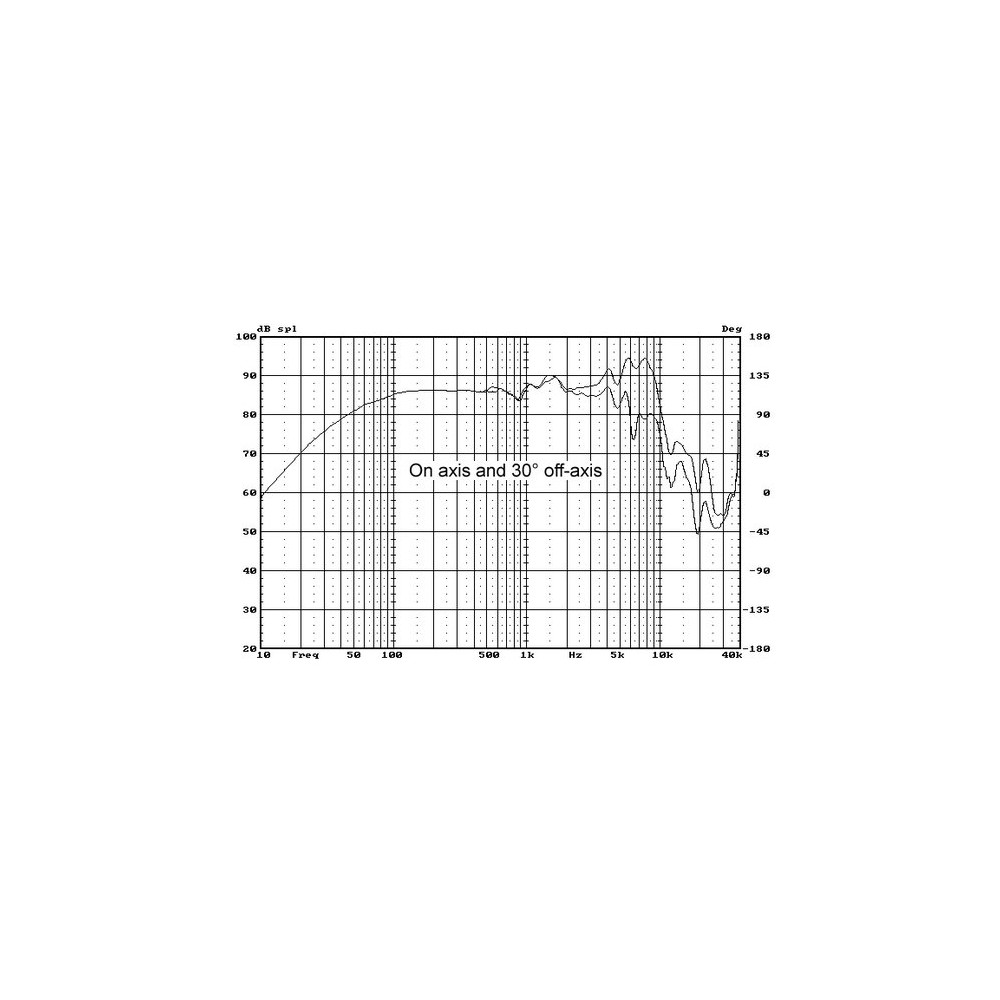

Hi-Vi B3N 3" magnesium/aluminum alloy coper colored inverted dome full range. Shielded magnet, rubber surround, frequency range 80Hz to 8kHz. 90mm round flange, 53mm deep. 8 ohm, 81dB, fs 77Hz, Qts 0.86.

A full frequency design
Advanced alloy (magnesium/aluminum) cone, coated with special damping material, and anodized.
Optimum recovery CONEX supporting system, having very good stiffness and dynamic stability, improving the sonic features of the speakers.
High power handling, heat-resistant Kapton Voice coil former and heat-resistant CCAW voice coil wire
Finite Element Analysis for shielded magnetic system with long-throw linear excursion design
Hi-Vi Symmetric Motor Drive (SMD) technology makes the voice coil into a symmetrical driving magnetic field, thus acquiring symmetrical driving force, reducing the mutual modulation of voice coil inductance and back electromotive force, improving the controllability of the speakers, achieving low distortion degree
Finite Element Analysis for flat & rigid iron frame, prevents the parasitic structural resonances
Using leading technology of Small/Thiele parameters
Suitable for midrange, surround speakers a in home theatre system, and also suitable for computer multimedia speakers

Diameter: 3"
Impedance: 8 Ω
Power: 15 W
Series: HIVI M
Material: Aluminum
Magnesium
