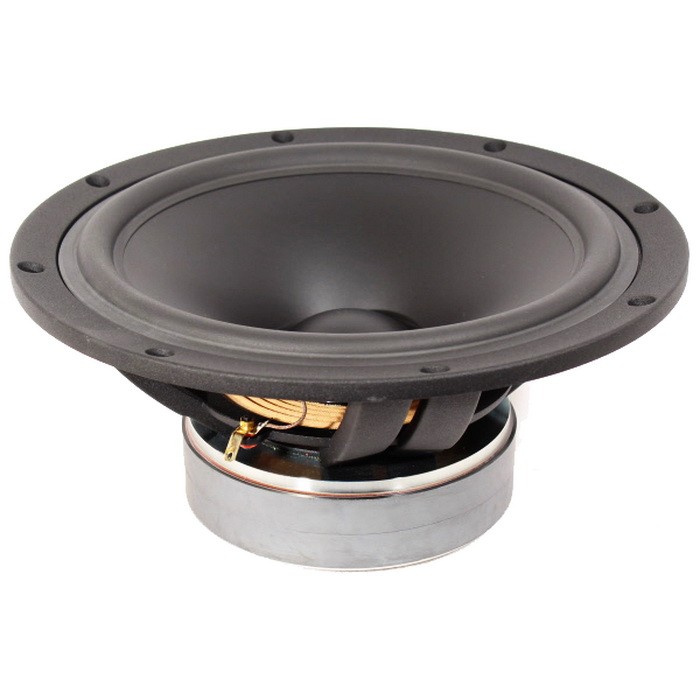

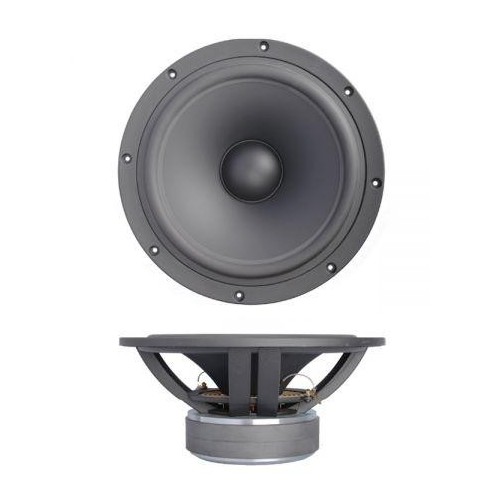

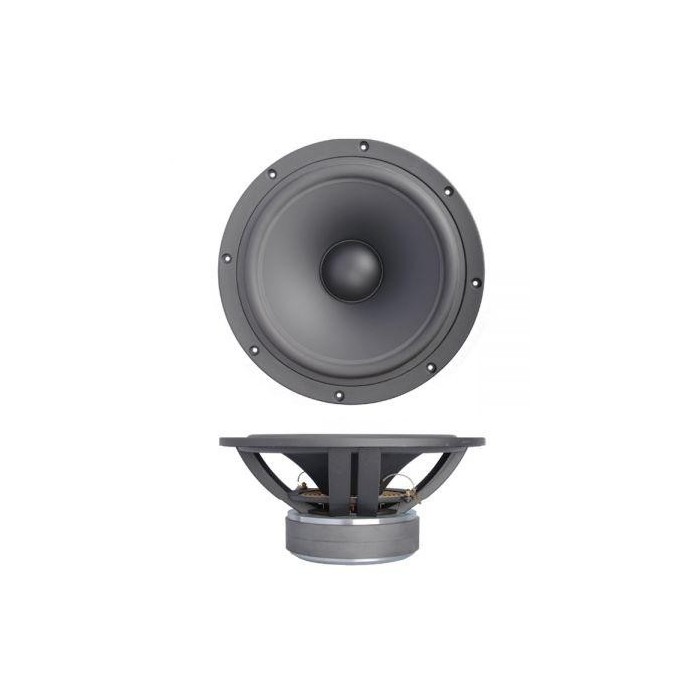

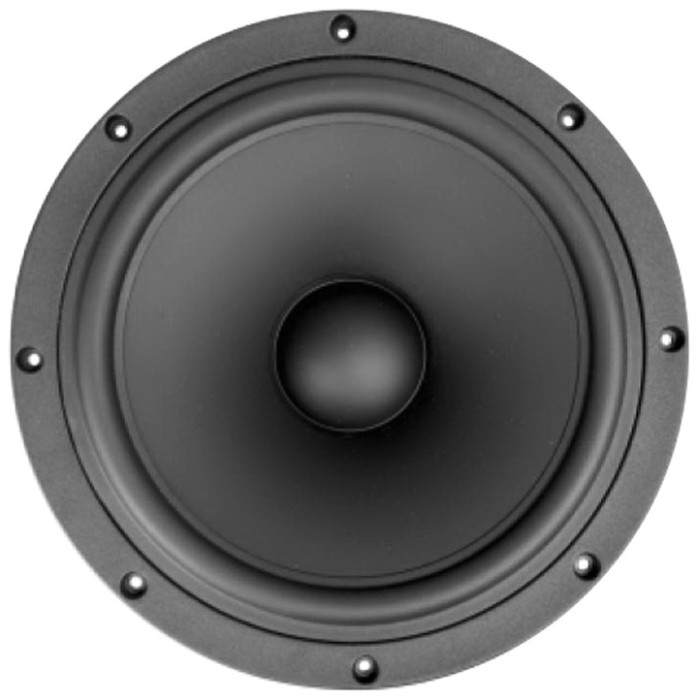

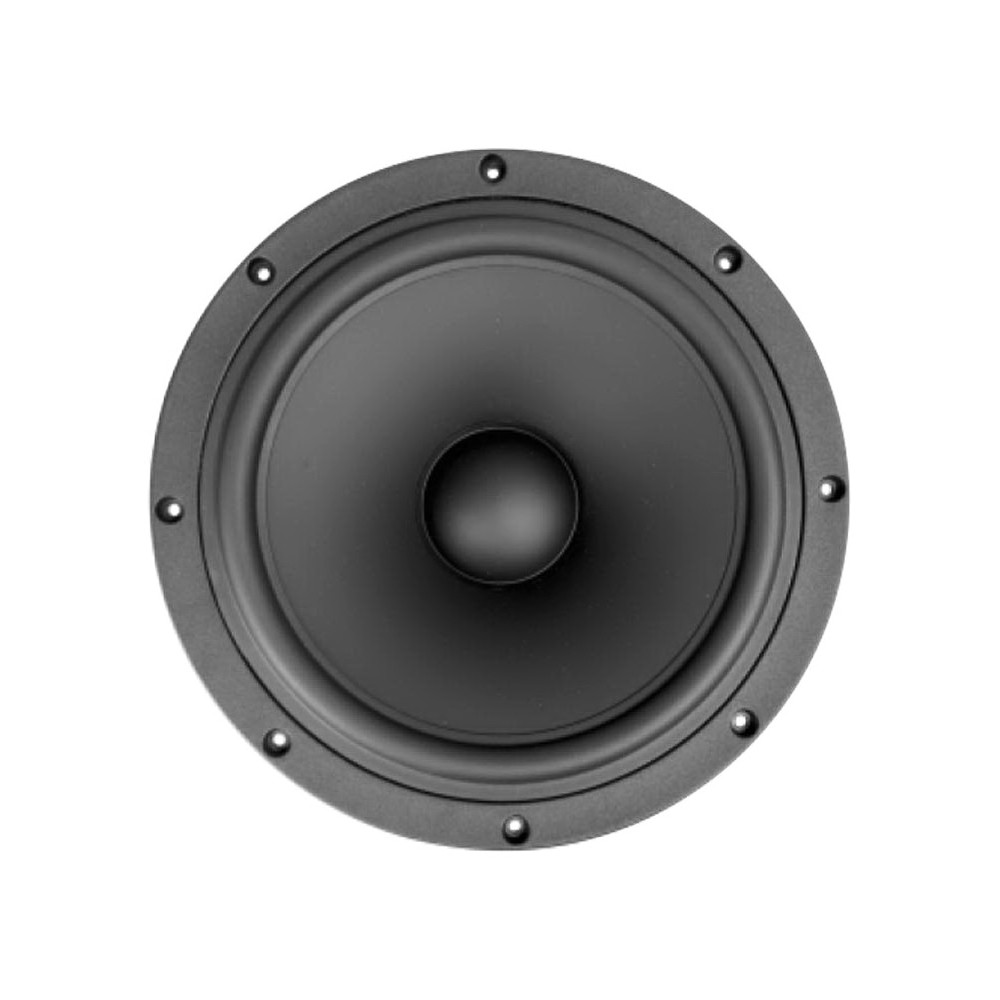

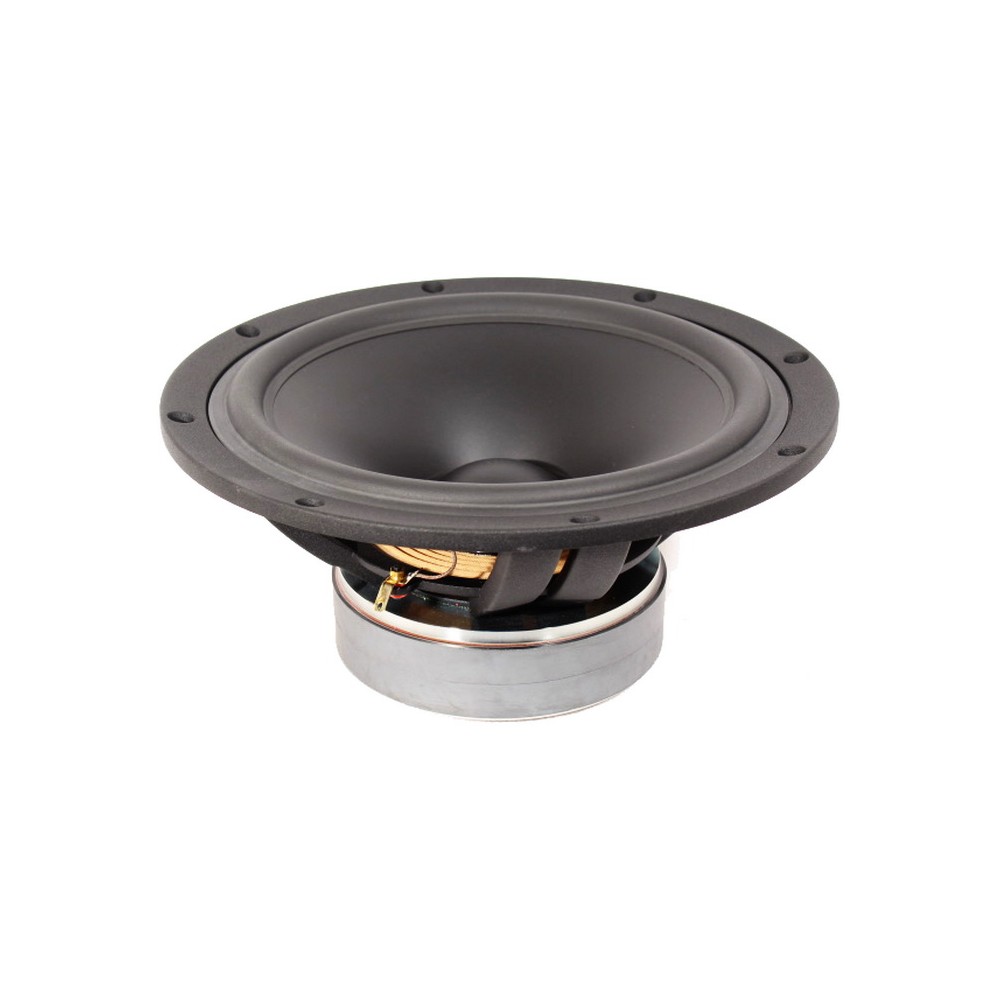

SB Acoustics SB34NRXL75-8 / Norex 12″

Name: SB Acoustics SB34NRXL75-8 / Norex 12″
Brand: SB Acoustics
SKU: IMPORTED_SB_ACOUSTIC_38
Price: 285.81 EUR
Availability: InStock
Rating: 5 (1 reviews)

Reference IMPORTED_SB_ACOUSTIC_38

In stock 4 pcs.

In Stock

€ 285.81

Tax included

Hard paper cone for improved piston operation (made in-house)
Large motor system with under-cut pole piece and dual shorting rings
Vented pole piece for minimum compression
Vented cast aluminium chassis for optimum strength and low compression
3″ copper voice coil for improved power handling
Long life silver lead wires
Low damping rubber surround for improved dynamic linearity
Non-conducting fibre glass voice coil former for minimum damping
Optimized for vented enclosure

Quantity	Unit discount	You Save
2	5%	€ 28.58
4	10%	€ 114.32
8	20%	€ 457.30

(1)

Read reviews

12" | 8 Ω | 200 W

Nominal Impedance 8 Ω
DC resistance, Re 6.2 Ω
Voice coil inductance, Le 1.2 mH
Effective piston area, Sd 508 cm²
Voice coil diameter 75.6 mm
Voice coil height 28 mm
Air gap height 8 mm
Linear coil travel (p-p) 20 mm
Magnetic flux density 1.1 T
Magnet weight 3.6 kg
Net weight 8.9 kg
Free air resonance, Fs 22 Hz
Sensitivity (2.83V/1m) 91 dB
Mechanical Q-factor, Qms 5.5
Electrical Q-factor, Qes 0.29
Total Q-factor, Qts 0.28
Moving mass incl. air,Mms 93 g
Force factor, Bl 16.6 Tm
Equivalent volume, Vas 205 liters
Compliance, Cms 0.56 mm/N
Mechanical loss, Rms 2.35 kg/s
Rated power handling* 200 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

Diameter: 12"
Impedance: 8 Ω
Power: 200 W
Series: NRX/Norex
Material: Aluminum
Paper

12″ SB34NRXL75-8 / Norex

Download (784.88KB)

Summary

(1 Reviews)

Select a row below to filter reviews.

5

(1)
4

(0)
3

(0)
2

(0)
1

(0)

You cannot post a review because you are not logged as a customer

Sort By

Grade

Теодор

07/16/2023

Този модел се характеризира с пресъствен, пластичен бас ,отлична атрикулация, добра енергия както в ниския, така и в по-високия- тимпанен бас. Ясни ниски тембри и разделителност.

Recommended to buy: Yes
