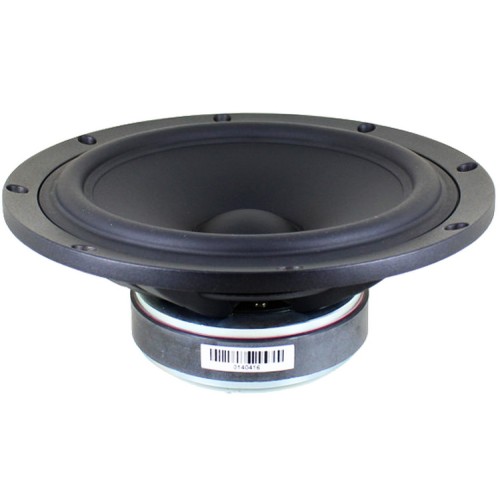

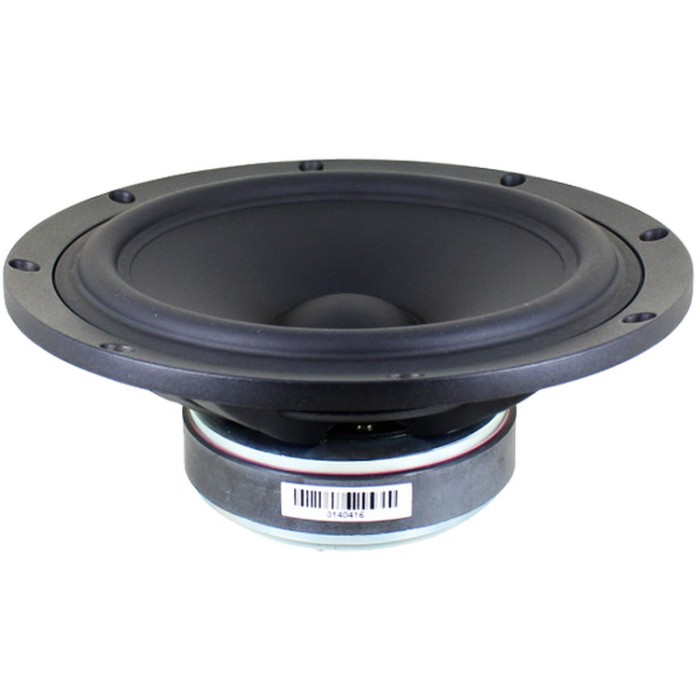

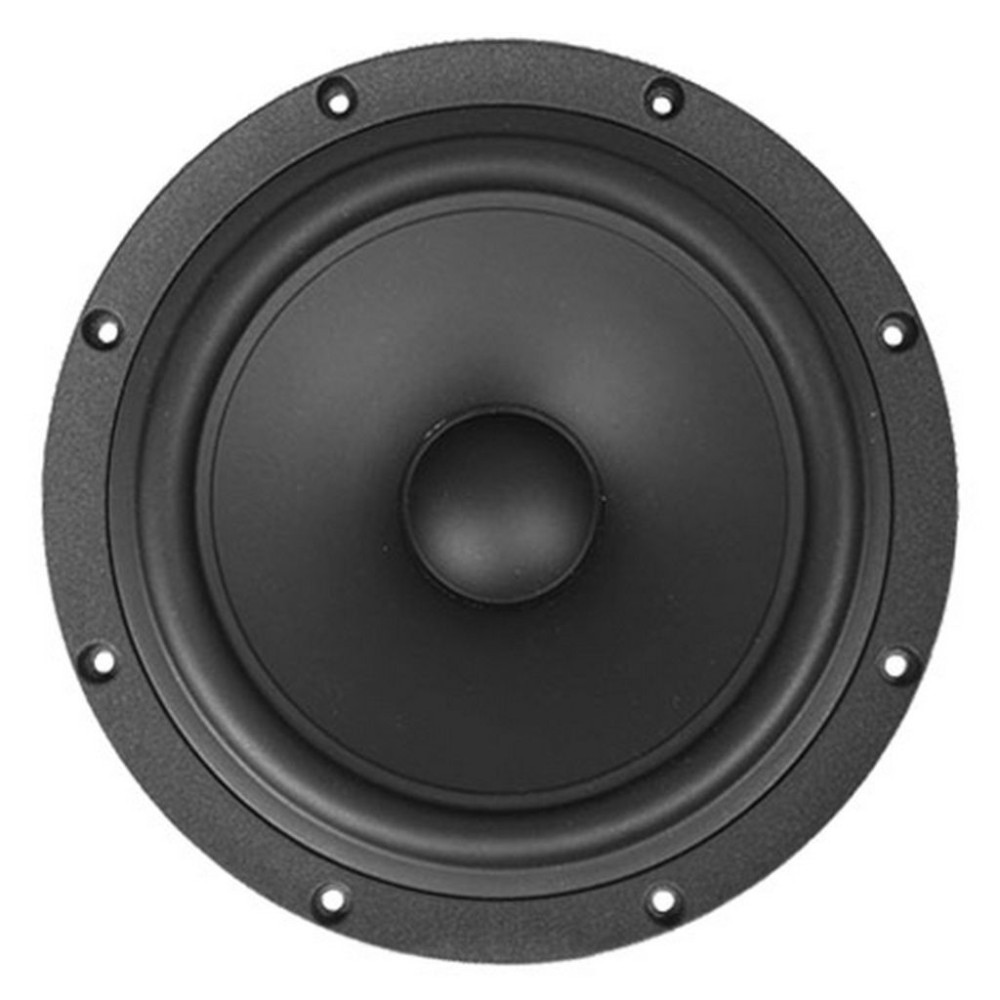

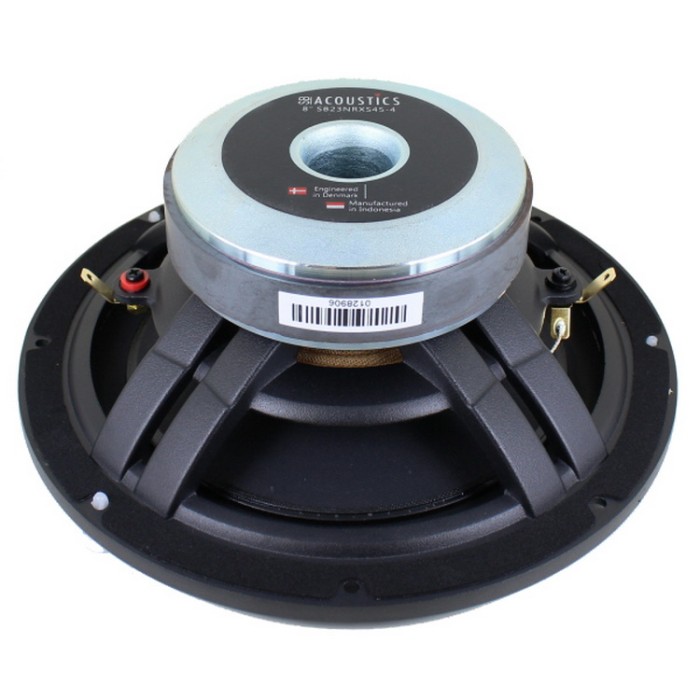

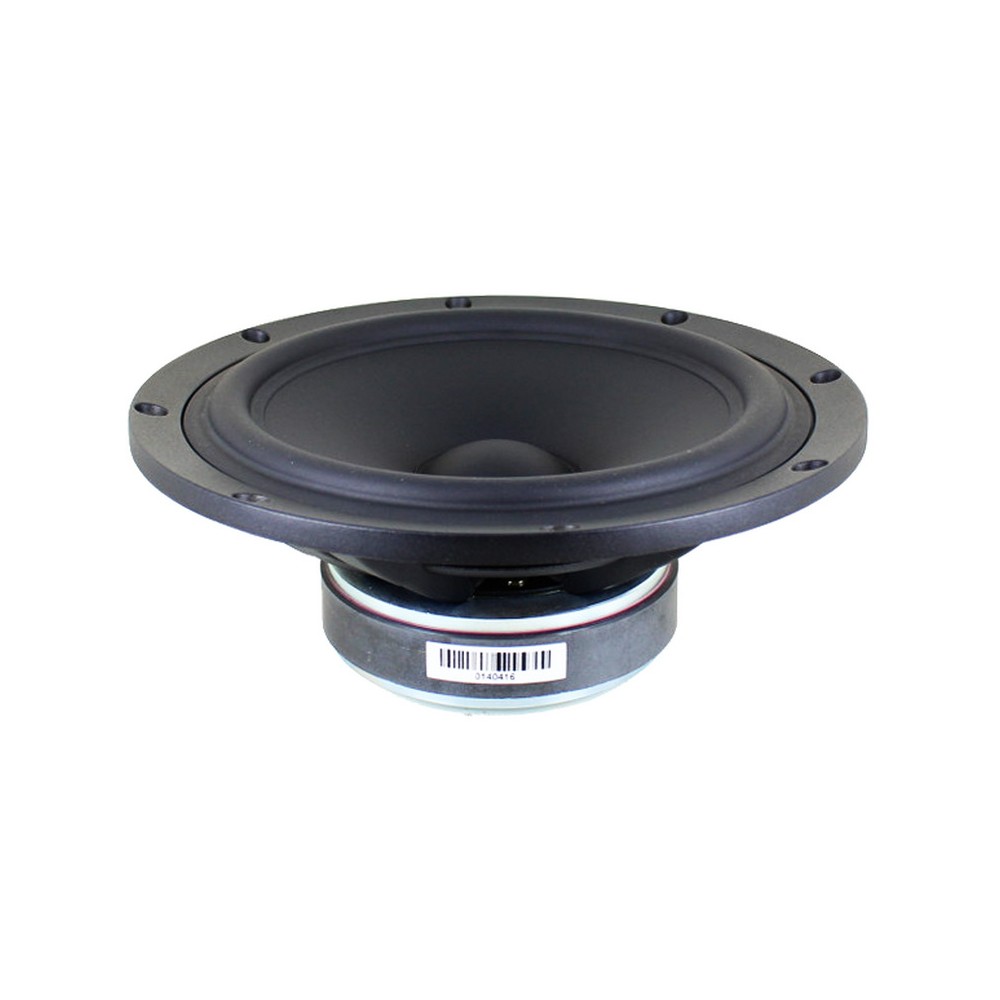

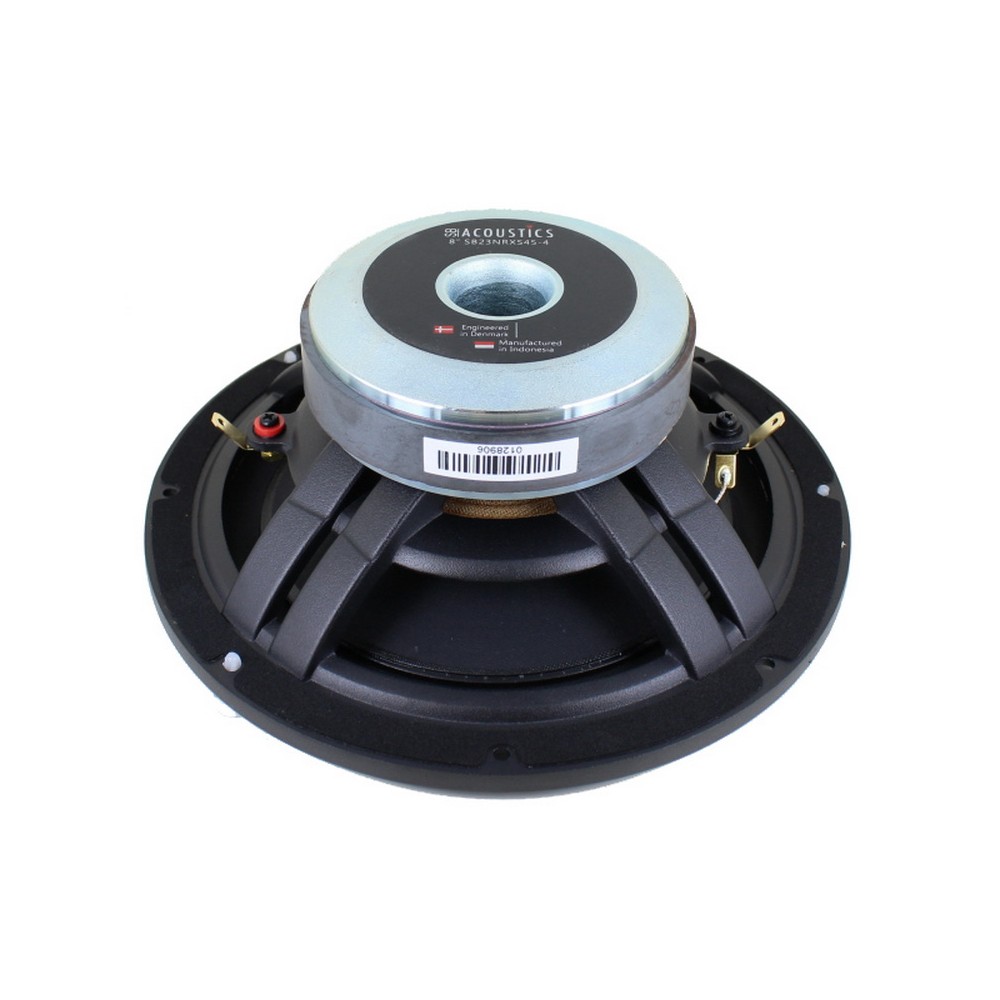

SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer
SB Acoustics SB23NRXS45-4 Norex Cone Woofer

SB Acoustics SB23NRXS45-4 Norex Cone Woofer

PROD353
8 pcs.
In Stock
€ 101.24
Tax included

Features

  • Soft low damping rubber surround for improved transient response
  • Shorting ring in motor system for reduced distortion
  • Vented pole piece for reduced compression
  • Vented cast aluminum chassis for optimum strength and low compression
  • Shallow design
  • Non-conducting fiber glass voice coil former for minimum damping
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
(0)
8" | 4 Ω | 60 W

Brand



Specs

Nominal Impedance 4 Ω

DC resistance, Re 3.3 Ω

Voice coil inductance, Le 0.29 mH

Effective piston area, Sd 216 cm2

Voice coil diameter 45.5 mm

Voice coil height 19 mm

Air gap height 6 mm

Linear coil travel (p-p) 13 mm

Magnetic flux density 0.86 T

Magnet weight 0.8 kg

Net weight 2.74 kg

Free air resonance, Fs 27 Hz

Sensitivity (2.83V/1m) 92 dB

Mechanical Q-factor, Qms 5.55

Electrical Q-factor, Qes 0.32

Total Q-factor, Qts 0.3

Moving mass incl. air,Mms 27.2 g

Force factor, Bl 6.9 Tm

Equivalent volume, Vas 87.5 liters

Compliance, Cms 1.33 mm/N

Mechanical loss, Rms 0.8 kg/s

Rated power handling* 60 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

Diameter
8"
Impedance
4 Ω
Power
60 W
Series
NRX/Norex
Material
Paper
