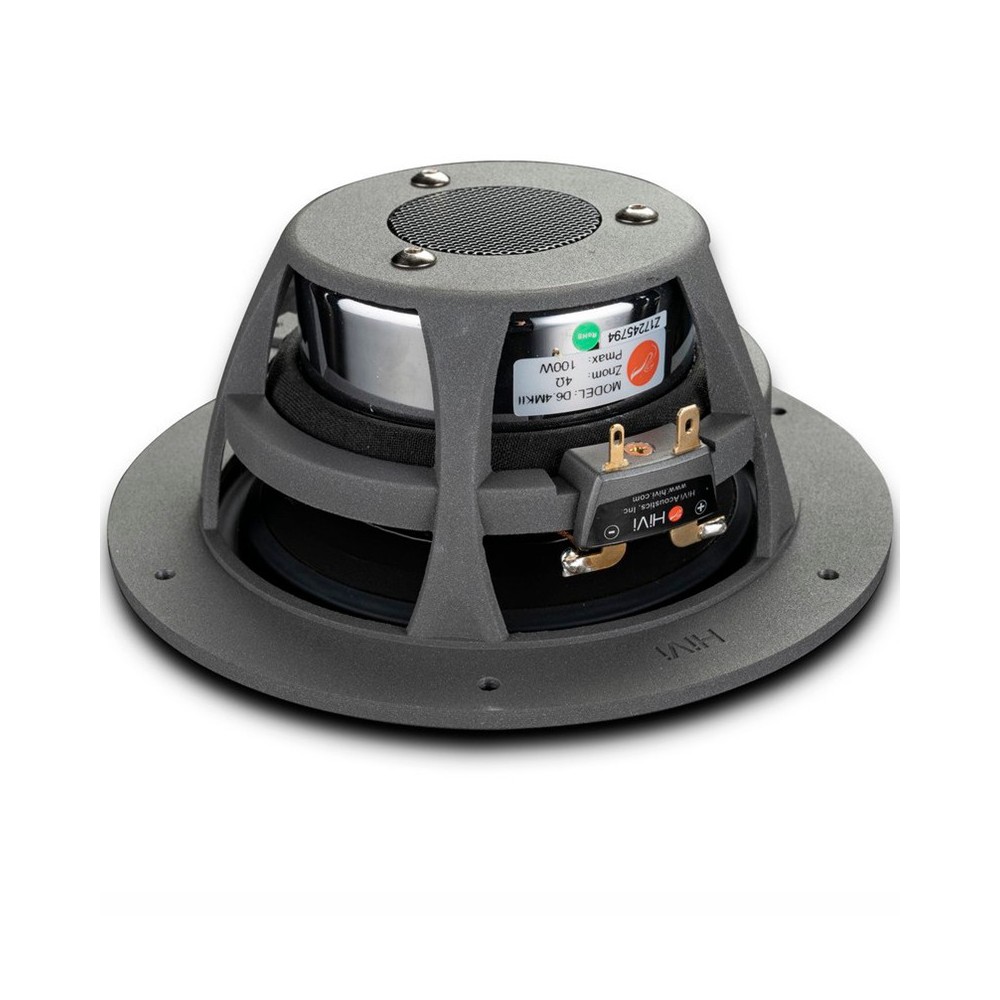

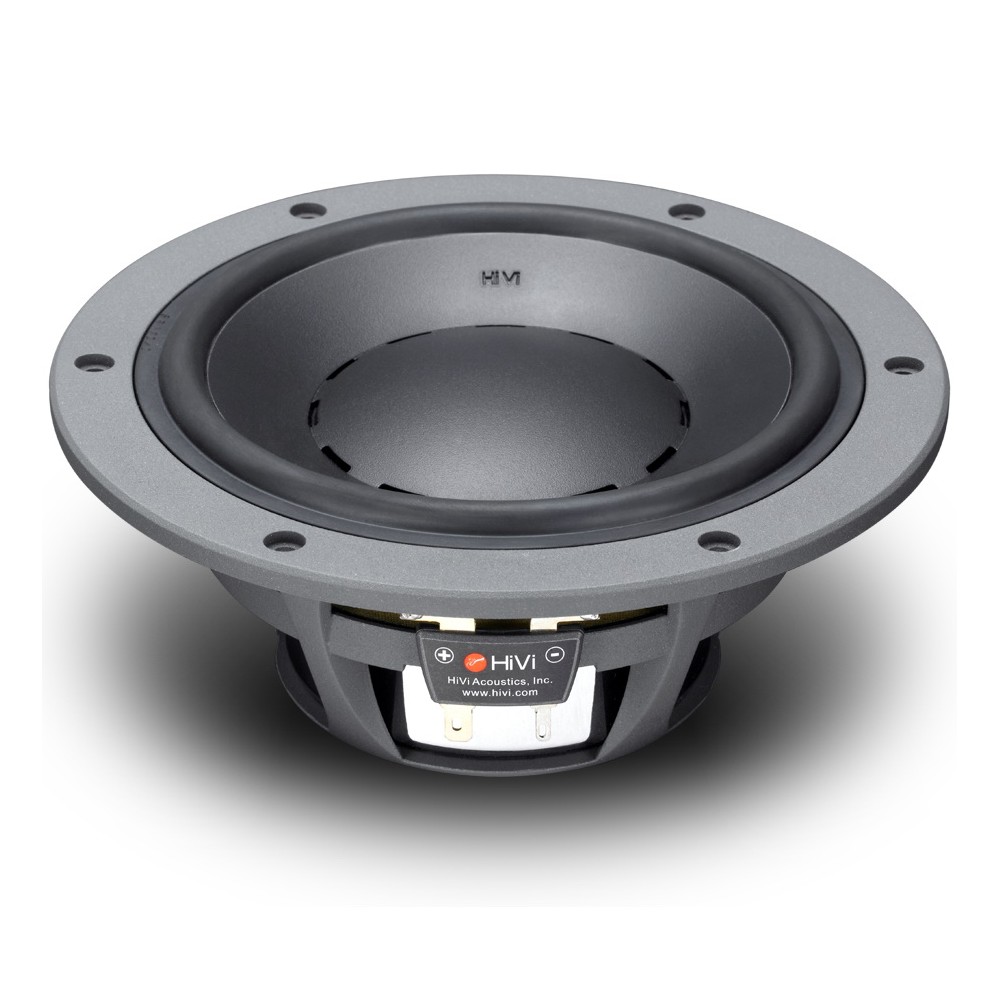

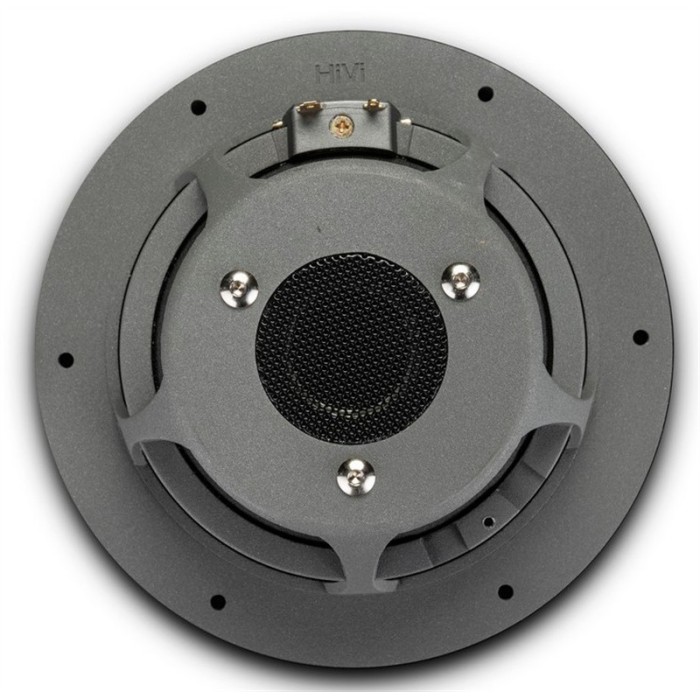

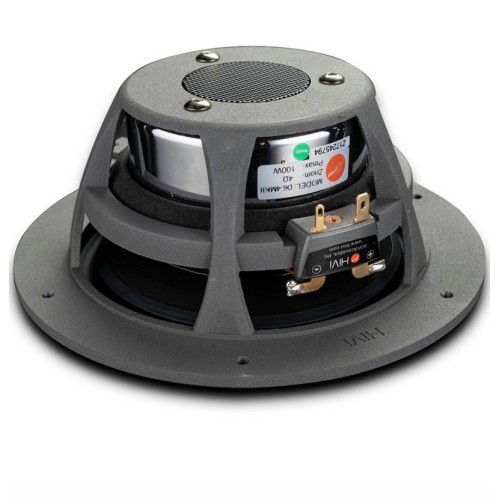

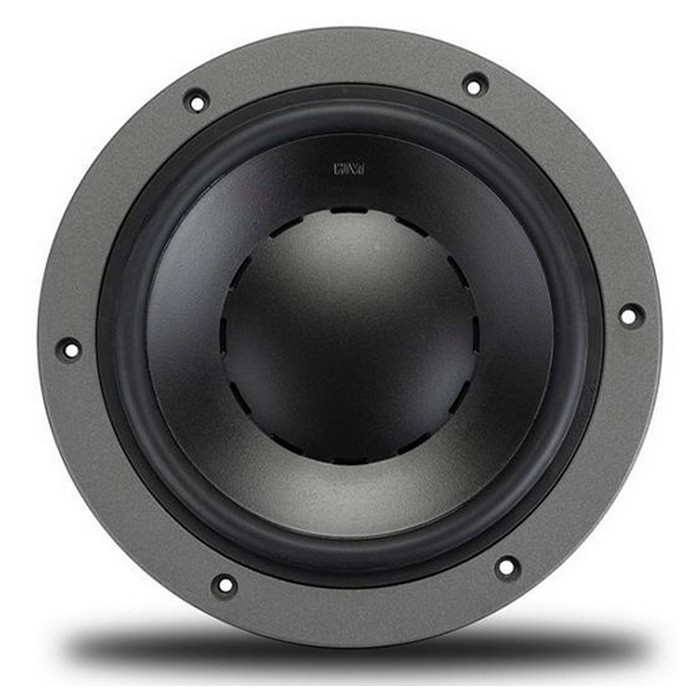

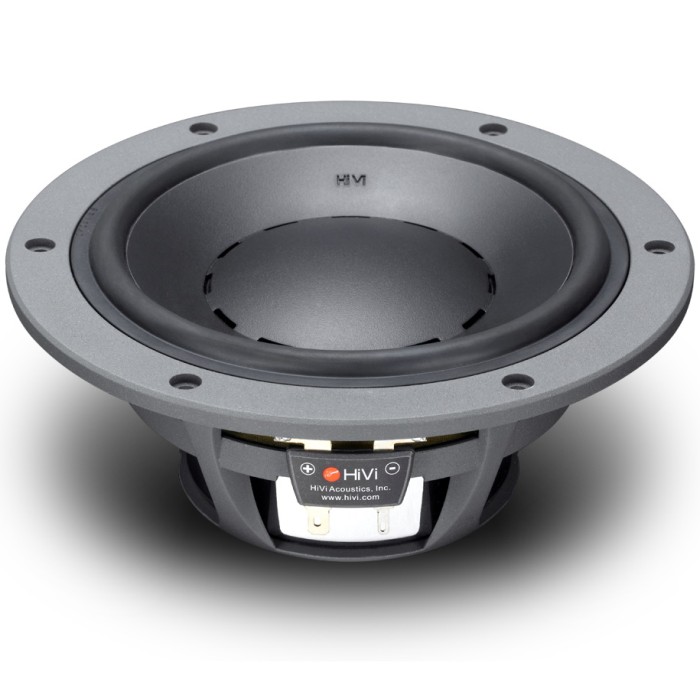

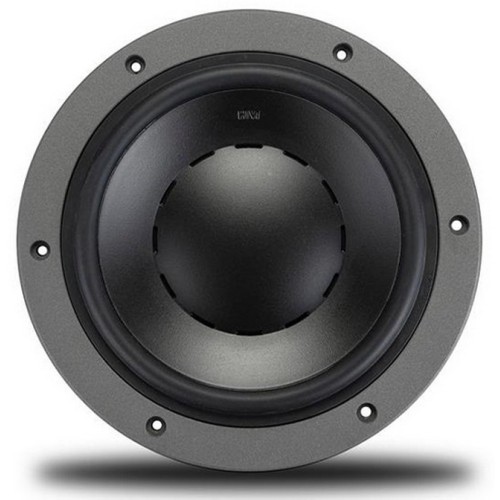

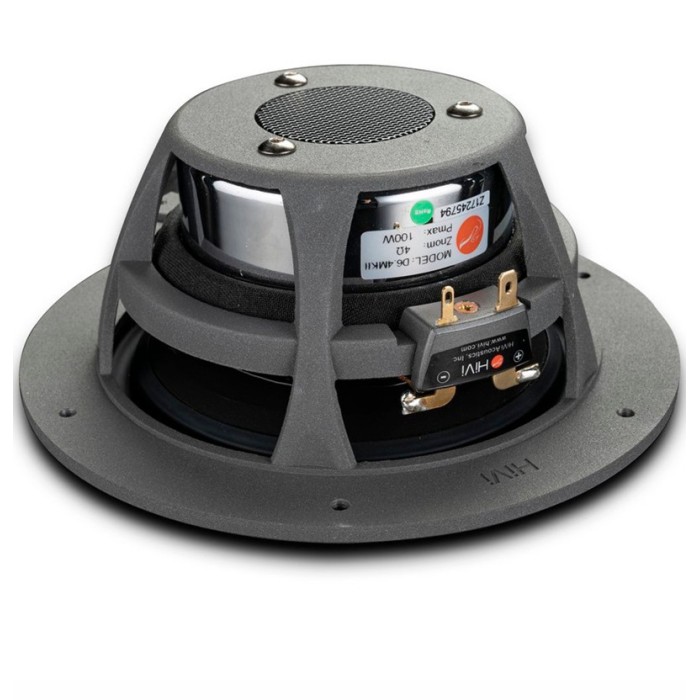

Swans D6.4MKII Hi-end Mid-bass

Name: Swans D6.4MKII Hi-end Mid-bass
Brand: HIVI
SKU: 1296
Price: 125 EUR
Availability: InStock

In stock 22 pcs.

In Stock

€ 125.00

Tax included

Product Specification:

NOMINAL IMPEDANCE 4Ω

RESONANT FREQUENCY 53Hz

NOMINAL POWER HANDLING 50W

MAX POWER HANDLING 100W

SENSITIVITY (2.83V/1M) 87dB

WEIGHT 1.37kg

VOICE COIL DIAMETER 76mm

DC RESISTANCE- 3.6Ω

VOICE COIL WIDTH - 12.8mm

VOICE COIL WIRE= Copper clad aluminum wire

VOICE COIL FORMER- Aluminum

MAGNETIC CIRCUIT TYPE- Internal magnetic

MAGNET MATERIAL- Neodymium

FORCE COEFFICIENT (BL Value)- 7.85N/A

MAGNETIC GAP HEIGHT- 6.0mm

MAXIMUM LINEAR DISPLACEMENT - 3.5mm

COMPLIANCE- 412uM/N

MECHANICAL- Q 2.29 -

ELECTRICAL- Q 0.41 -

TOTAL- Q 0.35 -

VIBRATION QUALITY- 20.6g

EQUIVALENT VOLUME- 8.5L

CABINET TYPE - Phase reverse type

RECOMMENDED NET VOLUME OF CABINET- 13.5L

TUNING FREQUENCY OF PHASE GUIDE TUBE - 46Hz

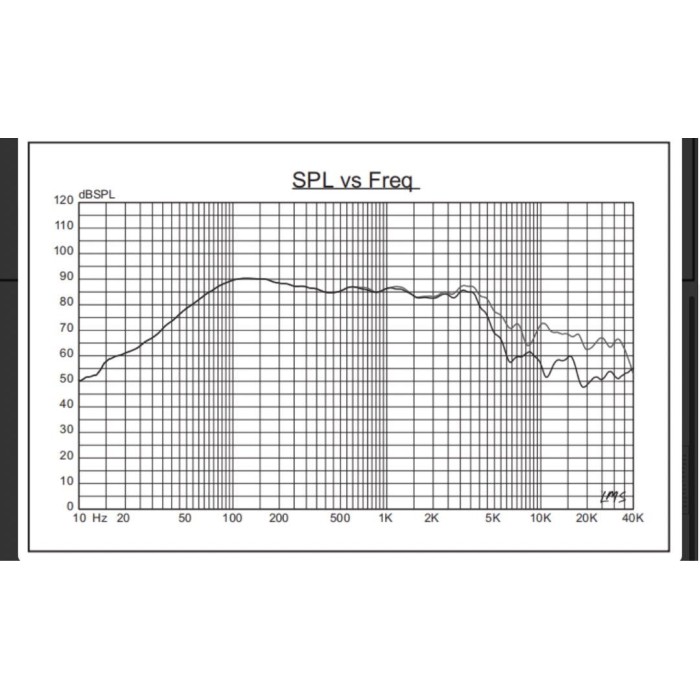

FREQUENCY IN THE FREE FIELD -3db (CABINET) 50Hz

Quantity	Unit discount	You Save
4	10%	€ 50.00
6	15%	€ 112.50

(0)

6" | 4 Ω | 50 W

The new D series loudspeaker adopts HiVi’s industry-leading Small/Thiele parameter optimization design technology. German PMK double-layer mica high-strength integrated diaphragm, German-made fatigue-resistant and high-loss natural rubber folding ring, high permeability and high stability centering support piece, HiVi patented dual magnetic circuit fully coupled symmetrical high-power composite magnetic circuit system (SMD) and high-performance neodymium iron boron magnets, high-power 75mm high temperature resistant copper-clad aluminum wire voice coil with no eddy current loss Kapton voice coil frame, finite element precision computer simulation design integrated high-density aluminum frame, long-stroke linear displacement Symmetrical low distortion drive magnetic field design.

Sound characteristics: magnificent low-mid frequency sound field beyond size, natural and accurate, high analytical power, full of vitality and dynamics, one of the noble Hi-end sound masterpieces.

Suitable for: professional monitor speakers, HiFi, Hi-end monitor sound system, AV home theater system, very suitable for low frequency unit in two-way phase inverted speaker system and midrange unit in three-way syst

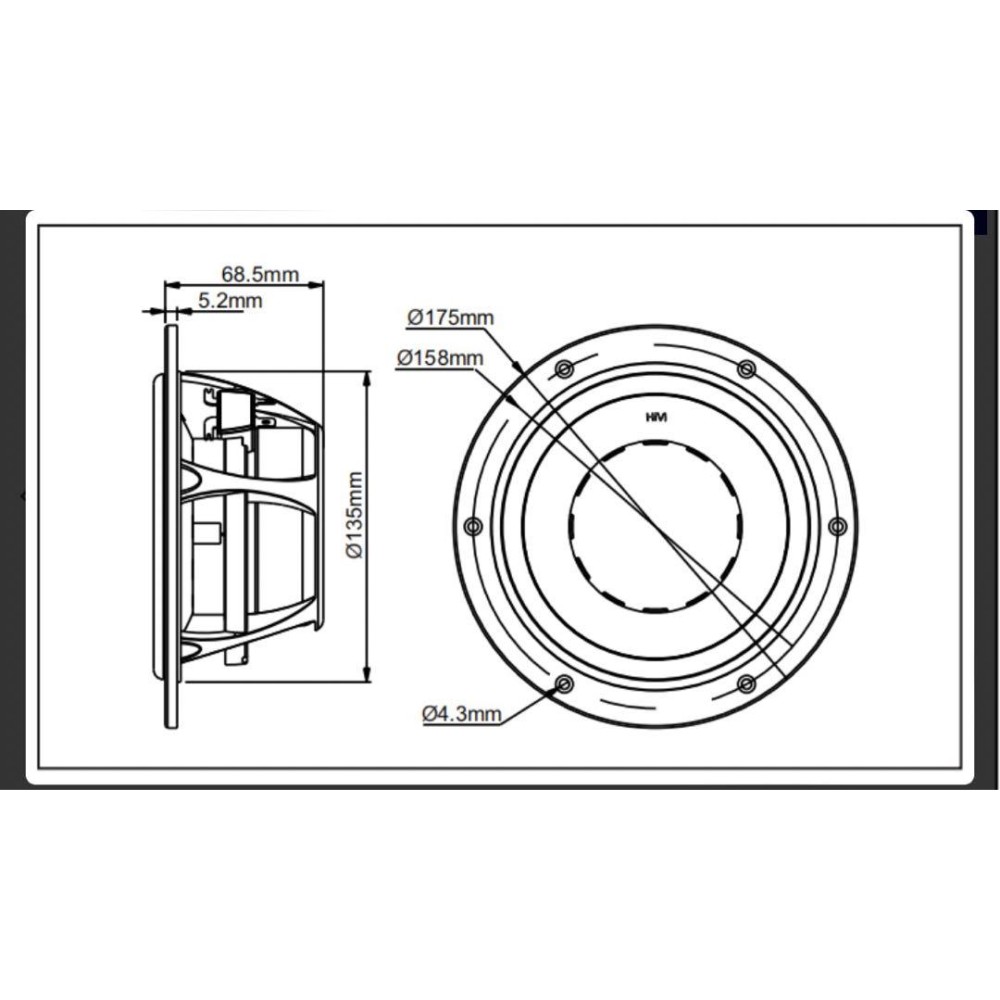

Diameter: 6"
Impedance: 4 Ω
Power: 50 W
Series: HIVI D
Material: Aluminum
Polypropylene
