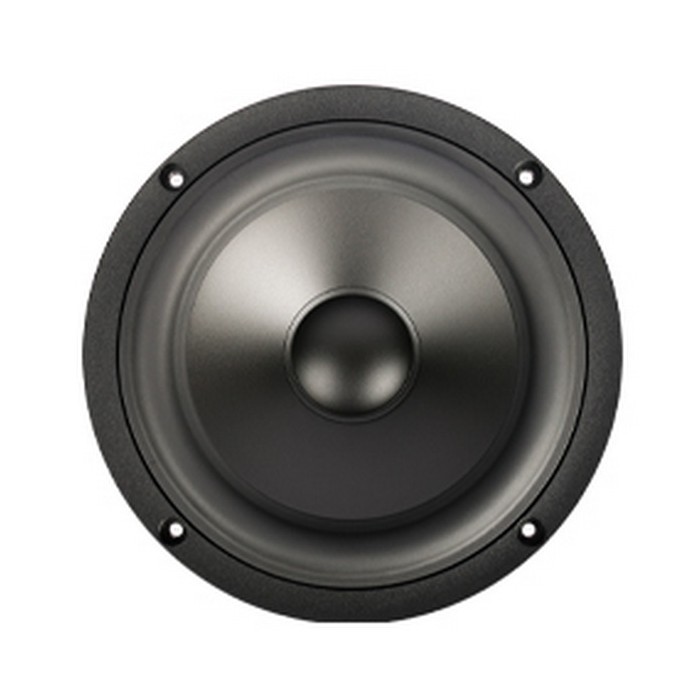

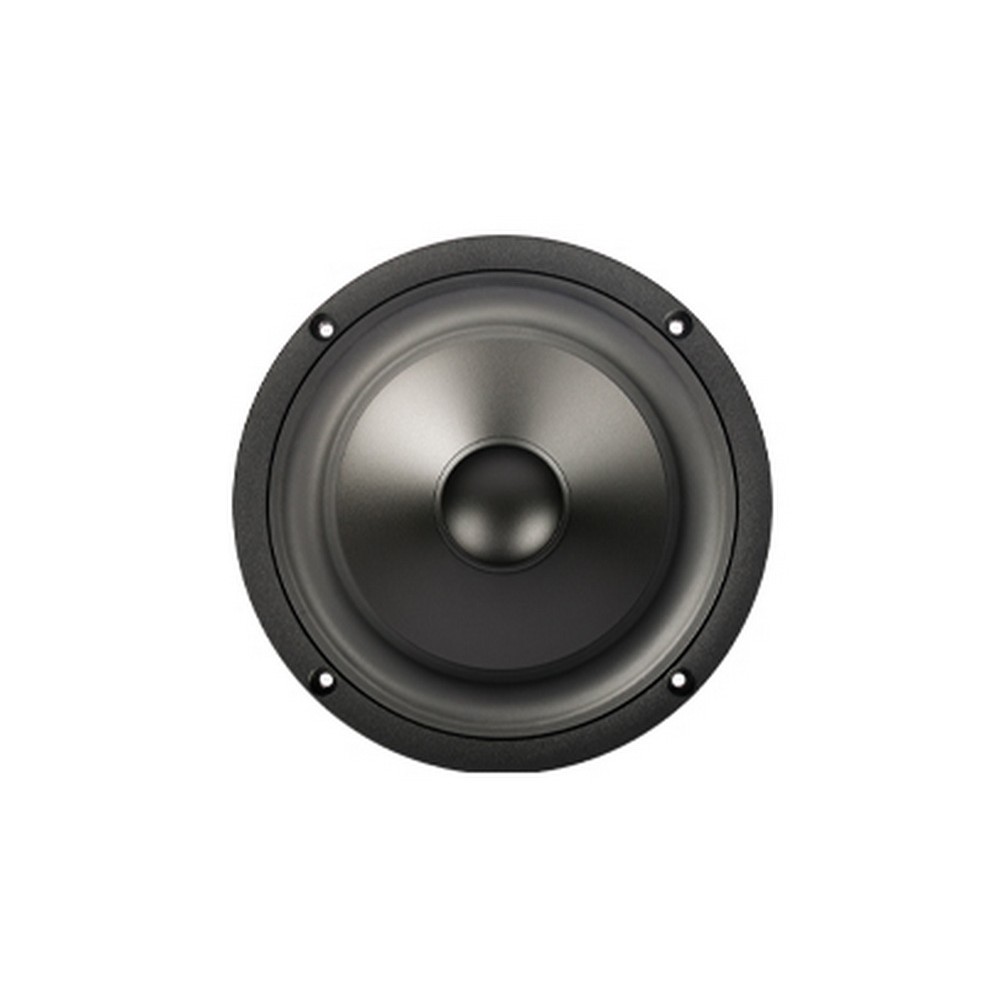

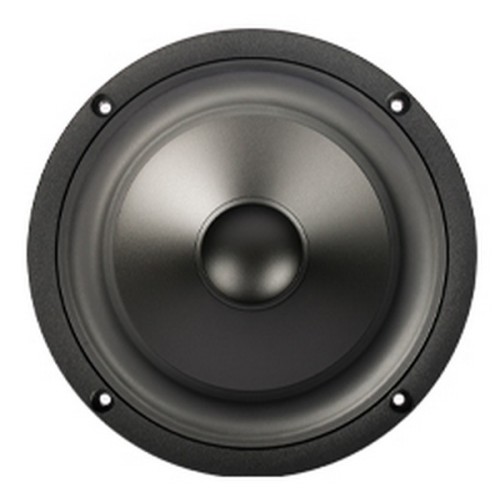

SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm
SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm
SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm
SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm
SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm
SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm
SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm
SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm

SB Acoustics SB17MFC35-4 6" Poly Cone Woofer 4 ohm

IMPORTED_SB_ACOUSTIC_13
8 pcs.
In Stock
€ 69.02
Tax included

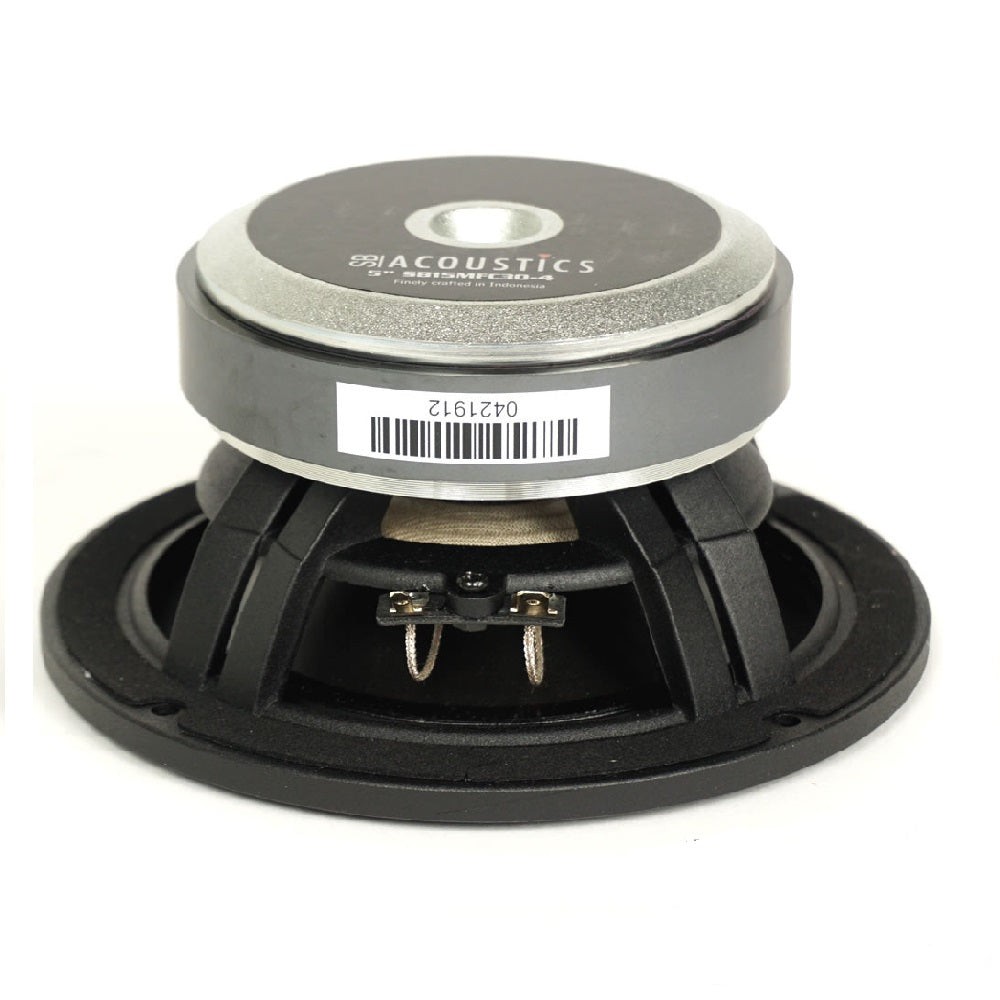

  • Vented cast aluminum chassis for optimum strength and low compression
  • Mineral filled PP-cone made in-house
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression
(0)
6" | 4 Ω | 60 W

Brand


  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.1 Ω
  • Voice coil inductance, Le 0.13 mH
  • Effective piston area, Sd 118 cm2
  • Voice coil diameter 35.5 mm
  • Voice coil height 16 mm
  • Air gap height 5 mm
  • Linear coil travel (p-p) 11 mm
  • Magnetic flux density 1.0 T
  • Magnet weight 0.54 kg
  • Net weight 1.55 kg
  • Free air resonance, Fs 30 Hz
  • Sensitivity (2.83 V / 1 m) 90 dB
  • Mechanical Q-factor, Qms 5.2
  • Electrical Q-factor, Qes 0.30
  • Total Q-factor, Qts 0.28
  • Moving mass incl. air, Mms 12.3 g
  • Force factor, Bl 4.9 Tm
  • Equivalent volume, VAS 45 liters
  • Compliance, Cms 2.29 mm/N
  • Mechanical loss, Rms 0.45 kg/s
  • Rated power handling* 60 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

Diameter
6"
Impedance
4 Ω
Power
60 W
Series
MFC / Polypropylene
Material
Aluminum
Polypropylene
