PROD230
2 pcs.
In Stock
€ 56.75
Tax included

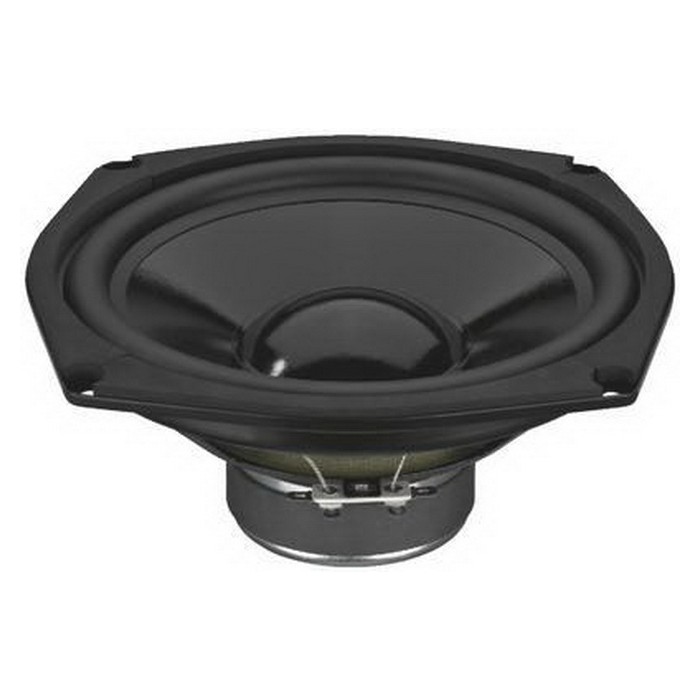

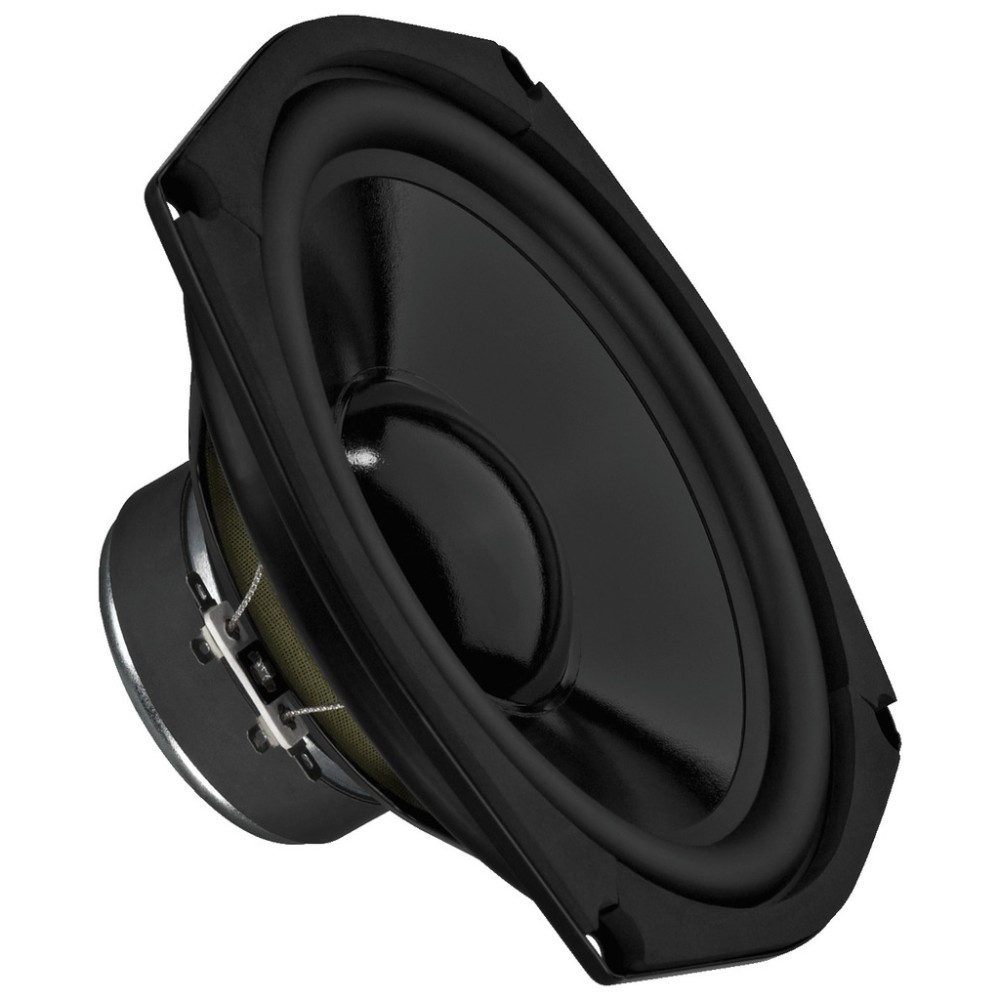

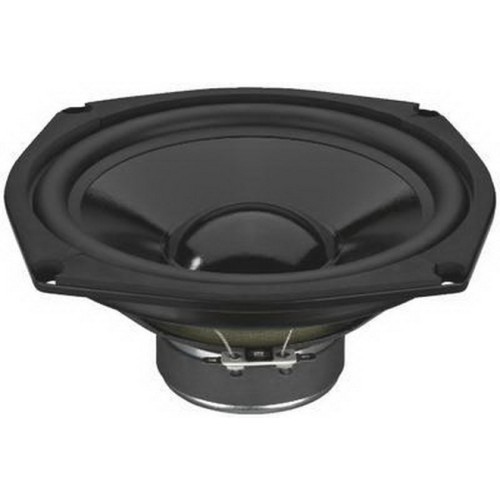

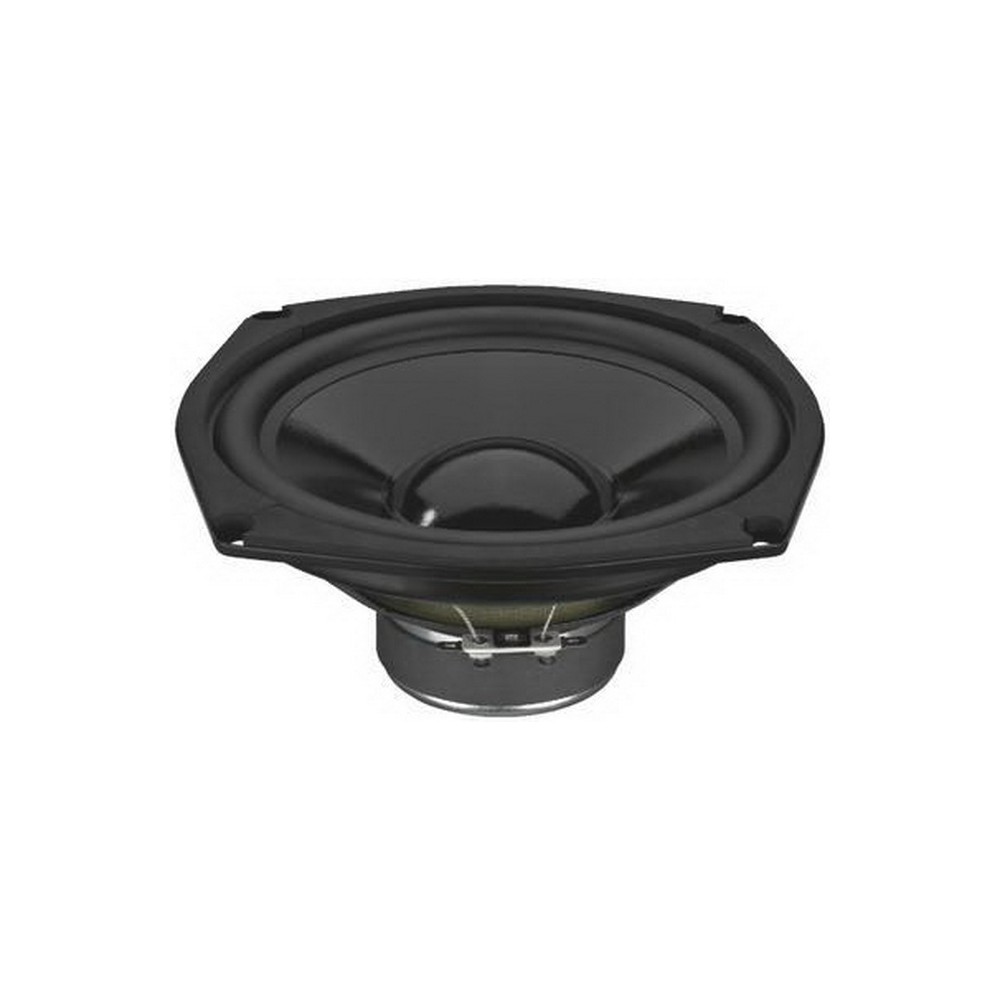

SPM-205/4

  • Hi-fi bass-midrange speakers, 70 W, 8 Ω (/8) and 4 Ω (/4)
  • Excellent replacement speakers of the same quality as from the original equipment manufacturer
  • Coated low-resonance paper cone
  • Long-term stable rubber surround
  • To be used preferably in closed or transmission line cabinets
(0)
8" | 4 Ω | 70 W

Brand



Technical specifications SPM-205/4

  • SPM-205/4
  • Impedance (Z) 4 Ω

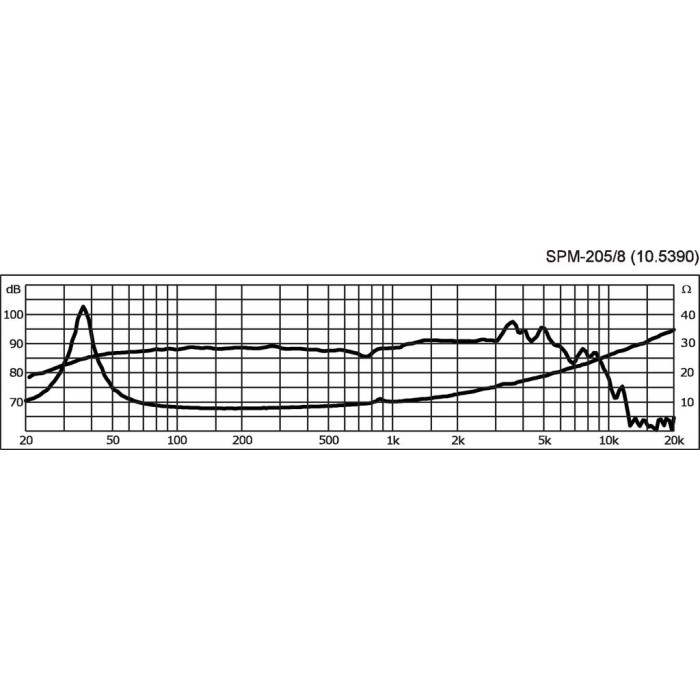

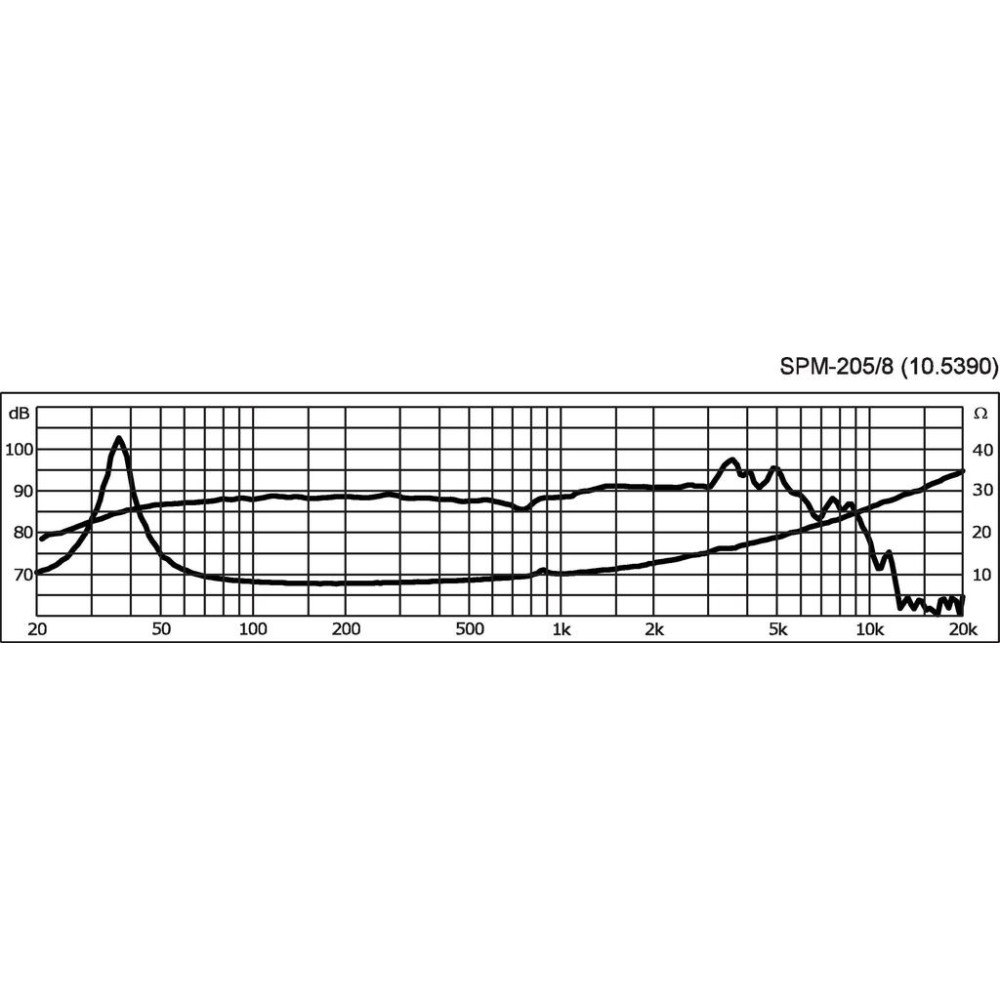

  • Frequency range f3-5,000 Hz
  • Resonant frequency (fs) 37 Hz
  • Power rating (RMS) 70 W
  • Peak music power output (MAX) 150 W
  • SPL 89 dB/W/m
  • Suspension compl. (Cms) 0.98 mm/N
  • Moving mass (Mms) 18 g
  • Mech. Q factor (Qms) 2.71
  • Electr. Q factor (Qes) 0.68
  • Total Q factor (Qts) 0.55
  • Equivalent volume (Vas) 72 l
  • DC resistance (Re) 3.6 Ω
  • Force factor (BxL) 4.75 Tm
  • Voice coil induct. (Le) 0.65 mH
  • Voice coil diameter Ø 25.5 mm
  • Voice coil former
  • Linear excursion (XMAX) ± 3 mm
  • Eff. cone area (Sd) 210 cm2
  • Magnet weight 380 g
  • Magnet diameter Ø 80 mm

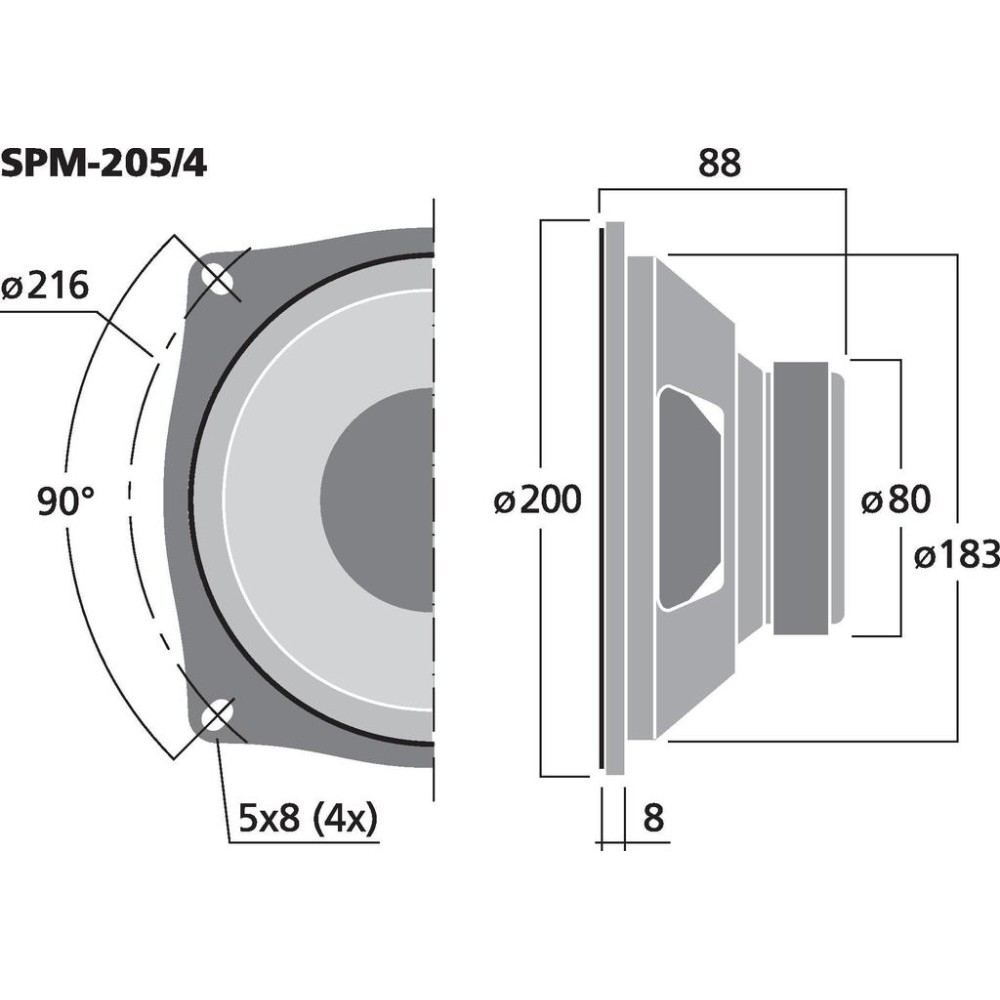

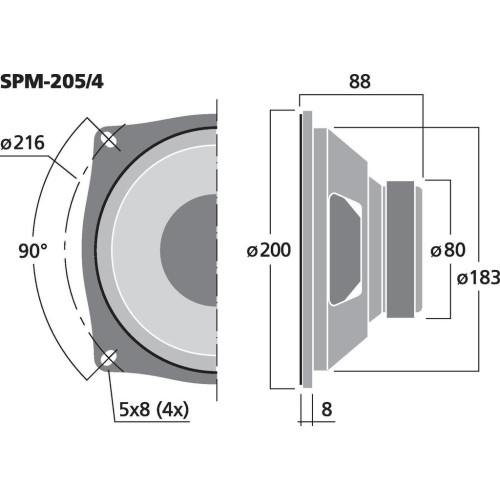

  • Mounting cutout Ø 183 mm
  • Mounting depth 80 mm
  • Mounting hole diameter Ø 216 mm
  • Dimensions Ø 200 mm x 88 mm
  • Outside diameter Ø 200 mm
  • Width Ø 200 mm
  • Depth 88 mm
  • Colour black
  • Admiss. ambient temp. 0-40 °C
  • Weight 1.062 kg
  • Packing unit 1
  • Type of speaker 8"
  • Packing dimensions (W x H x L) 0.215 x 0.125 x 0.215 m
  • Gross weight 1.23 kg
  • Net weight 1.062 kg
Diameter
8"
Impedance
4 Ω
Power
70 W
Material
Metal
Paper
