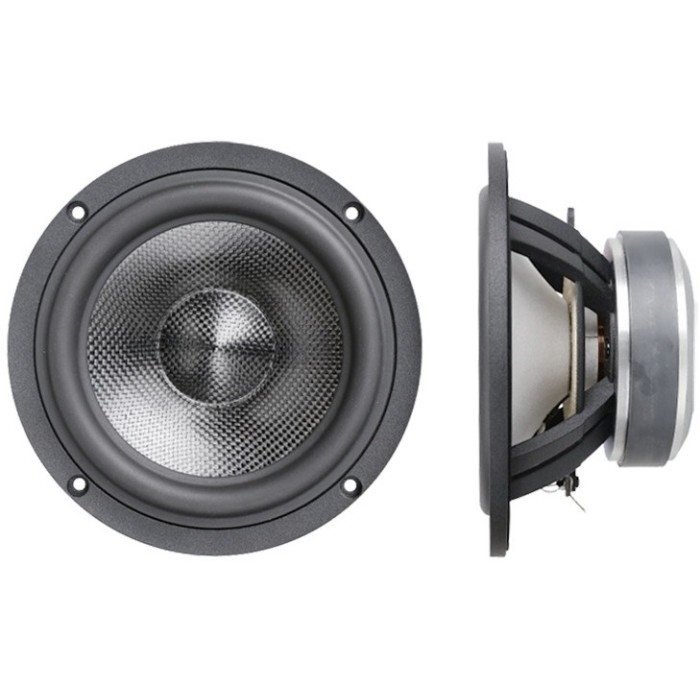

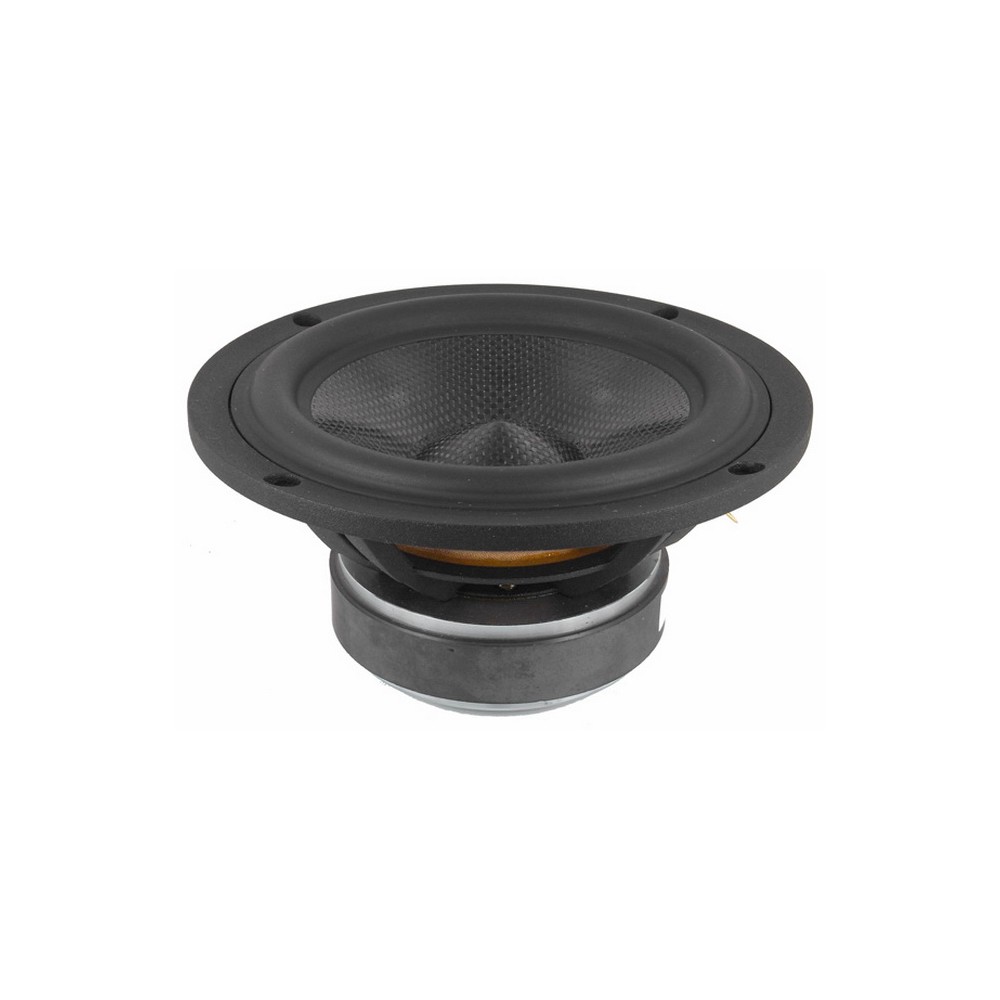

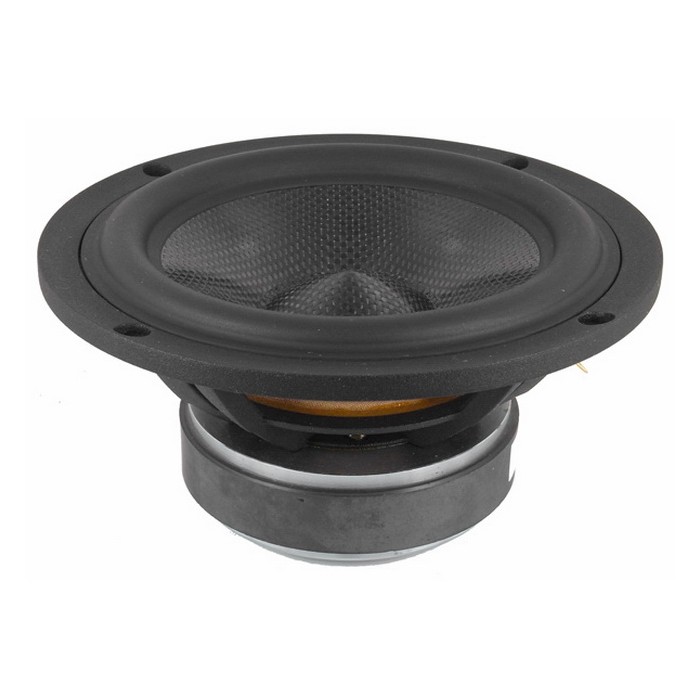

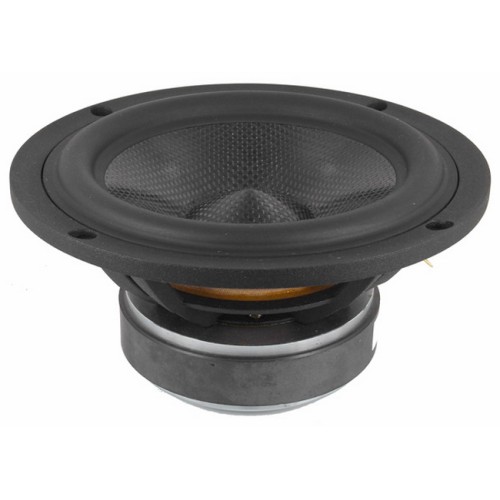

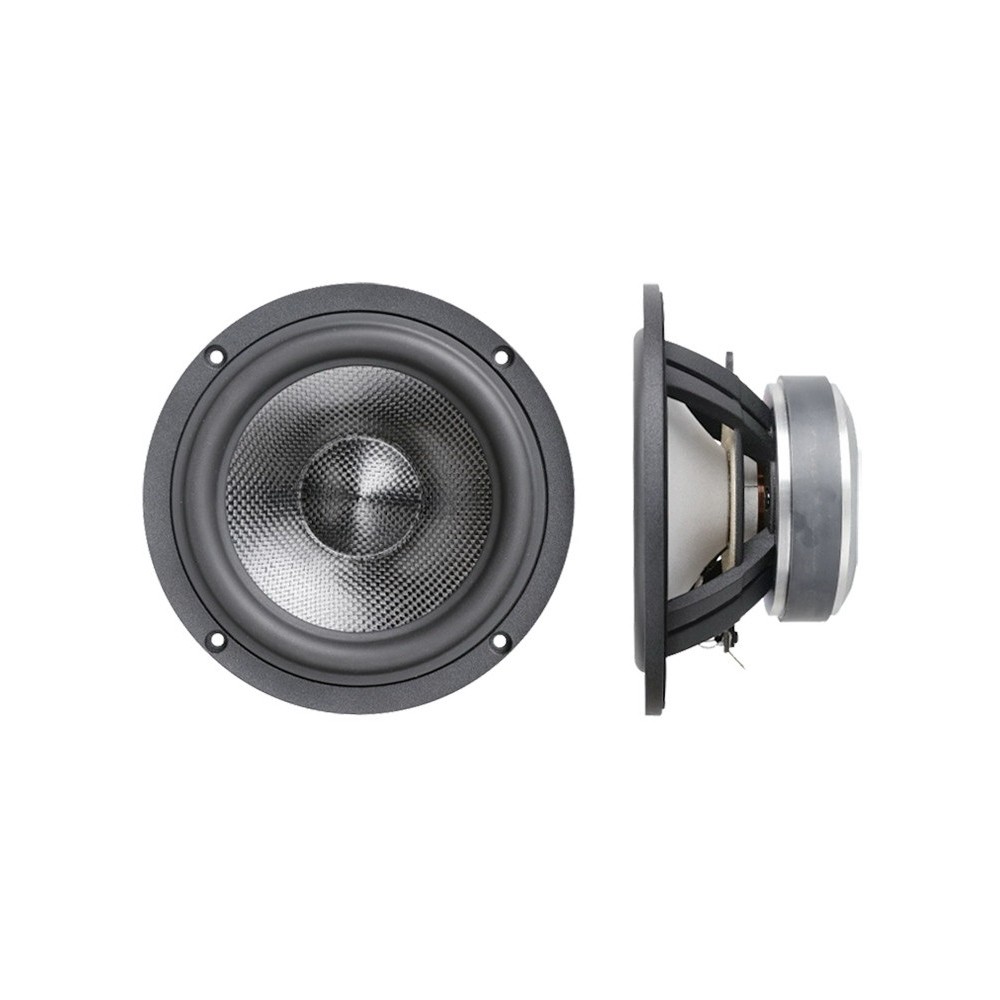

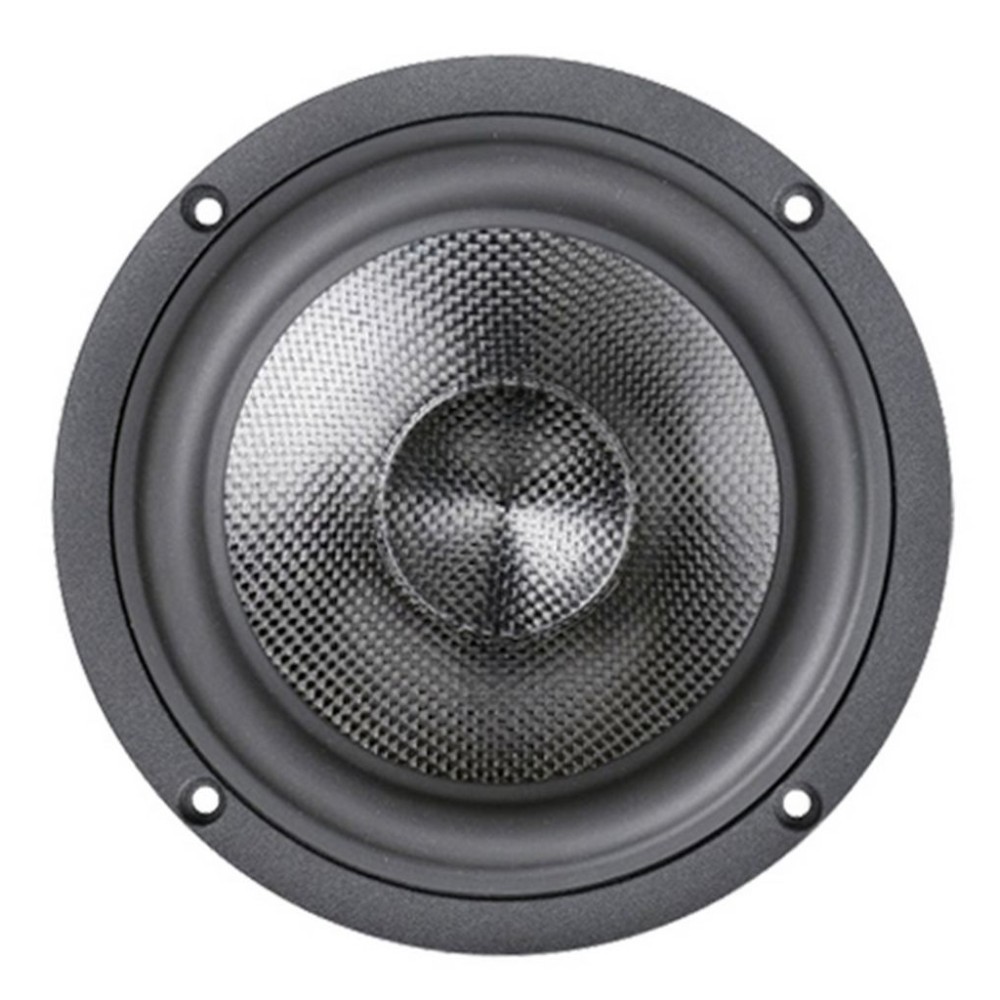

SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

IMPORTED_SB_ACOUSTIC_8
6 pcs.
In Stock
€ 101.24
Tax included
  • Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio
  • Vented cast aluminum chassis for optimum strength and low compression
  • Low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression
Quantity Unit discount You Save
4 5% € 20.25
8 10% € 80.99

(0)
6" | 4 Ω | 60 W

Brand


  • Номинален импеданс 4 Ω
  • DC съпротивление, RE 3.1 Ω
  • Индуктивност на гласовата намотка, LE 0,13 mH
  • Ефективна зона на буталото, SD 118 cm2
  • Диаметър на гласовата намотка 35,5 mm
  • Височина на гласовата намотка 16 mm
  • Височина на въздушната празнина 5 mm
  • Пътуване на линейна намотка (P-P) 11 mm
  • Плътност на магнитния поток 1,0 t
  • Магнитно тегло 0,54 кг
  • Нетно тегло 1,56 кг
  • Безплатен въздушен резонанс, FS 31.5 Hz
  • Чувствителност (2.83 V / 1 M) 90 dB
  • Механичен Q-фактор, QMS 4.32
  • Електрически Q-фактор, QES 0,35
  • Общ Q-фактор, QTS 0,32
  • движеща се маса вкл.Въздух, MMS 14.2 g
  • Фактор на силата, BL 5.0 TM
  • Еквивалентен обем, VAS 35.5 литра
  • Съответствие, CMS 1,80 mm/N
  • Механична загуба, RMS 0,65 kg/s
  • Оценена обработка на мощност* 60 W

* IEC 268-5, t/s параметри, измерени на задвижващите единици, които са разработени

Diameter
6"
Impedance
4 Ω
Power
60 W
Series
CRC / Carbon
Material
Aluminum
Carbon
