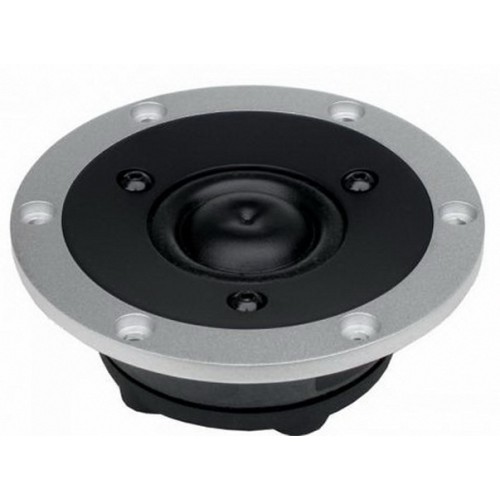

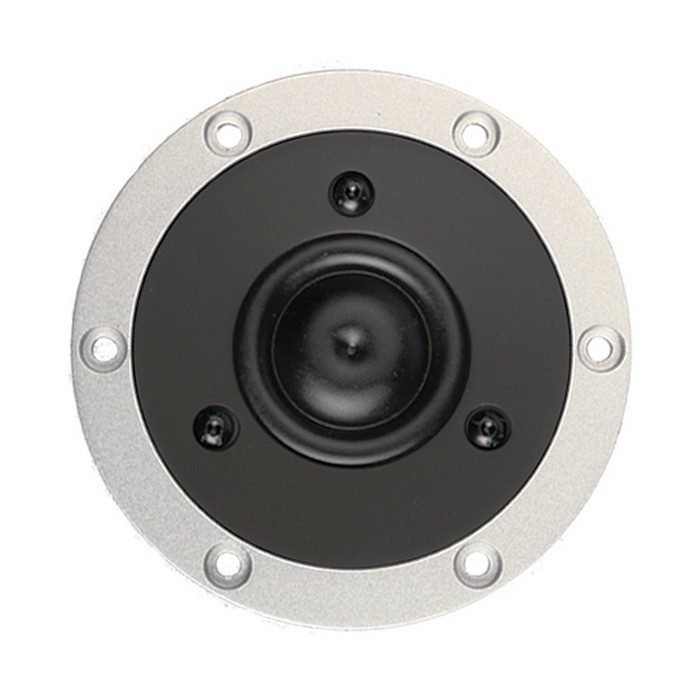

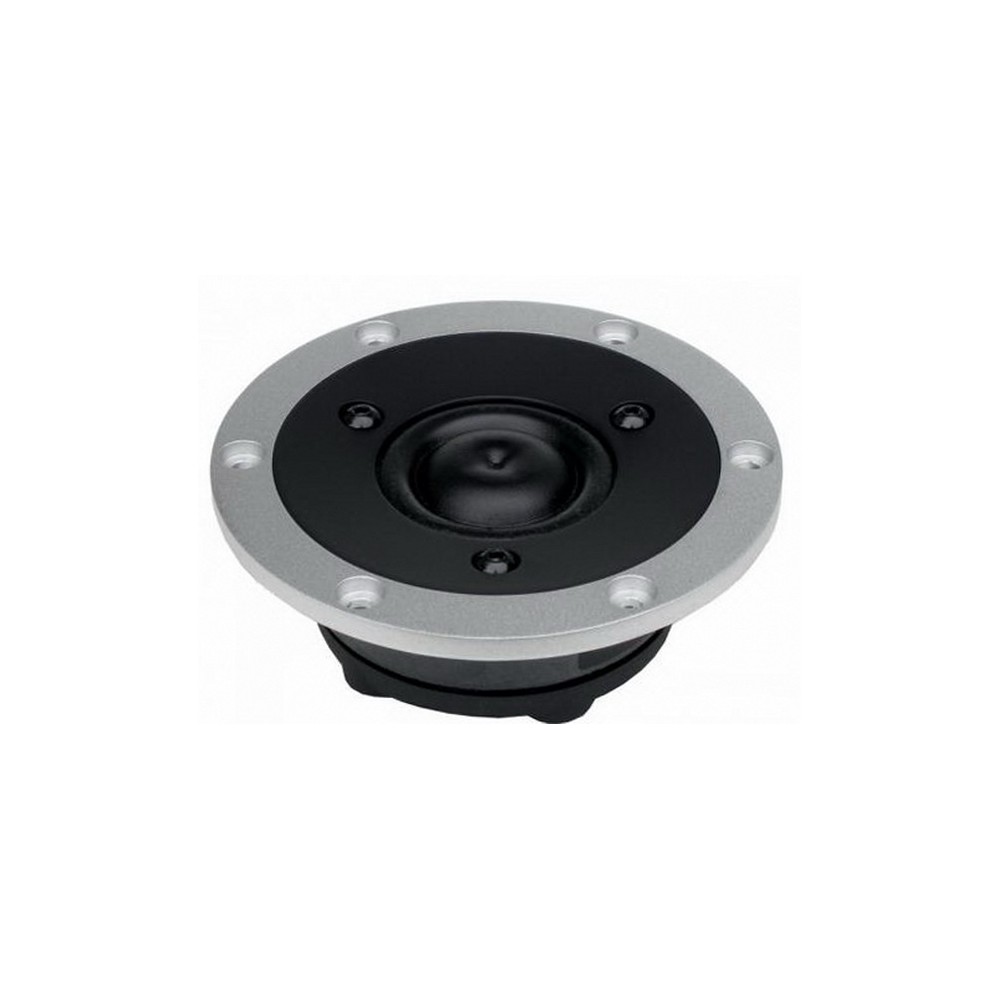

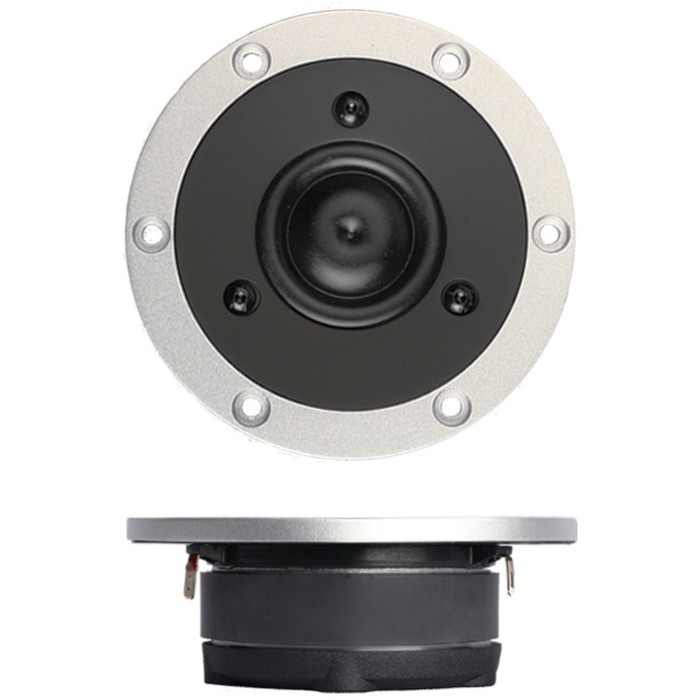

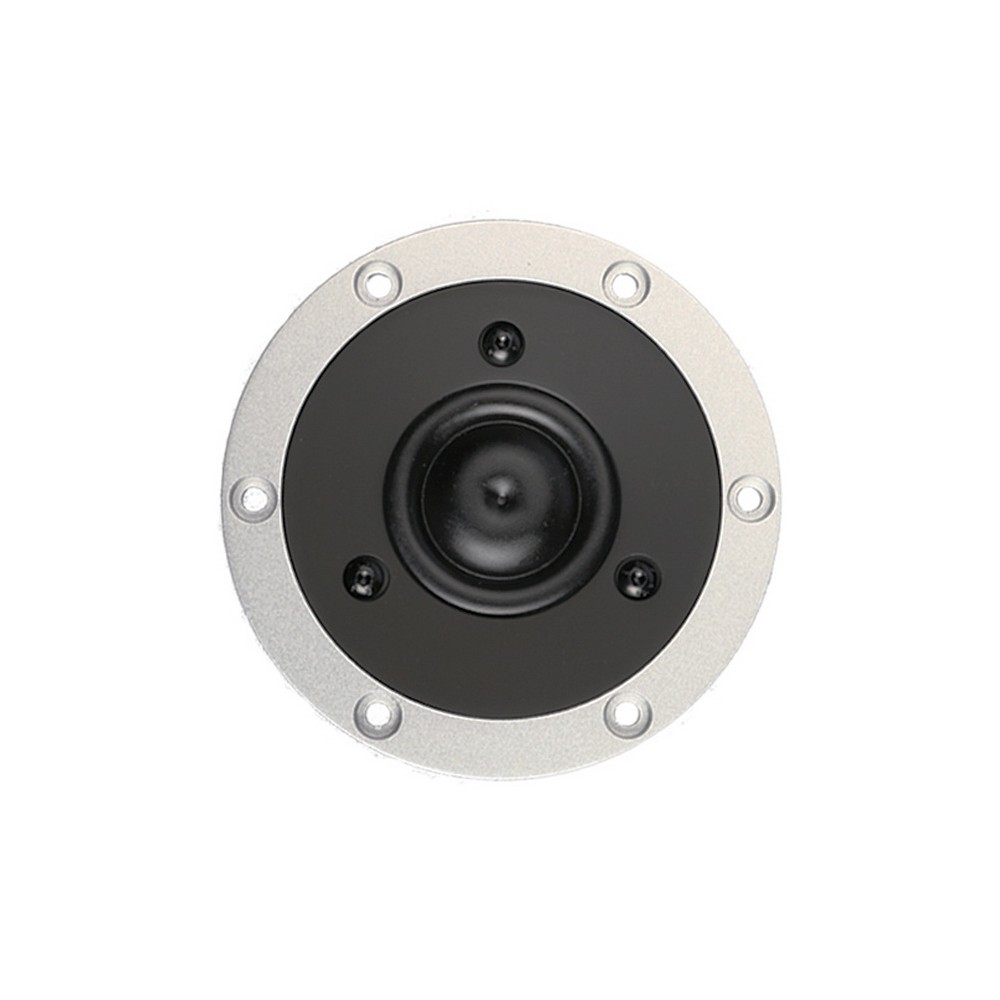

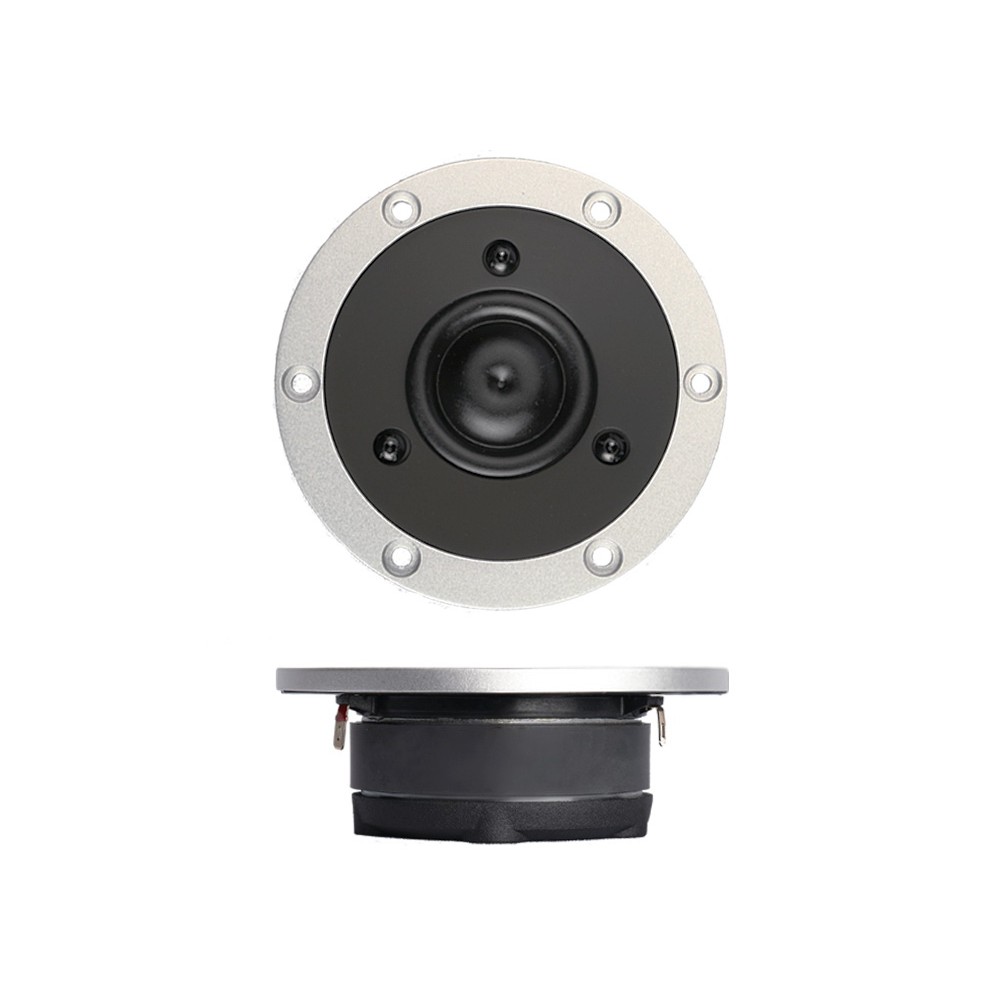

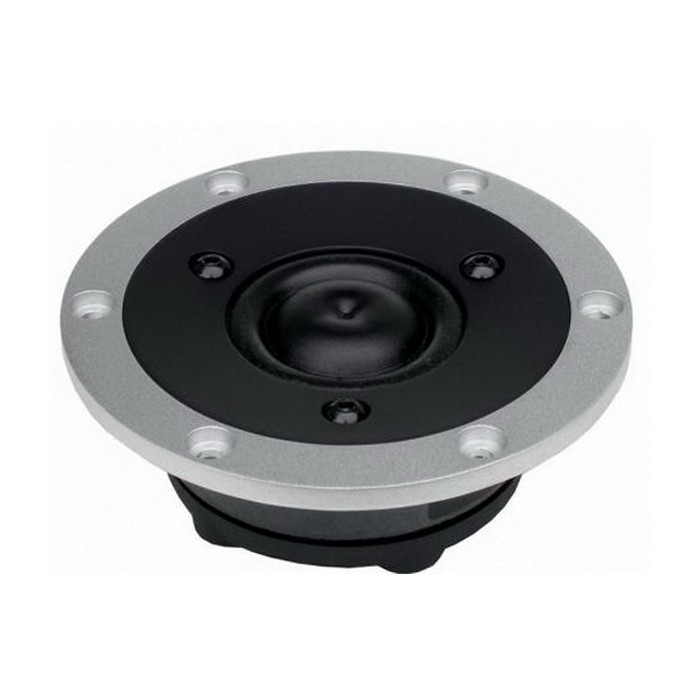

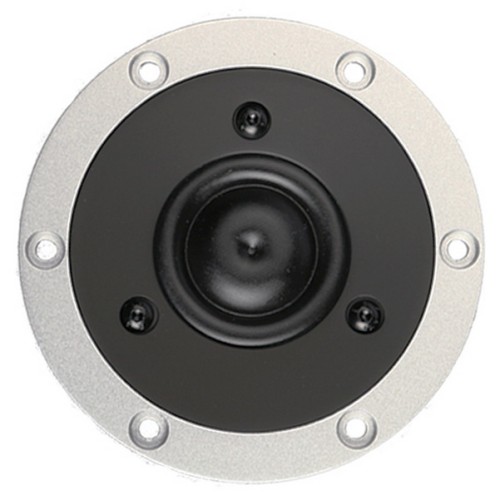

SB Acoustics SATORI TW29R

Name: SB Acoustics SATORI TW29R
Brand: SB Acoustics
SKU: PROD198
Price: 125 EUR
Availability: InStock

Reference PROD198

In stock 10 pcs.

In Stock

€ 125.00

Tax included

Features

Non-resonant diaphragm design for minimum high frequency break-up

Two part aluminium faceplate with integrated mechanical decoupling

Dual balanced compression chambers for improved dynamics

Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

Saturation controlled motor system with T-shaped pole piece for lower distortion

Non-reflective cast aluminium chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency for extended range

Quantity	Unit discount	You Save
4	10%	€ 50.00

(0)

29mm | 4 Ω | 80 W

Specs

Nominal Impedance 4 Ω

DC resistance, Re 3.0 Ω

Voice coil inductance, Le 0.02 mH

Effective piston area, Sd 9.6 cm2

Voice coil diameter 29.0 mm

Voice coil height 2.0 mm

Air gap height 2.5 mm

Linear coil travel (p-p) 0.5 mm

Moving mass incl. air, Mms 0.44 g

Free air resonance, Fs 600 Hz

Sensitivity (2.83 V / 1 m) 92 dB

Mechanical Q-factor, Qms 2.0

Electrical Q-factor, Qes 1.24

Total Q-factor, Qts 0.77

Force factor, Bl 2.0 Tm

Rated power handling* 80 W

Magnetic flux density 1.0 T

Magnet weight 0.22 kg

Net weight 0.53 kg

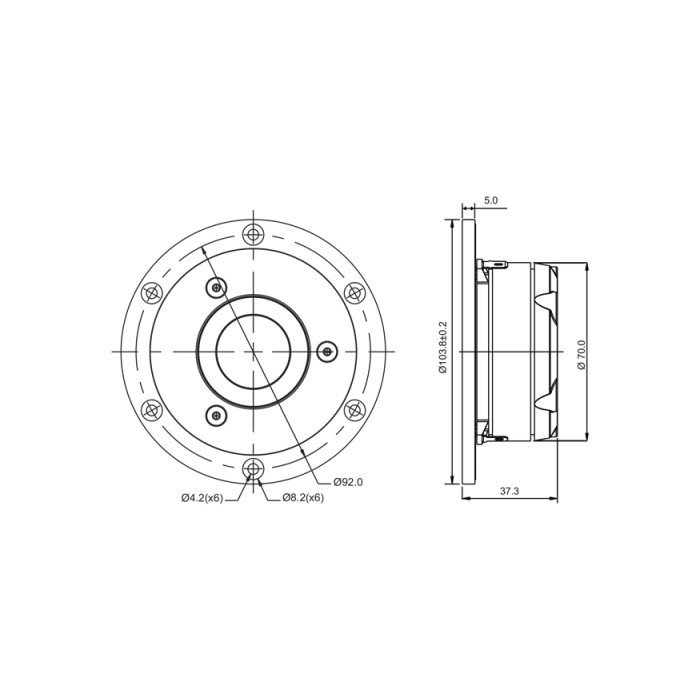

Diameter: 29mm
Impedance: 4 Ω
Power: 80 W
Series: SATORI
Material: Aluminum
Textile

SATORI TW29R

Download (536.02KB)
