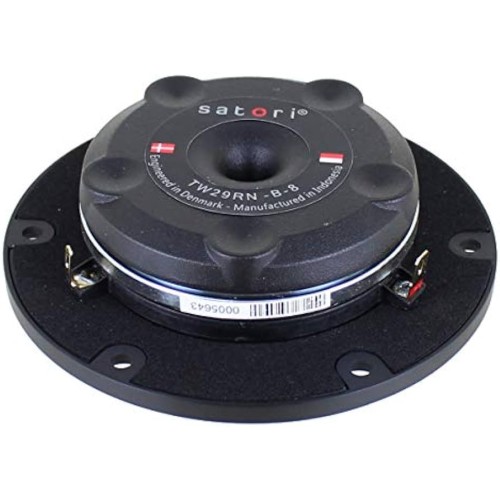

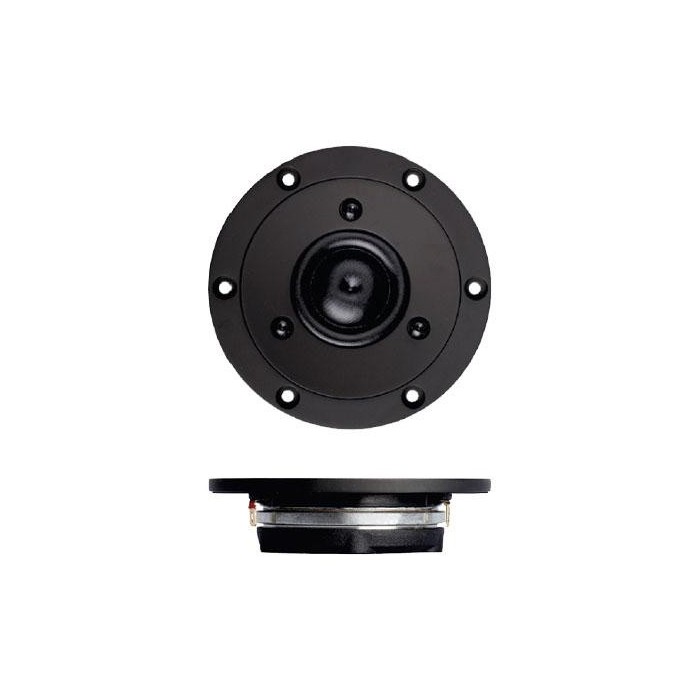

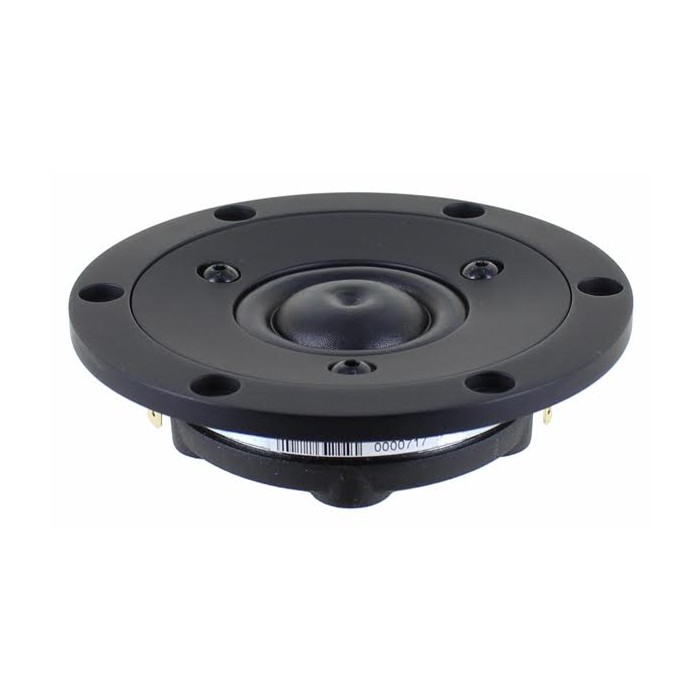

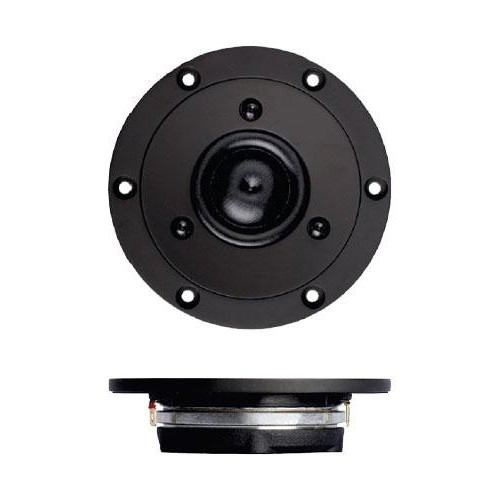

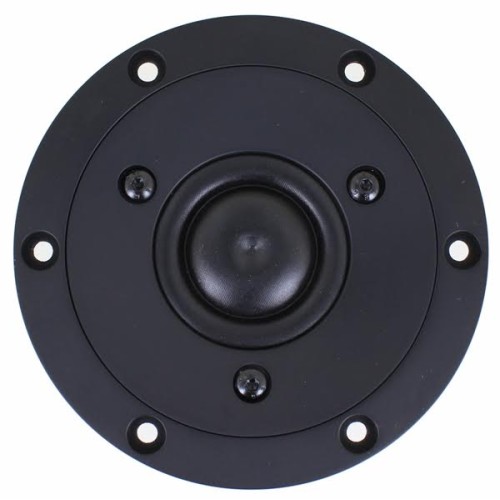

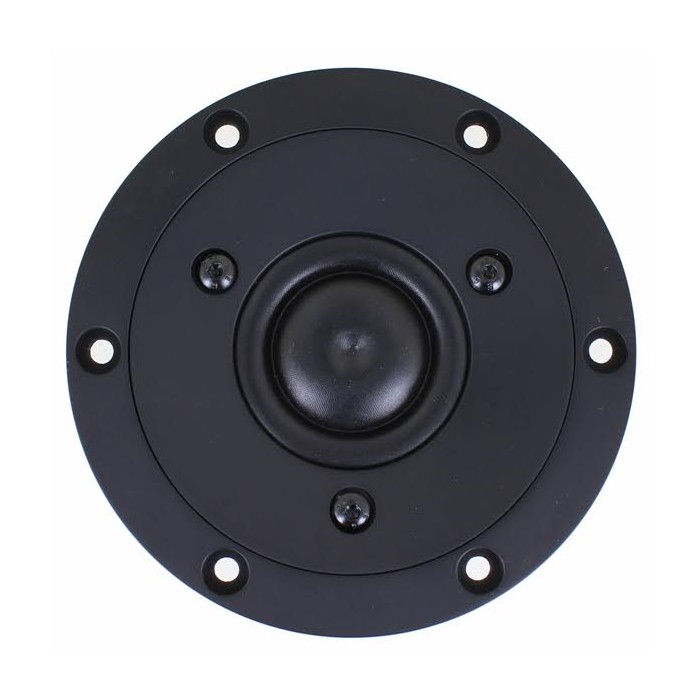

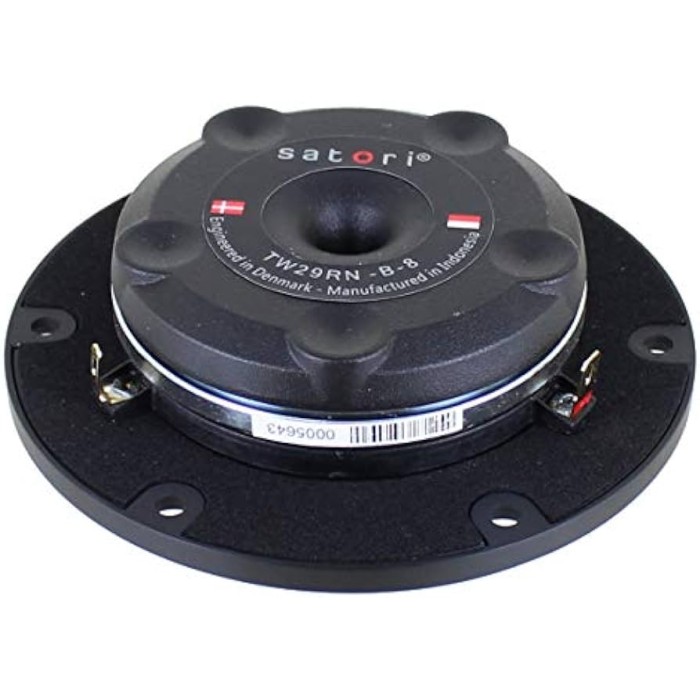

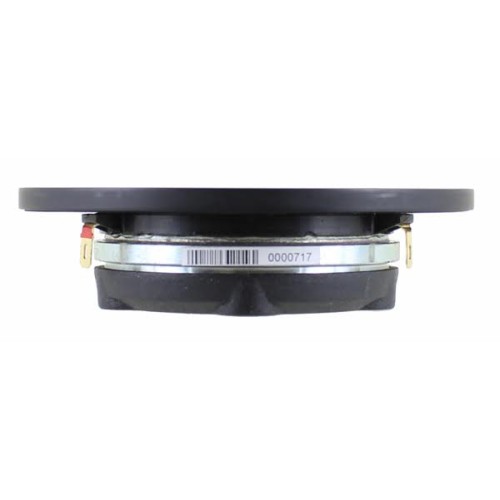

SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter
SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter

SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter

IMPORTED_SB_ACOUSTIC_103
2 pcs.
In Stock
€ 155.00
Tax included
  • Non-resonant diaphragm design for minimum high frequency break-up
  • Two part aluminum faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range
Quantity Unit discount You Save
4 10% € 62.00
6 15% € 139.50
8 20% € 248.00

(0)
29mm | 8 Ω | 80 W

Brand



Specifications List

Nominal Impedance 8 Ω

DC resistance, Re 6.2 Ω

Voice coil inductance, Le 0.04 mH

Effective piston area, Sd 9.6 cm2

Voice coil diameter 29 mm

Voice coil height 2.1 mm

Air gap height 2.5 mm

Linear coil travel (p-p) 0.4 mm

Moving mass incl. air, Mms 0.42 g

Free air resonance, Fs 650 Hz

Sensitivity (2.83V/1m) 93 dB

Mechanical Q-factor, Qms 1.74

Electrical Q-factor, Qes 0.66

Total Q-factor, Qts 0.48

Force factor, Bl 4.1 Tm

Rated power handling* 80 W

Magnetic flux density 1.5 T

Magnet weight 0.10 kg

Net weight 0.4 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

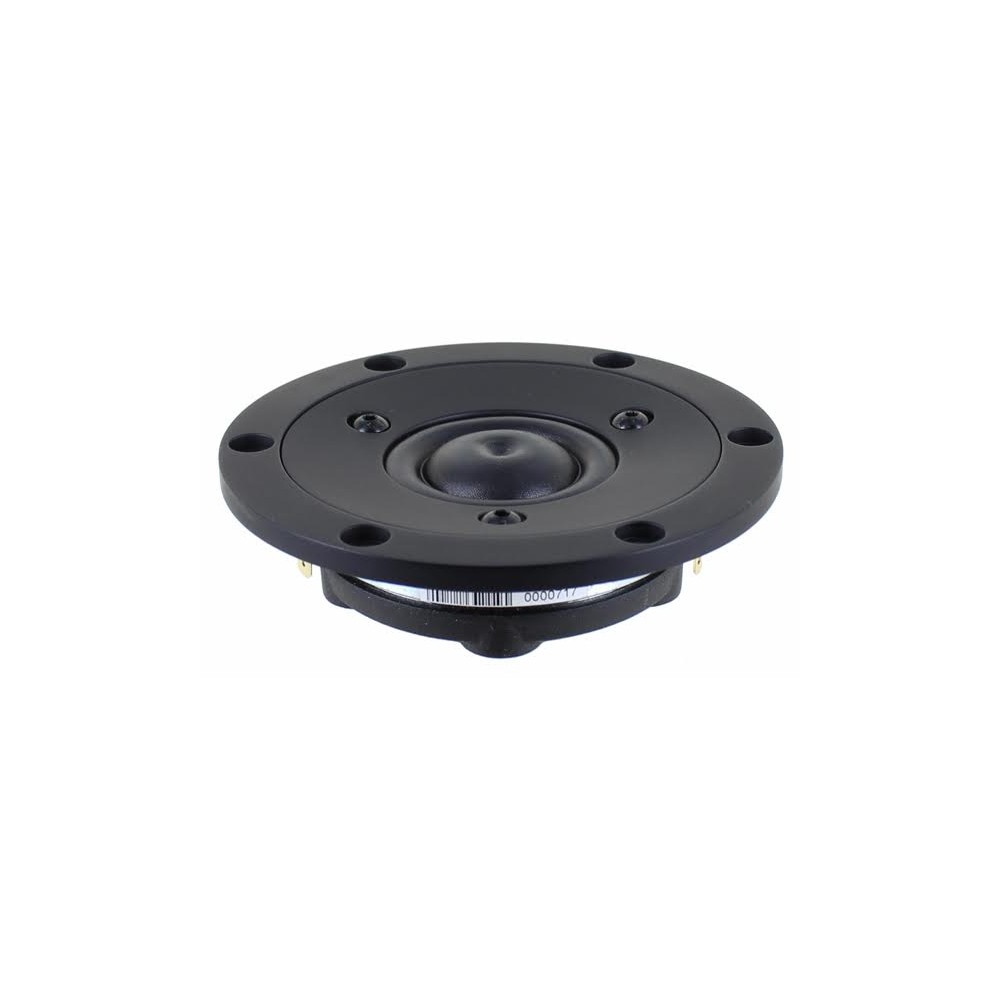

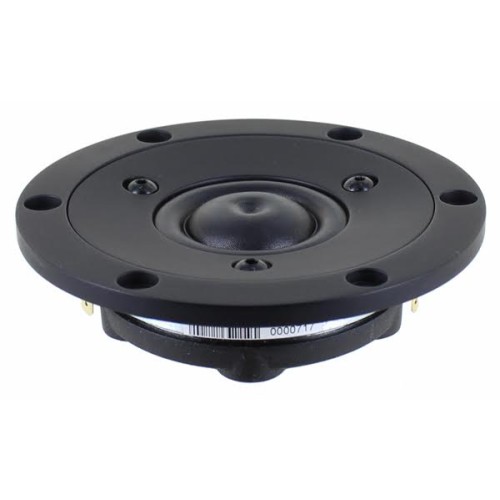

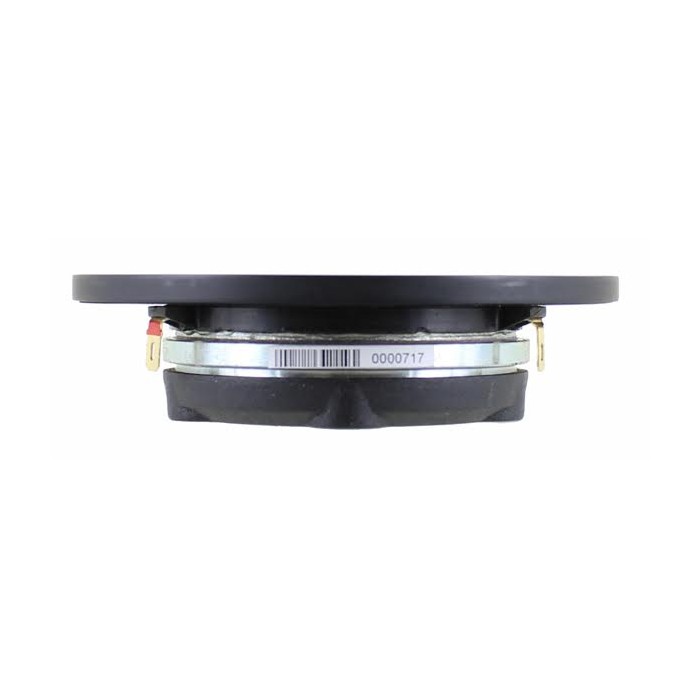

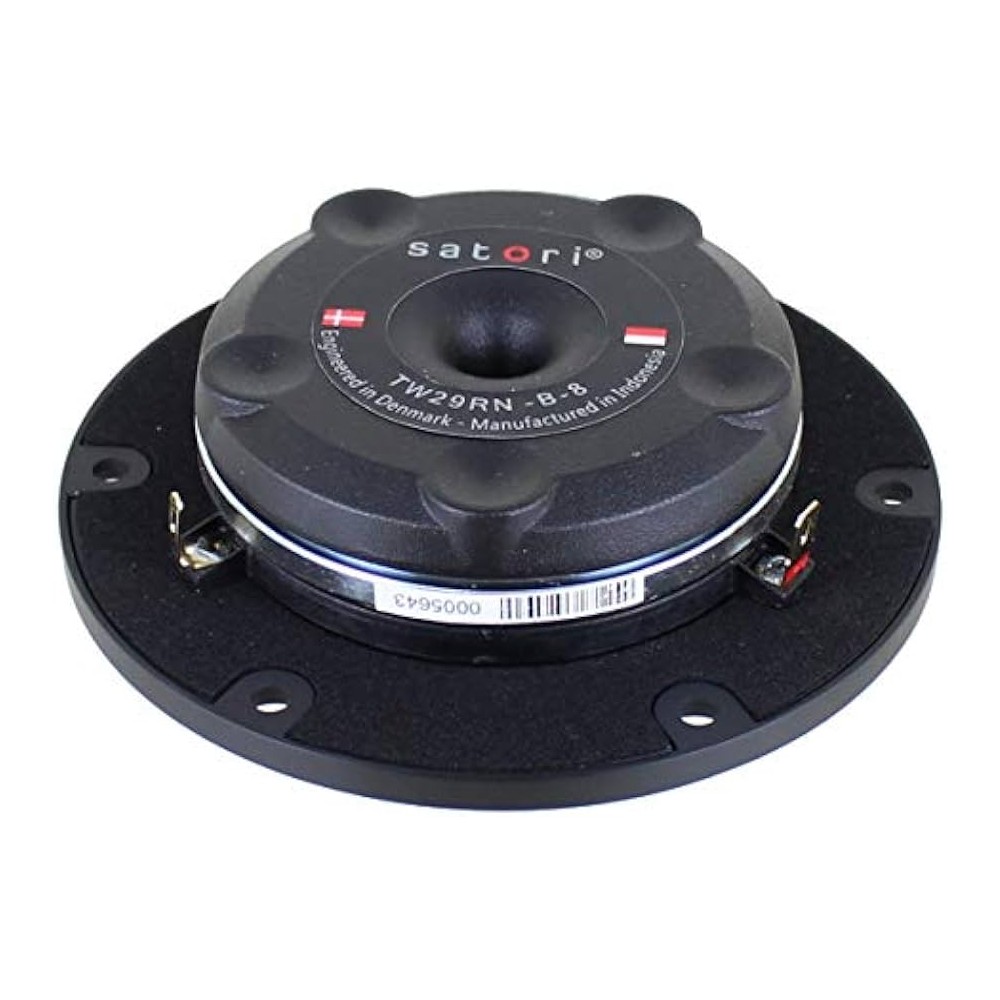

The Satori TW29RN-B-8 (black trim) by SB Acoustics is an 8 ohm ring radiator tweeter featuring a textile diaphragm and a low distortion flow optimized neodymium magnet assembly. This is an upgraded version of the renowned TW29R.

There are 4 variants:

TW29RN: Silver trim, 4 ohm.

TW29RN-8: Silver trim, 8 ohm.

TW29RN-B: Black trim, 4 ohm.

TW29RN-B-8: Black trim, 8 ohm (this page).

Diameter
29mm
Impedance
8 Ω
Power
80 W
Series
SATORI
Material
Aluminum
Textile
