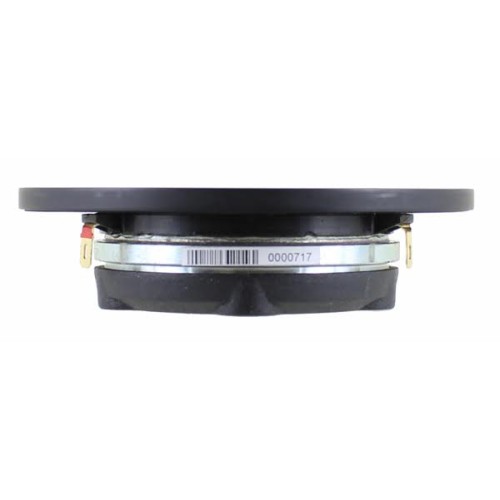

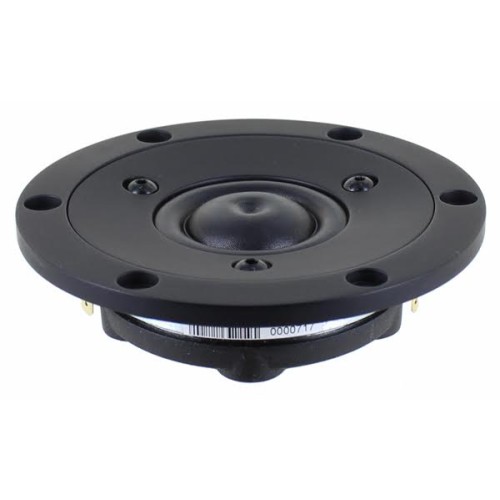

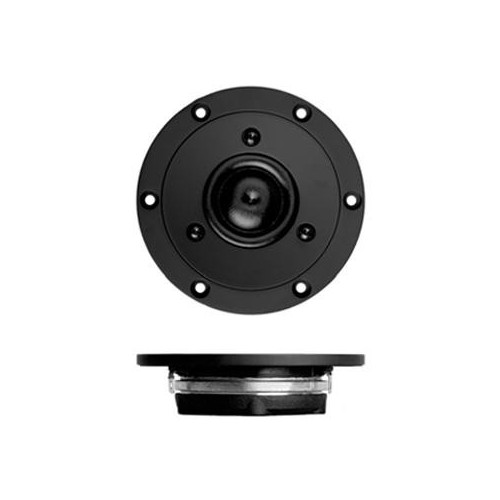

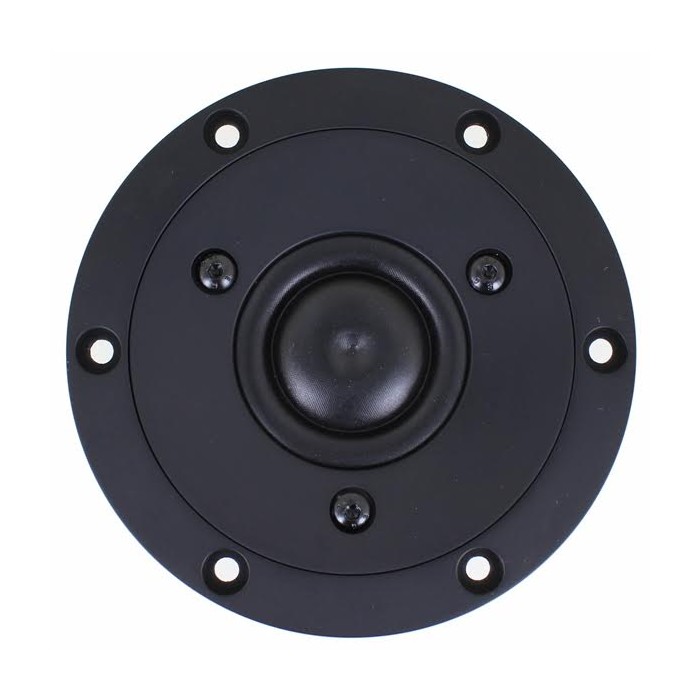

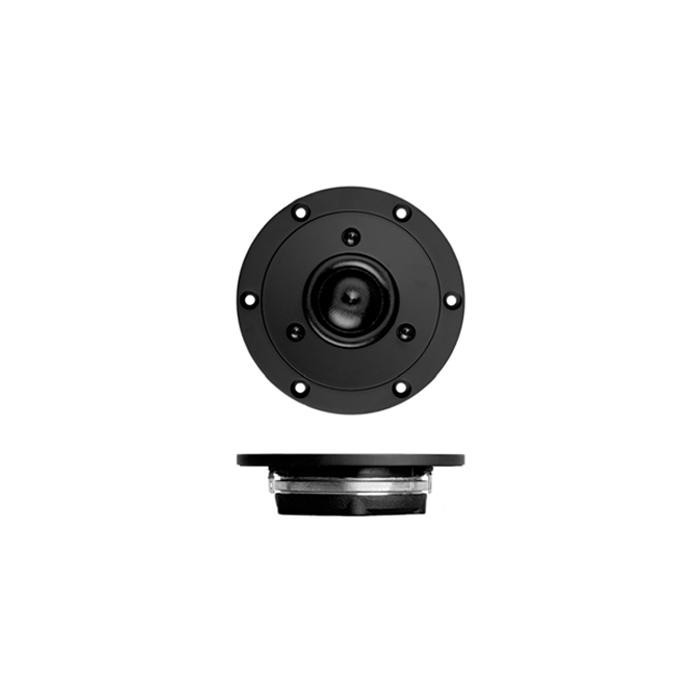

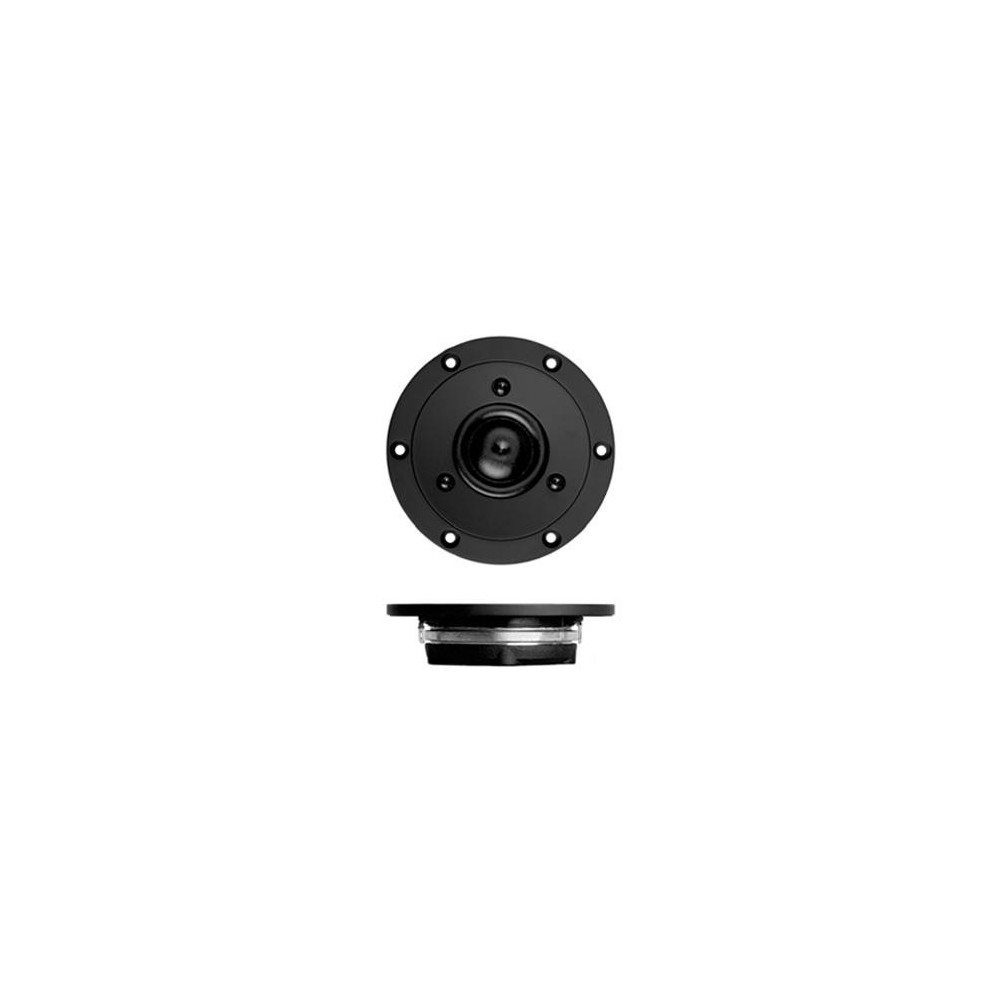

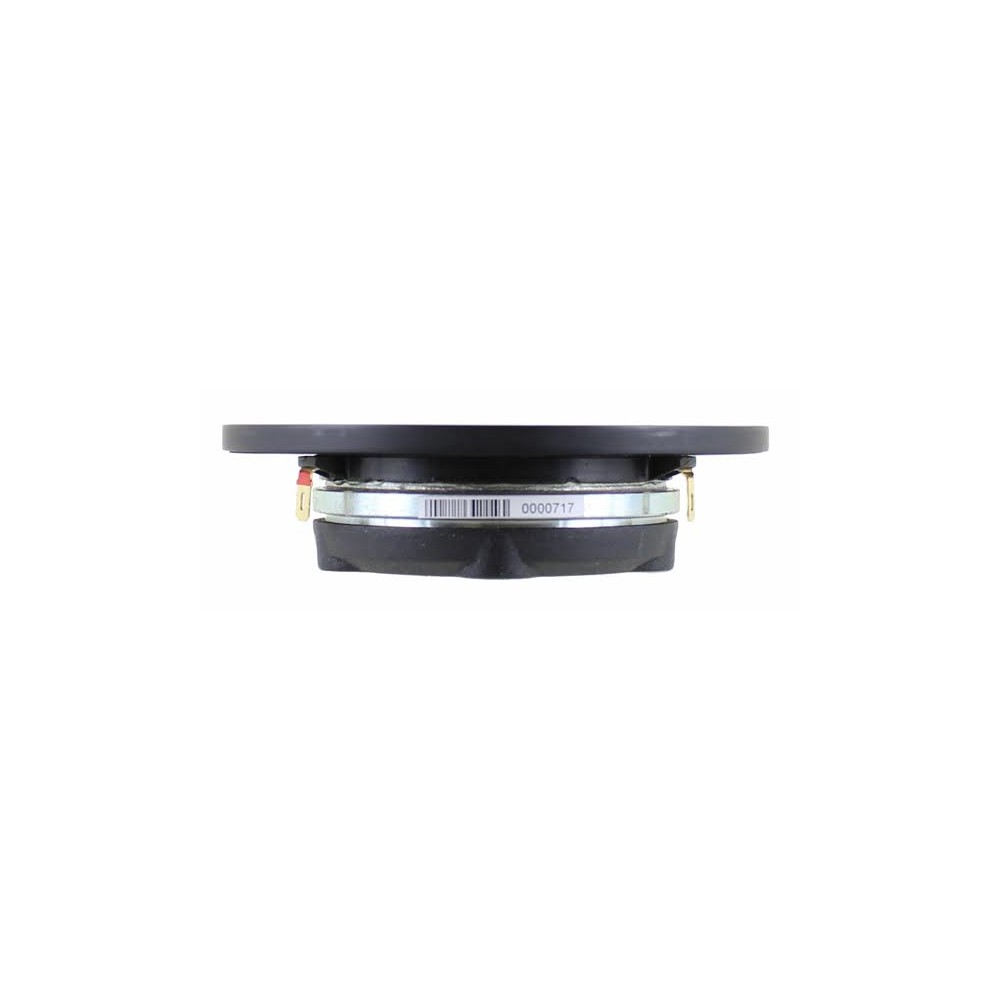

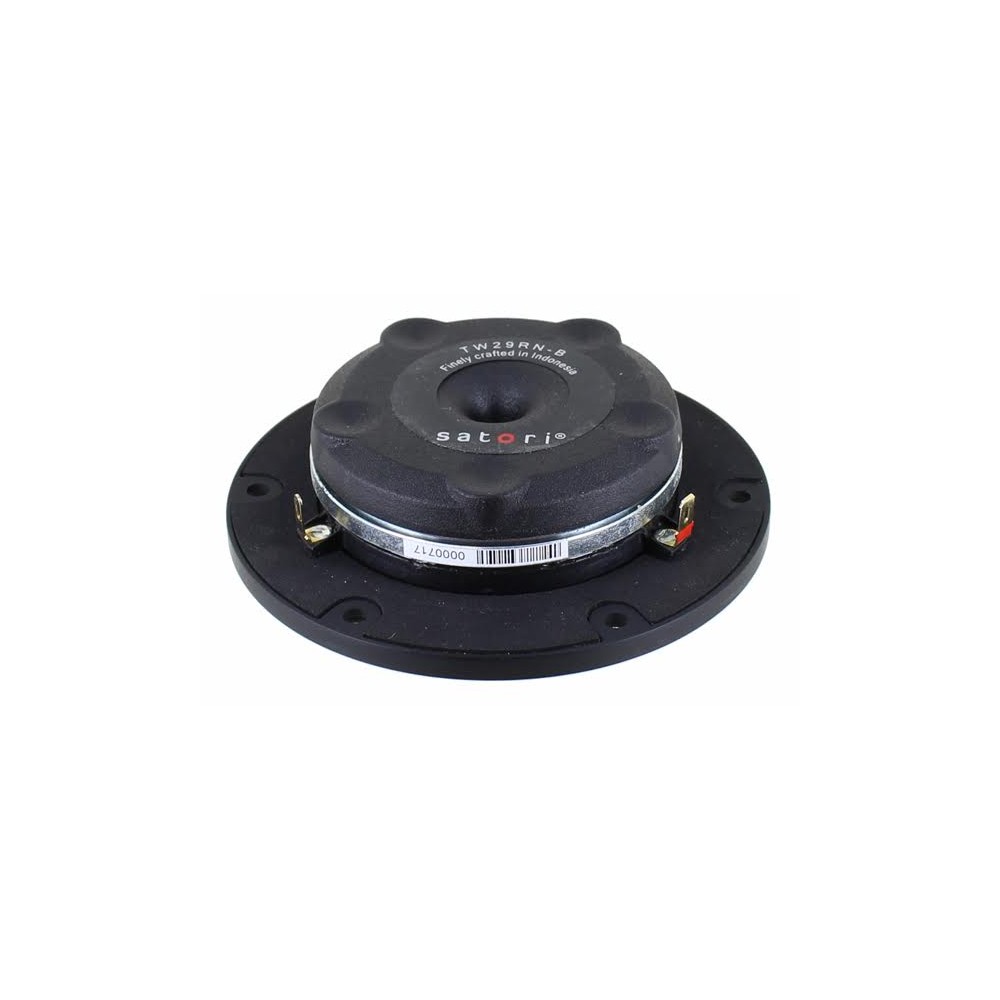

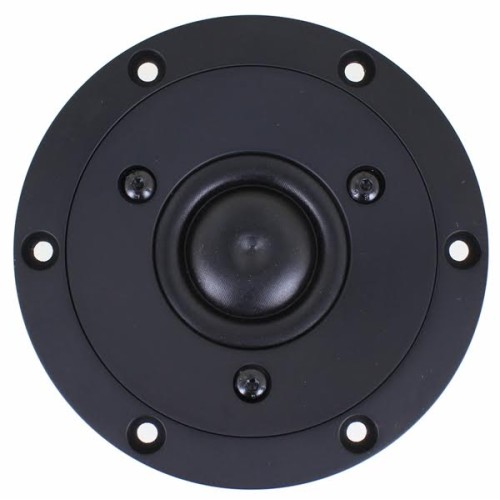

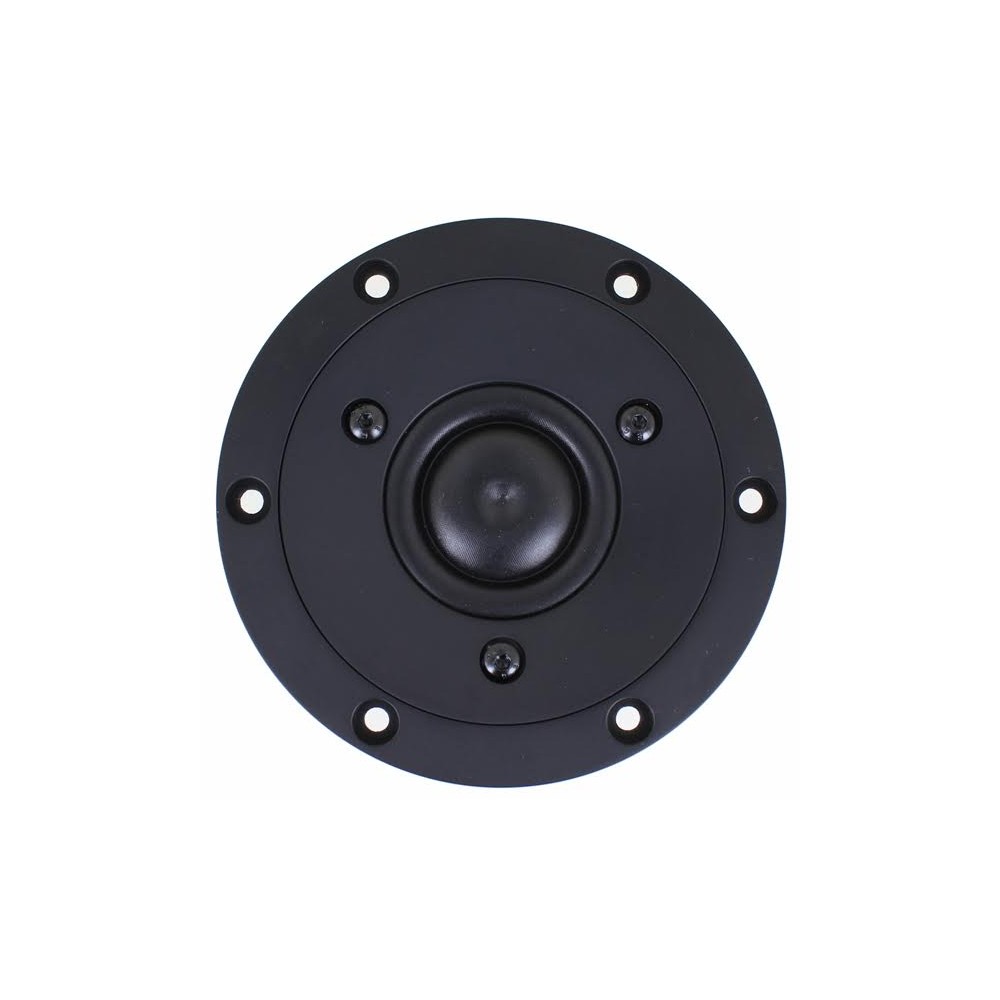

Satori TW29RN-B Ring Dome Tweeter with Neodymium Motor - Black, 4 ohm

Satori TW29RN-B Ring Dome Tweeter with Neodymium Motor - Black, 4 ohm

Name: Satori TW29RN-B Ring Dome Tweeter with Neodymium Motor - Black, 4 ohm
Brand: SB Acoustics
SKU: IMPORTED_SB_ACOUSTIC_99
Price: 155 EUR
Availability: InStock
Rating: 5 (1 reviews)

Reference IMPORTED_SB_ACOUSTIC_99

In stock 2 pcs.

In Stock

€ 155.00

Tax included

Non-resonant diaphragm design for minimum high frequency break-up
Two part aluminium black faceplate with integrated mechanical decoupling
Dual balanced compression chambers for improved dynamics
Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

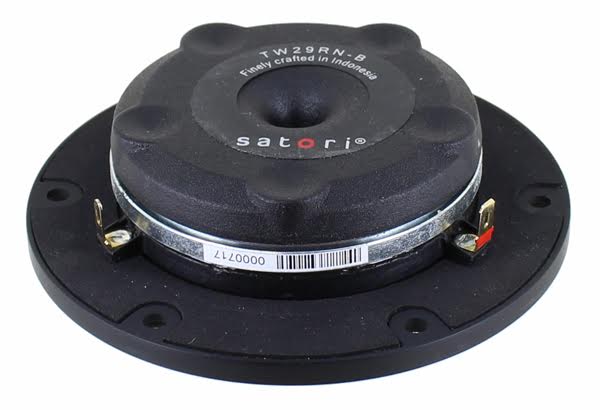

High saturation neodymium motor system with T-shaped pole piece for lower distortion
Non-reflective cast aluminium chamber with optimized damping for improved dynamics
Shallow flow optimized magnet structure for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency for extended range

Quantity	Unit discount	You Save
4	10%	€ 62.00
6	15%	€ 139.50
8	20%	€ 248.00

(1)

Read reviews

29mm | 4 Ω | 80 W

Specification Sheet

Nominal Impedance 4 Ω

DC resistance, Re 3.0 Ω

Voice coil inductance, Le 0.02 mH

Effective piston area, Sd 9.6 cm2

Voice coil diameter 29.0 mm

Voice coil height 2.0 mm

Air gap height 2.5 mm

Linear coil travel (p-p) 0.5 mm

Moving mass incl. air, Mms 0.44 g

Free air resonance, Fs 700 Hz

Sensitivity (2.83 V / 1 m) 96 dB

Mechanical Q-factor, Qms 2.1

Electrical Q-factor, Qes 0.65

Total Q-factor, Qts 0.49

Force factor, Bl 3.1 Tm

Rated power handling* 80 W

Magnetic flux density 1.5 T

Magnet weight 0.10 kg

Net weight 0.4 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

Diameter: 29mm
Impedance: 4 Ω
Power: 80 W
Series: SATORI
Material: Aluminum
Textile

SATORI TW29RN-B / Fabric

Download (500.84KB)
