PROD336
2 pcs.
In Stock
€ 60.00
Tax included

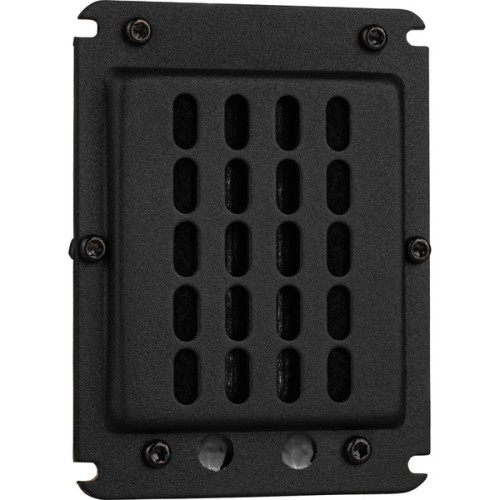

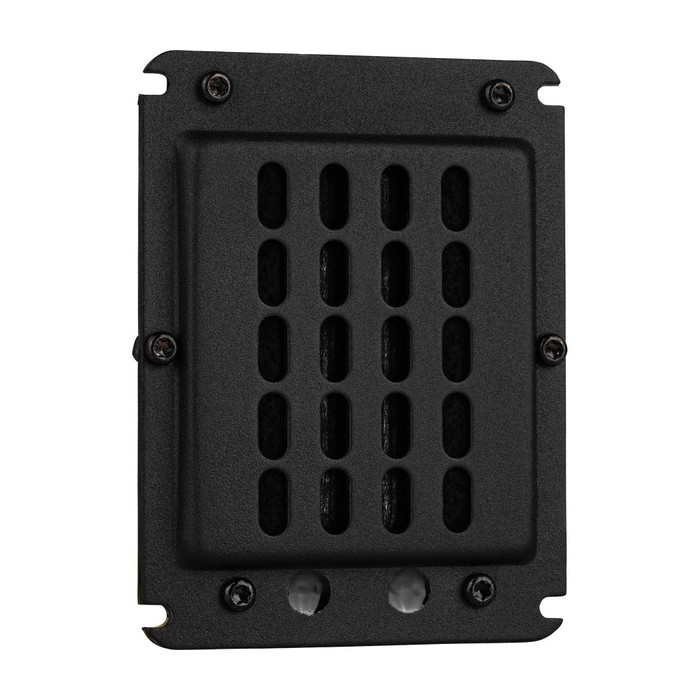

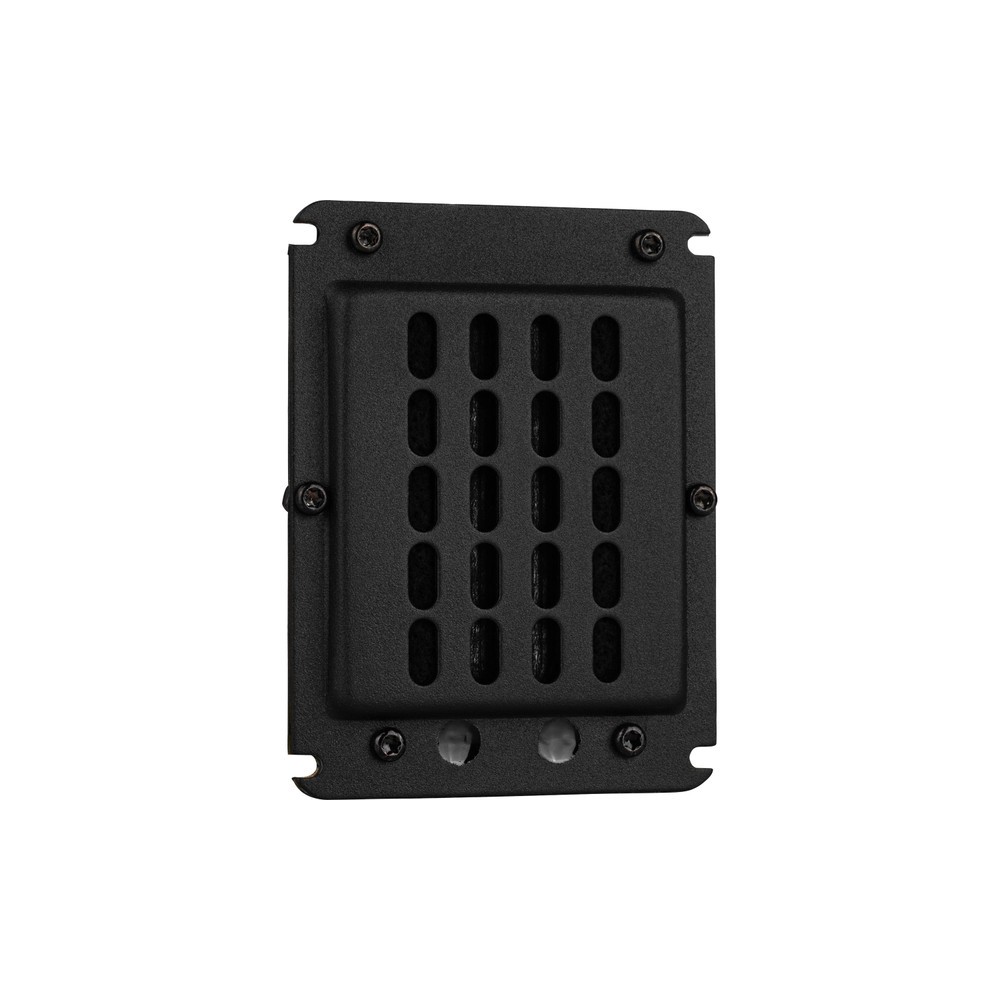

Designed to deliver high efficiency with extremely smooth response.

The PT2522-4 is a perfect choice for use as a drop-in replacement in existing systems or for use in new designs where low distortion and accurate response is needed. The open-back design gives this tweeter true dipole radiation making it the perfect choice for use in open baffle speaker designs.

Key Specs:

  •  Tweeter Type: Planar Magnetic
  • Power Handling (RMS): 20 Watts
  • Power Handling (MAX): 40 Watts
  • Impedance: 4Ω

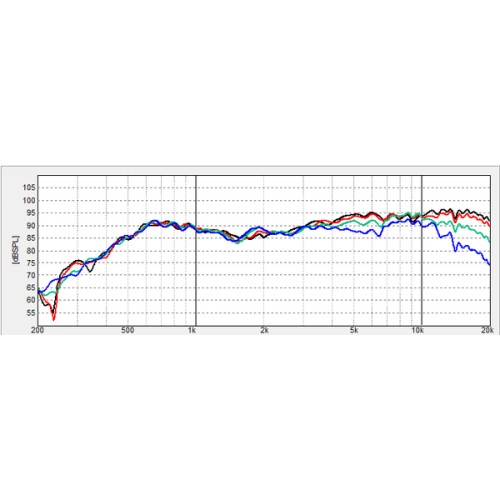

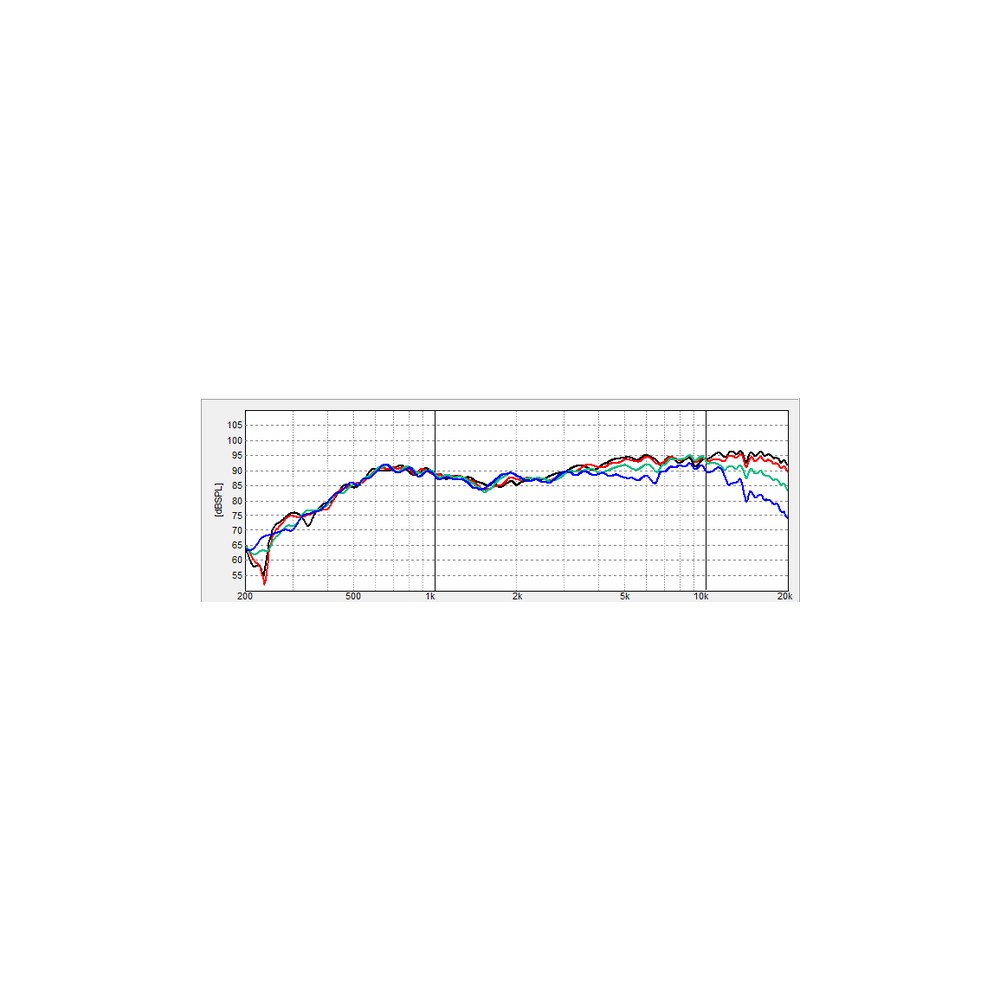

  • Frequency Response: 800 - 20,000 Hz
  • Sensitivity: 94dB 2.83V/1m
  • Diaphragm Material: Polyethylene Naphthalate
(0)
4 Ω | 20 W

Brand



Product Specifications

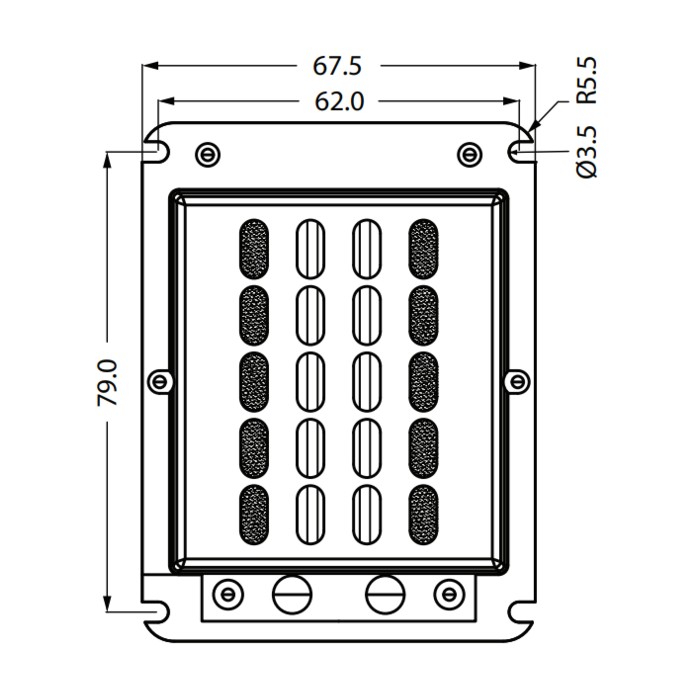

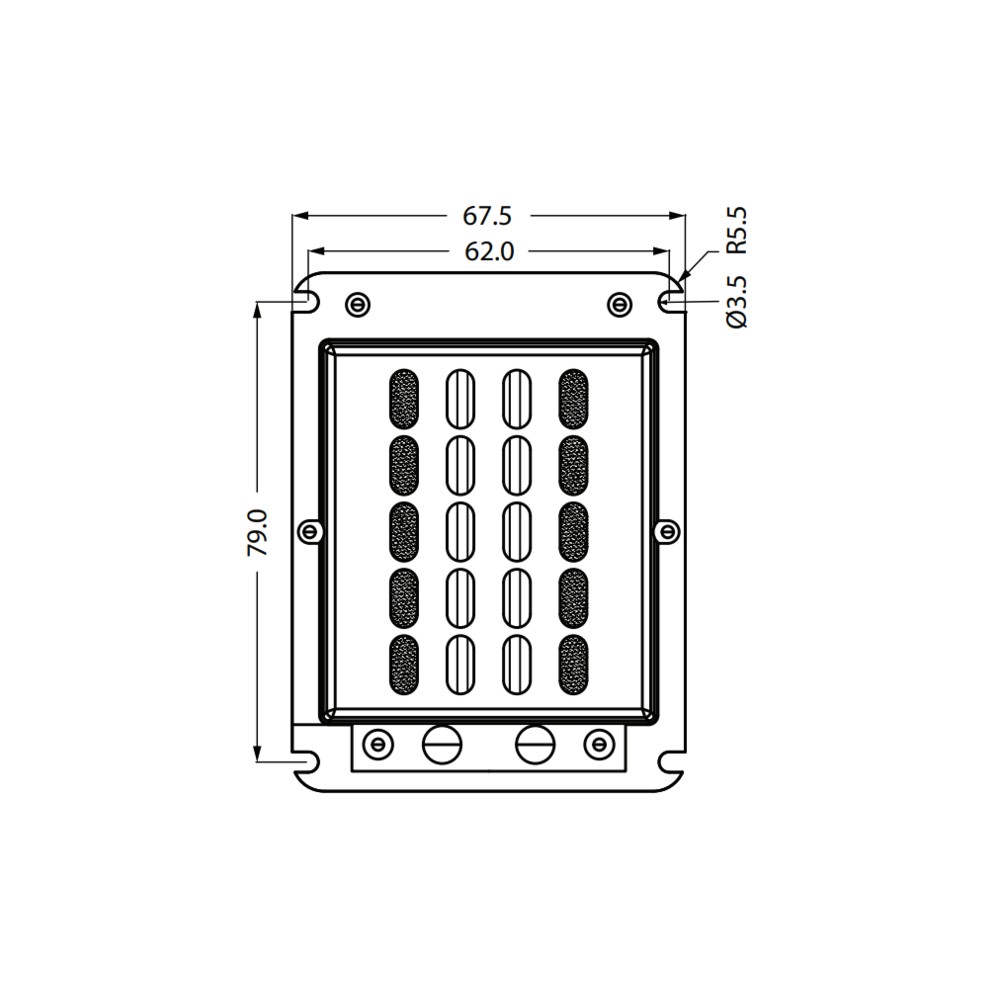

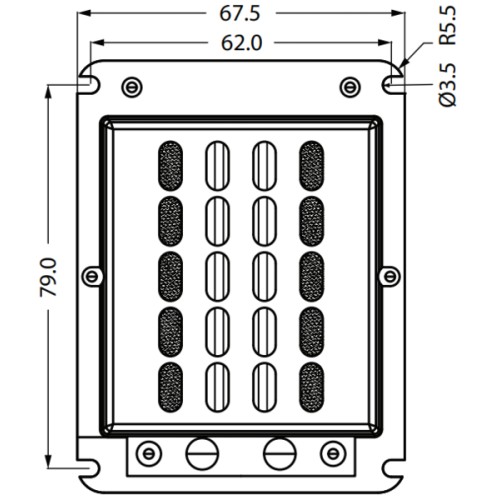

Cutout Diameter 2.87" x 2.3

Tweeter Type Planar

Power Handling (RMS) 20 Watts

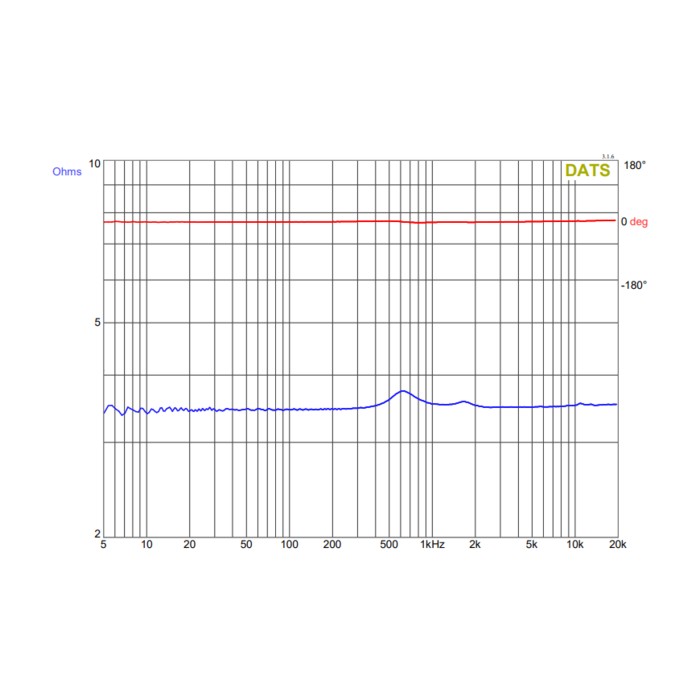

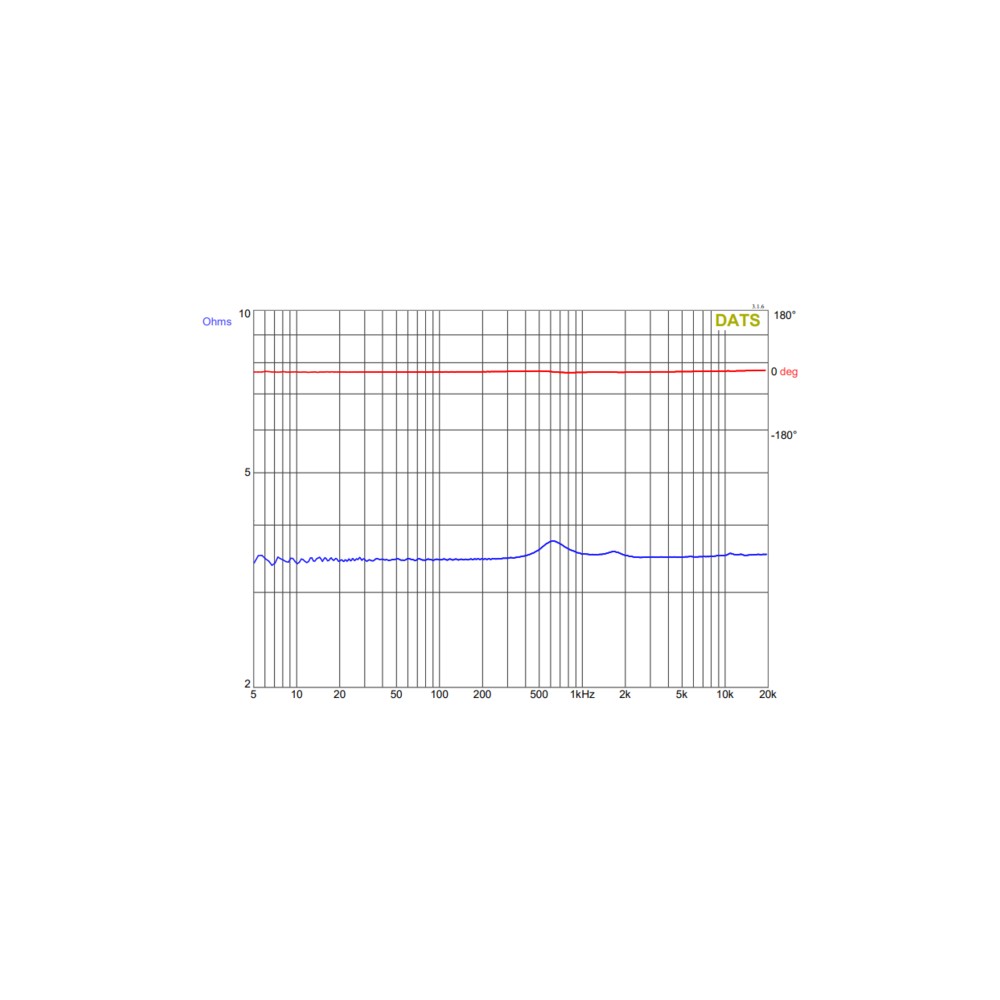

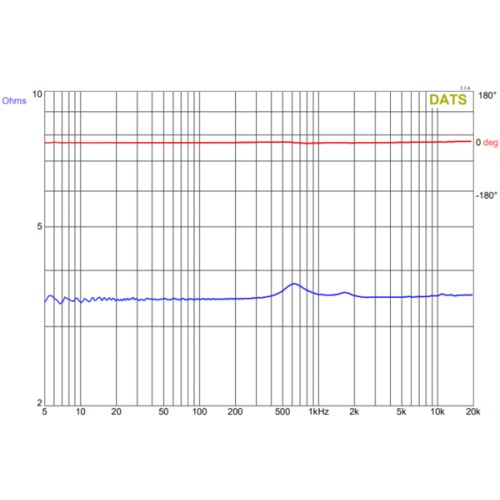

Impedance 4Ω

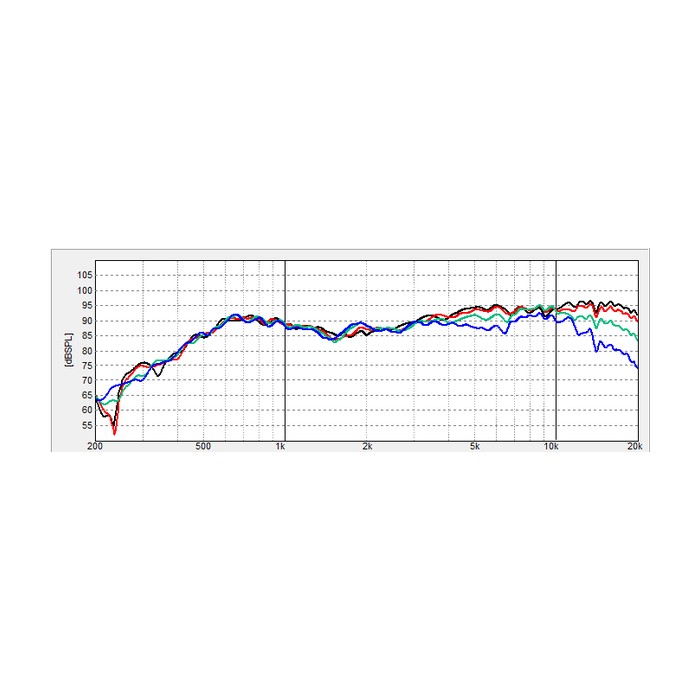

Frequency Response 800 to 20,000Hz

Sensitivity 93dB 2.83V/1m

Thiele-Small Parameters

DC Resistance (Re) 3.4Ω

Voice Coil Inductance (Le) 0.01mH

Mechanical Q (Qms) 4.6

Total Q (Qts) 4.46

Impedance
4 Ω
Power
20 W
