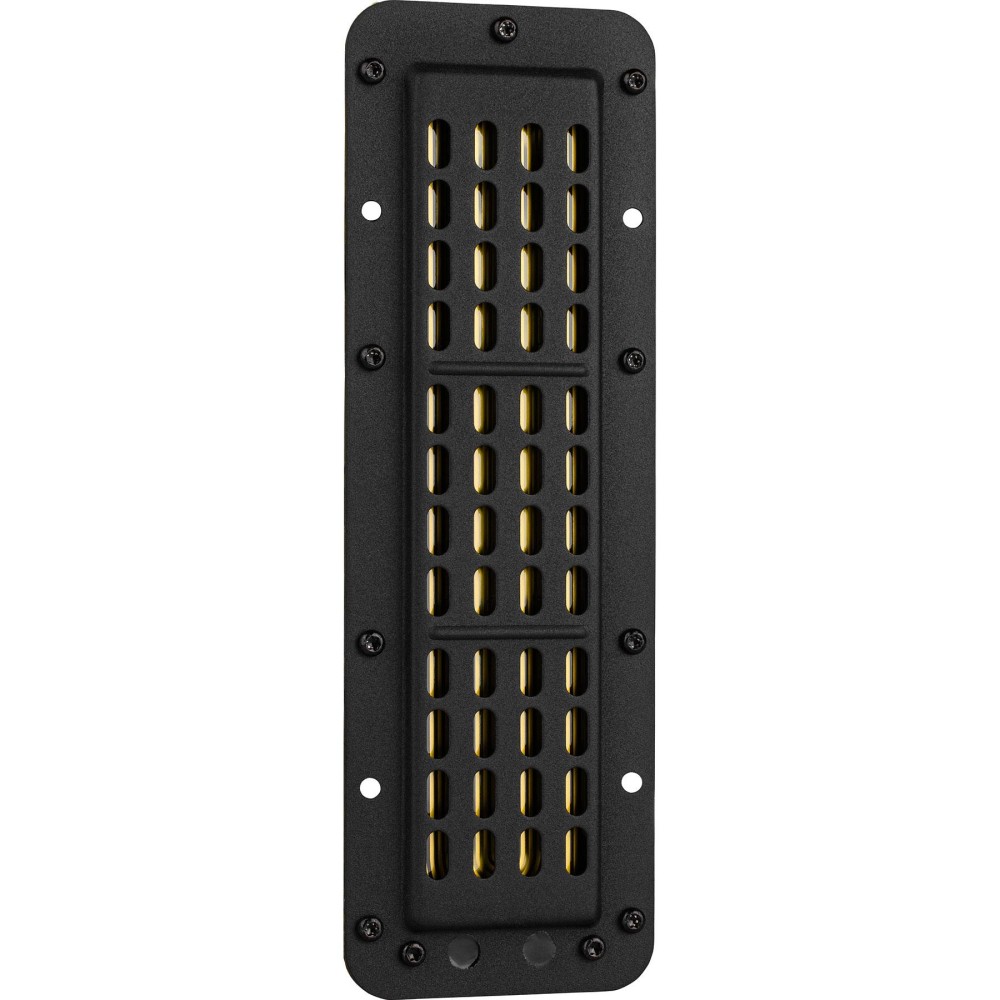

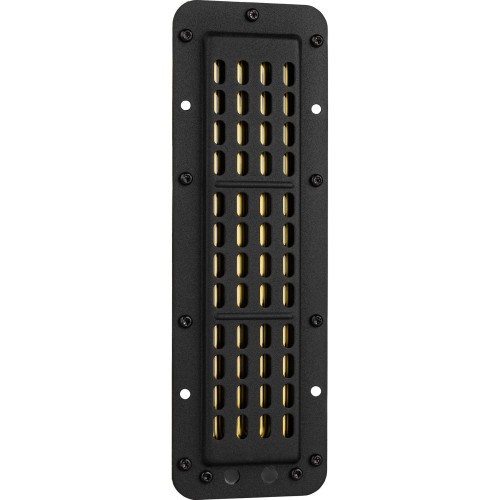

GRS PT6816-8 8" Planar Slim Tweeter 8 Ohm

GRS PT6816-8 8" Planar Slim Tweeter 8 Ohm

Name: GRS PT6816-8 8" Planar Slim Tweeter 8 Ohm
Brand: GRS
SKU: PROD116
Price: 79 EUR
Availability: OutOfStock

Reference PROD116

Temporarily out of stock

€ 79.00

Tax included

Designed to deliver high efficiency with extremely smooth response.

With wide dispersion capabilities and minimal mounting flange, the PT6816-8 is an excellent choice for use in high output line arrays. The open-back design gives this tweeter true dipole radiation making it the perfect choice for use in open baffle speaker designs.

Key Specs:

Tweeter Type: Planar Magnetic
Power Handling (RMS): 35 Watts
Power Handling (MAX): 70 Watts
Impedance: 8Ω
Frequency Response: 500 - 20,000 Hz
Sensitivity: 94dB 2.83V/1m
Diaphragm Material: Polyethylene Naphthalate

(0)

8 Ω | 30 W

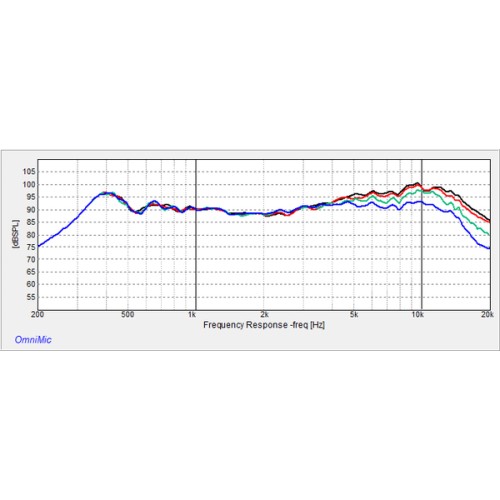

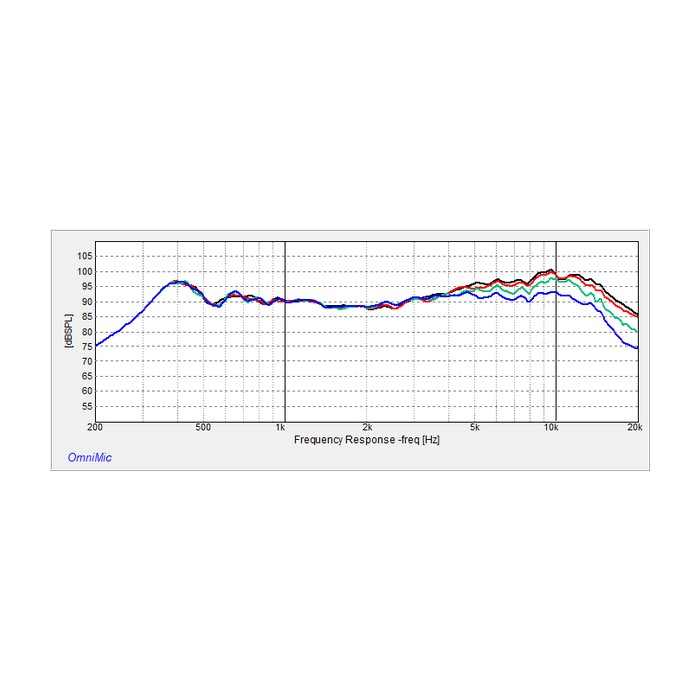

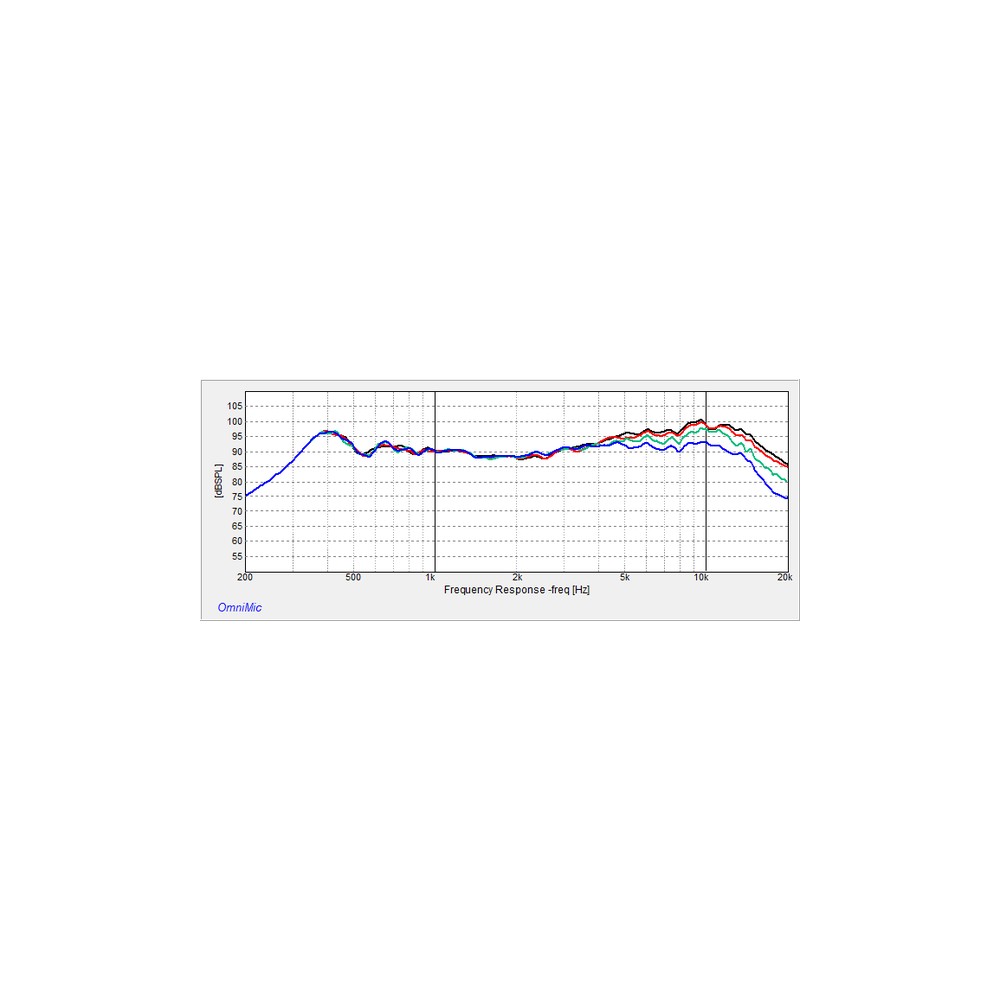

Frequency Response & Impedance

Thanks to a lightweight damped polyimide diaphragm that is driven by 18 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and wide bandwidth. The almost linear 6.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off.

Impedance and Phase response of GRS PT6816-8

Impedance: 8 Ω
Power: 30 W
