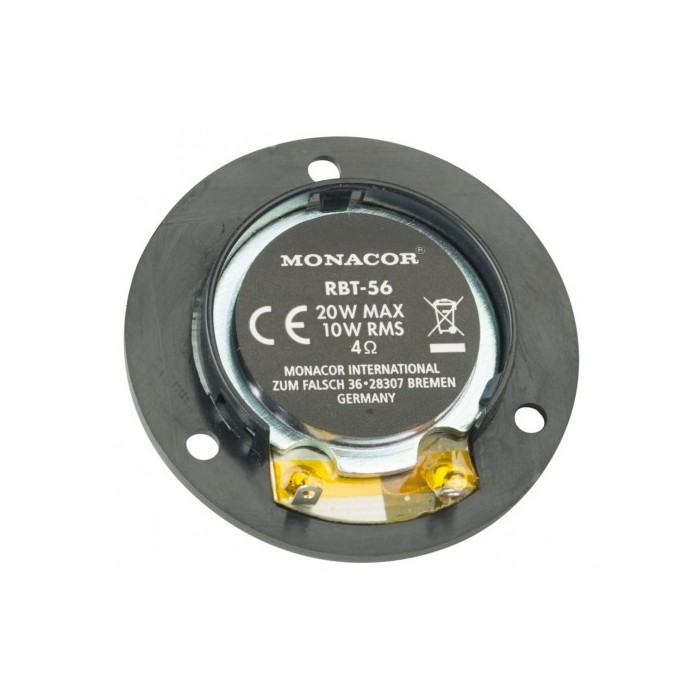

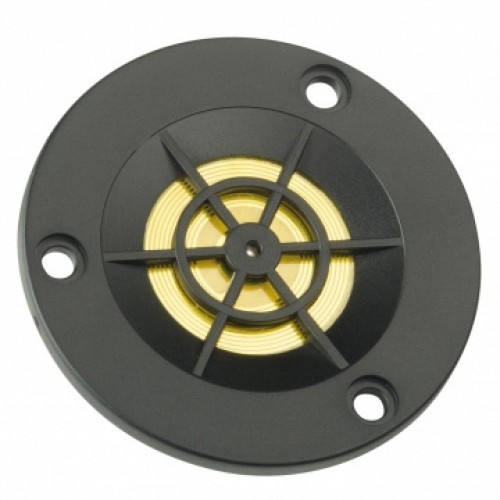

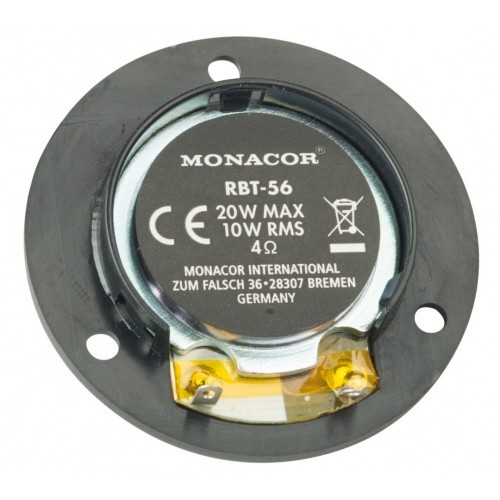

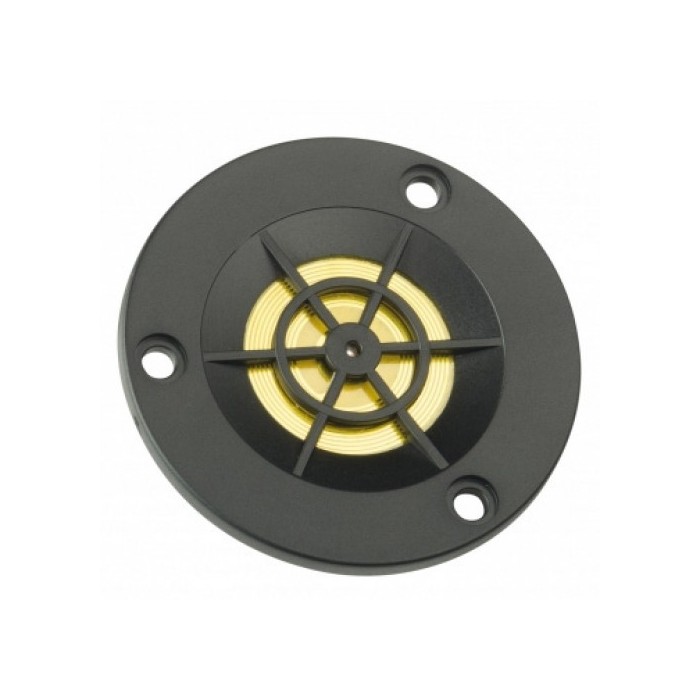

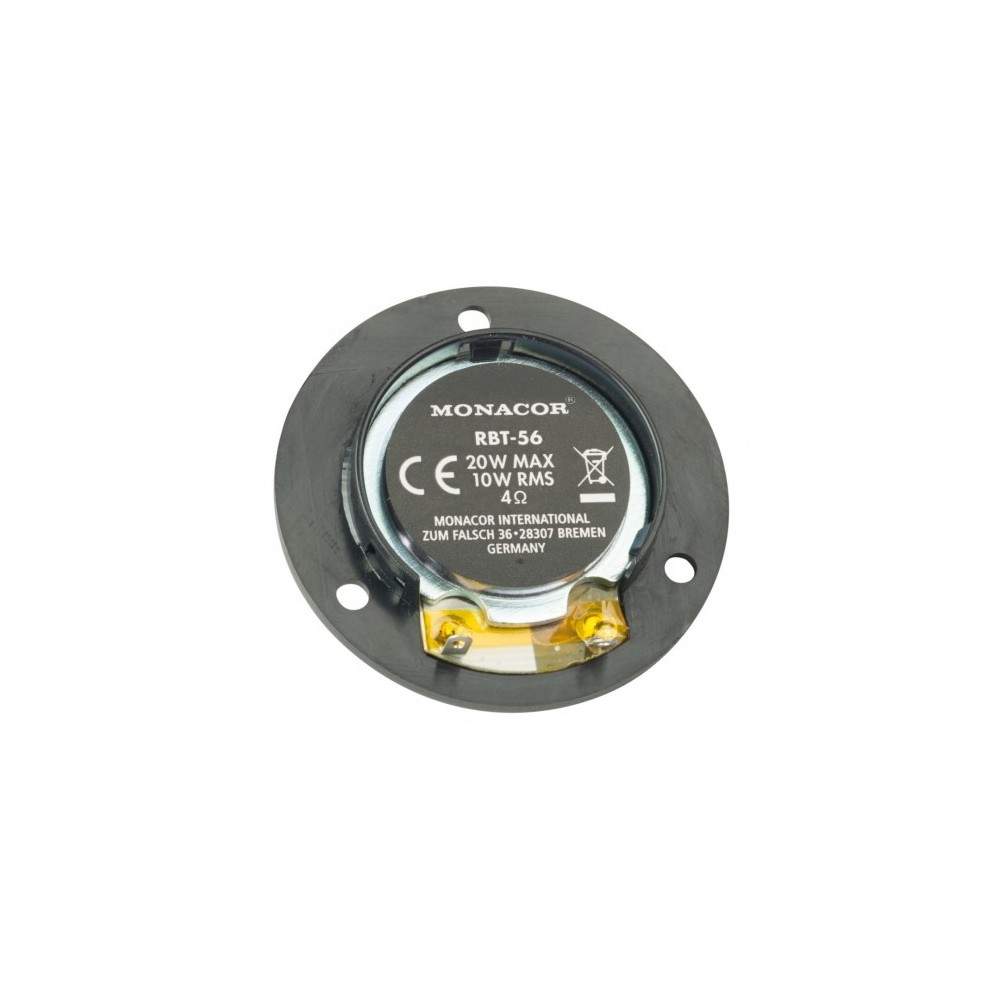

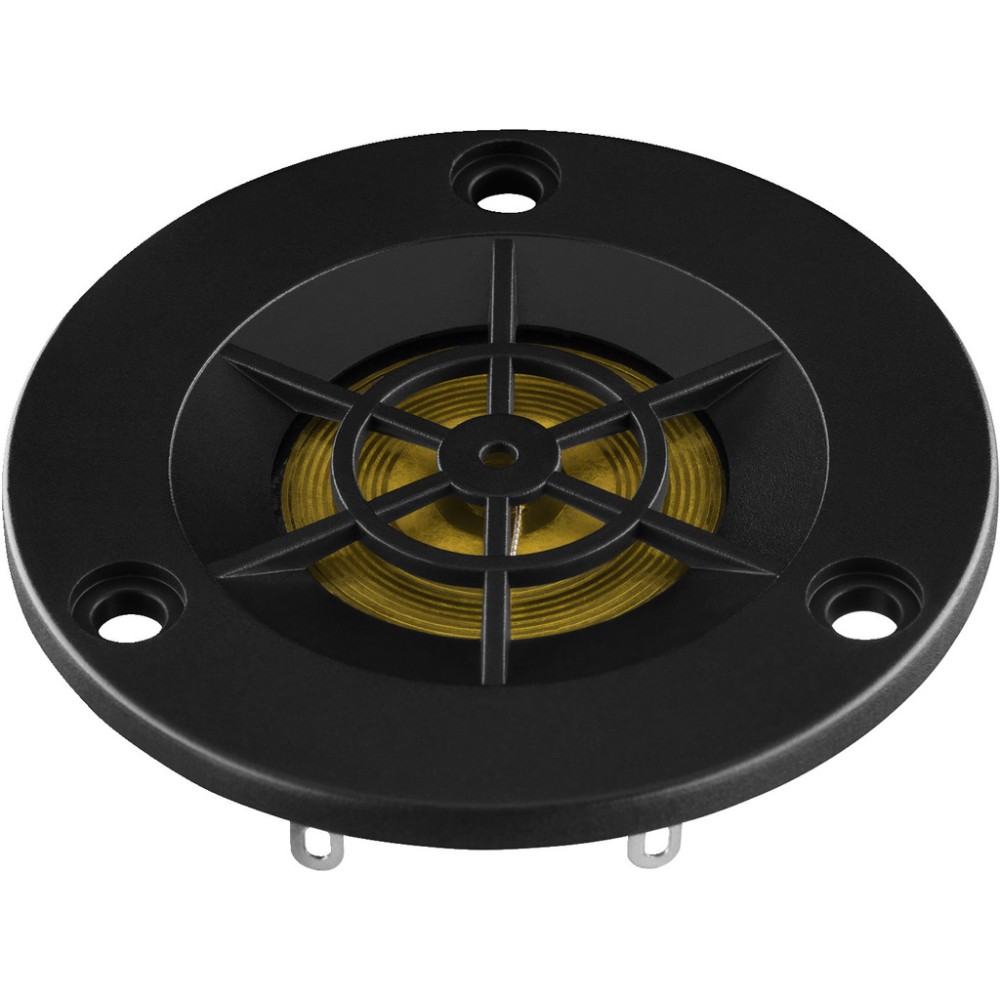

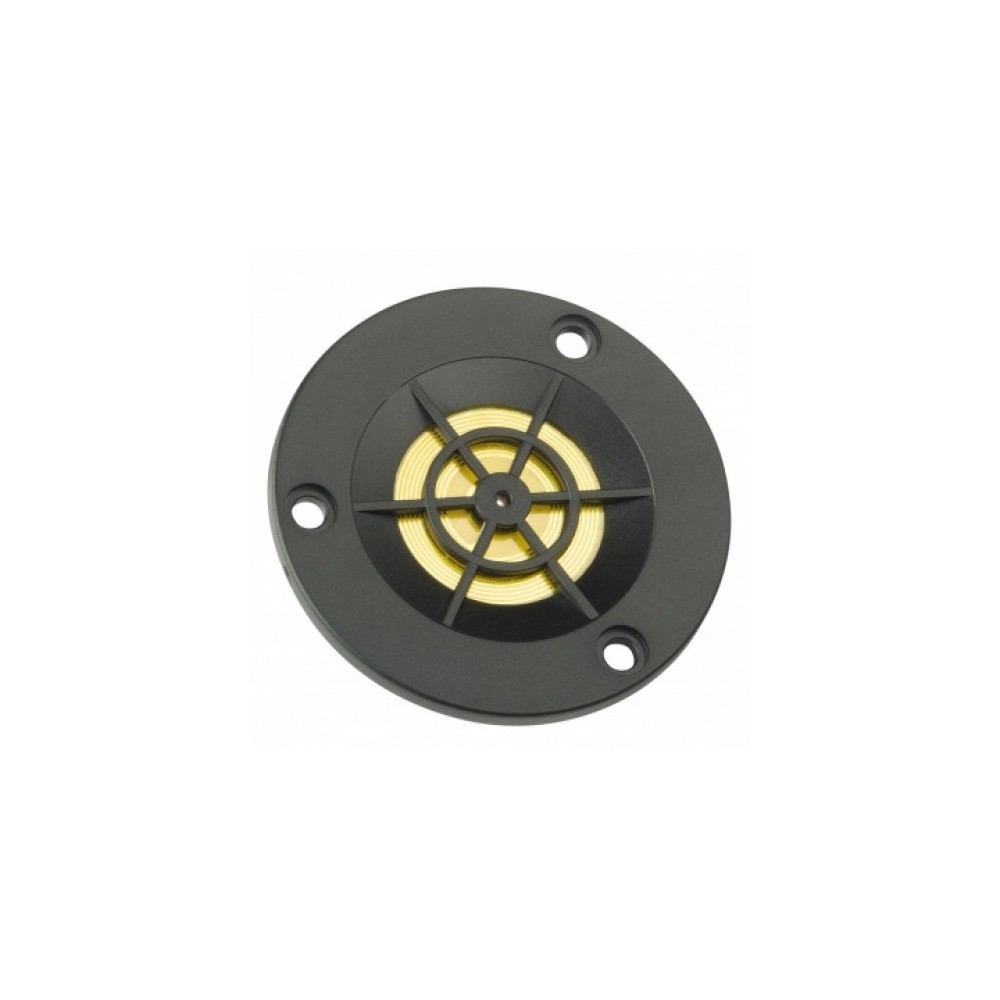

Monacor RBT-56 Hi-fi ribbon tweeter, 10 W, 4 Ω

Monacor RBT-56 Hi-fi ribbon tweeter, 10 W, 4 Ω

Name: Monacor RBT-56 Hi-fi ribbon tweeter, 10 W, 4 Ω
Brand: Monacor
SKU: PROD332
Price: 55.22 EUR
Availability: InStock

Reference PROD332

In stock 2 pcs.

In Stock

€ 55.22

Tax included

Hi-fi ribbon tweeter, 10 W, 4 Ω

Magnetostatic tweeter of compact size

Neodymium magnet system

Fine and brilliant reproduction of the high frequencies

Round cone with Kapton and aluminium film

For use from 5,000 Hz on

Plastic sound diffuser panel (front)

(0)

4 Ω | 10 W

Technical specifications RBT-56

RBT-56

Impedance (Z) 4 Ω

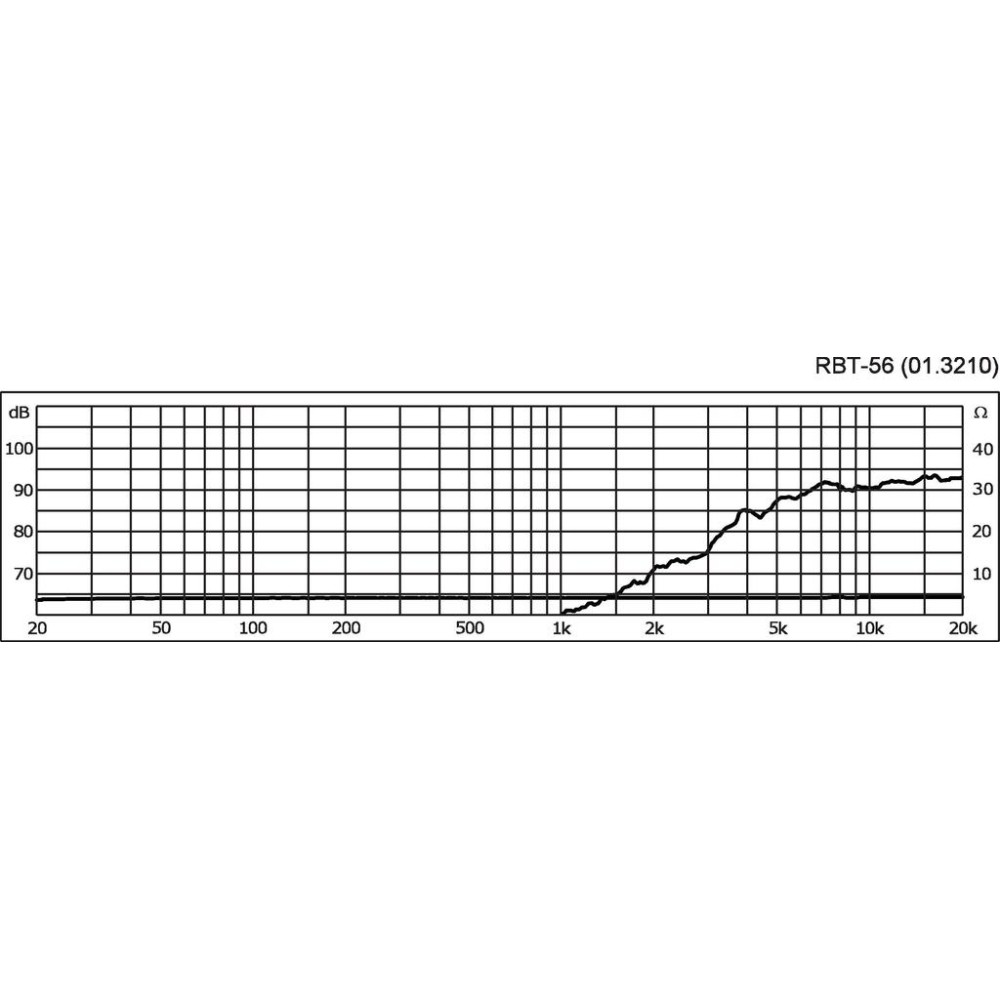

Frequency range 5,000-40,000 Hz

Rec. crossov. frequ. (fmax.) (12 dB/oct.) 5,000 Hz

Power rating (RMS) 10 W

Peak music power output (MAX) 20 W

SPL 90 dB/W/m

DC resistance (Re) 3.5 Ω

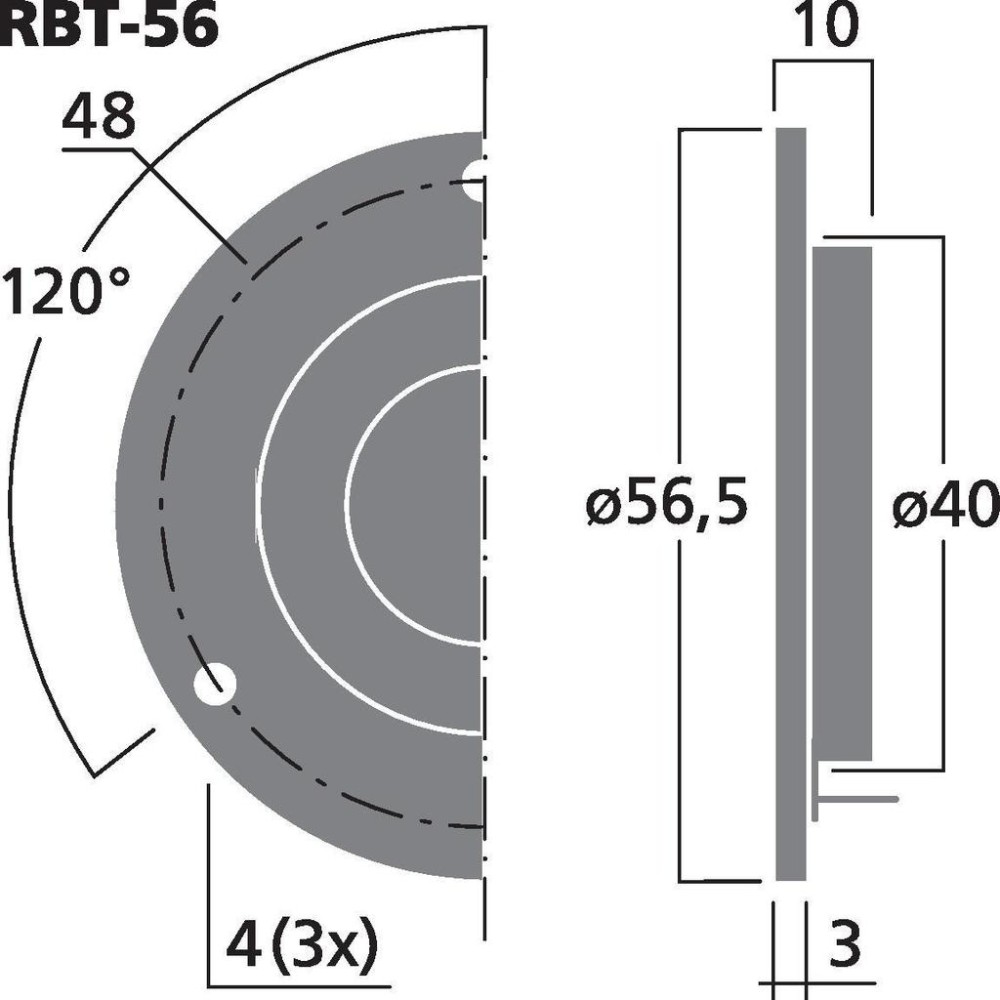

Magnet diameter magnetostatic speaker

Mounting cutout Ø 40 mm

Mounting depth 10 mm

Mounting hole diameter Ø 48 mm

Dimensions 56.5 mm

Outside diameter Ø 56.5 mm

Width Ø 56.5 mm

Depth 10 mm

Colour black

Admiss. ambient temp. 0-40 °C

Weight 0.035 kg

Packing unit 1

Packing dimensions (W x H x L) 0.065 x 0.015 x 0.075 m

Gross weight 0.045 kg

Net weight 0.035 kg

Impedance: 4 Ω
Power: 10 W
