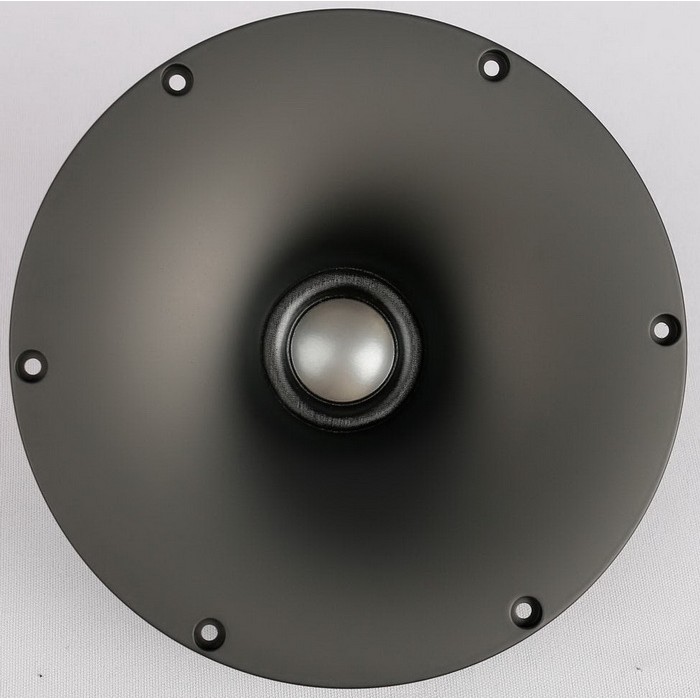

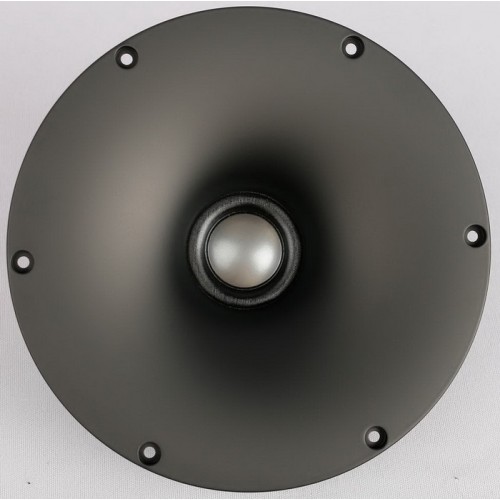

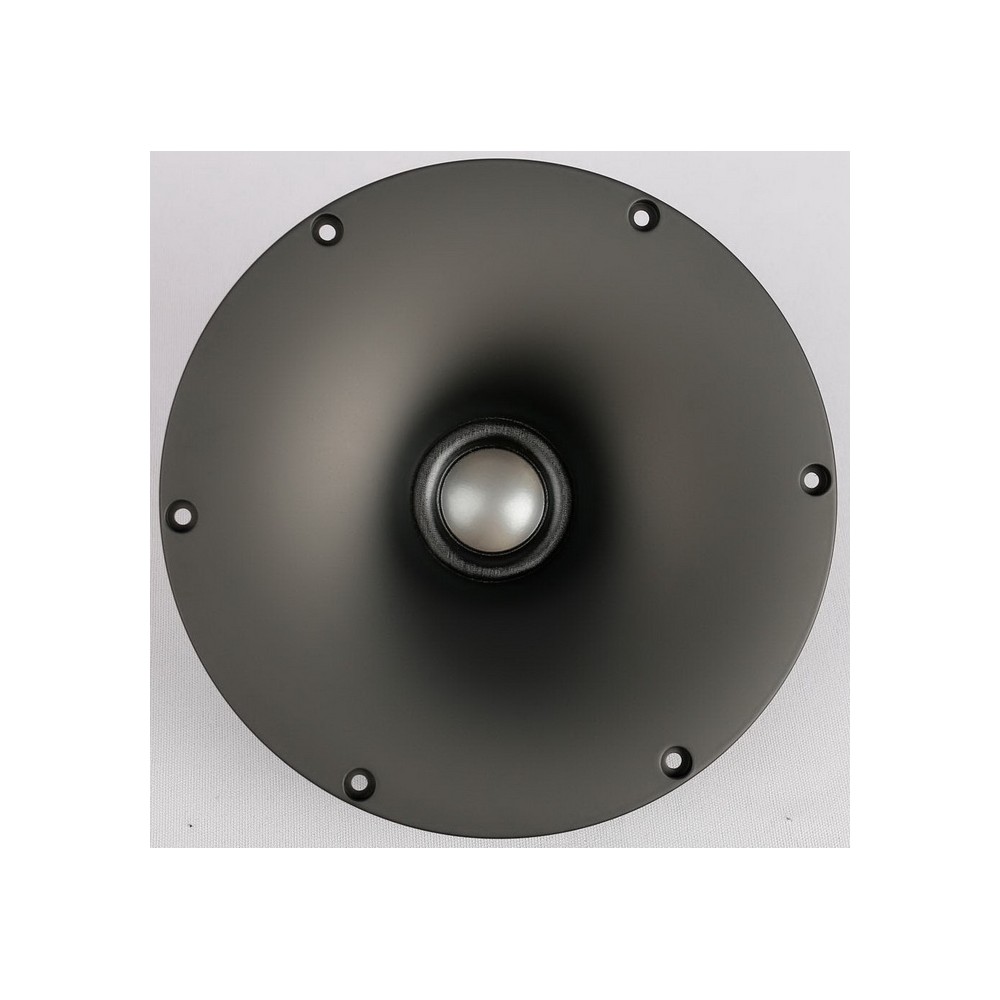

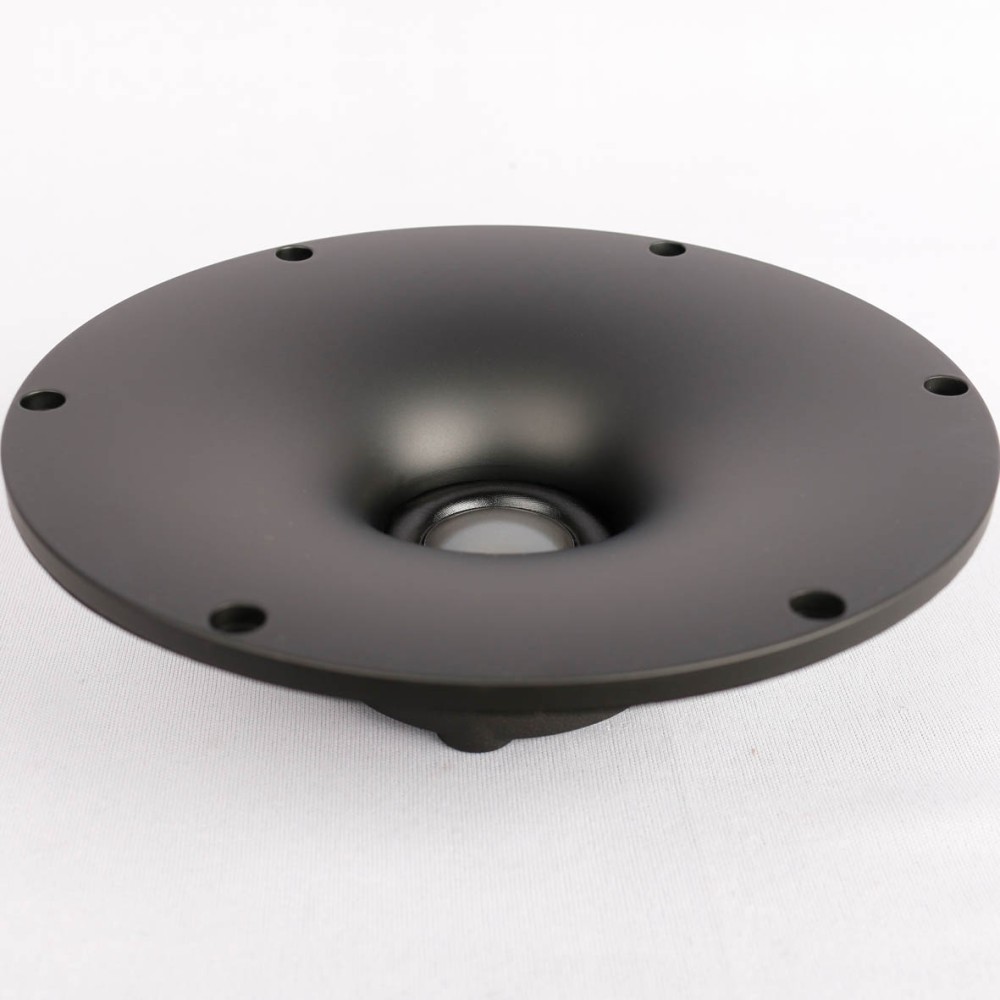

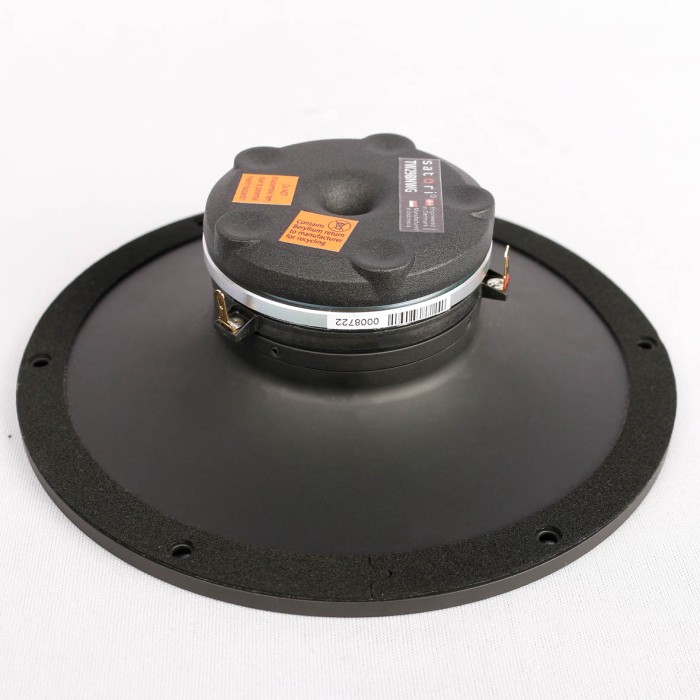

SATORI TW29BNWG-4 / Beryllium

Name: SATORI TW29BNWG-4 / Beryllium
Brand: SB Acoustics
SKU: IMPORTED_SB_ACOUSTIC_115
Price: 495 EUR
Availability: PreOrder
Rating: 5 (1 reviews)

Reference IMPORTED_SB_ACOUSTIC_115

Pre- order product

€ 495.00

Tax included

Beryllium dome for non-resonant high frequency extension
Dual balanced compression chambers for improved dynamics
Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

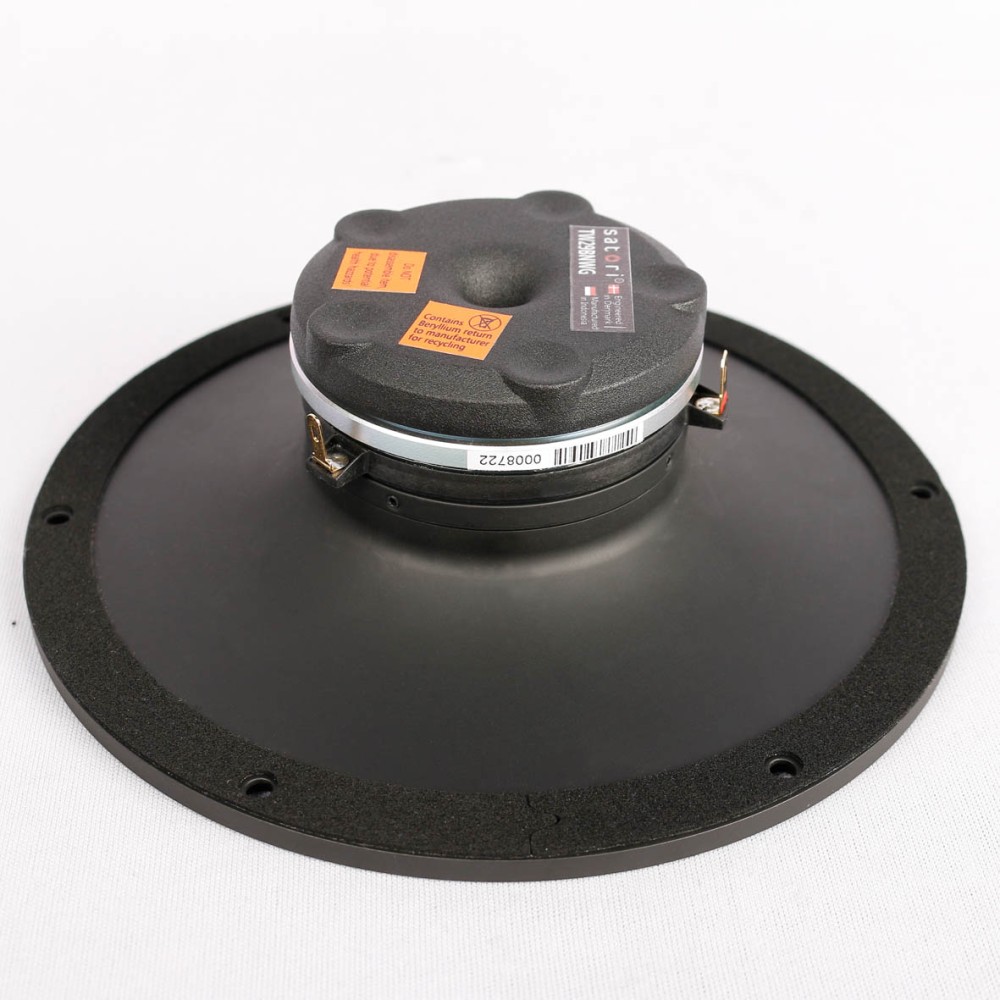

High saturation neodymium motor system with T-shaped pole piece for lower distortion
Non-reflective cast aluminium chamber with optimized damping for improved dynamics
Shallow flow optimized magnet structure for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency for extended range
Solid aluminium waveguide
Controlled directivity
Adapter ring for bolt-less mounting to driver

Quantity	Unit discount	You Save
3	15%	€ 222.75
4	20%	€ 396.00

(1)

Read reviews

29mm | 4 Ω | 80 W

Nominal Impedance 4 Ω

DC resistance, Re 3.0 Ω

Voice coil inductance, Le 0.02 mH

Effective piston area, Sd 9.6 cm2

Voice coil diameter 29.0 mm

Voice coil height 2.0 mm

Air gap height 2.5 mm

Linear coil travel (p-p) 0.5 mm

Moving mass incl. air, Mms 0.46 g

Free air resonance, Fs 700 Hz

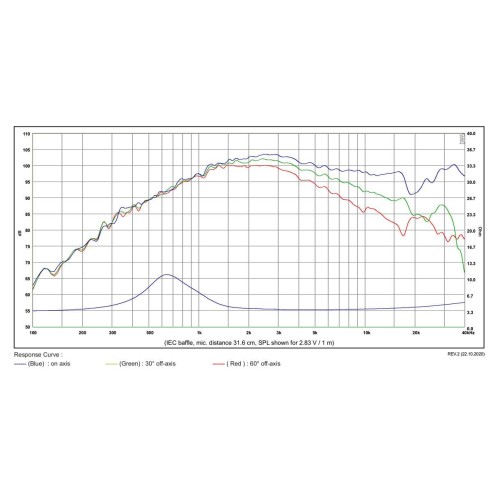

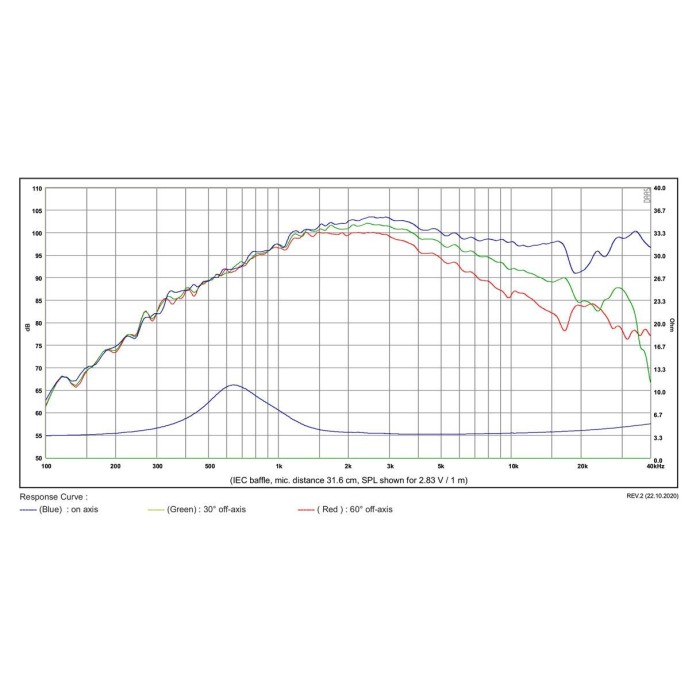

Sensitivity (2.83V/1m) 97 dB

Mechanical Q-factor, Qms 2.1

Electrical Q-factor, Qes 0.60

Total Q-factor, Qts 0.46

Force factor, Bl 3.1 Tm

Rated power handling* 80 W

Magnetic flux density 1.5 T

Magnet weight 0.1 kg

Net weight 0.6 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

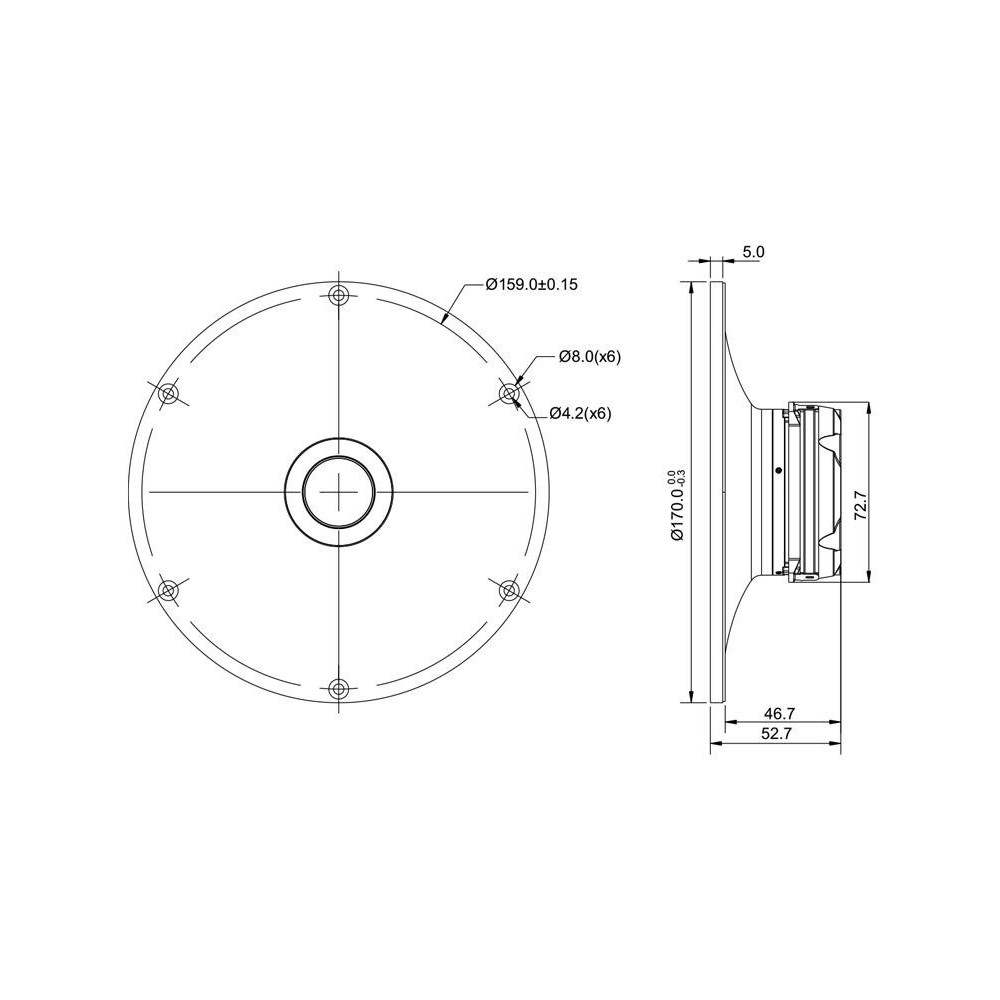

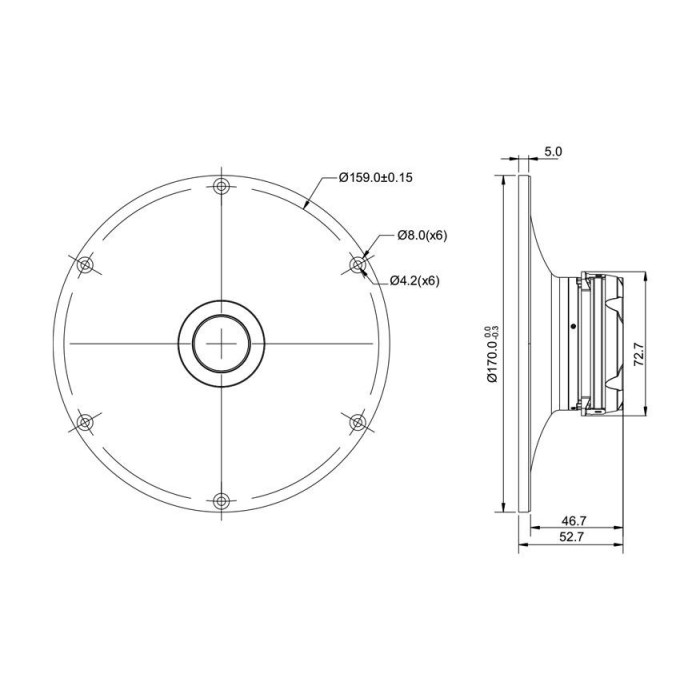

Diameter: 29mm
Impedance: 4 Ω
Power: 80 W
Series: SATORI
Material: Aluminum
Beryllium

SATORI TW29BNWG-4 / Beryllium

Download (1.77MB)

Summary

(1 Reviews)

Select a row below to filter reviews.

5

(1)
4

(0)
3

(0)
2

(0)
1

(0)

You cannot post a review because you are not logged as a customer

Sort By

Grade

Админ Магазин П

09/20/2026

Това е истински шедьовър сред говорителите от висок клас. Не очаквайте от него да ''сипе'' високи честоти постоянно- напротив! Всеки тон е премерен и само, когато трябва, се включва със завиден финес и вярна тембралност. Един от малкото говорители с които предобивате усещане за автентична вярност на музикалното произведение.

Recommended to buy: Yes
