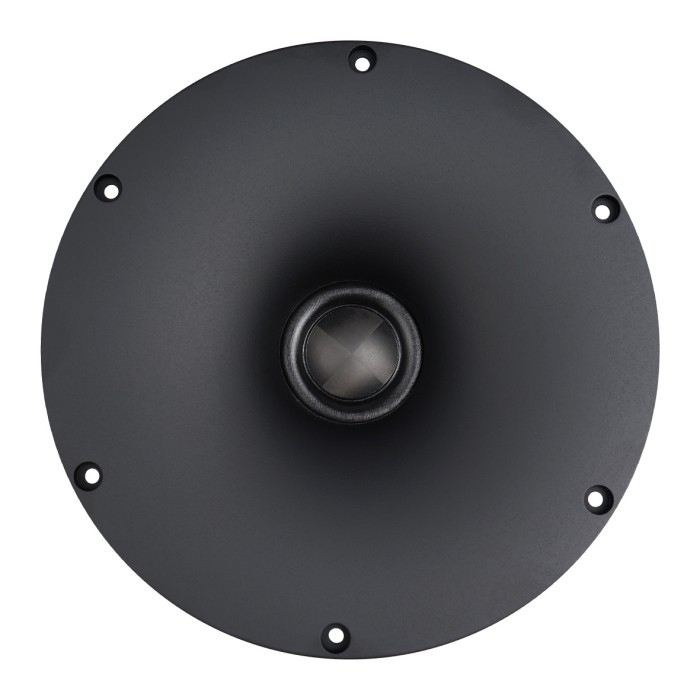

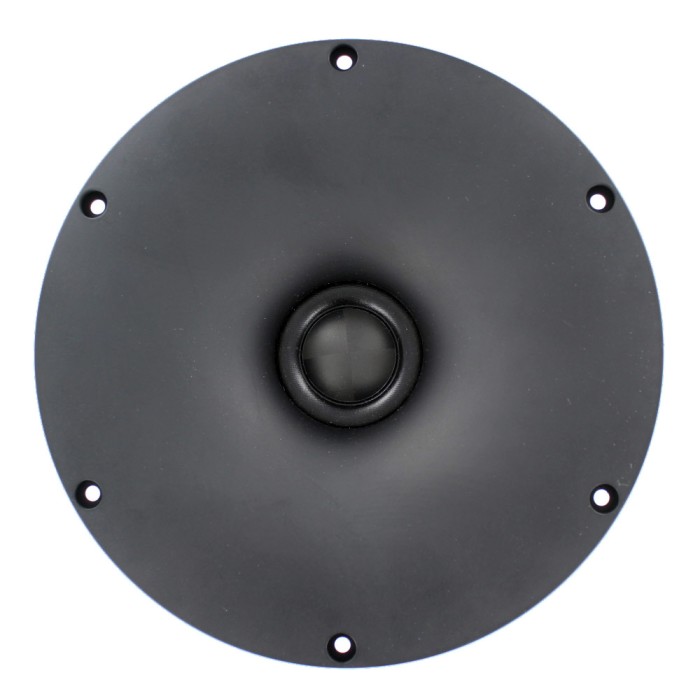

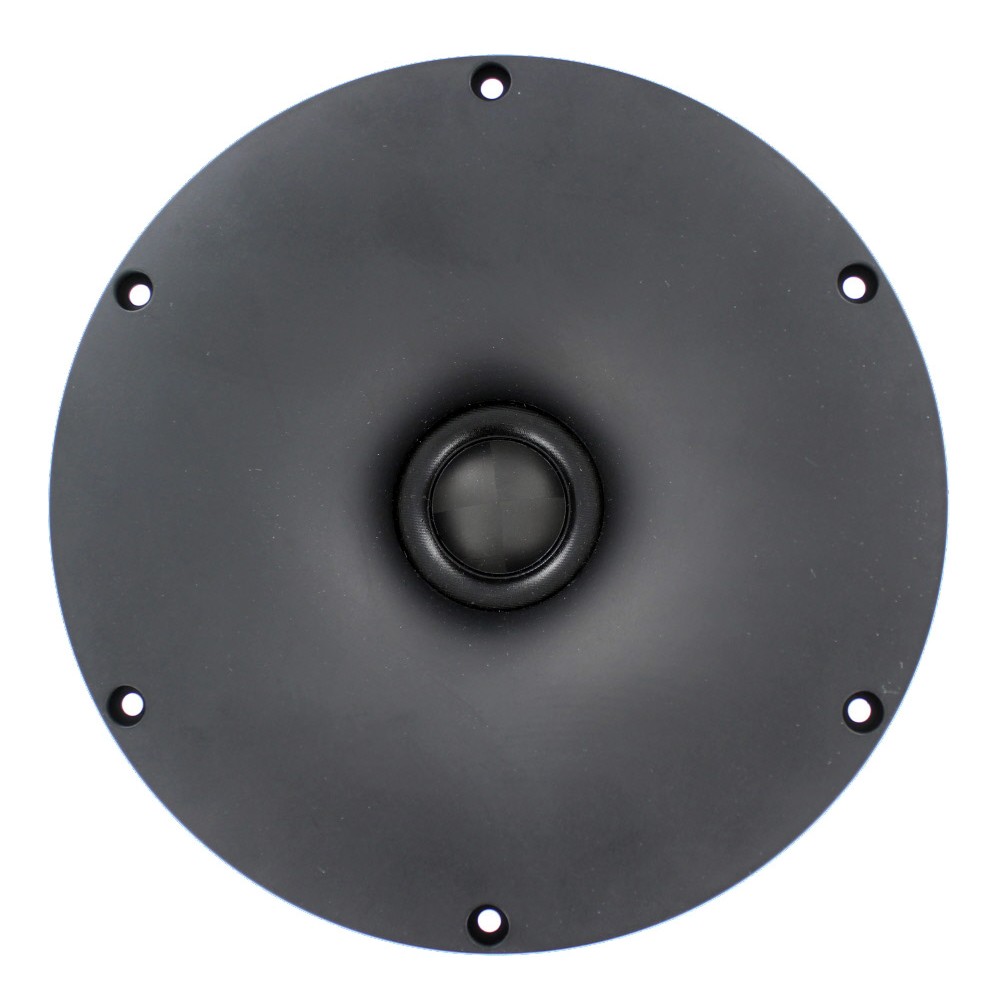

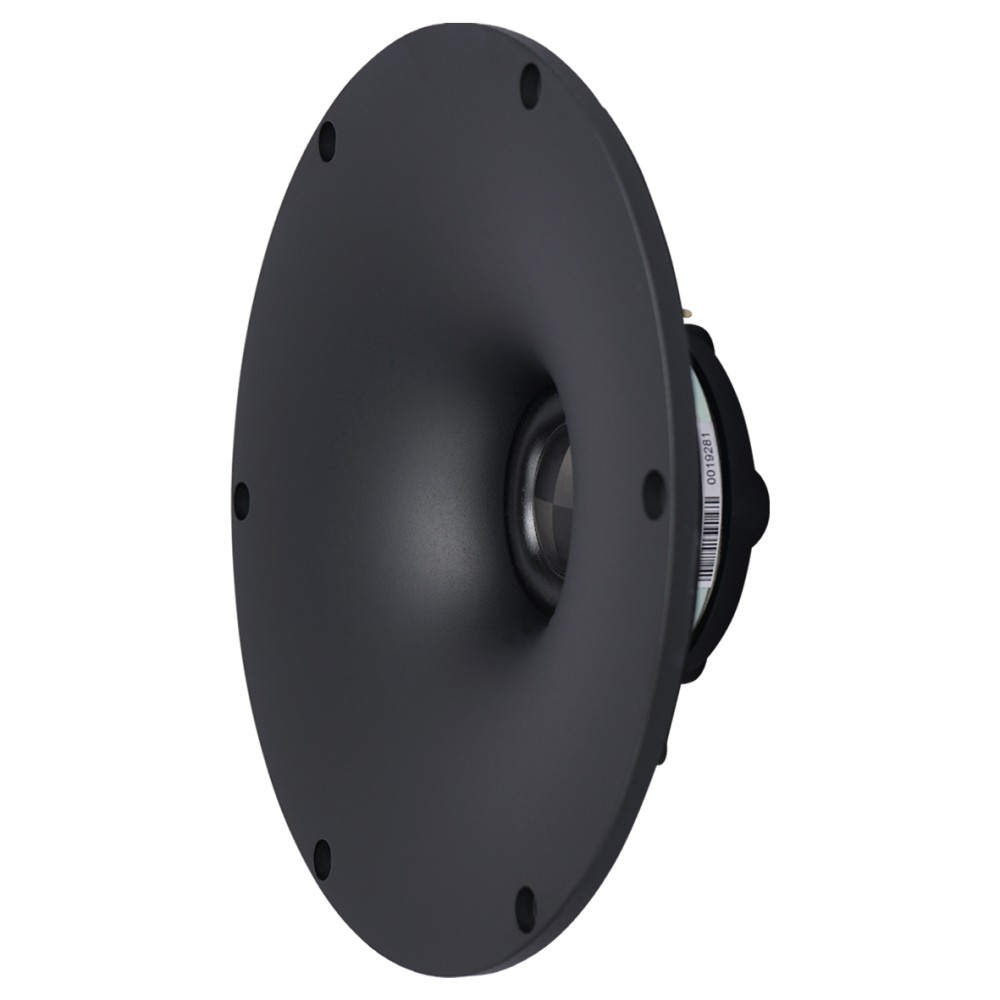

Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm
Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm

Satori TW29TXNWG-4 Textreme Tweeter with Waveguide- 4 ohm

6 pcs.
In Stock
€ 329.00
Tax included

Features

  • Advanced TeXtreme dome for non-resonant high frequency extension
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range
  • Solid aluminum waveguide
  • Controlled directivity
  • Adapter ring for bolt-less mounting to driver
(0)
4 Ω | 80 W

Brand



Specs

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.0 Ω
  • Voice coil inductance, Le 0.02 mH
  • Effective piston area, Sd 9.6 cm2
  • Voice coil diameter 29.0 mm
  • Voice coil height 2.0 mm
  • Air gap height 2.5 mm
  • Linear coil travel (p-p) 0.5 mm
  • Moving mass incl. air, Mms 0.51 g
  • Free air resonance, Fs 635 Hz
  • Sensitivity (2.83V/1m) 96 dB
  • Mechanical Q-factor, Qms 1.73
  • Electrical Q-factor, Qes 0.64
  • Total Q-factor, Qts 0.47
  • Force factor, Bl 3.1 Tm
  • Rated power handling* 80 W
  • Magnetic flux density 1.44 T
  • Magnet weight 0.1 kg
  • Net weight 0.5 kg
Impedance
4 Ω
Power
80 W
Series
SATORI
Material
Aluminum
Carbon
