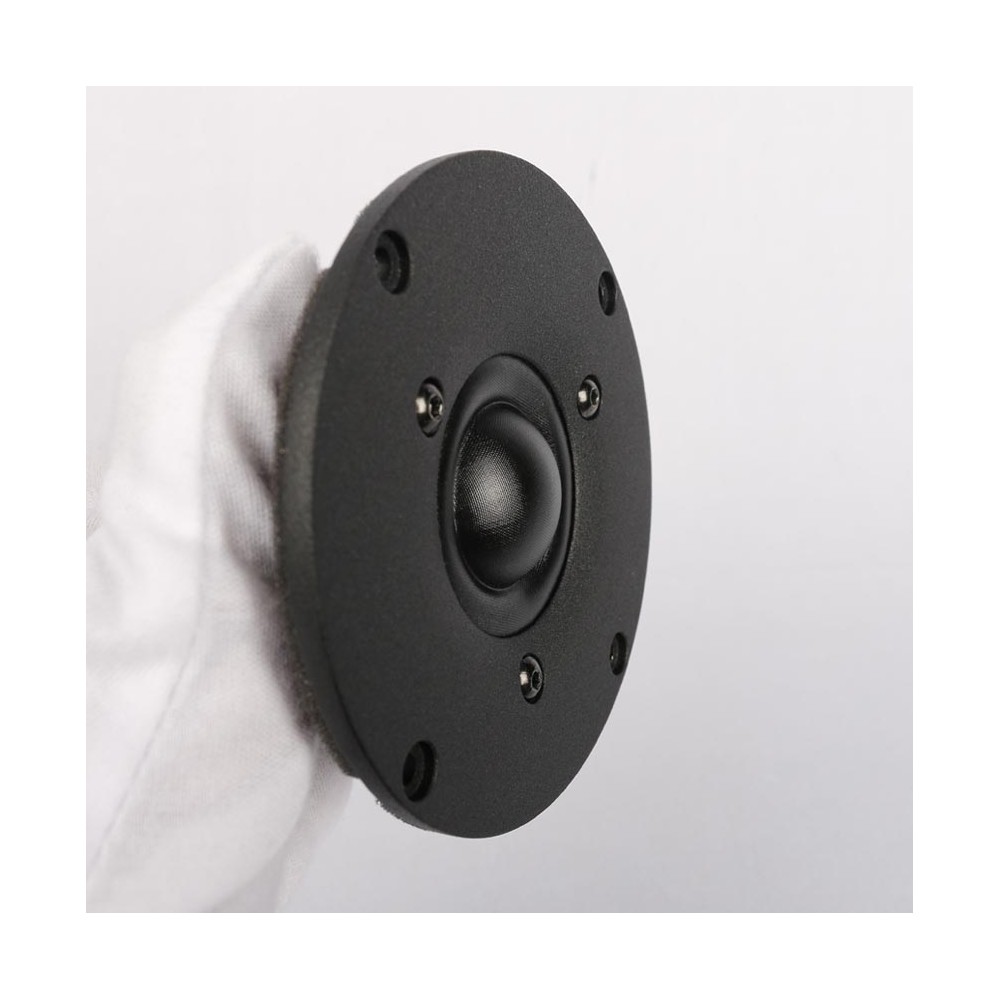

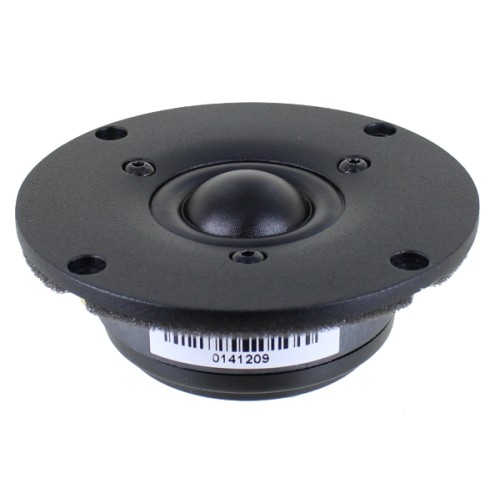

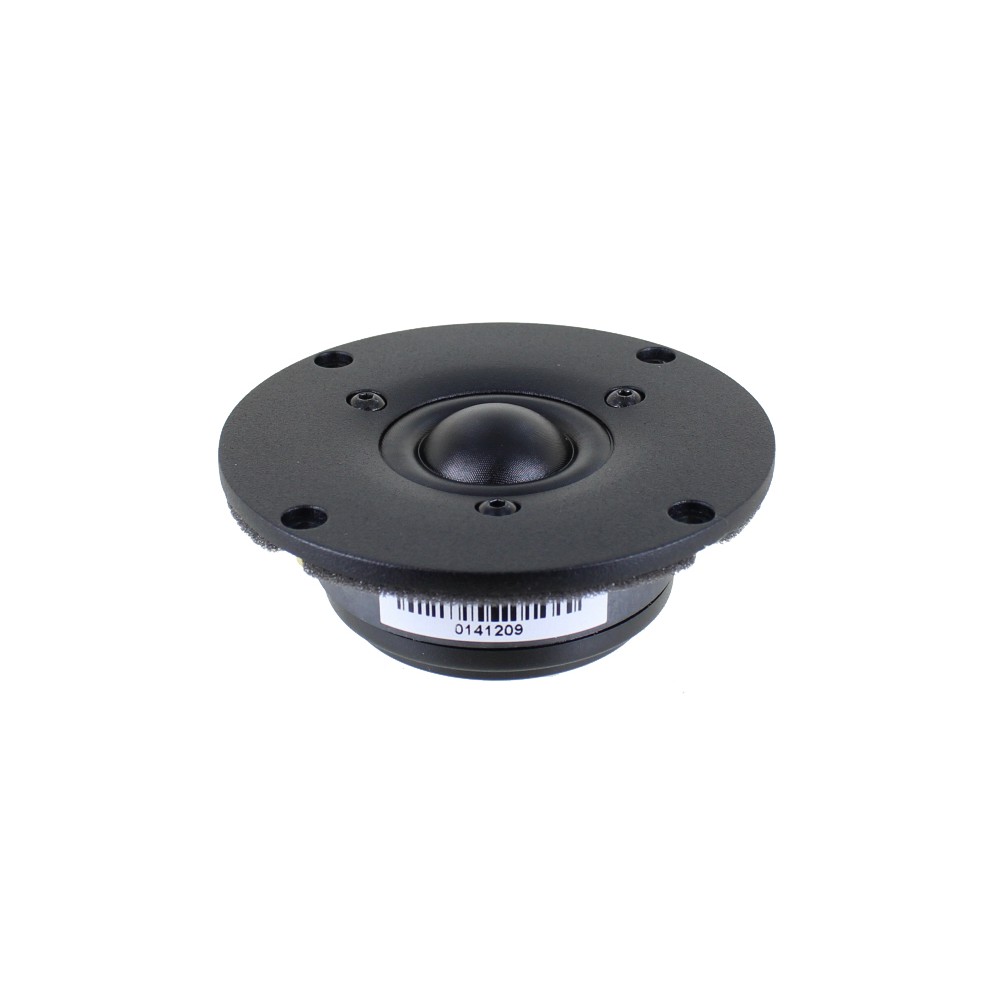

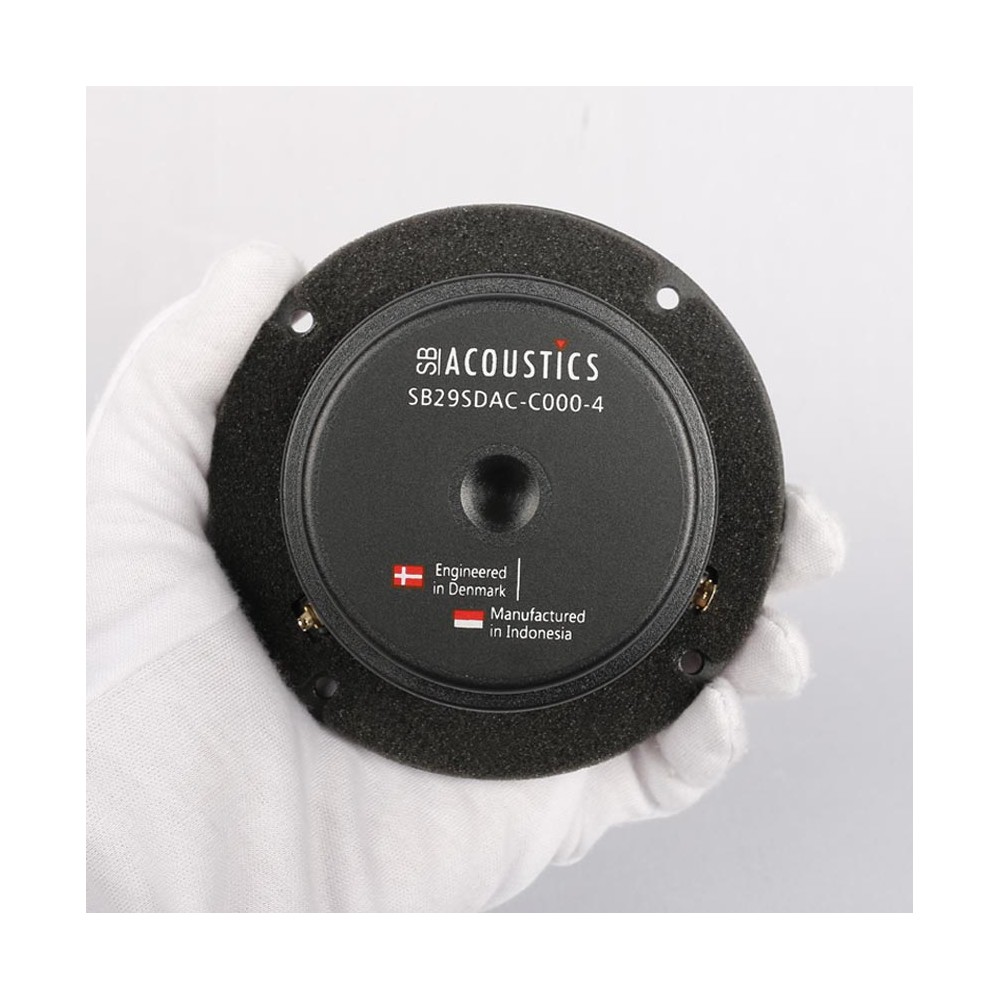

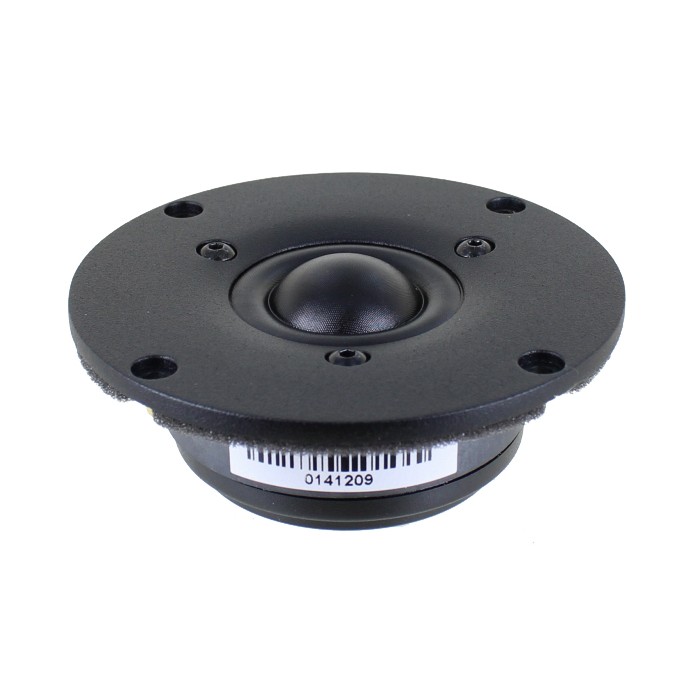

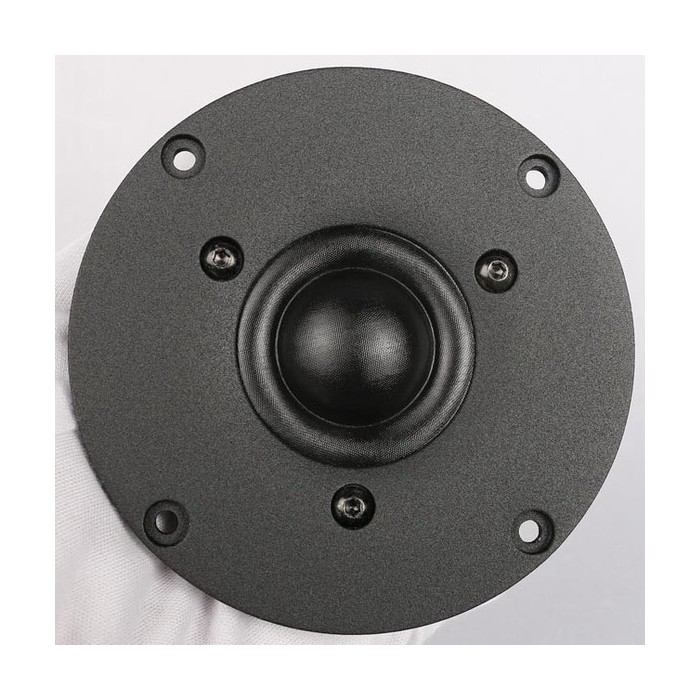

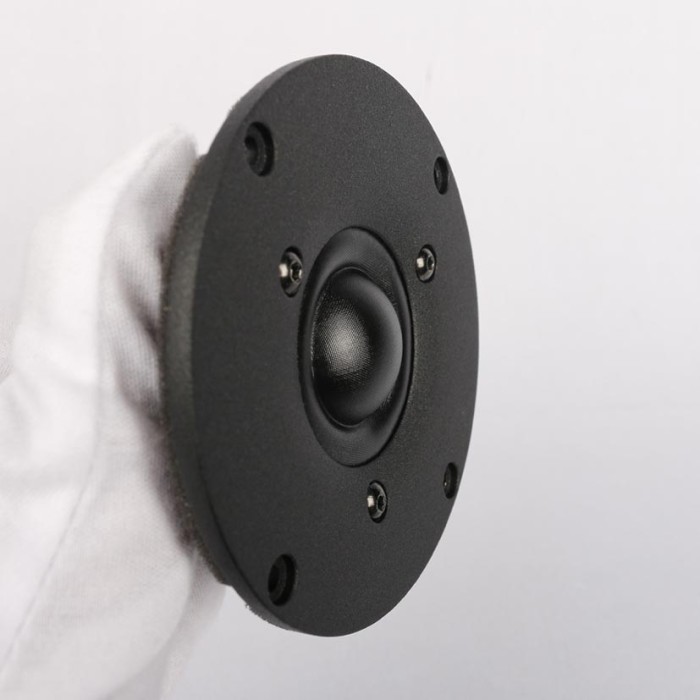

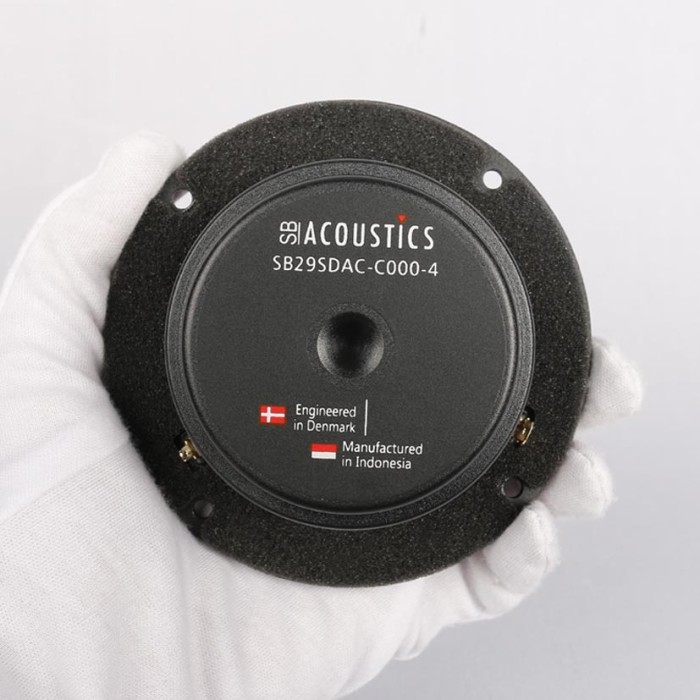

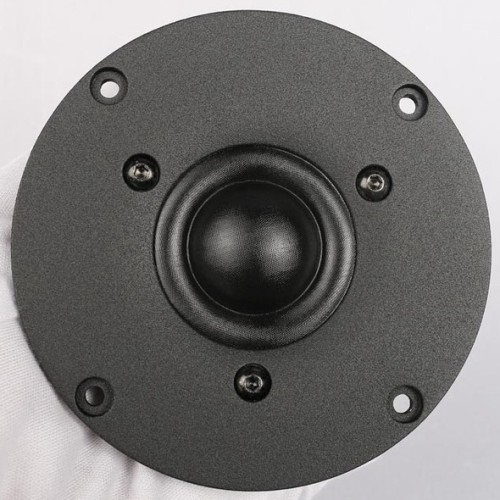

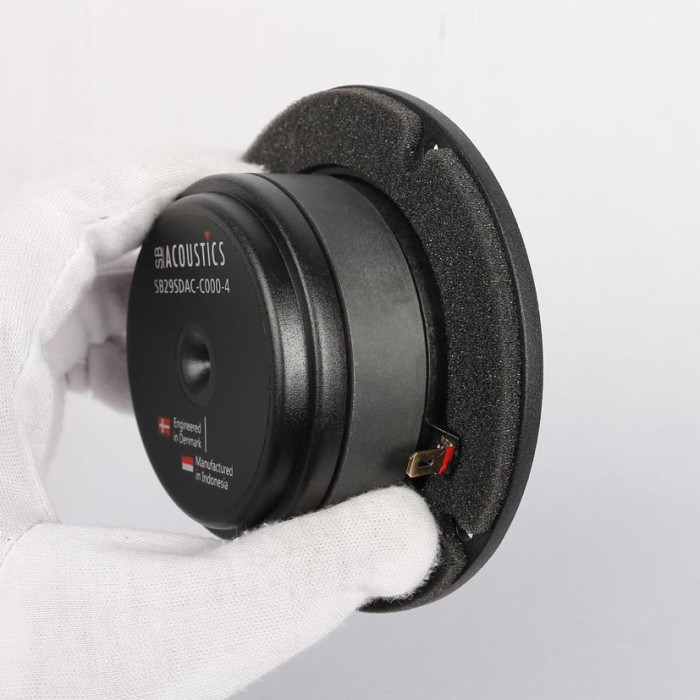

SB Acoustics SB29SDAC-COOO-4

Name: SB Acoustics SB29SDAC-COOO-4
Brand: SB Acoustics
SKU: PROD207
Price: 50.62 EUR
Availability: InStock
Rating: 5 (2 reviews)

Reference PROD207

In stock 10 pcs.

In Stock

€ 50.62

Tax included

Features

Large surround dome for increased acoustic output
Dual balanced compression chamber for improved dynamics
Copper cap for reduced voice coil inductance and minimum phase shift
Saturation controlled motor system for low distortion
Non-reflective rear chamber with optimized damping for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency
Cast aluminium faceplate

(2)

Read reviews

29mm | 4 Ω | 60 W

Specs

Nominal Impedance 4 Ω

DC resistance, Re 3.0 Ω

Voice coil inductance, Le 0.05 mH

Effective piston area, Sd 9.6 cm2

Voice coil diameter 29 mm

Voice coil height 2.0 mm

Air gap height 2.5 mm

Linear coil travel (p-p) 0.5 mm

Moving mass incl. air, Mms 0.45 g

Free air resonance, Fs 600 Hz

Sensitivity (2.83 V / 1 m) 93 dB

Mechanical Q-factor, Qms 2.94

Electrical Q-factor, Qes 1.09

Total Q-factor, Qts 0.8

Force factor, Bl 2.4 Tm

Rated power handling* 60 W

Magnetic flux density 1.1 T

Magnet weight 0.22 kg

Net weight 0.5 kg

Diameter: 29mm
Impedance: 4 Ω
Power: 60 W
Material: Aluminum
Textile

SB29SDAC-COOO-4

Download (551.58KB)
