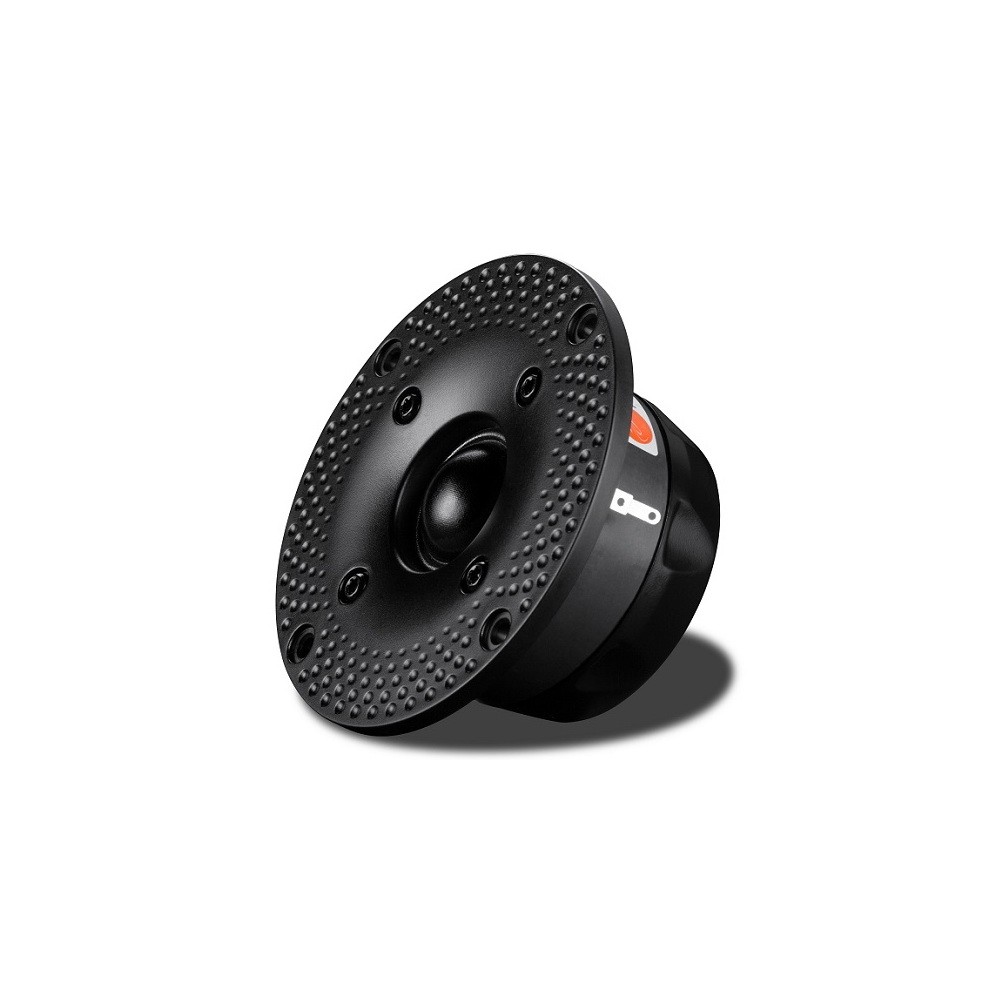

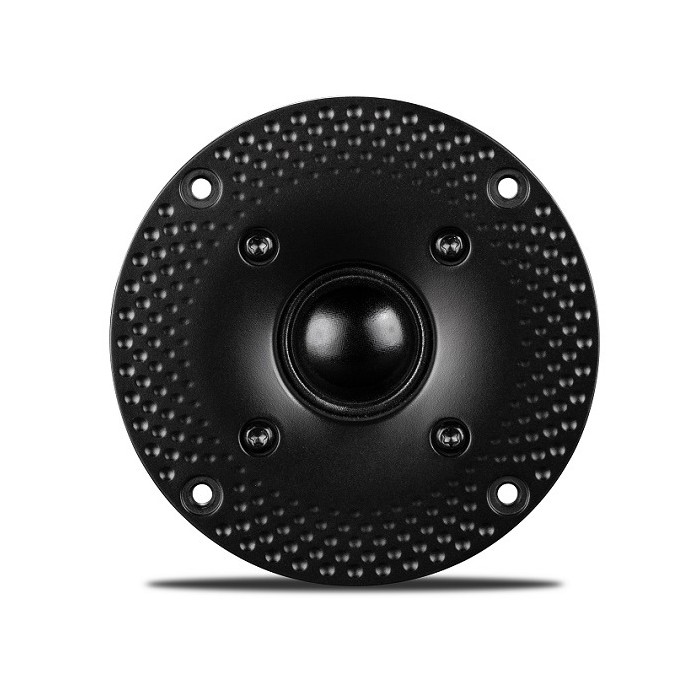

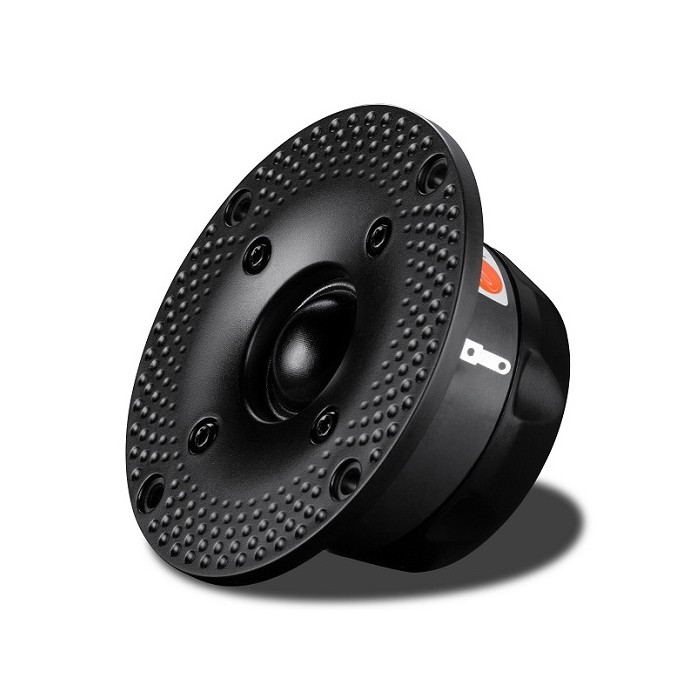

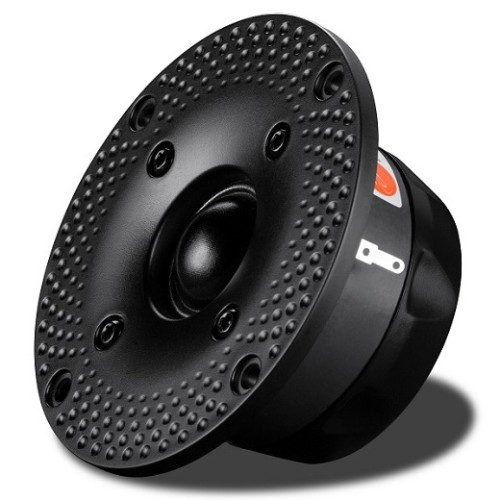

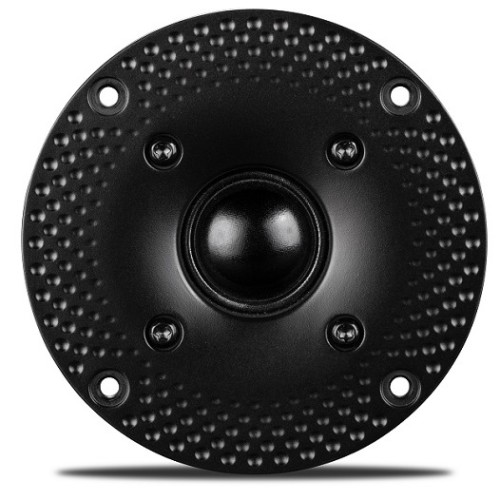

HIVI X1II

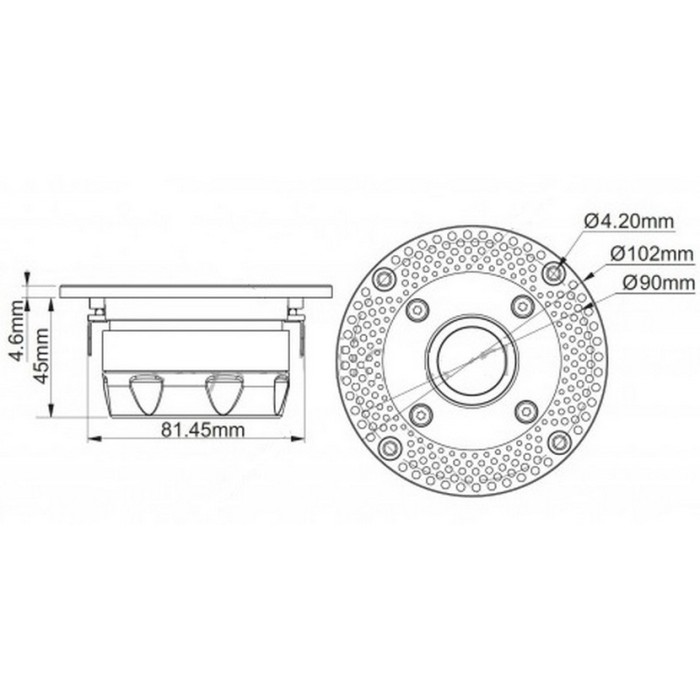

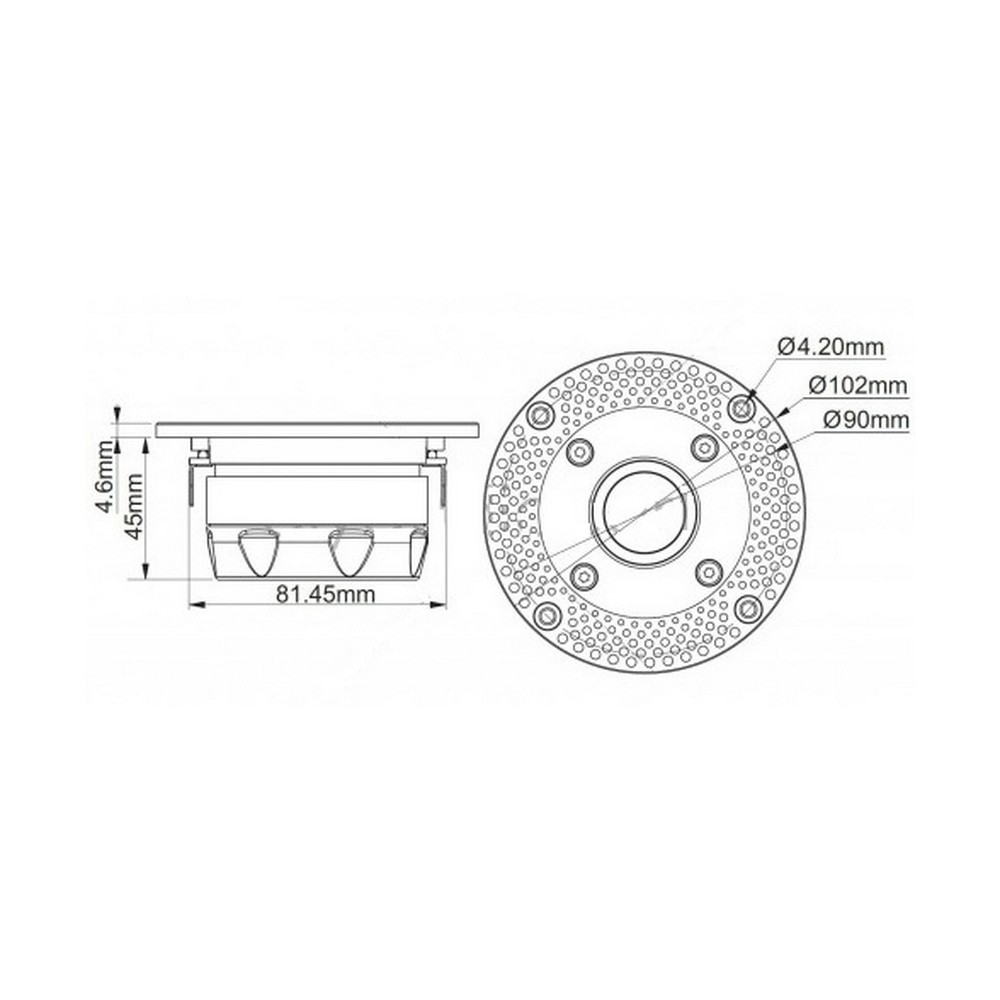

Horn frame diameter: 102MM
The diagonal diameter of the speaker mounting hole is: 90MM
Screw hole position: 4.2*4MM
The opening diameter of the wooden box with speakers: between 81.5-82.5MM
Speaker depth: 45MM
Magnet diameter: 81.45MM
The depth of the counterbore of the wooden box: 4.6MM
