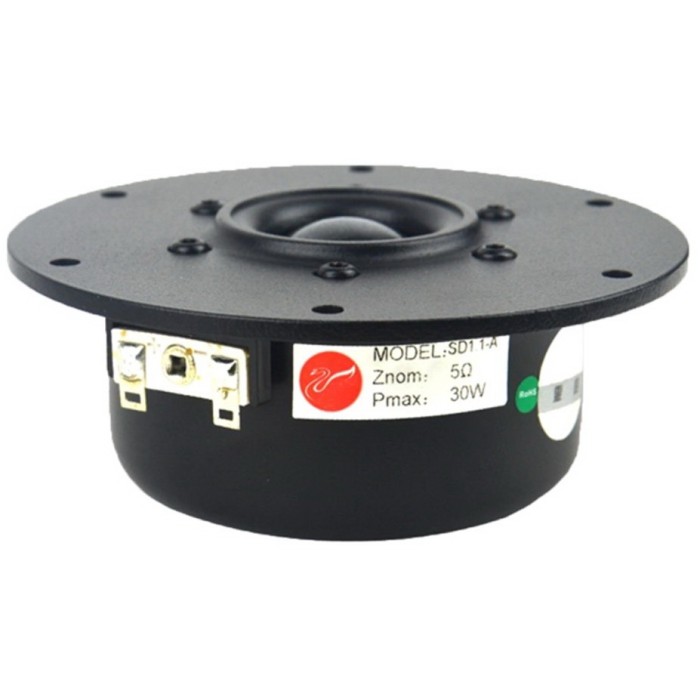

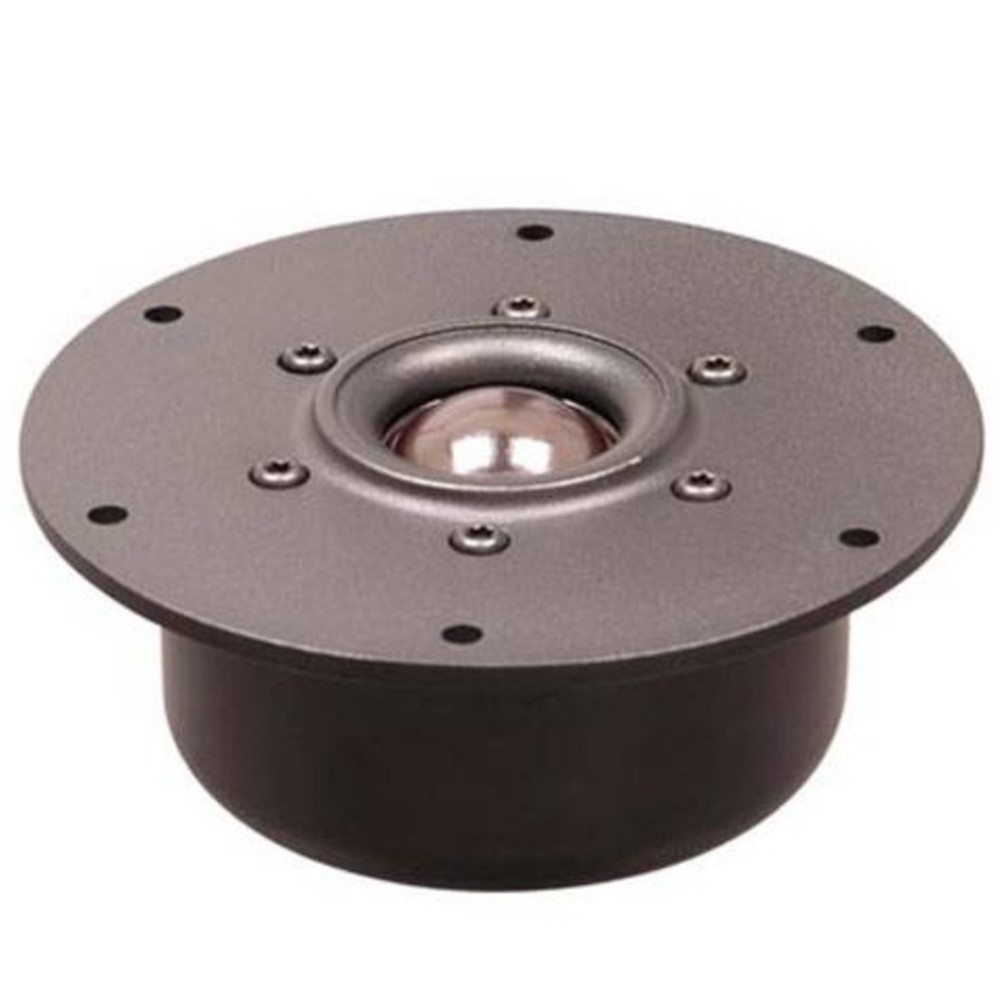

HIVI SD1.1-A Silk dome tweeter

Name: HIVI SD1.1-A Silk dome tweeter
Brand: HIVI
SKU: PROD128
Price: 27.61 EUR
Availability: InStock

Reference PROD128

In stock 8 pcs.

In Stock

€ 27.61

Tax included

Specifications

Article number-SD1.1-A

Tweeter Type-Soft Dome

Cone / Dome Diameter-25 mm | 1"

Power Handling (RMS)-15 Watts

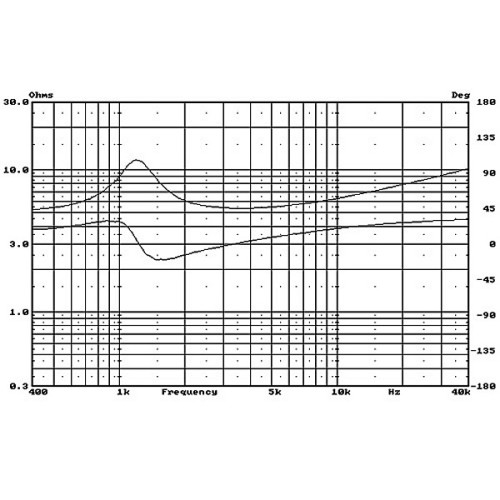

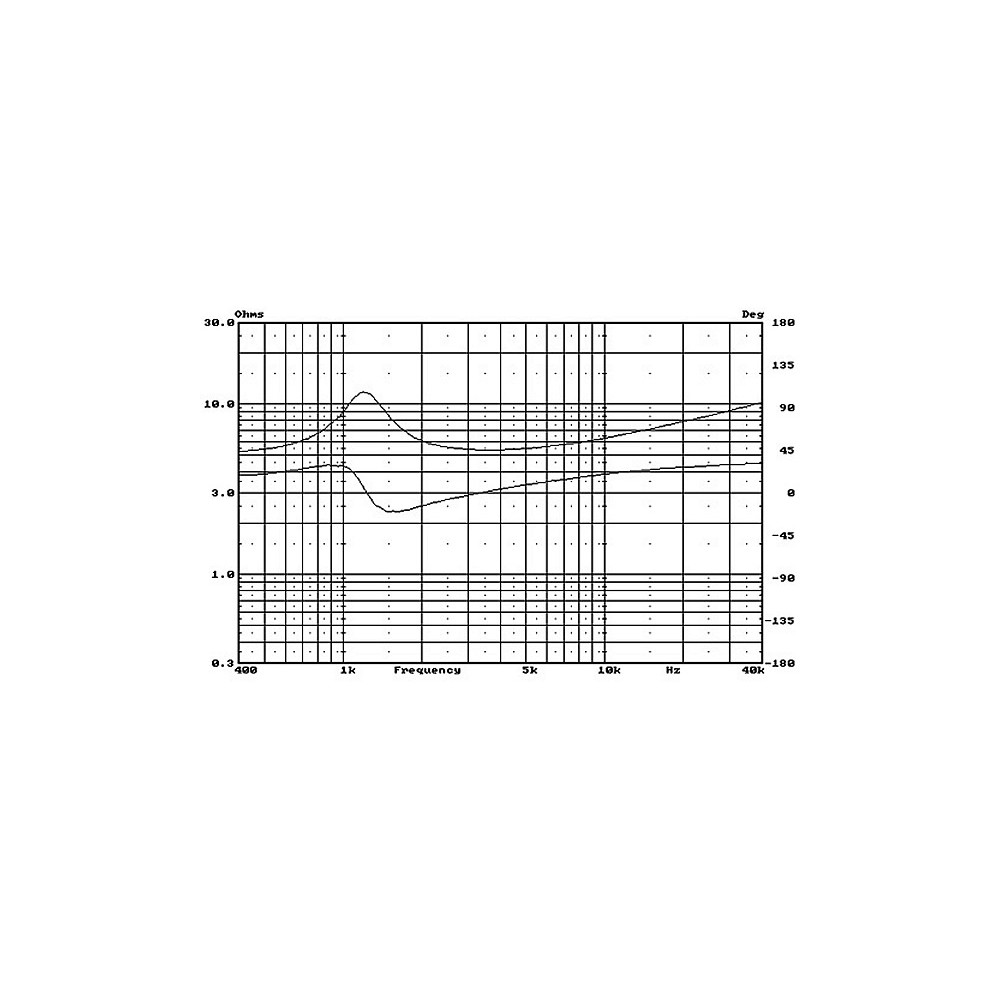

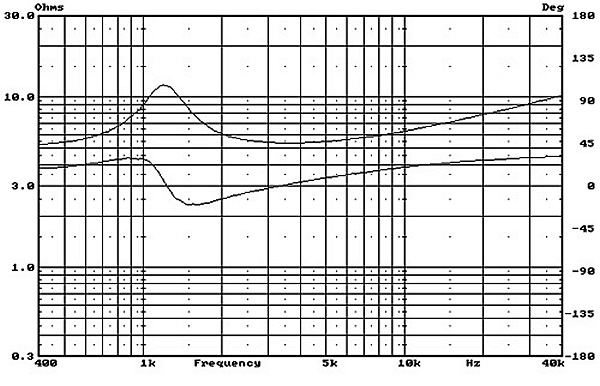

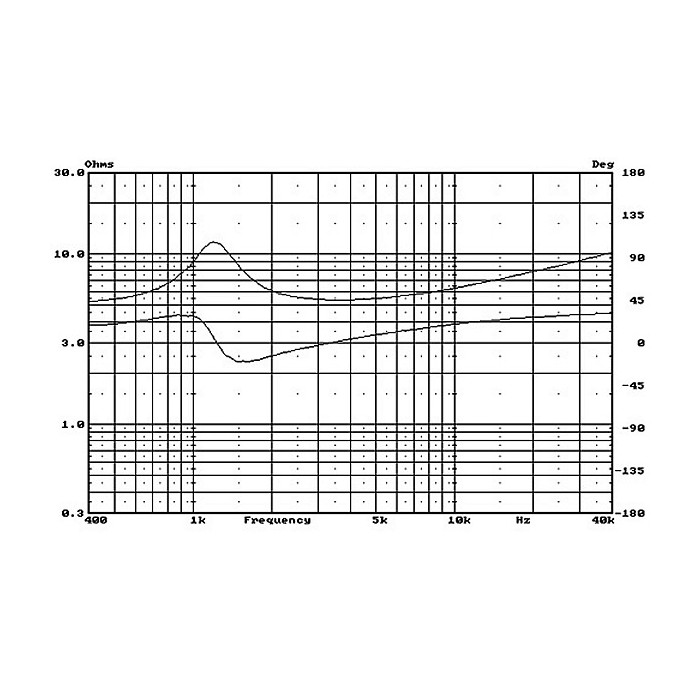

Impedance (Z)-6 Ω

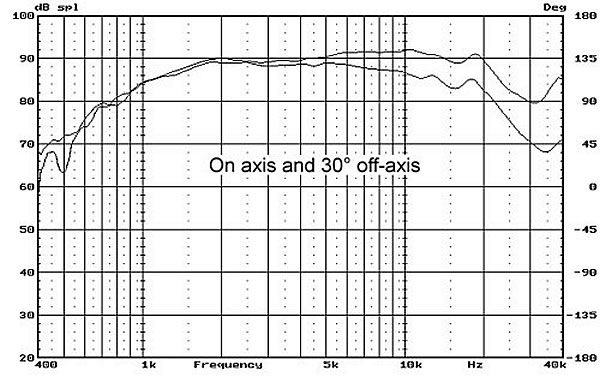

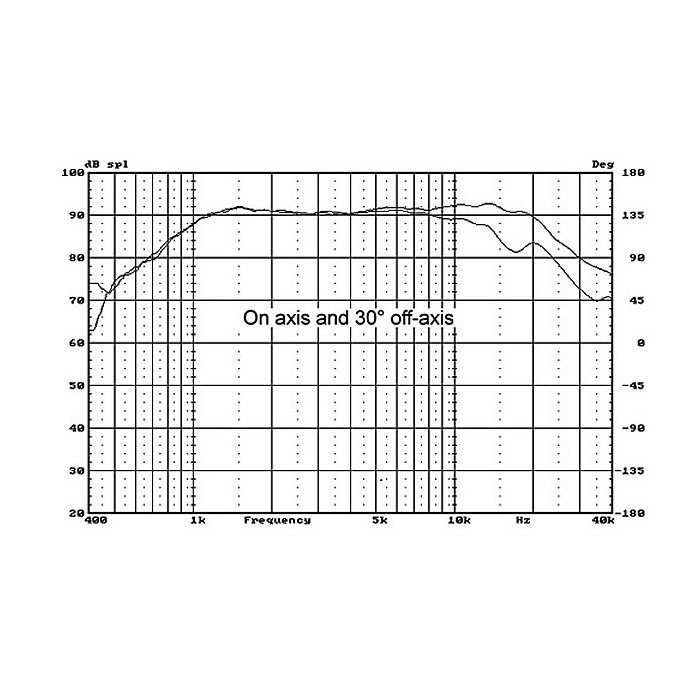

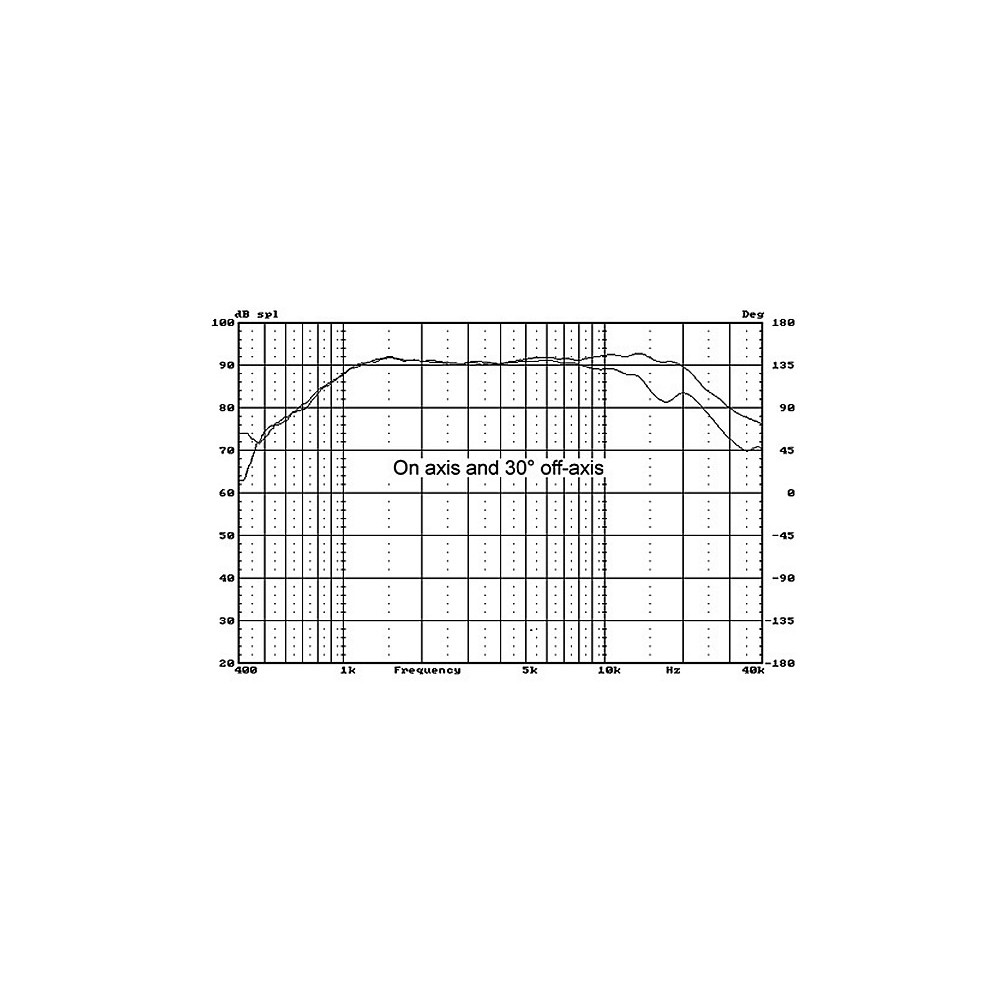

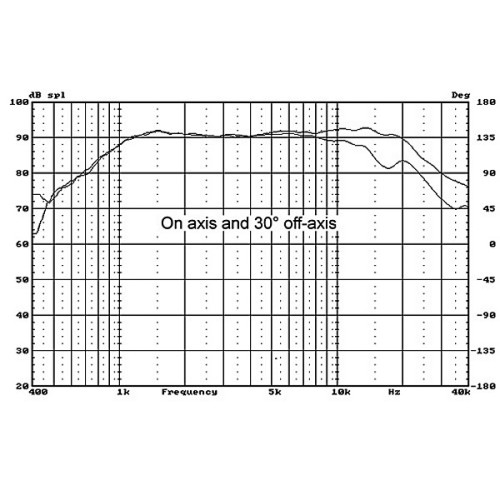

Frequency Response-2,000 to 20,000 Hz

Resonant Frequency (Fs)-1,200 Hz

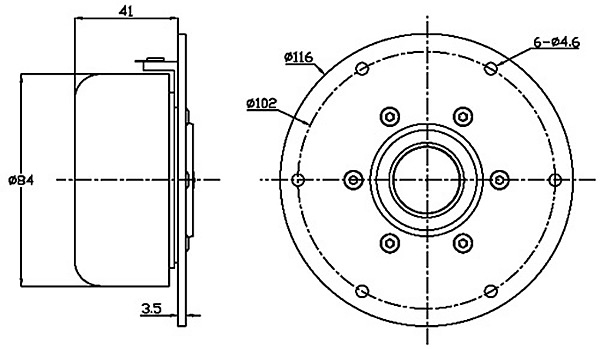

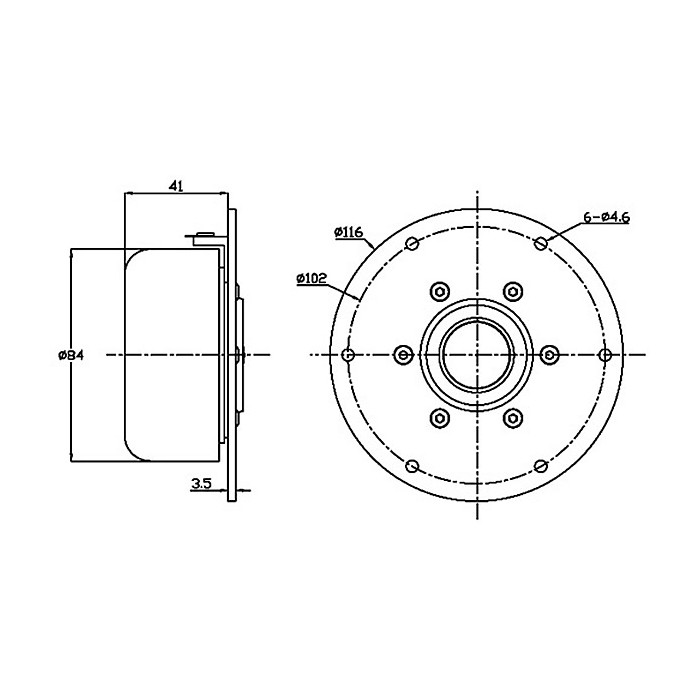

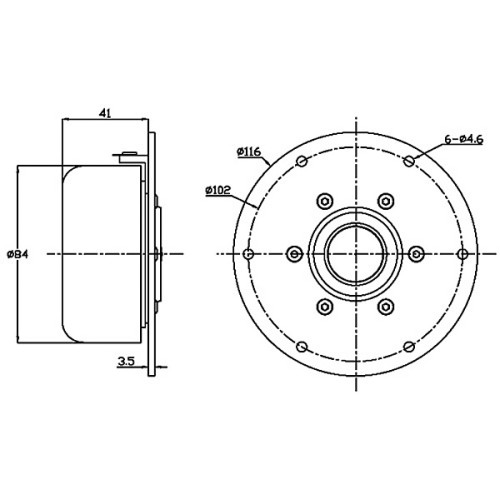

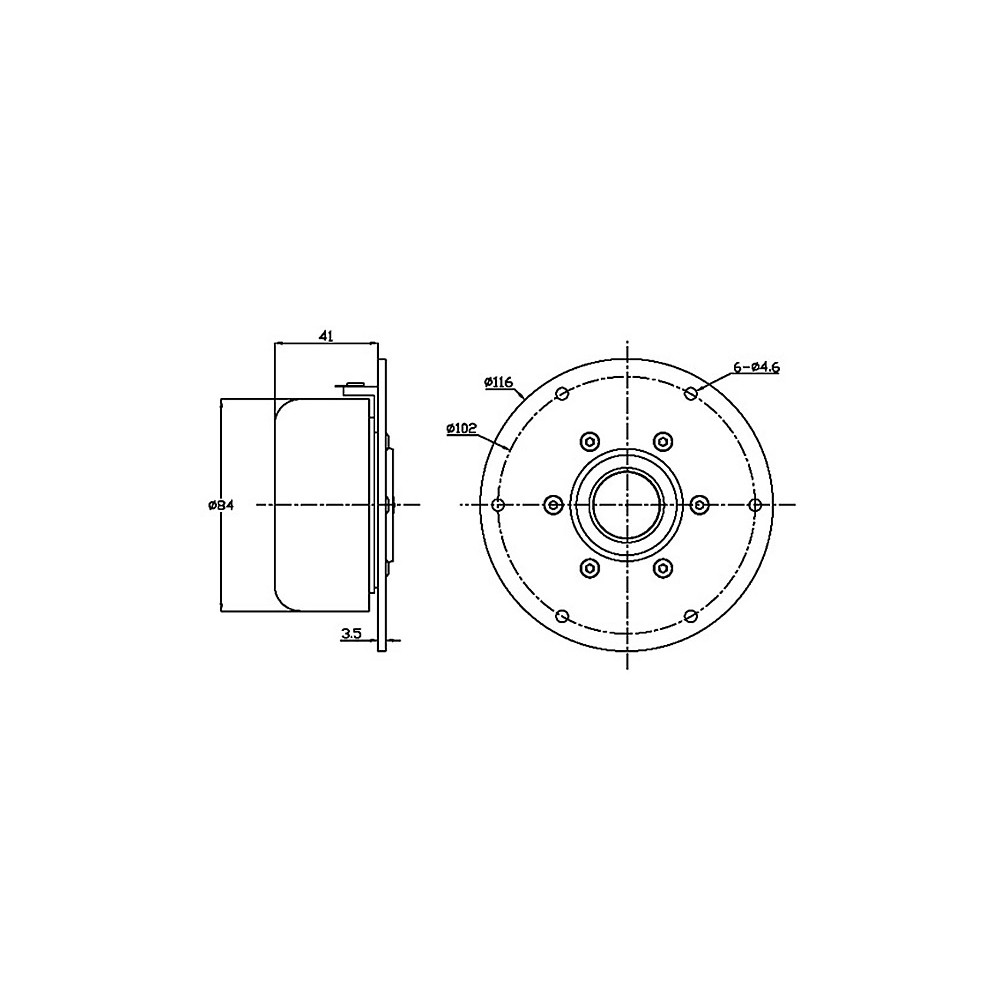

Overall Outside Diameter-4.56"

Cutout Diameter-3.31"

Depth-1.63

(0)

1" | 6 Ω | 15 W

Highlights

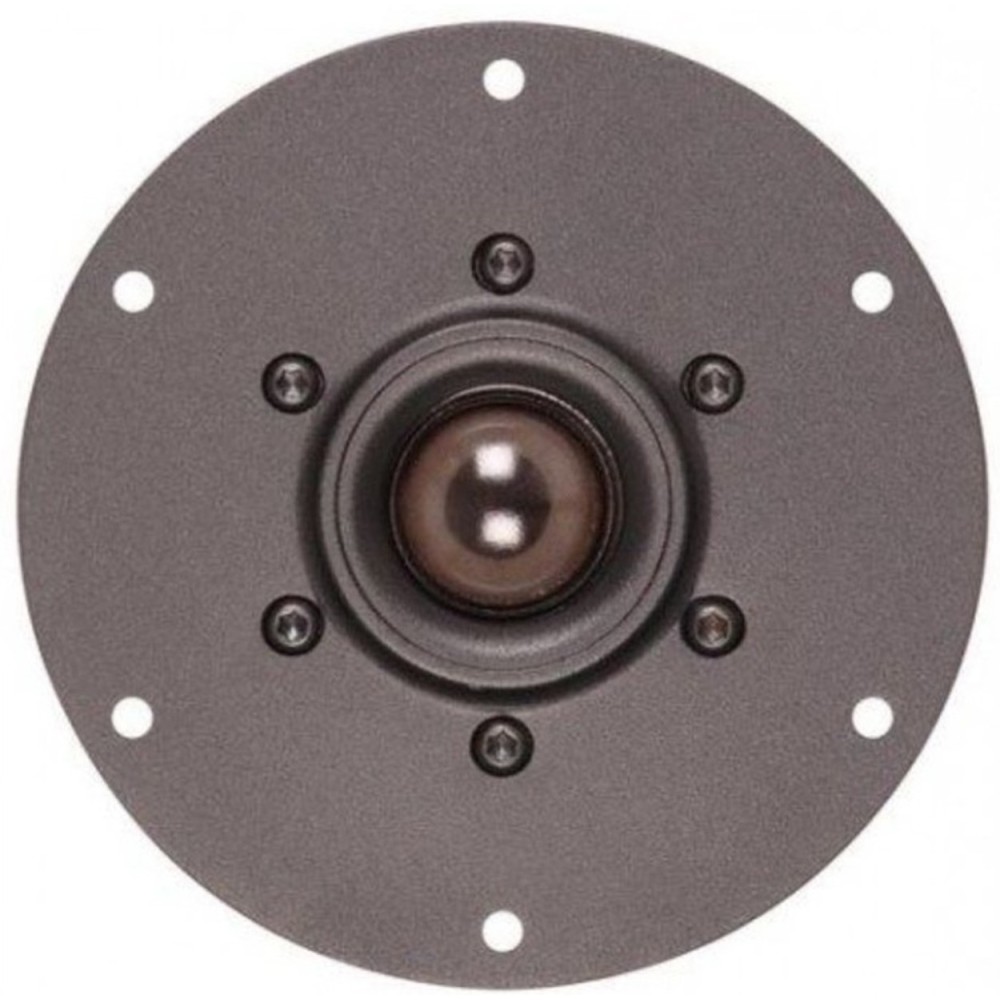

Special cast alloy faceplate

Utilizes a precisely coated diaphragm and a damping ring

Fully shielded magnet structure

Product details

HiVi SD1.1-A 1" Textile Dome Tweeter

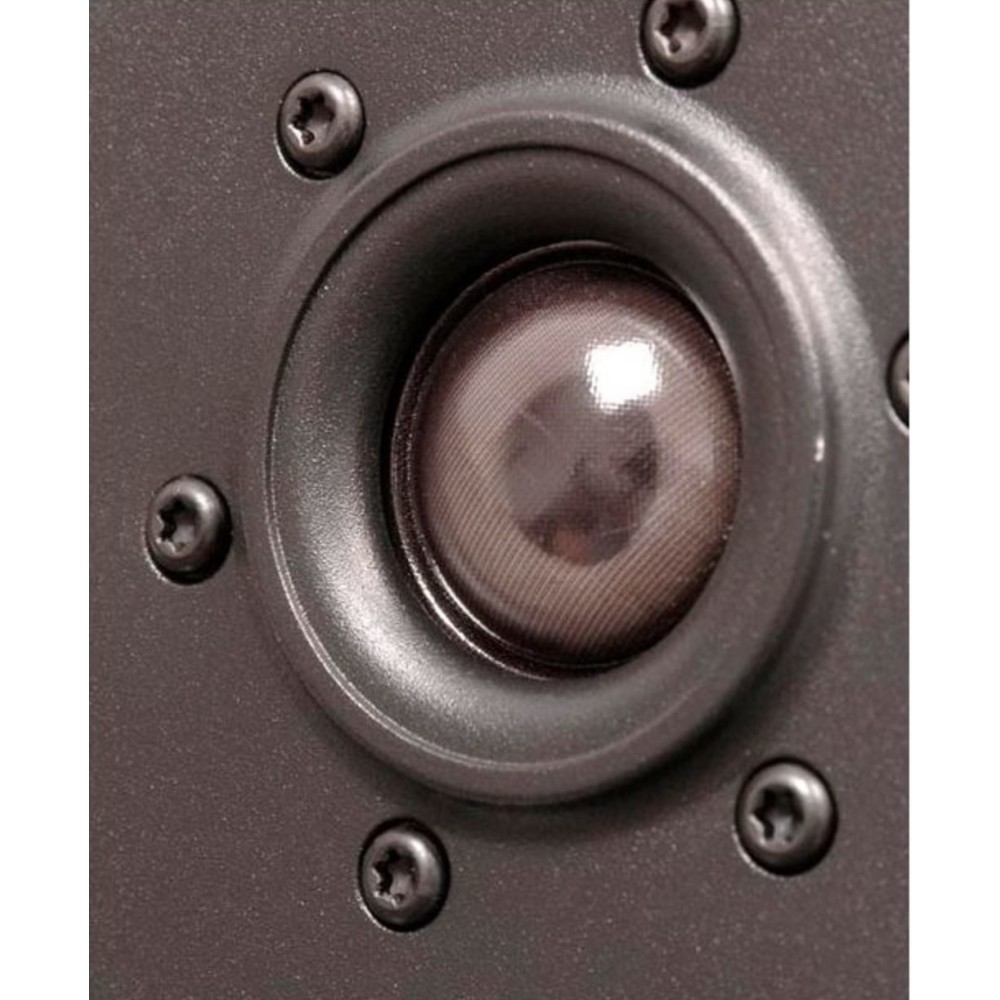

This high-quality tweeter utilizes a precisely coated diaphragm and a damping ring located below the dome. A special cast alloy faceplate offers excellent physical protection of the diaphragm, while also helping improve off-axis response. With a large, fully shielded magnet structure, ferrofluid, and aluminum former, the power handling is very good

Diameter: 1"
Impedance: 6 Ω
Power: 15 W
Series: HIVI Dome
Material: Textile
