PROD281
Temporarily out of stock
€ 48.57
Tax included

Replaced by Bianco-8MW250

FEATURES:

  • Proprietary cone paper material made in-house
  • 2" voice coil with APC (Advanced Polymer Coating)
  • Vented pole piece for reduced compression
  • CCAW voice coil wire for reduced moving mass
  • Minimum damping fiber glass voice coil former
  • Long life silver lead wires

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)
8" | 8 Ω | 120 W

Brand



Specifications

  • Article number BIANCO-8MW125
  • Woofer Series BIANCO
  • Woofer Type Mid-range
  • Nominal Diameter 8”
  • Power Handling (max) 250 W
  • Sensitivity 97 dB

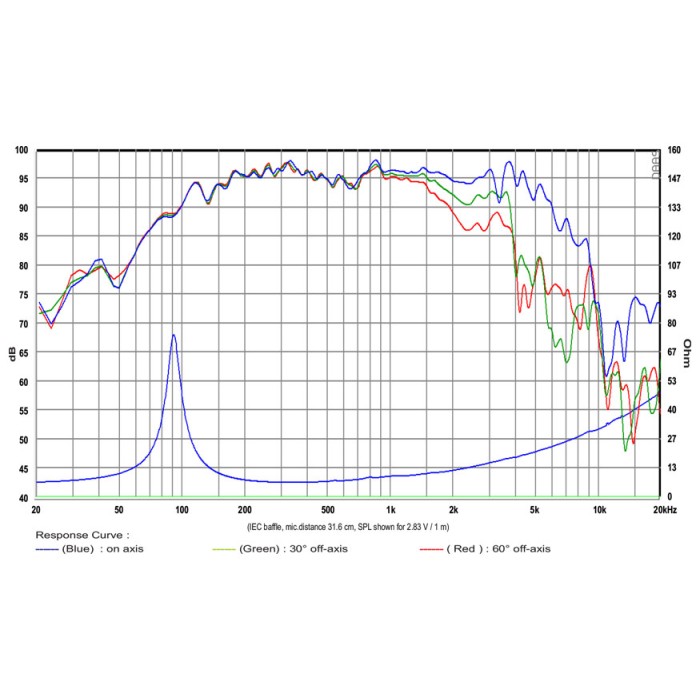

  • Frequency Response 89 - 7400 Hz
  • Voice Coil Diameter 49.5 mm (2 in)
  • DC Resistance (Re) 5.6 Ohm
  • Voice Coil Inductance (Le) 0.5mH
  • Resonant Frequency (Fs) 89Hz
  • Mechanical Q (Qms) 14.63
  • Electromagnetic Q (Qes) 0.57
  • Total Q (Qts) 0.55
  • Diaphragm Mass Inc. Airload (Mms) 22.8g
  • Mechanical Compliance of Suspension (Cms) 0.14mm/N
  • Surface Area of Cone (Sd) 224.3cm²
  • BL Product (BL) 11.3 Tm
  • Compliance Equivalent Volume (Vas) 10.1liters
  • Maximum Linear Excursion (Xmax) 6.42 mm
  • Driver's Mechanical Losses (Rms) 0.87Kg/s
  • Basket / Frame Material Stamped steel
  • Magnet Material Ferrite

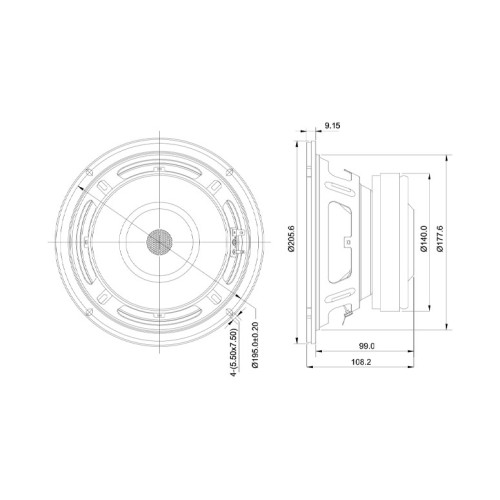

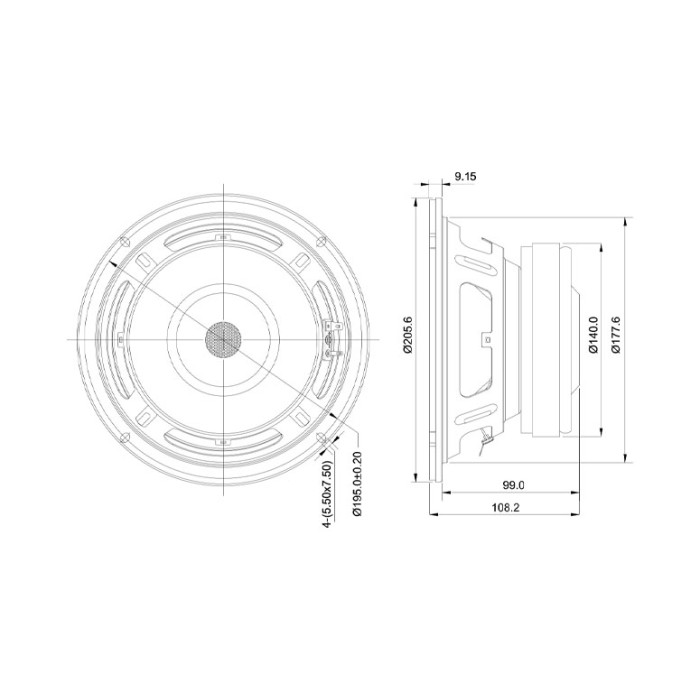

  • Overall Outside Diameter 205.6 mm (8.09 in)
  • Baffle Cutout Diameter 179.6 mm (7.07 in)
  • Bolt Circle Diameter 195.0 mm (7.68 in)

Specifications

Article number BIANCO-8MW125

Woofer Series BIANCO

Woofer Type Mid-range

Nominal Diameter 8”

Power Handling (max) 250 W

Sensitivity 97 dB

Frequency Response 89 - 7400 Hz

Voice Coil Diameter 49.5 mm (2 in)

DC Resistance (Re) 5.6 Ohm

Voice Coil Inductance (Le) 0.5mH

Resonant Frequency (Fs) 89Hz

Mechanical Q (Qms) 14.63

Electromagnetic Q (Qes) 0.57

Total Q (Qts) 0.55

Diaphragm Mass Inc. Airload (Mms) 22.8g

Mechanical Compliance of Suspension (Cms) 0.14mm/N

Surface Area of Cone (Sd) 224.3cm²

BL Product (BL) 11.3 Tm

Compliance Equivalent Volume (Vas) 10.1liters

Maximum Linear Excursion (Xmax) 6.42 mm

Driver's Mechanical Losses (Rms) 0.87Kg/s

Basket / Frame Material Stamped steel

Magnet Material Ferrite

Overall Outside Diameter 205.6 mm (8.09 in)

Baffle Cutout Diameter 179.6 mm (7.07 in)

Bolt Circle Diameter 195.0 mm (7.68 in)

Diameter
8"
Impedance
8 Ω
Power
120 W
Series
BIANCO
Material
Paper
