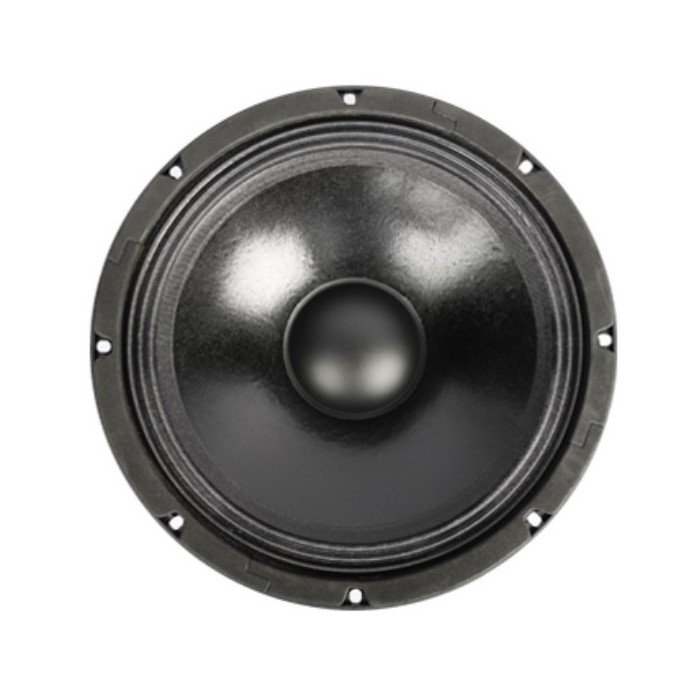

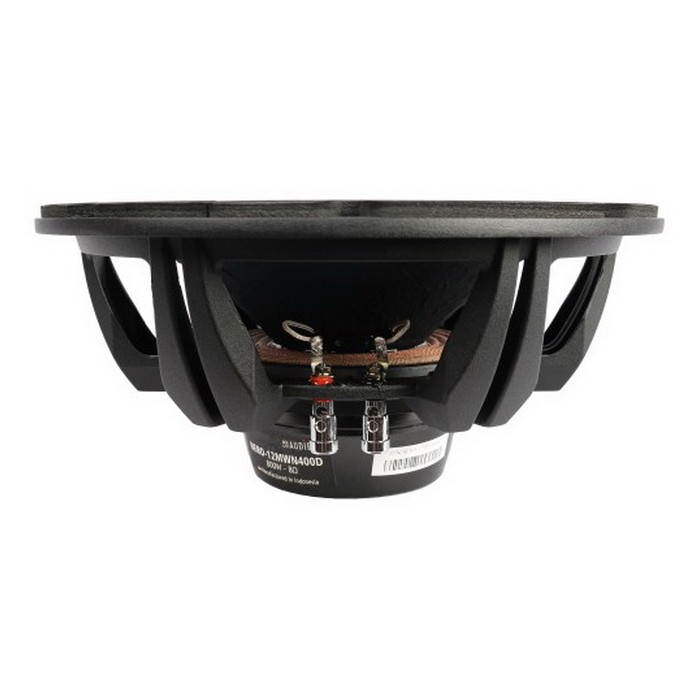

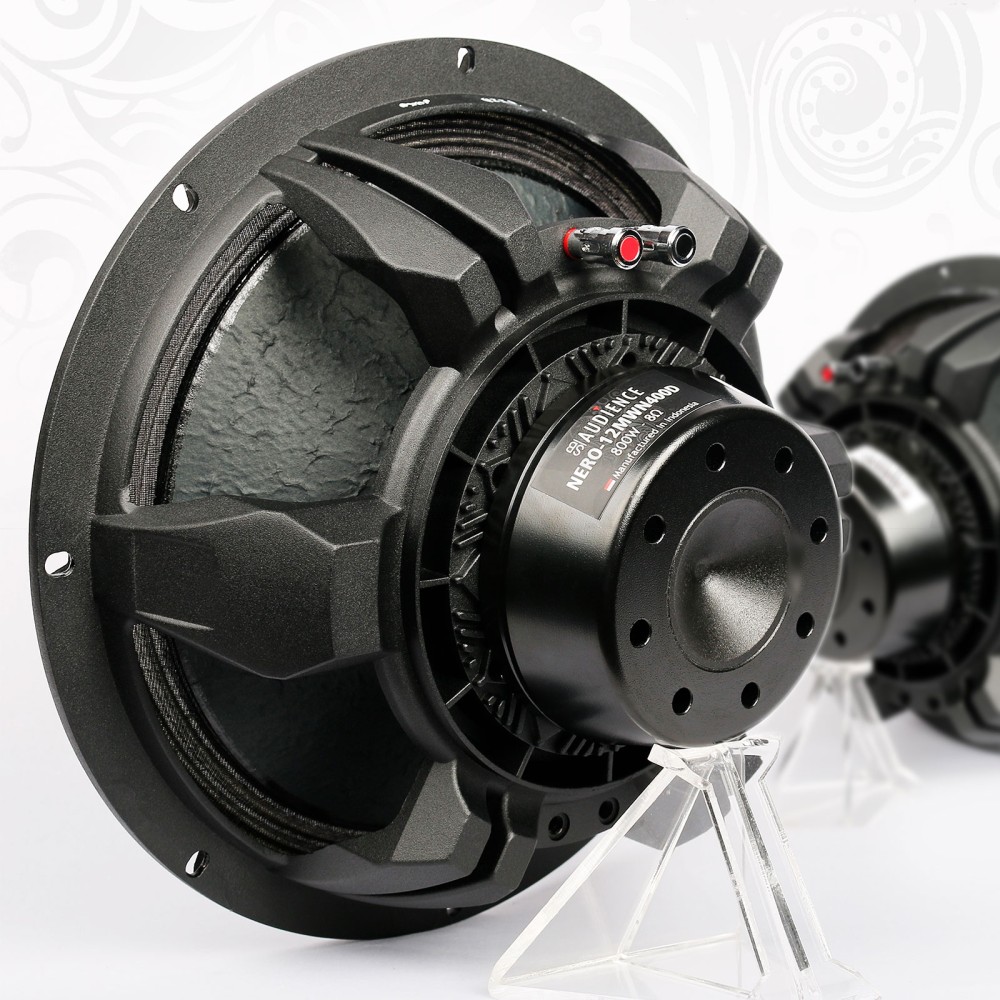

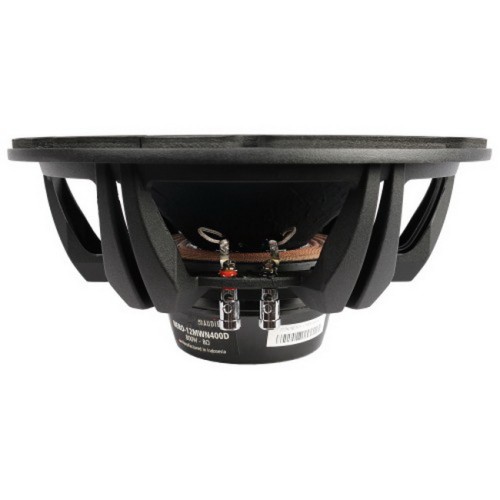

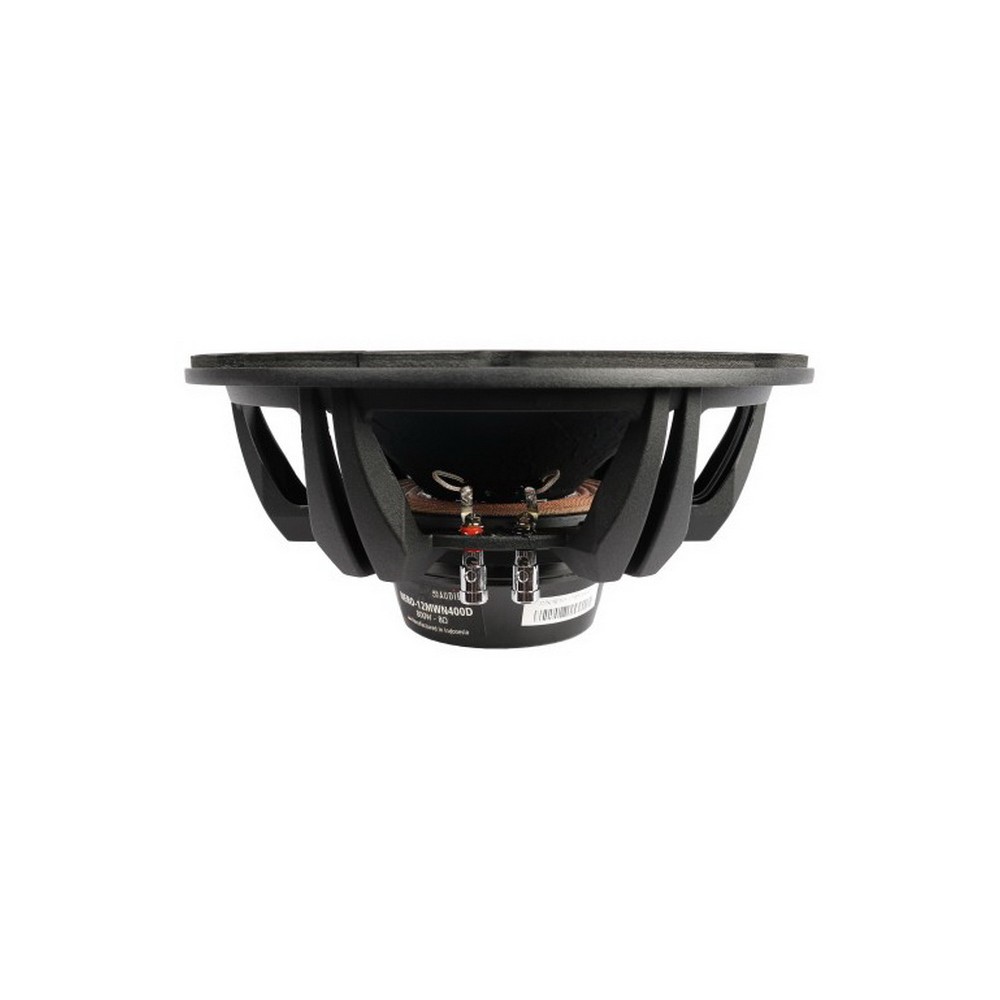

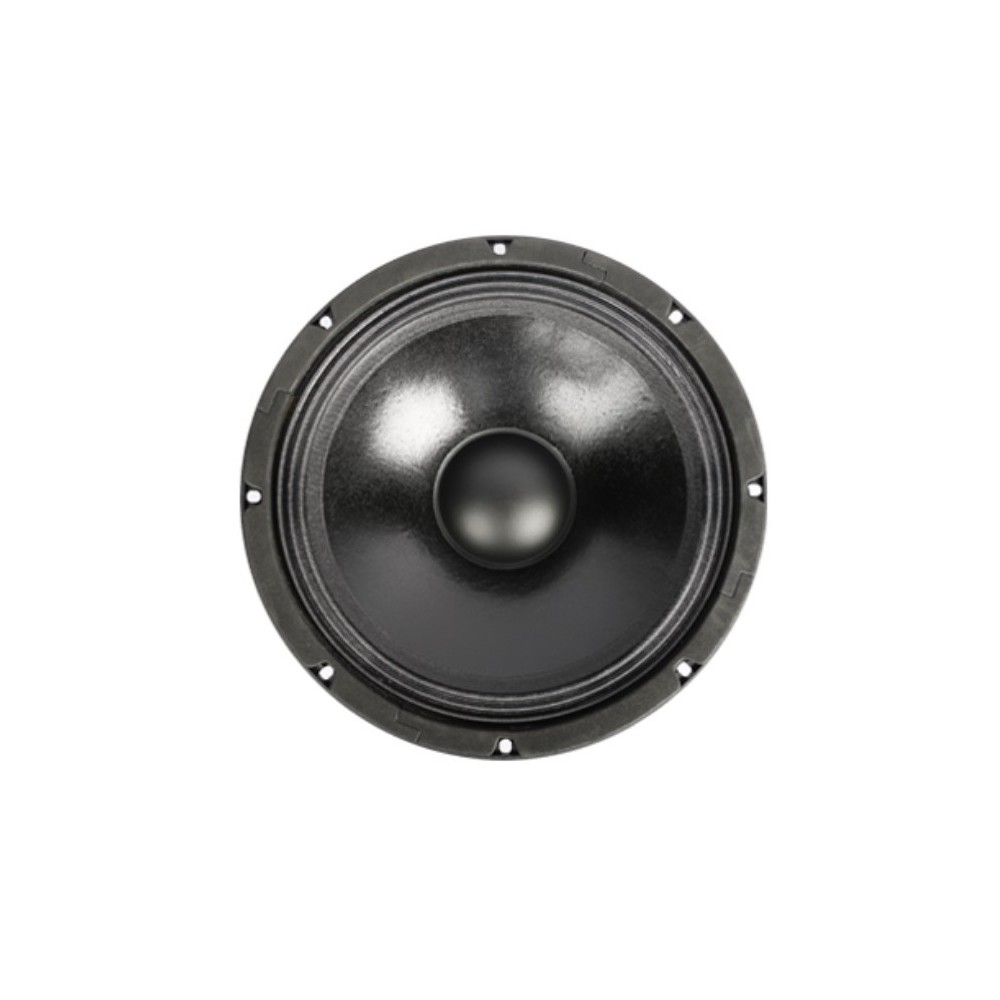

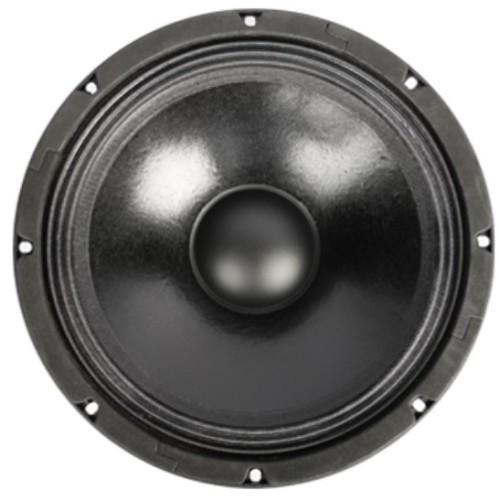

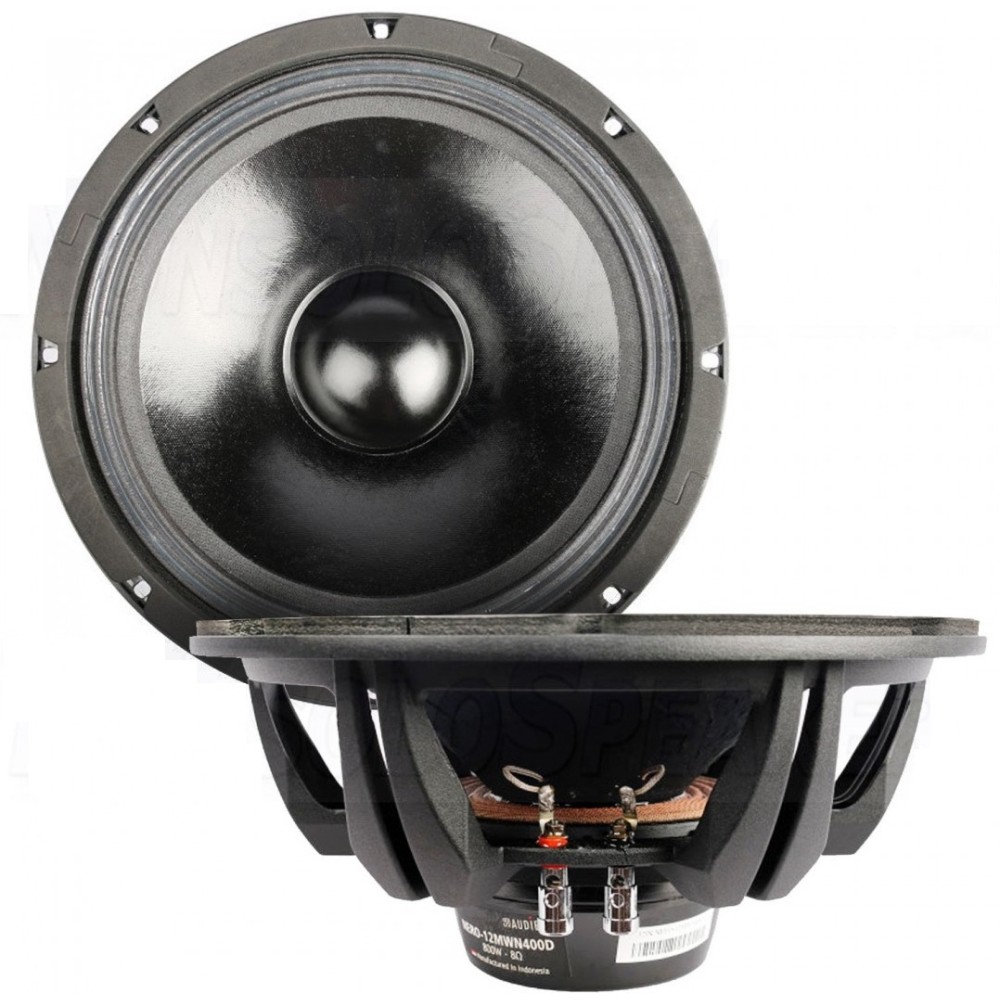

SB Audience NERO-12MWN400D
PROD282
6 pcs.
In Stock
€ 197.87
Tax included
FEATURES:
- Proprietary cone paper material with manila pulp
- Strong neodymium motor
- 3" voice coil with APC (Advanced Polymer Coating)
- Interleaved Sandwich Voice Coil technology
- Cast aluminium chassis
- Minimum damping fiber glass voice coil former
- Copper sleeve for low inductance and reduced distortion
Brand
Specifications
Article number NERO-12MWN400D
Woofer Series NERO
Woofer Type Mid-range

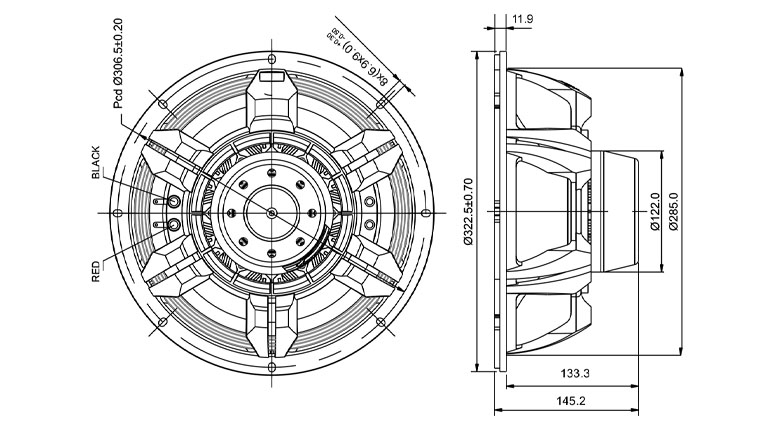

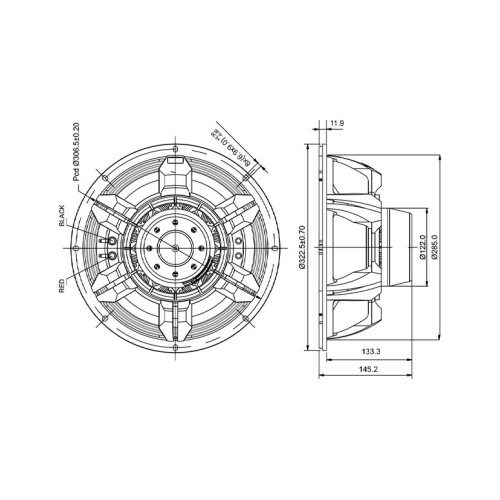

Nominal Diameter 12"
Power Handling (RMS) 400 Watts
Power Handling (max) 800 Watts
Impedance (Z) 8 Ω
Sensitivity 98 dB

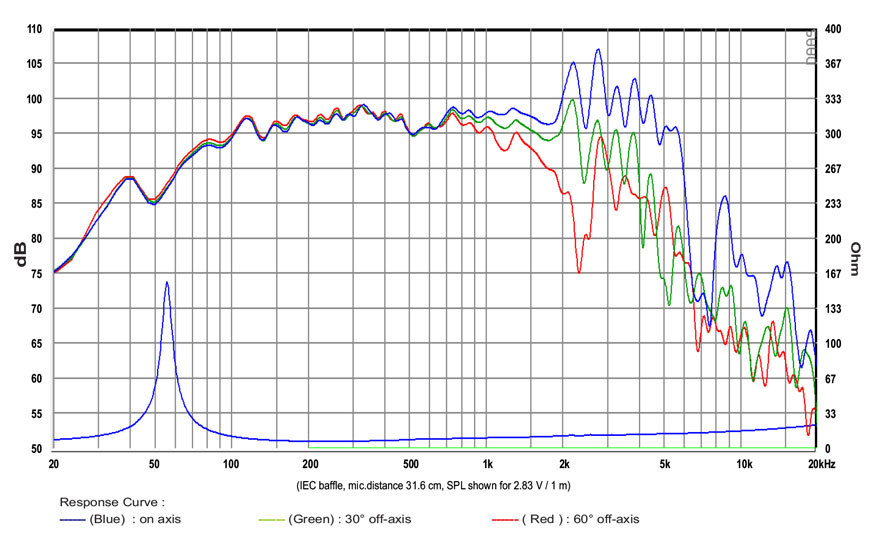

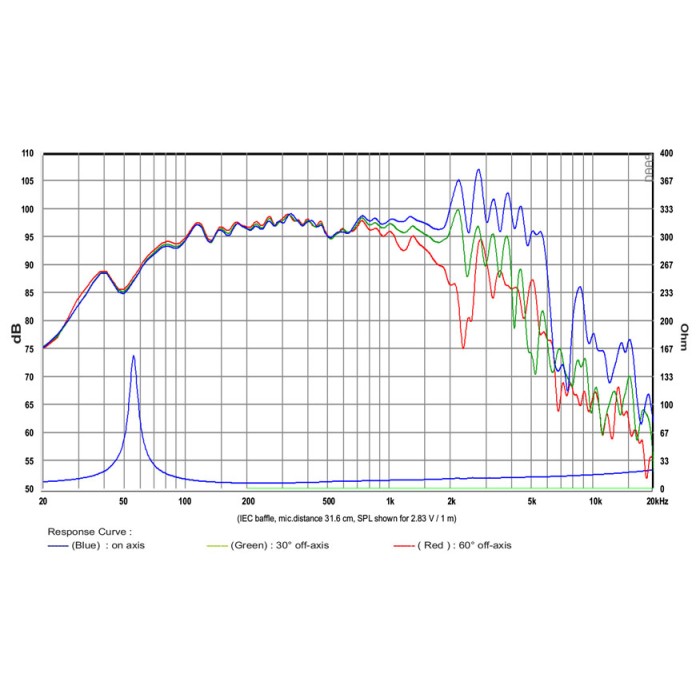

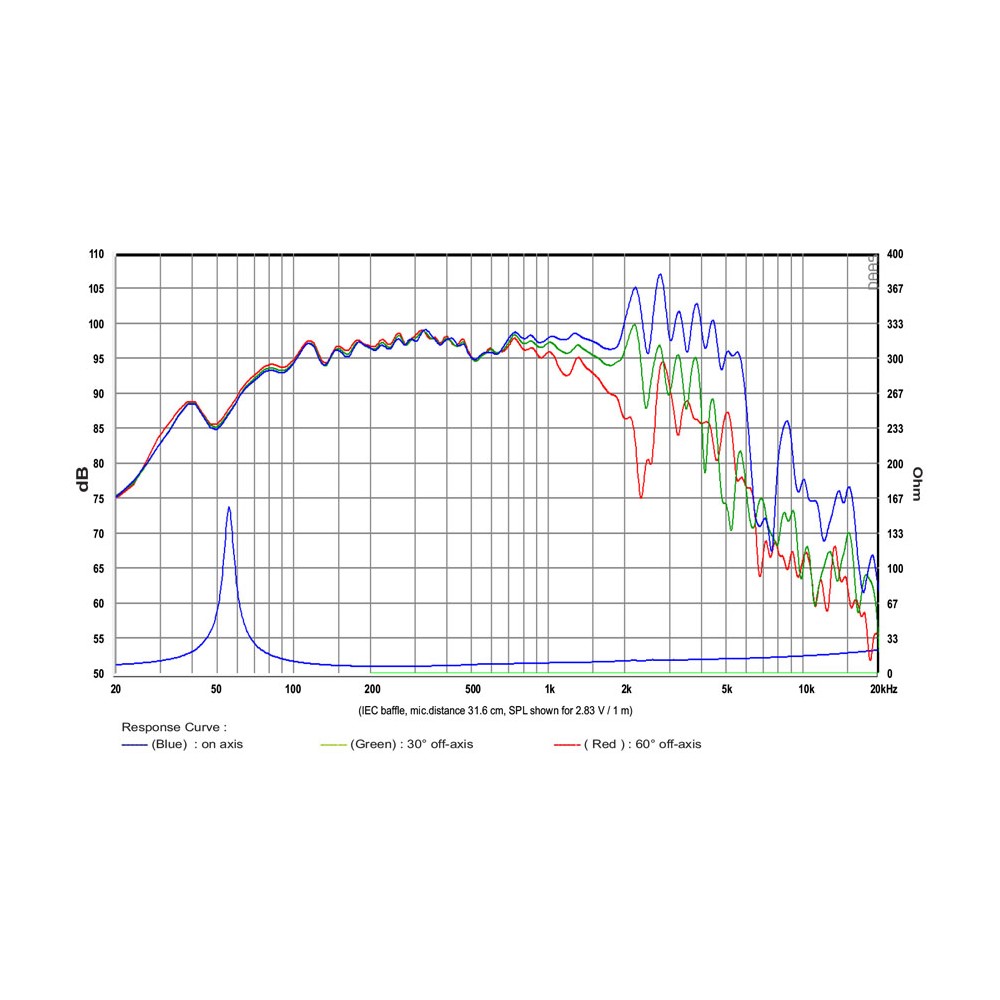

Frequency Response 66 - 6100 Hz
DC Resistance (Re) Re 5.4Ohm
Voice Coil Inductance (Le) 0.19mH
Resonant Frequency (Fs) 66Hz
Mechanical Q (Qms) 8.98
Electromagnetic Q (Qes) 0.55
Total Q (Qts) 0.52
Diaphragm Mass Inc. Airload (Mms) 78.8g
Mechanical Compliance of Suspension (Cms) 0.07mm/N
Surface Area of Cone (Sd) 543.3cm²
BL Product (BL) 17.8 Tm
Compliance Equivalent Volume (Vas) 31.1liters
Maximum Linear Excursion (Xmax) 7.13 mm
Basket / Frame Material Aluminium die cast
Magnet Material Neodymium
- Diameter
- 12"
- Impedance
- 8 Ω
- Power
- 400 W
- Series
- NERO
- Material
- Paper
