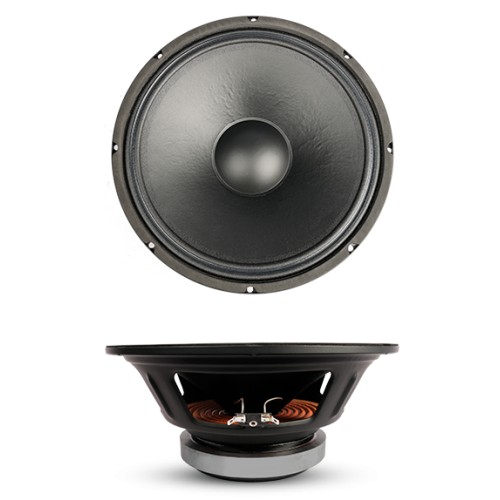

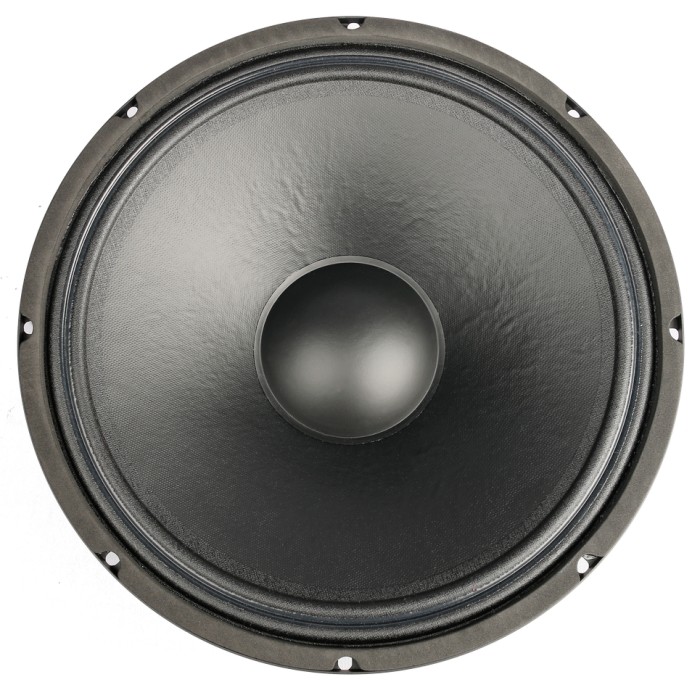

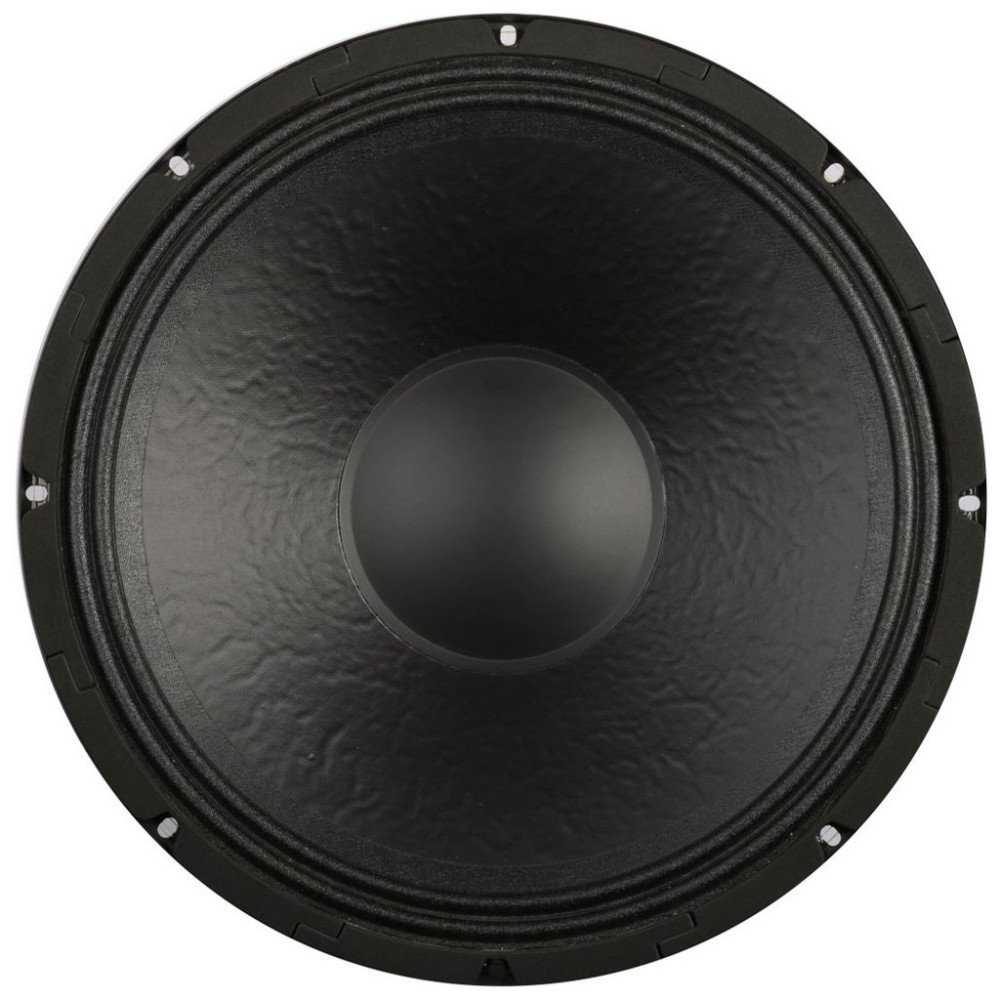

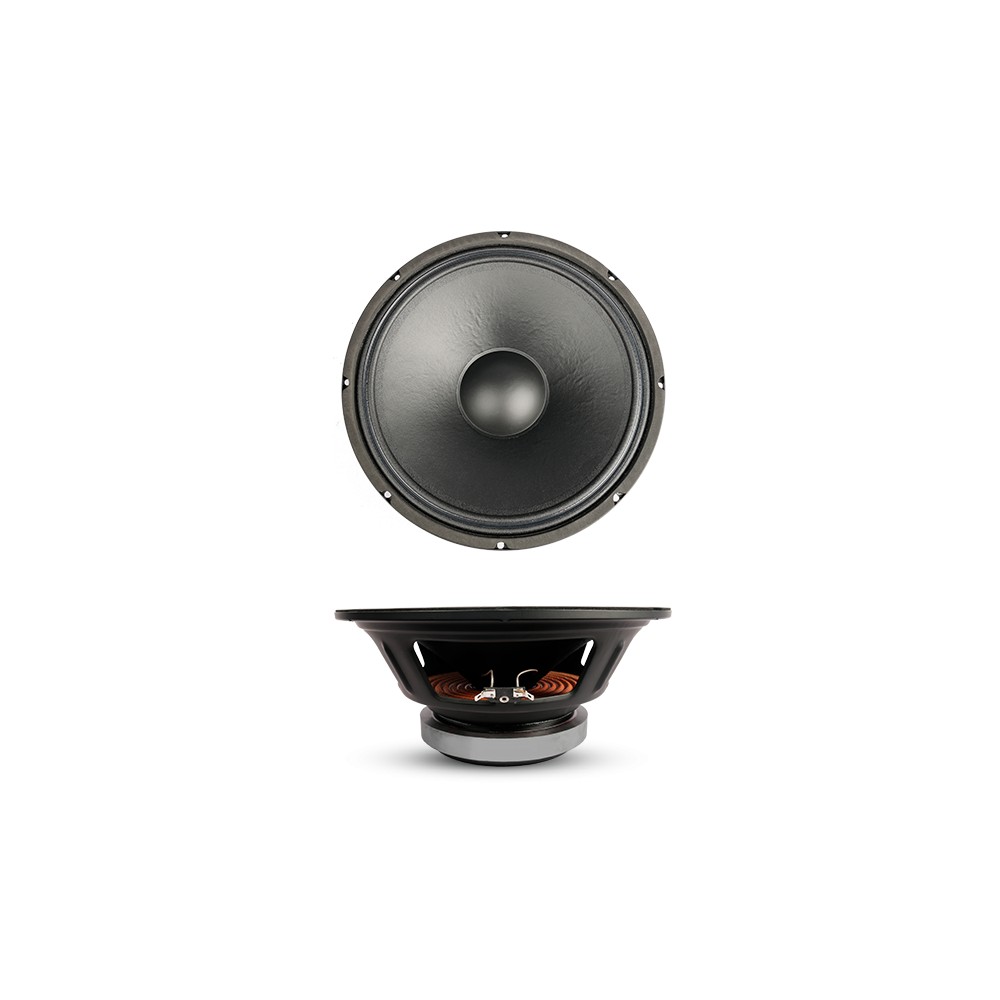

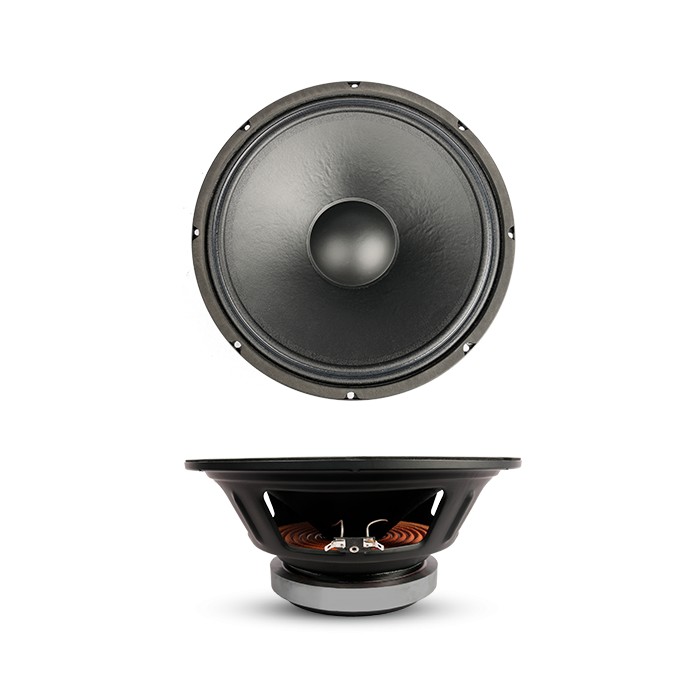

SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer
SB Audience BIANCO-12MW200 Mid-range Woofer

SB Audience BIANCO-12MW200 Mid-range Woofer

PROD270
2 pcs.
In Stock
€ 77.72
Tax included

FEATURES:

  • Proprietary cone paper material with silk cotton tree and manila pulp
  • 2.4" voice coil with APC (Advanced Polymer Coating)
  • Vented pole piece for reduced compression
  • Minimum damping fiber glass voice coil former
  • Long life silver lead wires
  • Weather-proof coated conepaper
(0)
12" | 8 Ω | 200 W

Brand



Specifications

  • Article number BIANCO-12MW200
  • Woofer Series BIANCO
  • Woofer Type Mid-range
  • Power Handling (RMS) 200 Watts
  • Power Handling (max) 400 Watts
  • Sensitivity 99 dB

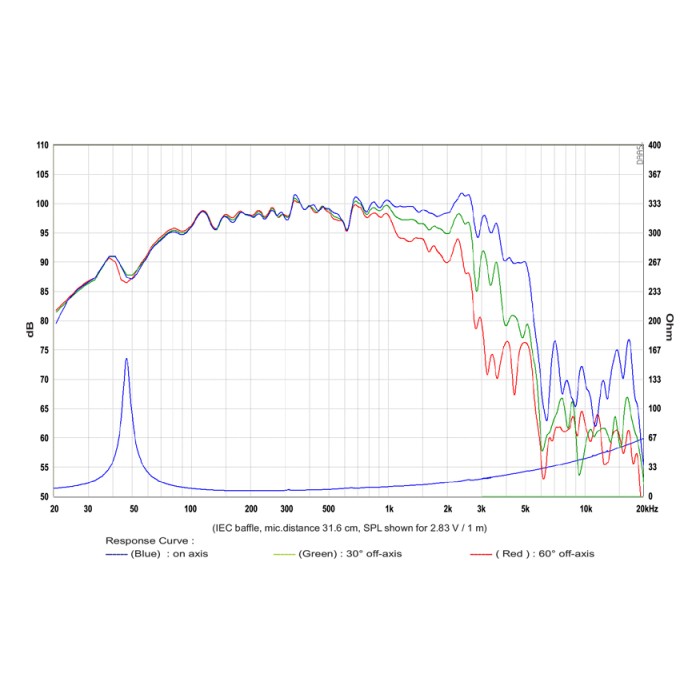

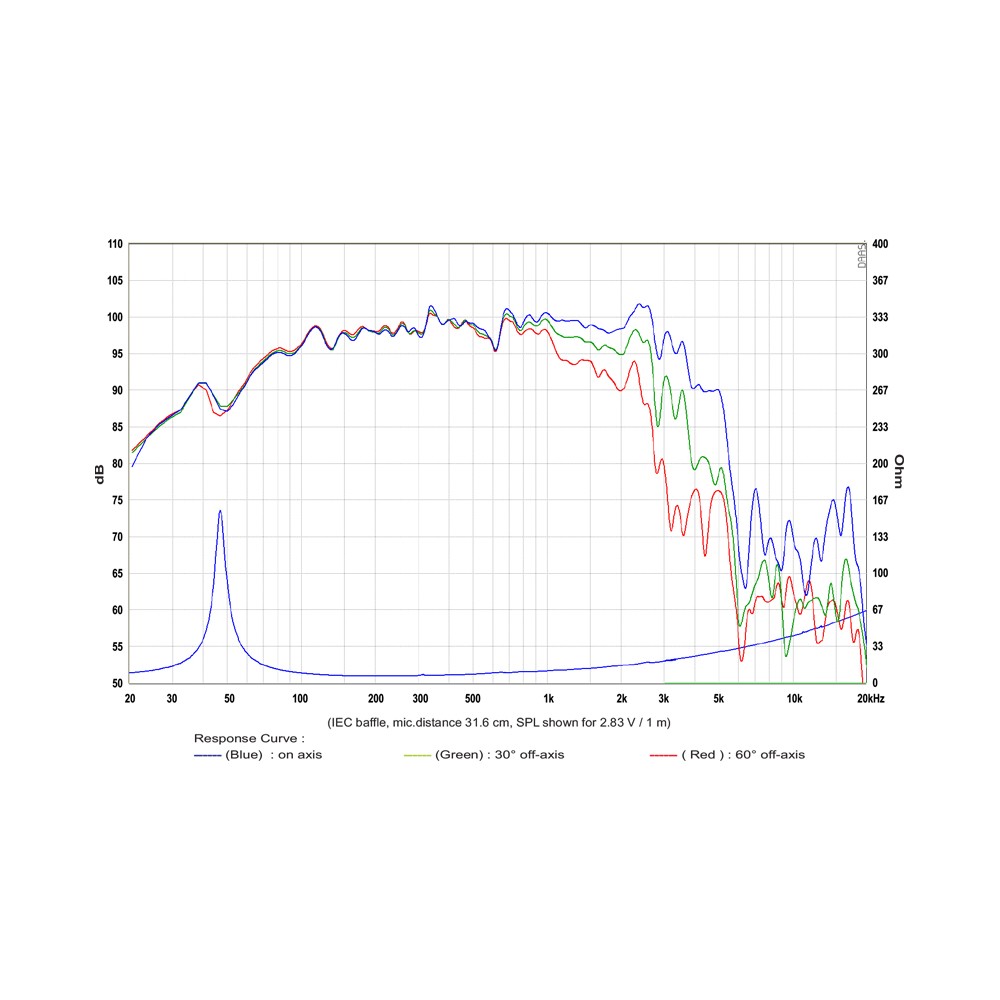

  • Frequency Response 51 - 5350 Hz
  • Voice Coil Diameter 60.5 mm (2.4 in)
  • DC Resistance (Re) 5.2 Ohm
  • Voice Coil Inductance (Le) 0.83mH
  • Resonant Frequency (Fs) 51Hz
  • Mechanical Q (Qms) 14.33
  • Electromagnetic Q (Qes) 0.51
  • Total Q (Qts) 0.49
  • Diaphragm Mass Inc. Airload (Mms) 65.2gr
  • Mechanical Compliance of Suspension (Cms) 0.15mm/N
  • Surface Area of Cone (Sd) 543.3cm²
  • BL Product (BL) 14.7 Tm
  • Compliance Equivalent Volume (Vas) 62.9liters
  • Maximum Linear Excursion (Xmax) 6.97 mm
  • Voice Coil Wire Material Copper
Diameter
12"
Impedance
8 Ω
Power
200 W
Series
BIANCO
Material
Paper
