PROD148
8 pcs.
In Stock
€ 30.17
Tax included

TECHNICAL PARAMETERS

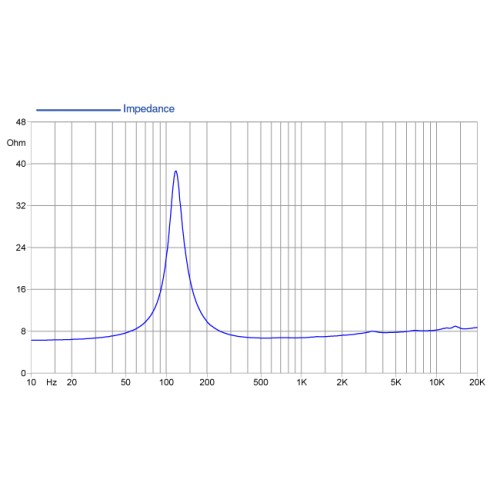

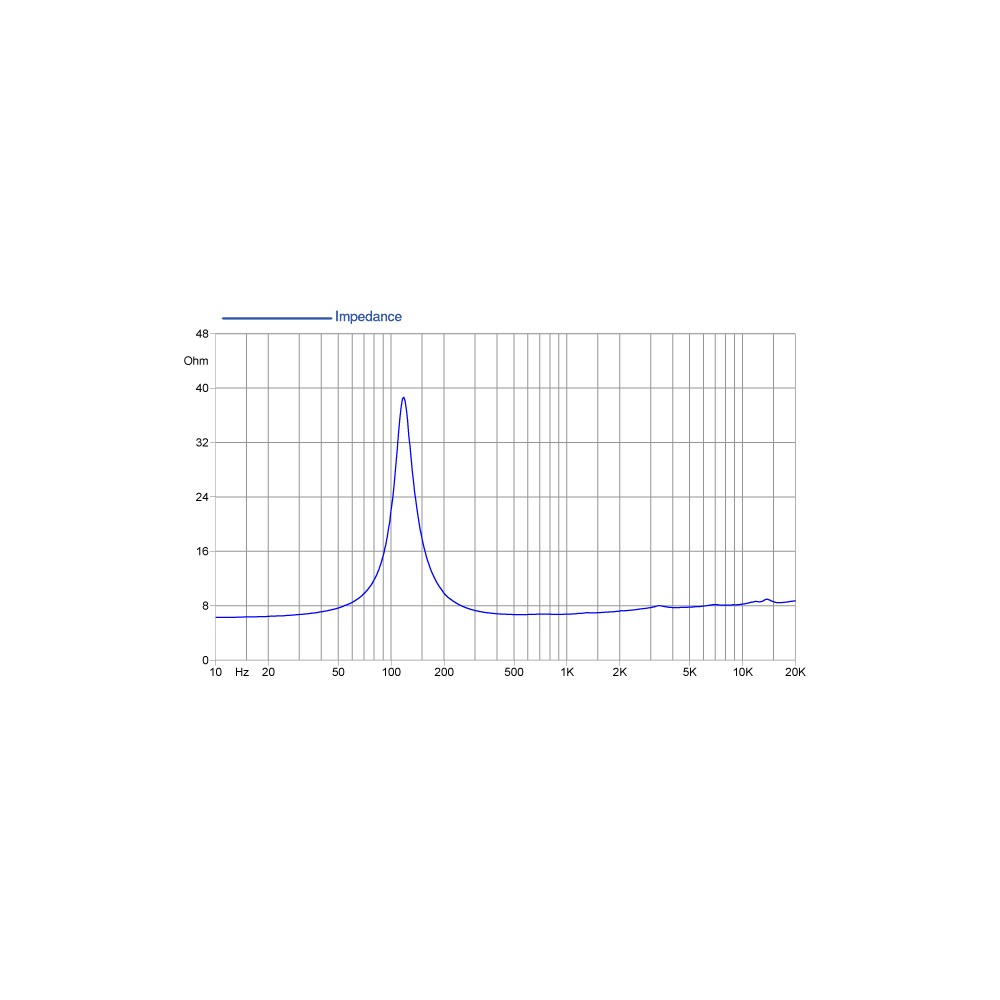

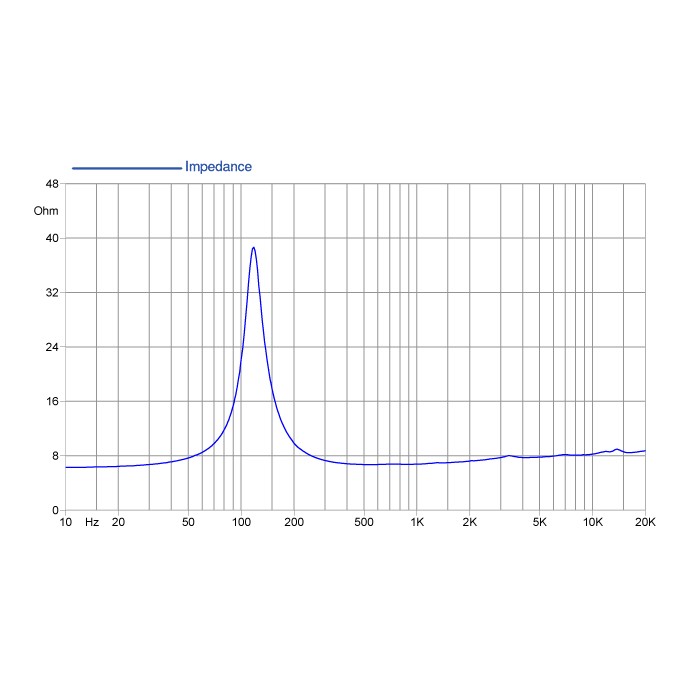

  • Nominal Impedance 8 Ohm
  • Minimum Impedance 6.2 Ohm
  • AES Power Handling (1) 20 W
  • Maximum Power Handling (2) 40 W
  • Sensitivity (1W/1m) 91 dB

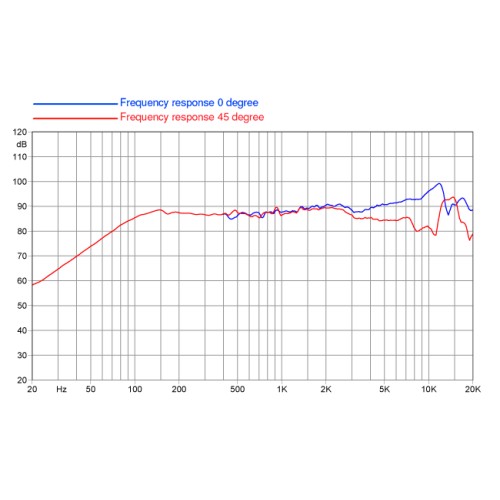

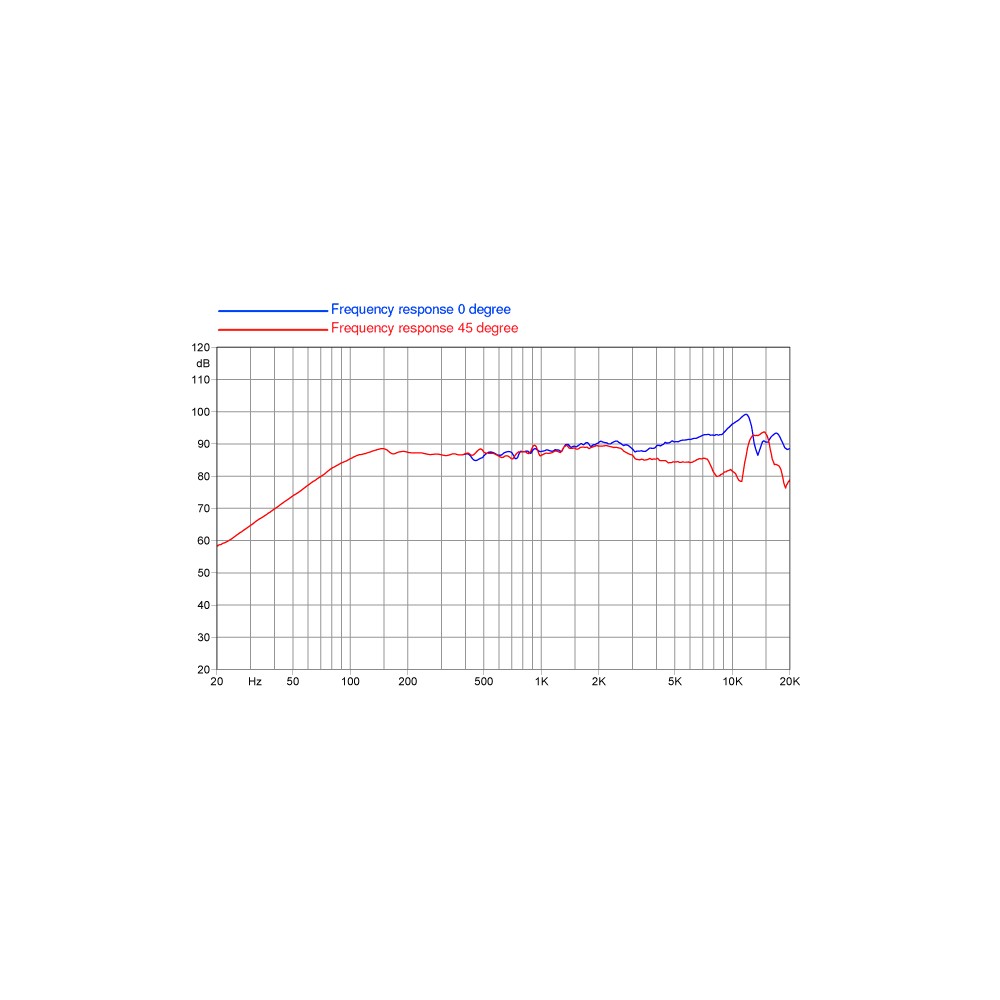

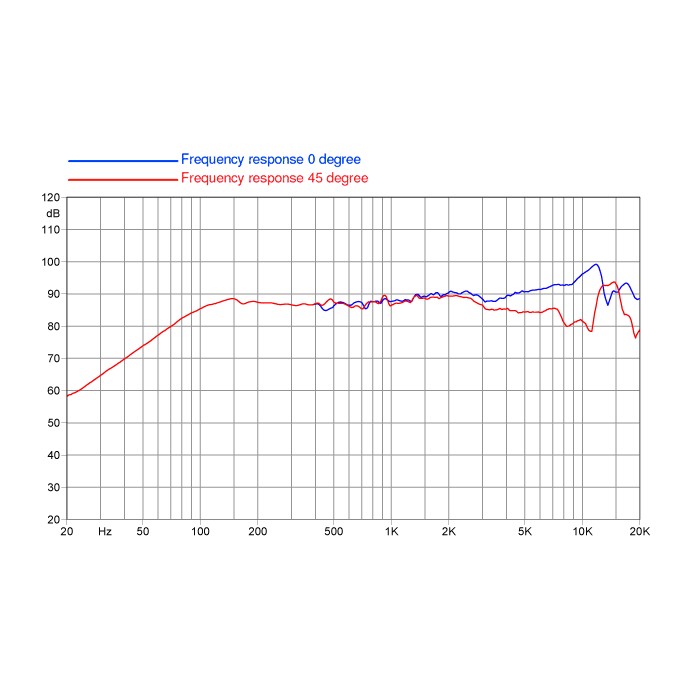

  • Frequency Range 100÷20000 Hz
  • Voice Coil Diameter 19 mm (0.75 in)
  • Winding Material Al
  • Former Material Kapton
  • Winding Depth 5 mm (0.2 in)
  • Magnetic Gap Depth 4 mm (0.16 in)
  • Flux Density 1.1 T
  • Magnet Ferrite Ring
  • Basket Material Steel
  • Demodulation Copper Cap
  • Cone Surround (3) Half Roll
  • NET Air Volume filled by Loudspeaker 0.125 dm^3 (0.004 ft^3)
  • Spider Profile 1x constant height waves
(0)
3" | 8 Ω | 20 W

Brand



THIELE AND SMALL PARAMETERS

  • Fs 110 Hz
  • Re 6.2 Ohm
  • Qes 0.79
  • Qms 4.1
  • Qts 0.66
  • Vas 1.3 dm^3 (0.05 ft^3)
  • Sd 33 cm^2 (5.12 in^2)
  • Xmax (4) 1.83 mm
  • Xdamage (5) 7.9 mm
  • Mms 2.4 g
  • Bl 3.6 N/A
  • Le 0.07 mH
  • Mmd 2.2 g
  • Cms 0.87 mm/N
  • Rms 0.4 kg/s
  • Eta Zero 0.22 %
  • EBP 139 Hz

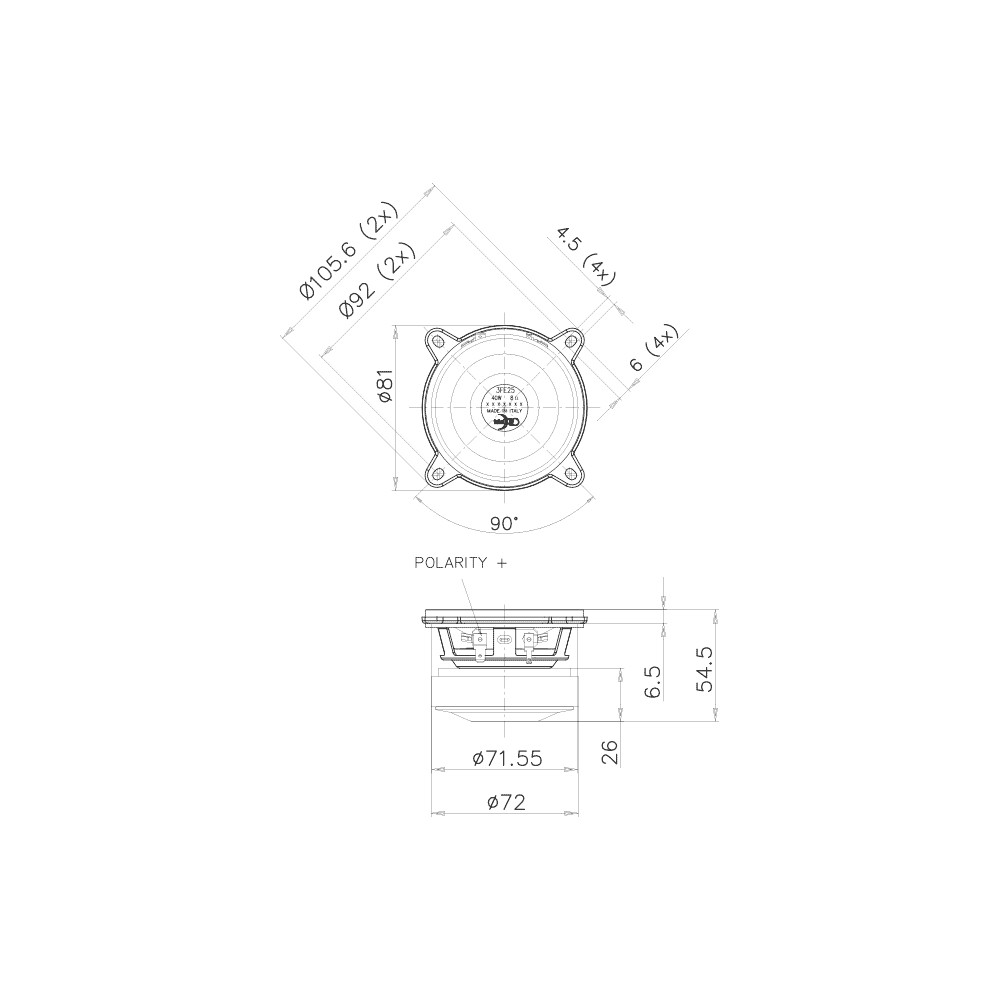

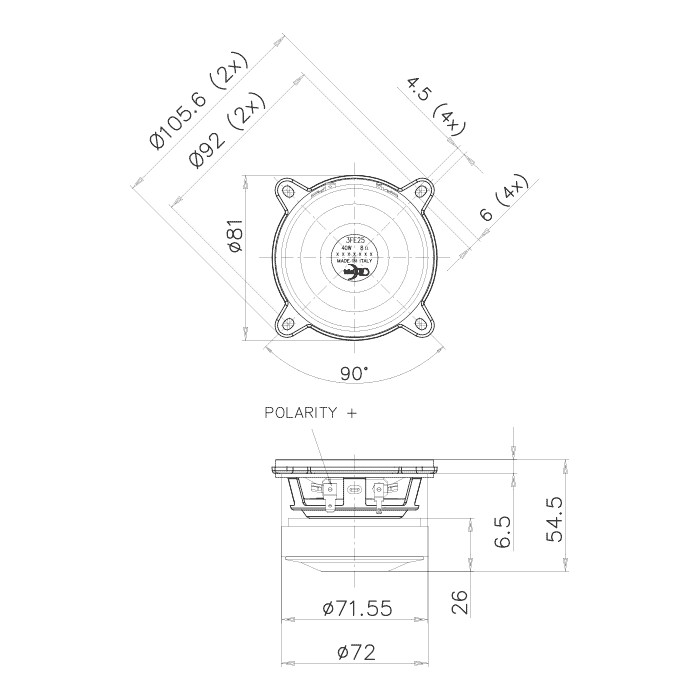

NOMINAL SPECIFICATIONS

  • Nominal Diameter 80 mm (3 in)
  • Overall Diameter 105.6/81 mm (4.16/3.19 in)
  • Bolt Circle Diameter 92 mm (3.62 in)
  • Baffle Cutout Diameter 73.6 mm (2.90 in)
  • Depth 54.5 mm (2.15 in)
  • Flange and Gasket Thickness 6.5 mm (0.26 in)
  • Net Weight 545 g (1.20 lb)
  • Shipping Box
  • (Single Carton Box - 36 units) 285 x 285 x 255 mm
  • (11.2 x 11.2 x 10.0 in)
  • Shipping Weight (36 units) 20.8 kg (45.9 lb)
Diameter
3"
Impedance
8 Ω
Power
20 W
Material
Metal
Paper
