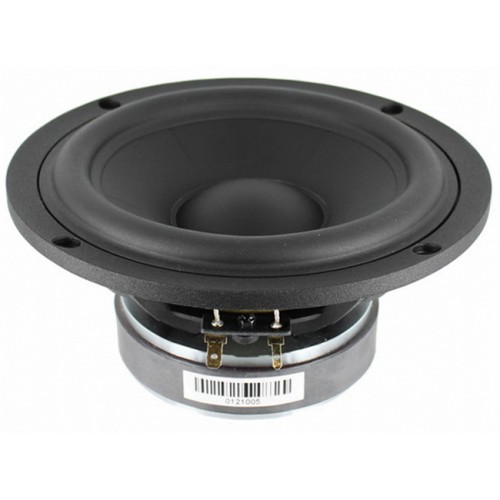

SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum
SB Acoustics SB17NBAC35-4 / 6″ Aluminum

SB Acoustics SB17NBAC35-4 / 6″ Aluminum

IMPORTED_SB_ACOUSTIC_24
5 pcs.
In Stock
€ 81.81
Tax included
  • Vented cast aluminum chassis for optimum strength and low compression
  • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression
(0)
6" | 4 Ω | 60 W

Brand



Nominal Impedance 4 Ω

DC resistance, Re 3.1 Ω

Voice coil inductance, Le 0.13 mH

Effective piston area, Sd 118 cm2

Voice coil diameter 35.5 mm

Voice coil height 16 mm

Air gap height 5 mm

Linear coil travel (p-p) 11 mm

Magnetic flux density 1.0 T

Magnet weight 0.54 kg

Net weight 1.56 kg

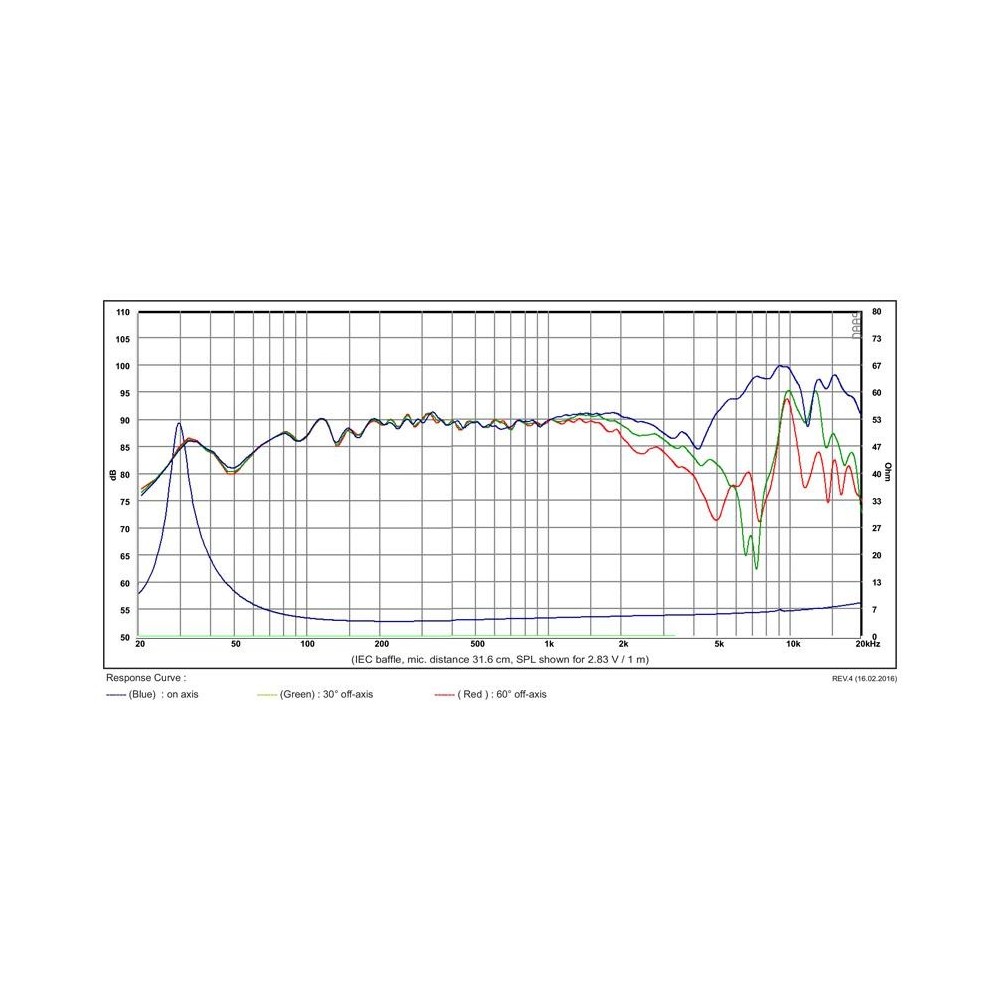

Free air resonance, Fs 30 Hz

Sensitivity (2.83 V / 1 m) 90 dB

Mechanical Q-factor, Qms 4.3

Electrical Q-factor, Qes 0.31

Total Q-factor, Qts 0.29

Moving mass incl. air, Mms 12.4 g

Force factor, Bl 4.9 Tm

Equivalent volume, VAS 42.6 liters

Compliance, Cms 2.16 mm/N

Mechanical loss, Rms 0.6 kg/s

Rated power handling* 60 W

* IEC 268-5, T/S parameters measured on drive

     units that are broken in.

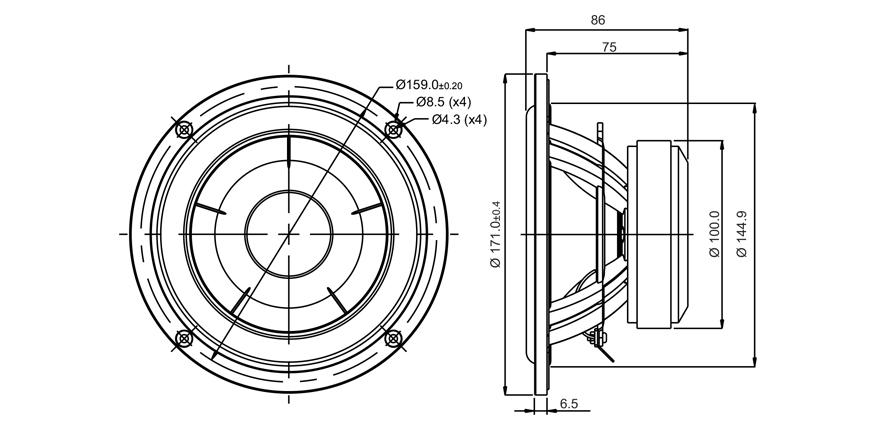

Diameter
6"
Impedance
4 Ω
Power
60 W
Series
NAC / Aluminium
Material
Aluminum
