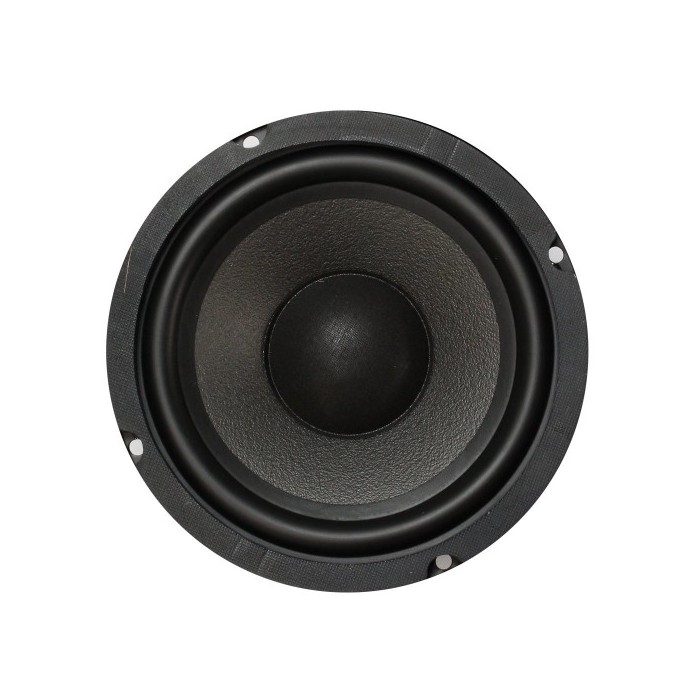

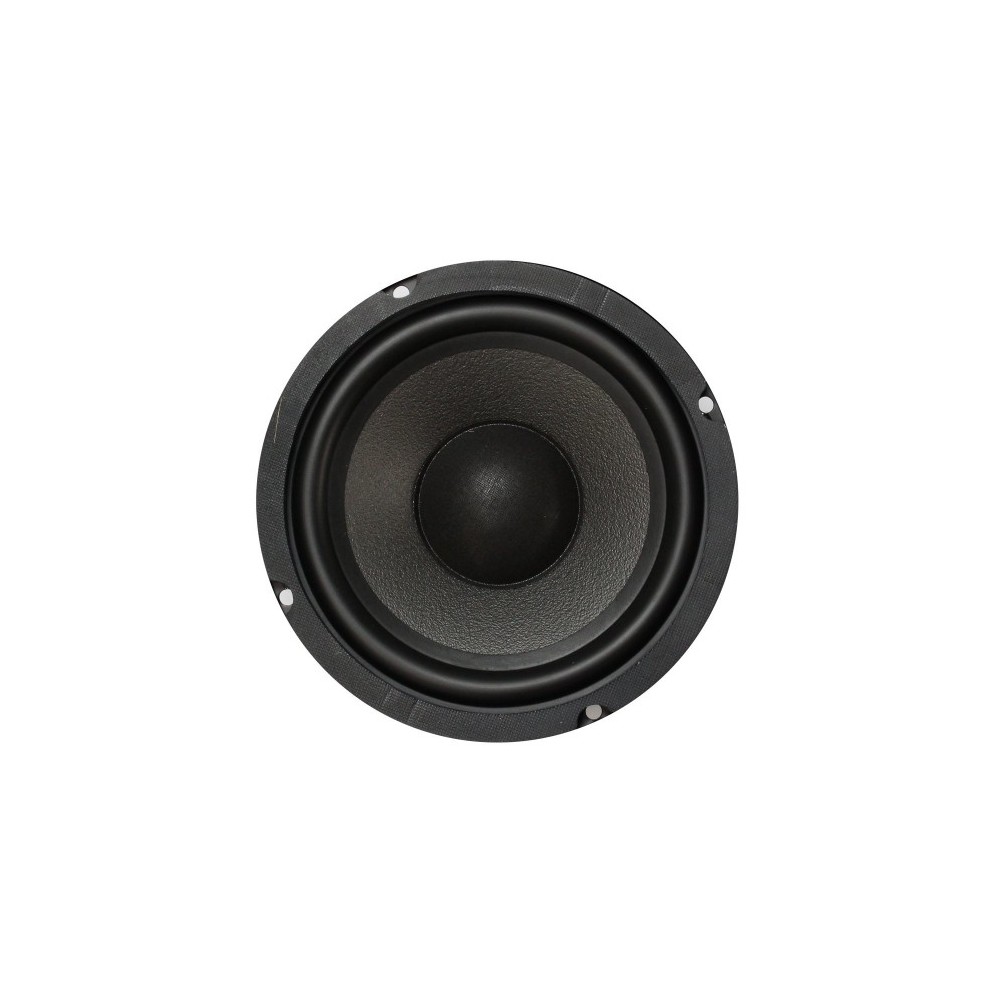

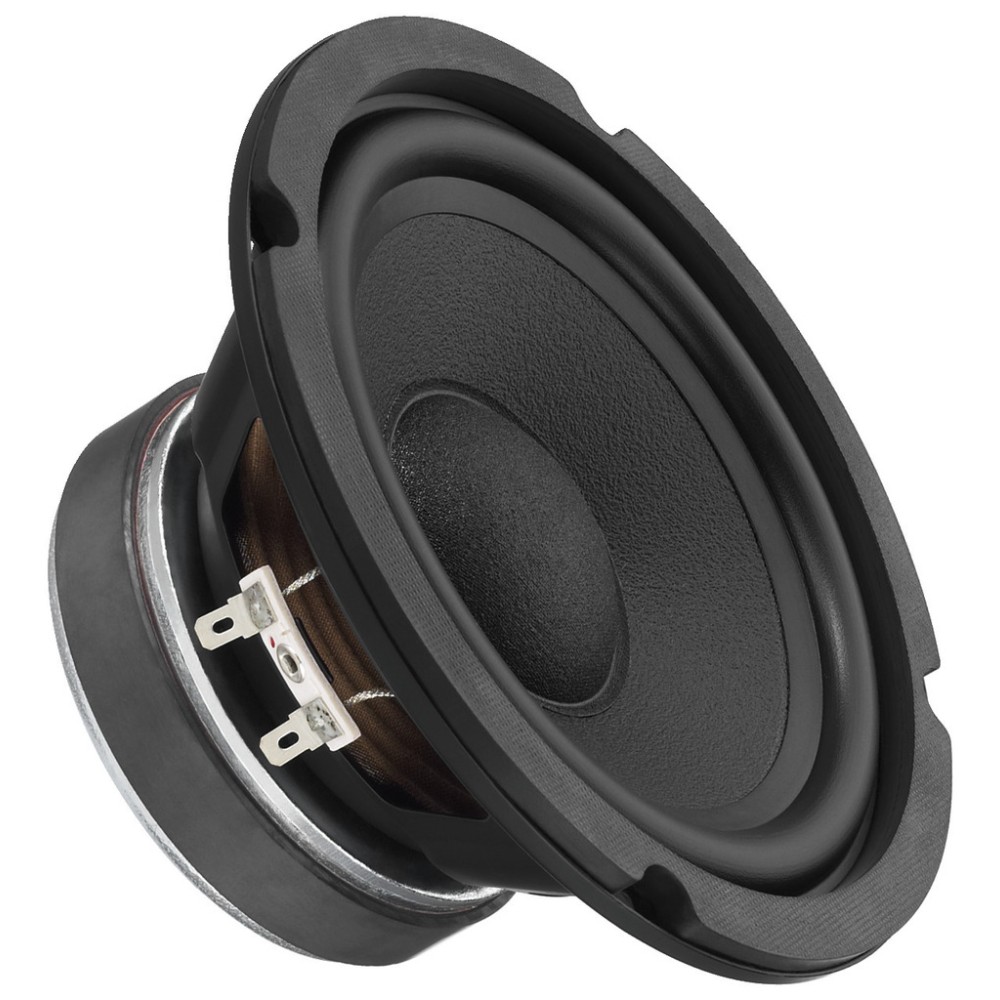

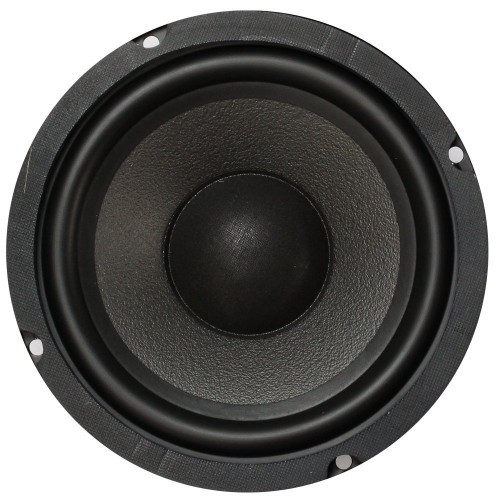

Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM
Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM
Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM
Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM
Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM
Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM
Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM
Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM

Monacor SPH-170TC MONACOR SPH-170TC 6,5'' WOOFER DUAL VOICE COIL 8+8 OHM

PROD226
Temporarily out of stock
€ 70.05
Tax included
  • Hi-fi bass-midrange speaker, 2 x 40 W, 2 x 8 Ω
  • Dual voice coil
  • Polypropylene cone with a good midrange attenuation
  • Suitable for both very small subwoofers and high-performance 2-way speaker systems

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)
6.5" | 2x8 | 40 W

Brand



Technical specifications SPH-170TC

SPH-170TC

Impedance (Z) 2 x 8 Ω

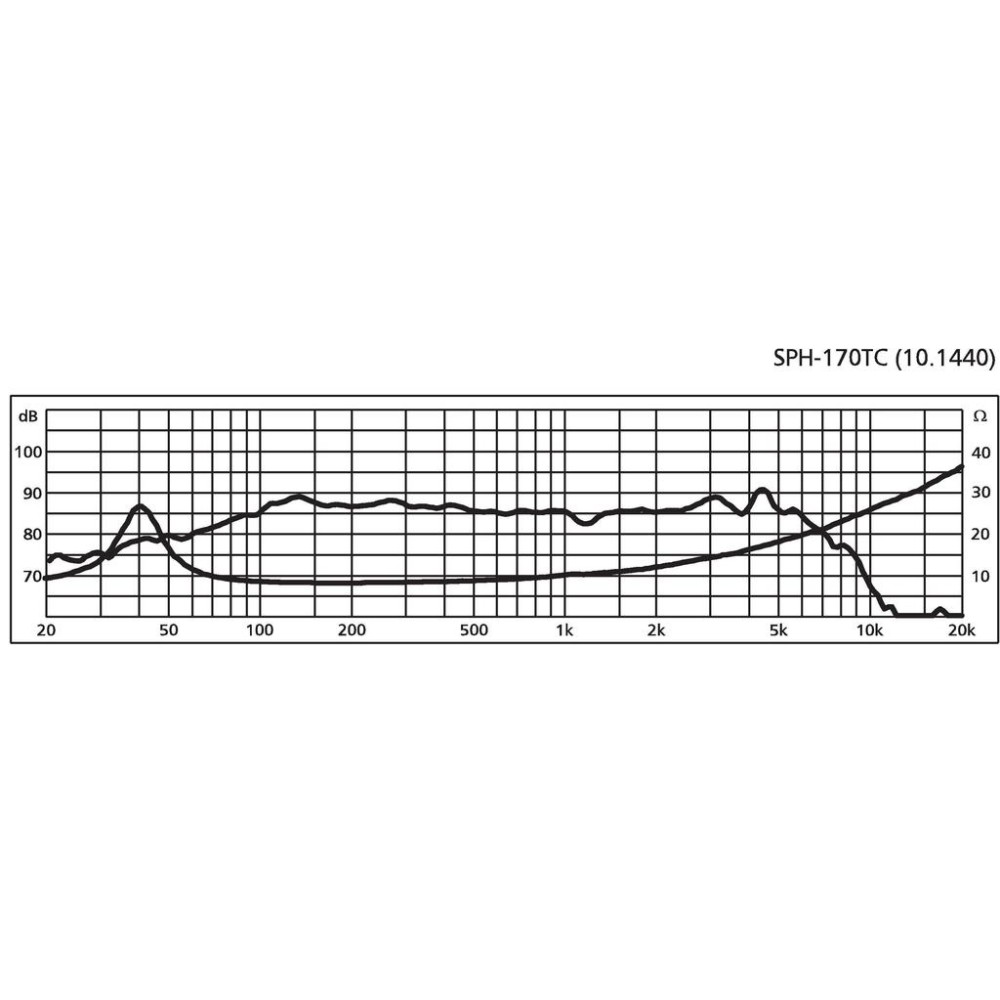

Frequency range f3-5,000 Hz

Resonant frequency (fs) 33 Hz

Power rating (RMS) 2 x 40 W

Peak music power output (MAX) 2 x 60 W

SPL 88 dB/W/m

Suspension compl. (Cms) 1.38 mm/N

Moving mass (Mms) 16 g

Mech. Q factor (Qms) 2.98

Electr. Q factor (Qes) 0.48

Total Q factor (Qts) 0.41

Equivalent volume (Vas) 31 l

DC resistance (Re) 2 x 7.5 Ω/ 3.8 Ω

Force factor (BxL) 5.20 Tm

Voice coil induct. (Le) 2 x 0.6 mH/ 0.6 mH

Voice coil diameter Ø 25.5 mm

Voice coil former Kapton

Linear excursion (XMAX) ± 2.25 mm

Eff. cone area (Sd) 127 cm2

Magnet weight 380 g

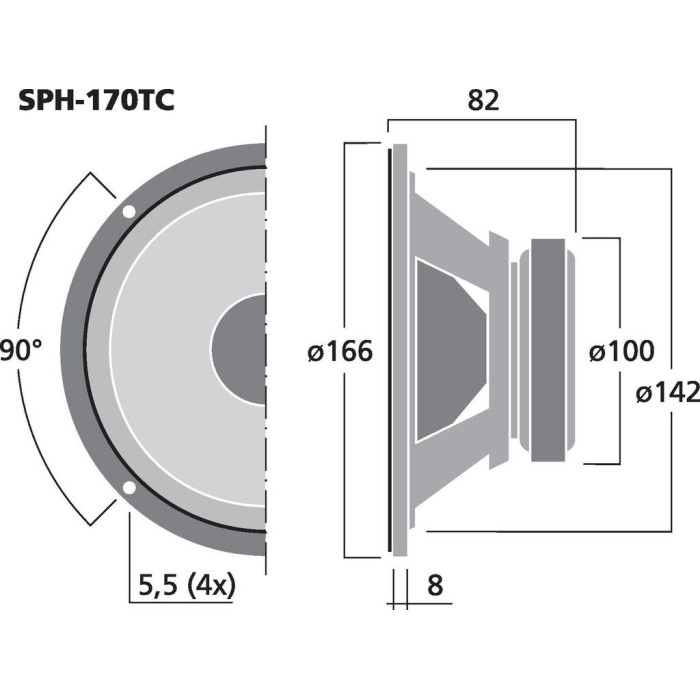

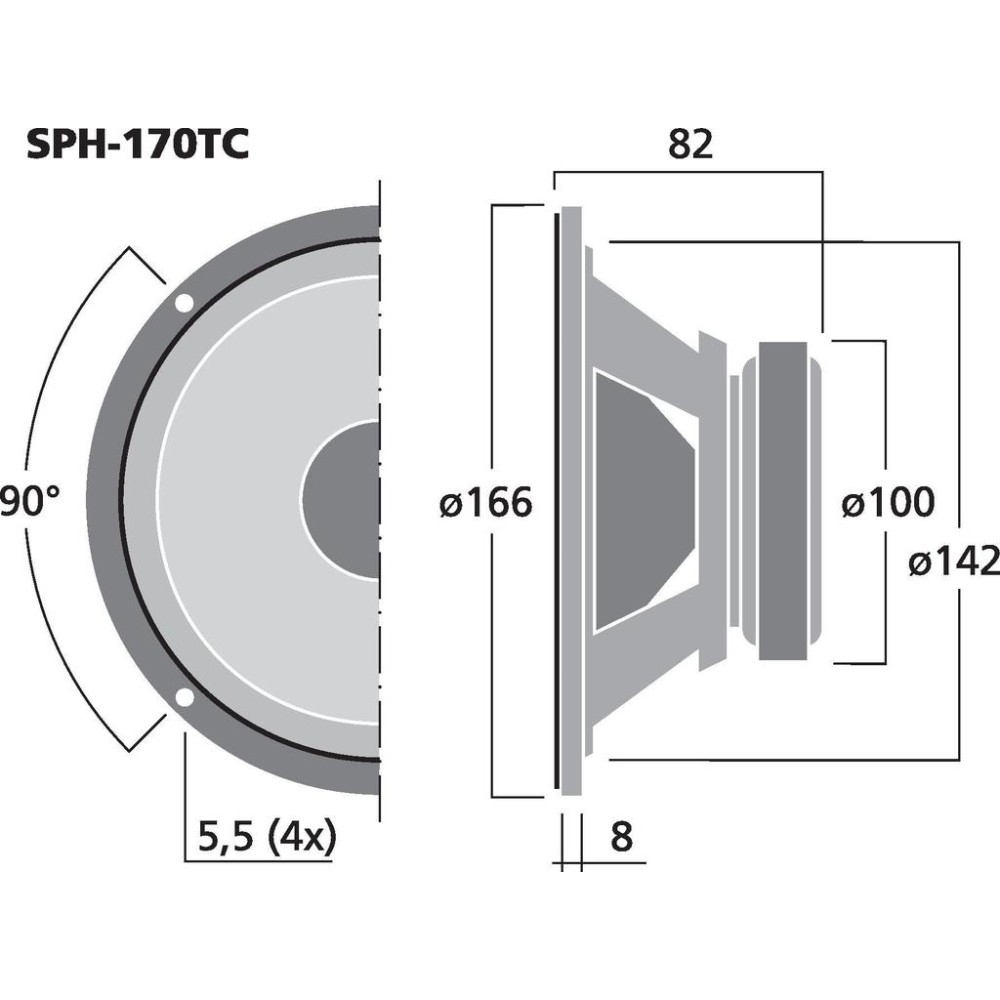

Magnet diameter Ø 100 mm

Mounting cutout Ø 142 mm

Mounting depth 74 mm

Dimensions Ø 166 mm x 82 mm

Outside diameter Ø 166 mm

Width Ø 166 mm

Depth 82 mm

Colour black

Admiss. ambient temp. 0-40 °C

Weight 1.155 kg

Packing unit 1

Type of speaker 6.5"

Packing dimensions (W x H x L) 0.175 x 0.095 x 0.175 m

Gross weight 1.26 kg

Net weight 1.155 kg

Diameter
6.5"
Impedance
2x8
Power
40 W
Material
Polypropylene
