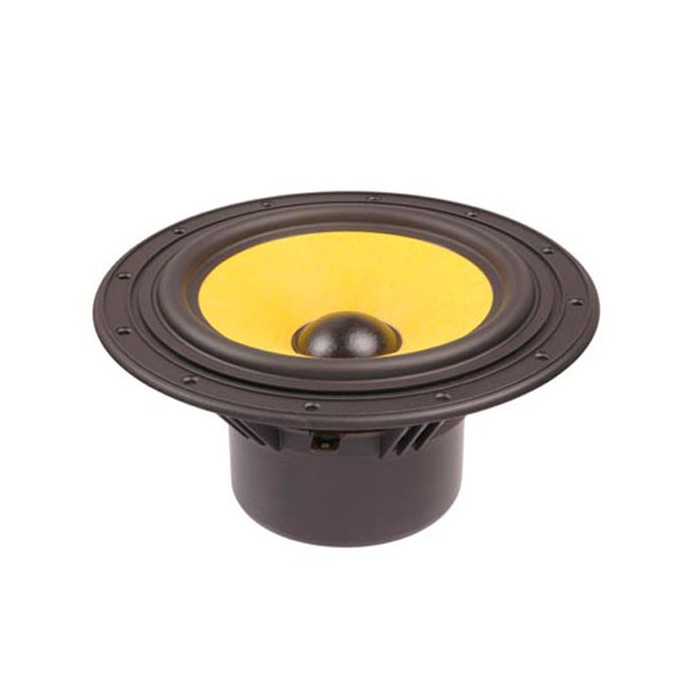

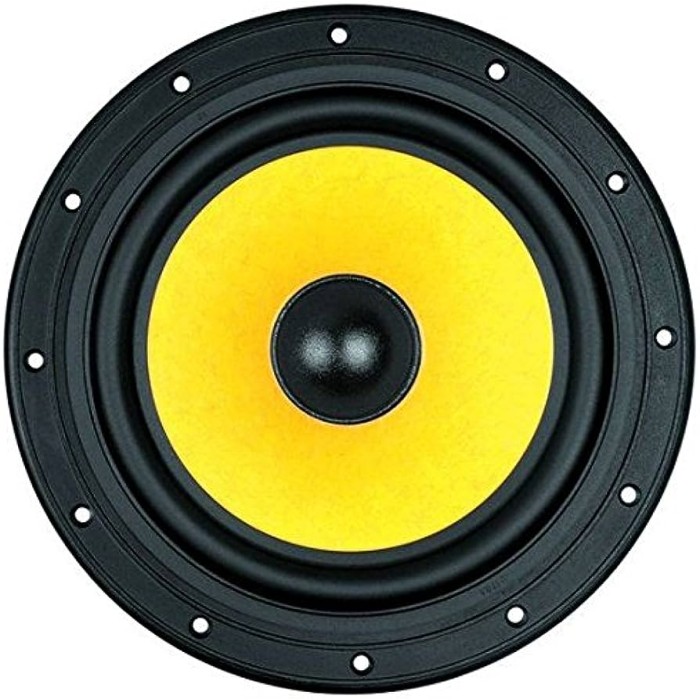

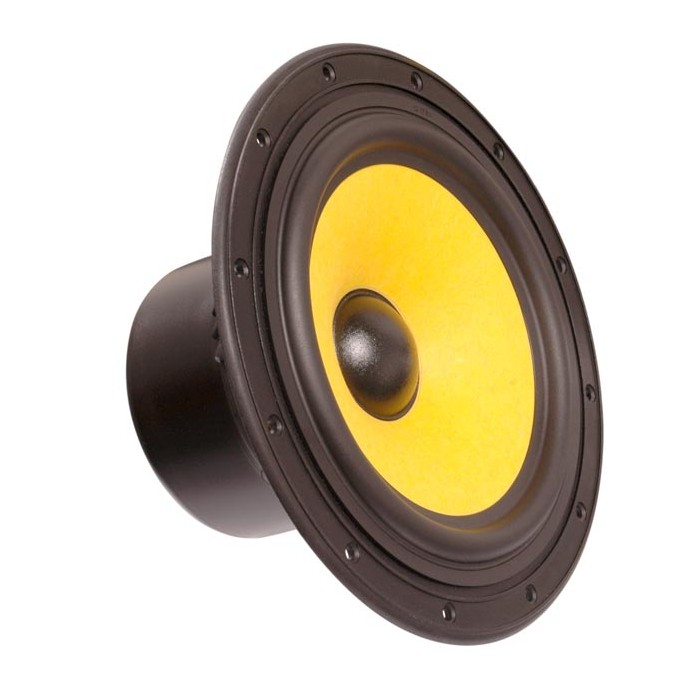

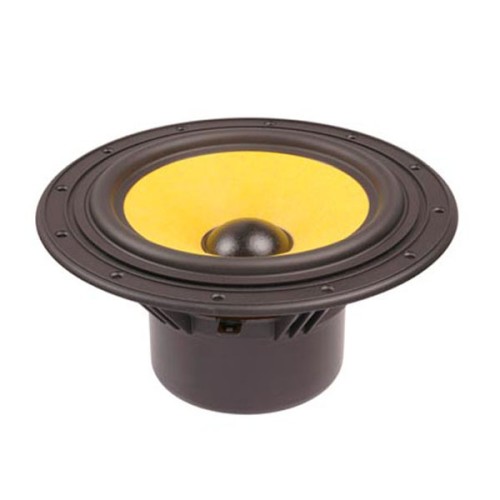

HIVI F8 Kevlar Paper composite cone Bass/Midrange

HIVI F8 Kevlar Paper composite cone Bass/Midrange

Name: HIVI F8 Kevlar Paper composite cone Bass/Midrange
Brand: HIVI
SKU: PROD303
Price: 69 EUR
Availability: InStock

Reference PROD303

In stock 10 pcs.

In Stock

€ 69.00

Tax included

Parameters

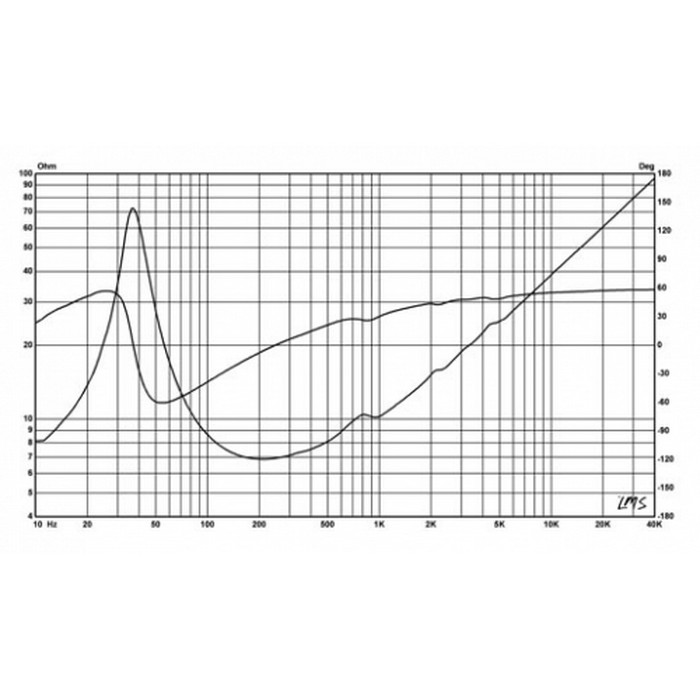

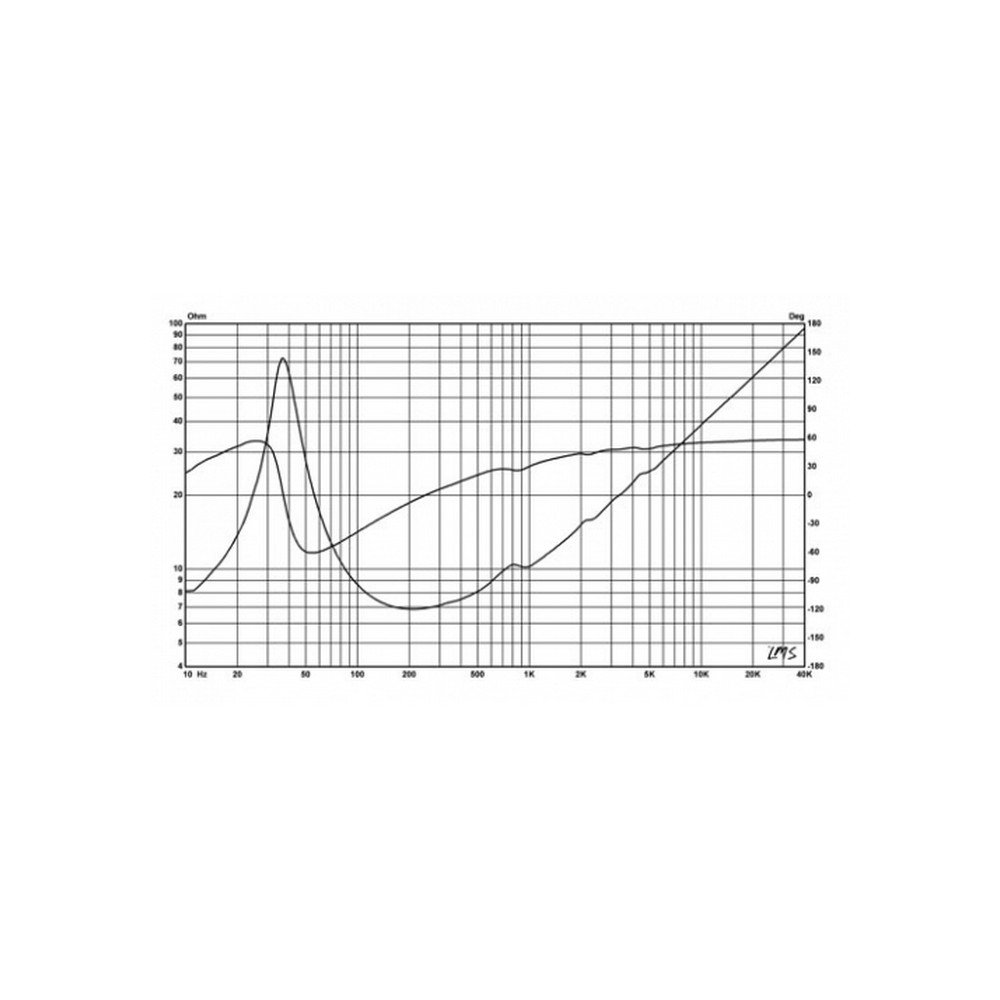

Nominal Impedance (Z)(Ω) : 8
Resonance Frequency (Fs)(Hz) : 37
Nominal Power Handling (Pnom)(W) : 60
Max Power Handling (Pmax)(W) : 120
Sensitivity (2.83v/1m)(dB) : 88
Weight (M)(Kg) : 2.9
VC Diameter (mm) : 35
DC (Re)(Ω) : 6.5
VC Length (H)(mm) : 17.5
VC Former : SV
VC Frame : Kapton
Magnet System : Shielded
Magnet Former : Ferrite
Force Factor (BL)(N/A) : 10.3
Gap Height (He)(mm) : 7.5
Linear Excursion (Xmax)(mm) : 5
Suspension Compliance (Cms)(uM/N) : 593.7
Mechanical Q (Qms) : 4.71
Electrical Q (Qes) : 0.44
Total Q (Qts) : 0.4
Moving Mass (Mms)(g) : 30.5
Effective Piston Area (Sd)(m2) : 0.0214
Equivalent Air Volume (Vas)(L) : 38.8
Cabinet Type : Vented
Recommended Box Volume(Vb)(L) : 35
Tuning Frequency(Fb)(Hz) : 40
-3dB Cut-Off Frequency(F3)(Hz) : 38

Quantity	Unit discount	You Save
4	10%	€ 27.60
6	15%	€ 62.10
8	20%	€ 110.40

(0)

8" | 8 Ω | 60 W

Product description

The HiVi F8 woofer utilizes a Kevlar and paper composite cone that has lower weight, higher rigidity, and an improved damping factor.

Highlights

Kevlar/paper cone
Die-cast basket
High loss rubber surround

Product details

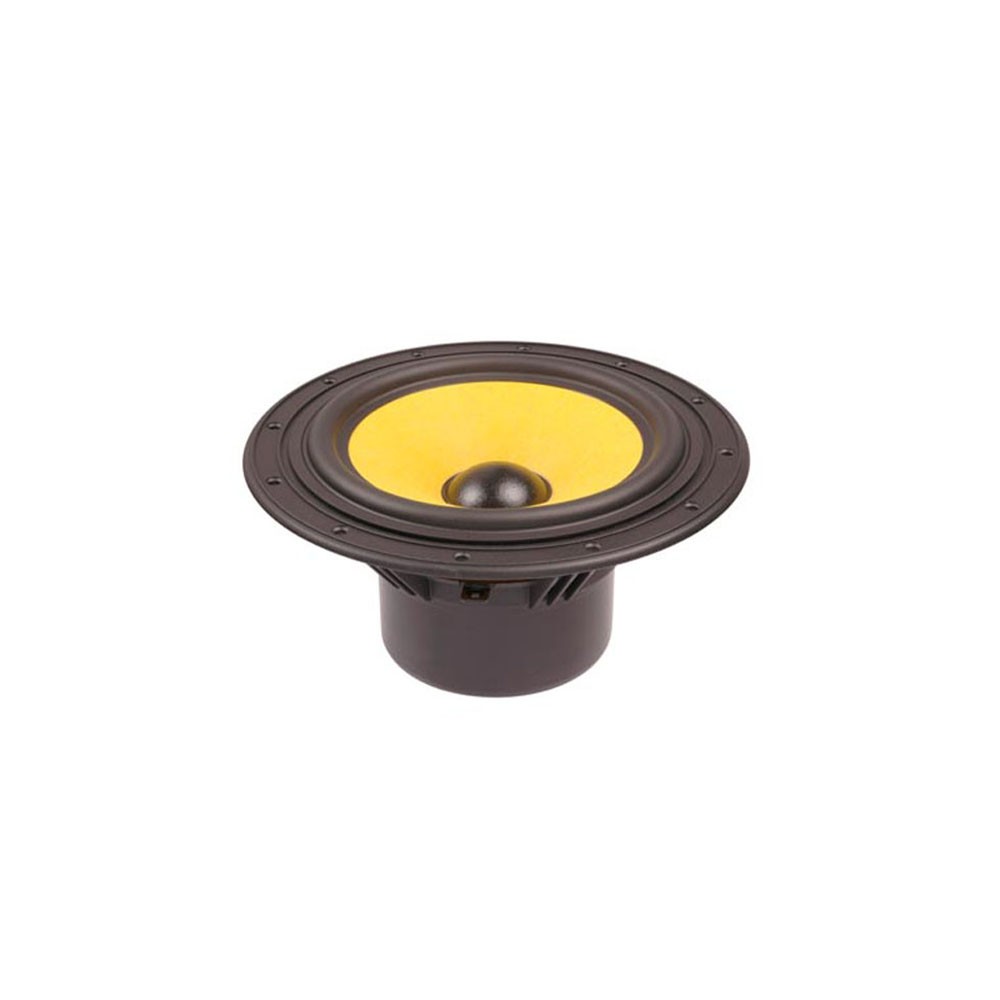

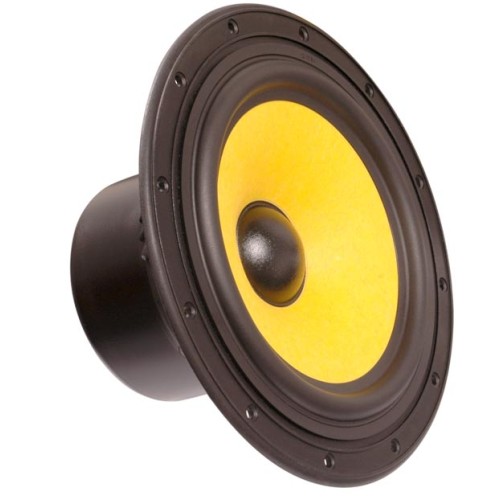

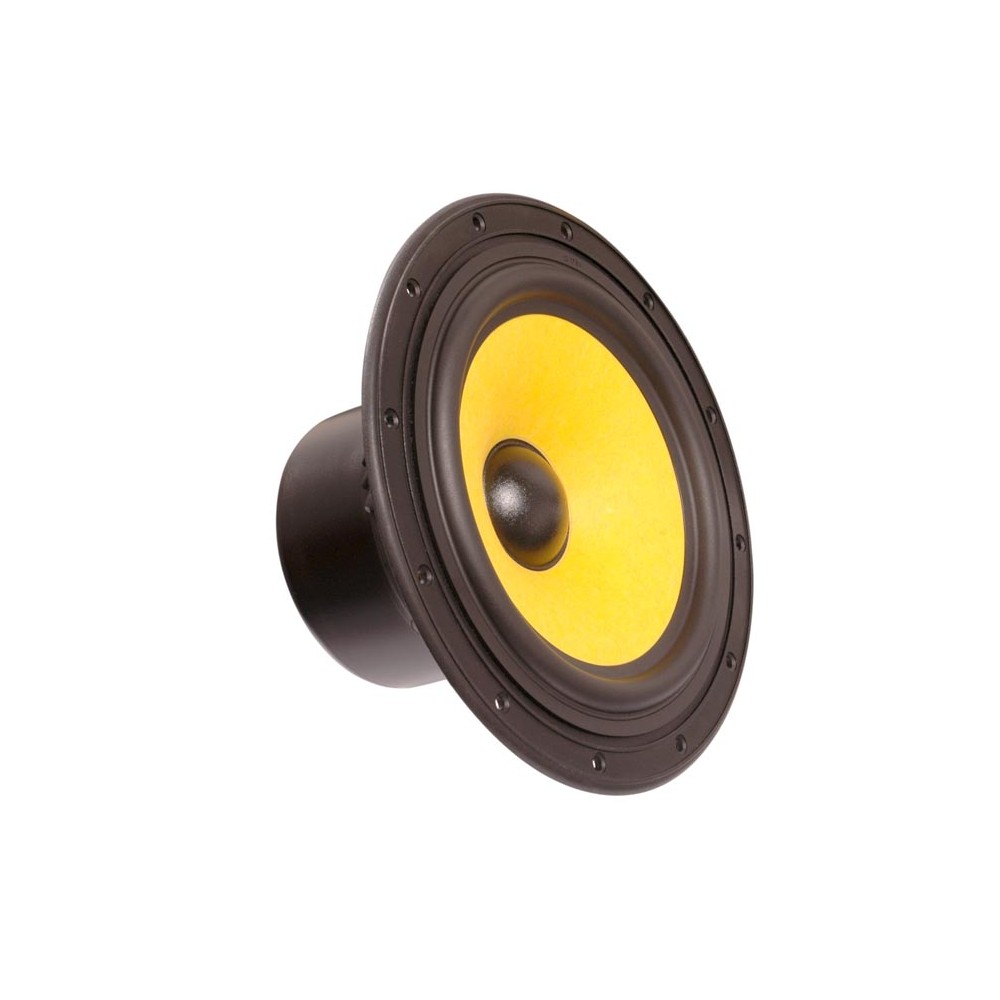

HiVi F8 8" Bass/Midrange

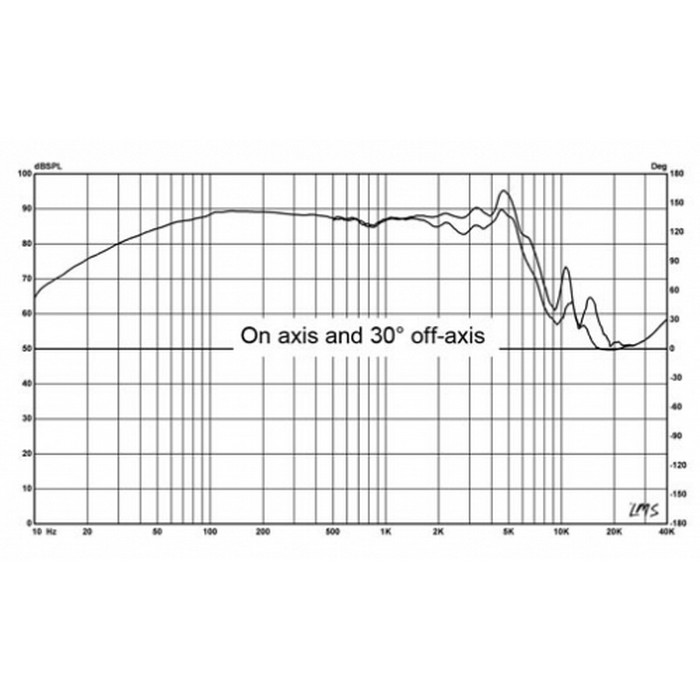

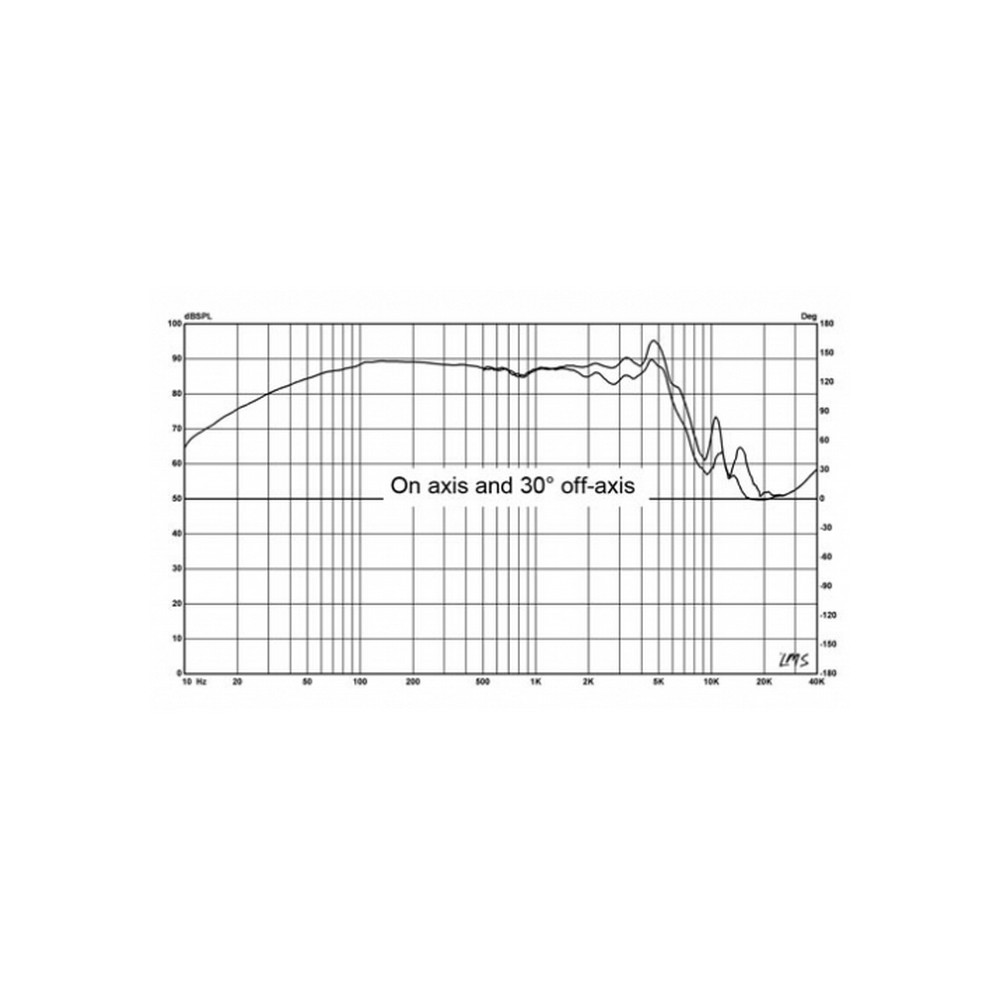

The HiVi F8 woofer utilizes a Kevlar and paper composite cone that has lower weight, higher rigidity, and an improved damping factor. The back of the cone is hand coated with damping compound to further maximize performance stability and control of resonances. Midrange clarity and tonal balance are remarkable. The F8 has been optimized for dynamic low bass reproduction in compact or medium vented enclosures. The driver employs a vented Kapton voice coil former and flat spider to avoid air compression and ensure maximum power handling. A massive aluminum die-cast basket has been developed to minimize structural resonances, and a shielded magnet structure enables the F8 to be incorporated easily into audio/video speaker applications. The F8 has an exceptionally smooth frequency response (within +/-1.7 dB tolerance in 70-3,000 Hz range, measured on an IEC baffle), which helps make the driver a perfect choice for high resolution 2-way or 3-way systems. Recommended crossover frequency for a two-way system design is 1.8-2.2 kHz.

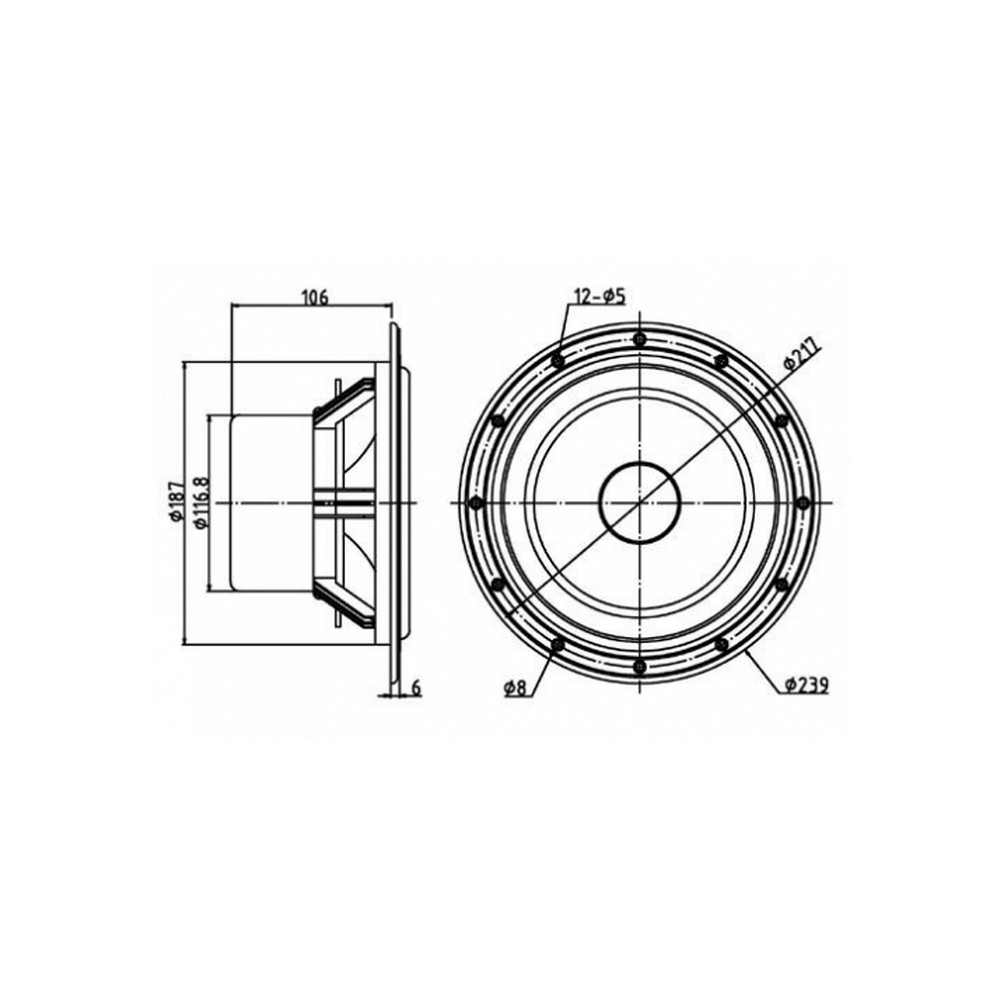

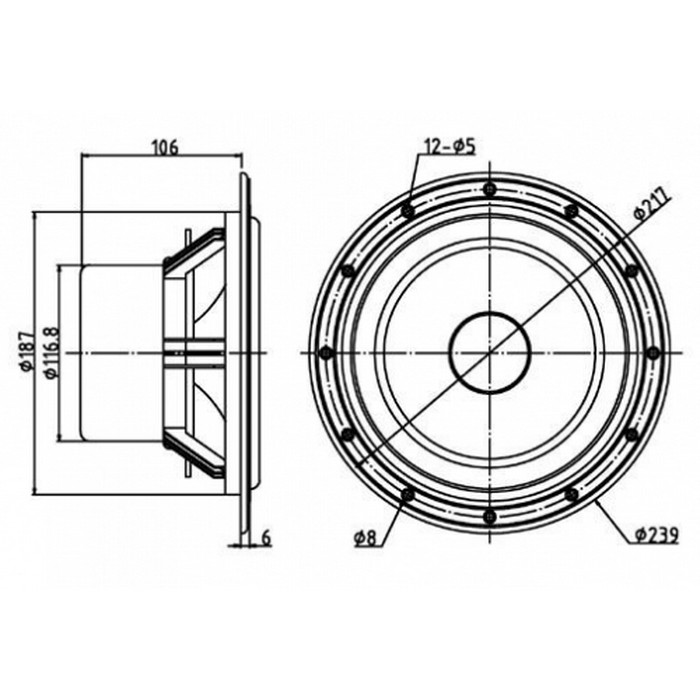

Diameter: 8"
Impedance: 8 Ω
Power: 60 W
Series: HIVI F
Material: Kevlar
Paper
