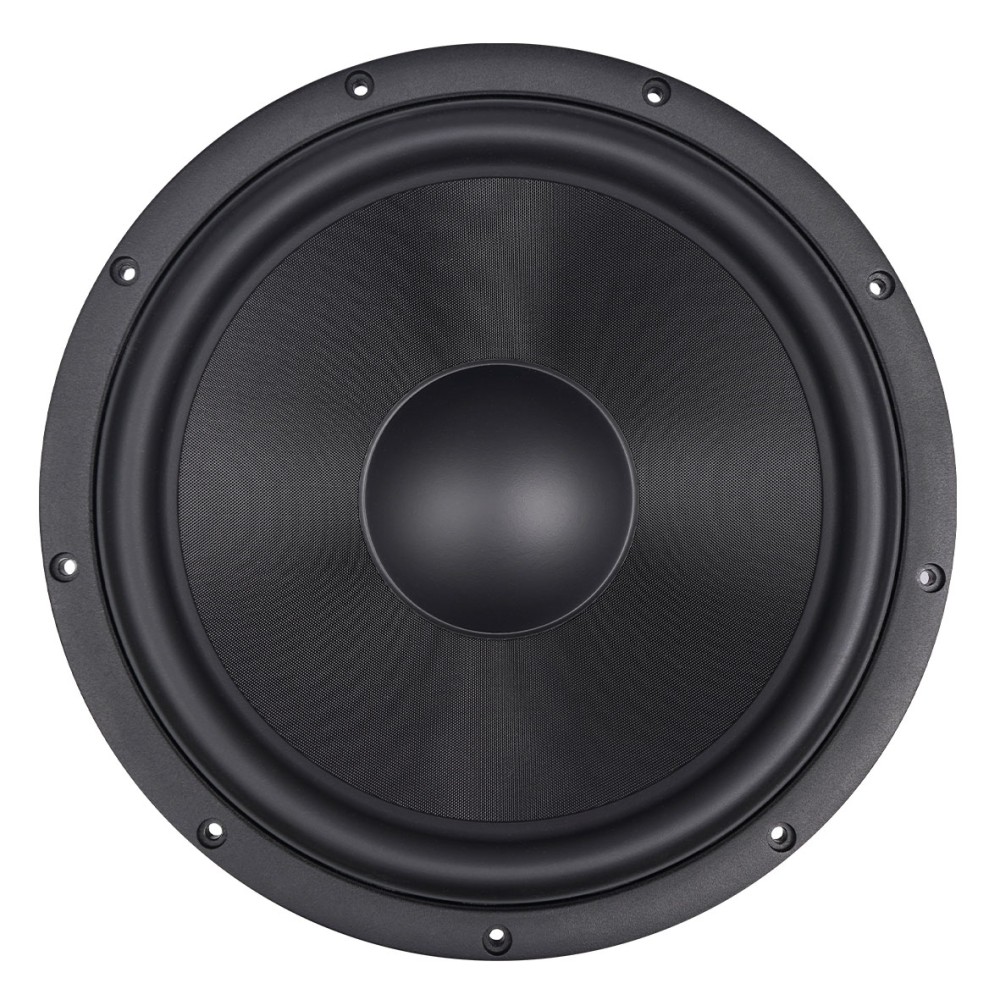

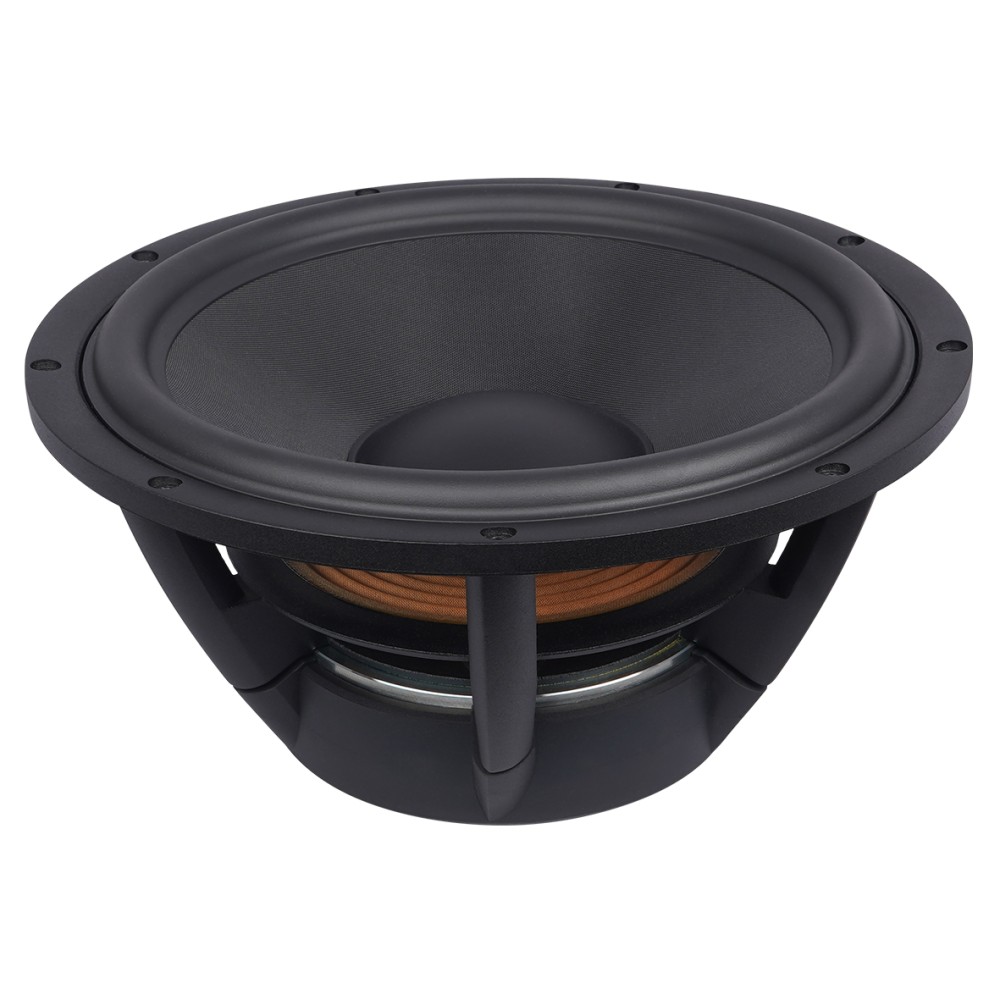

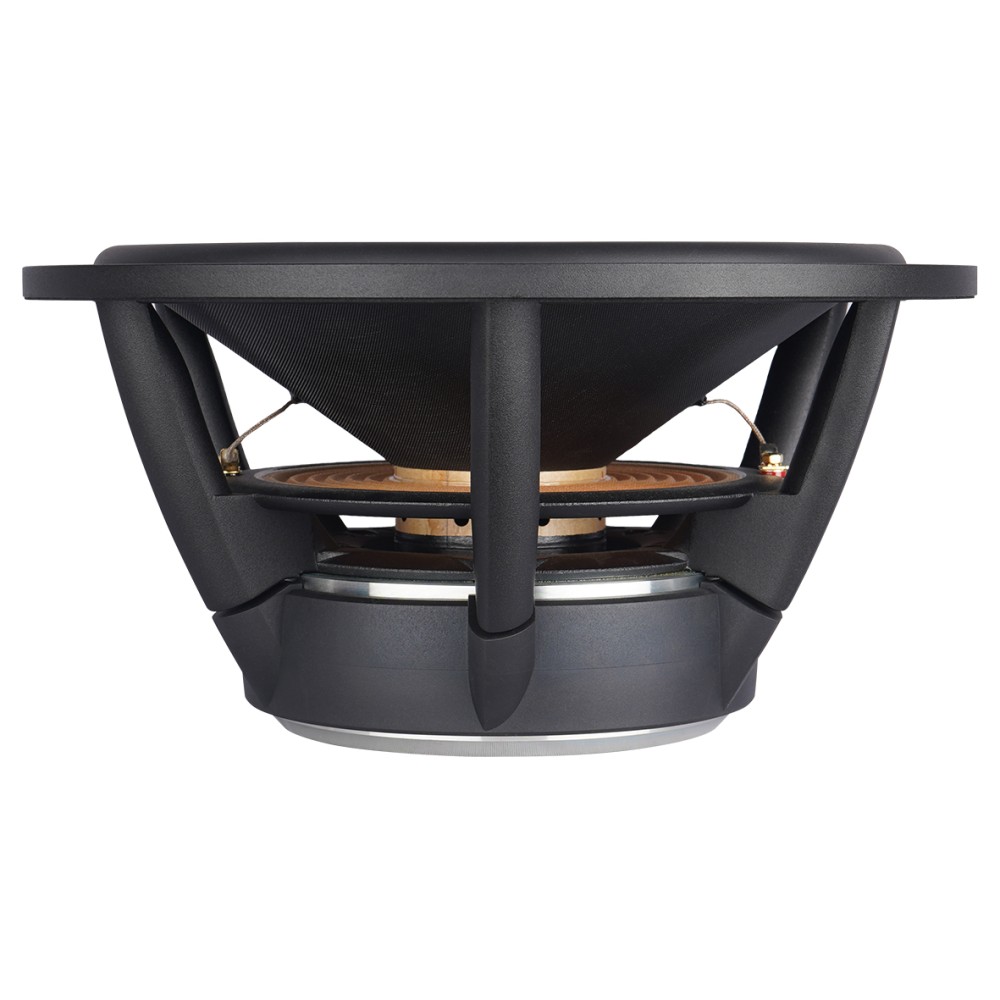

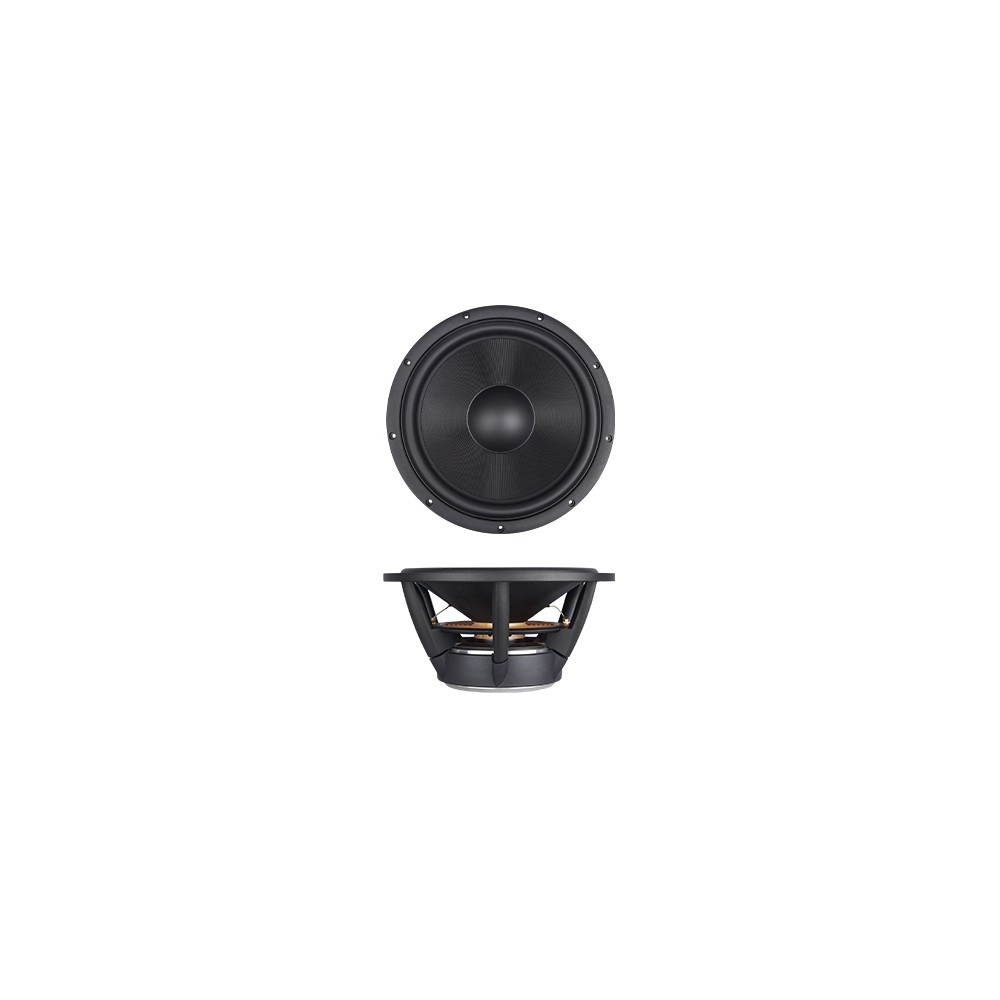

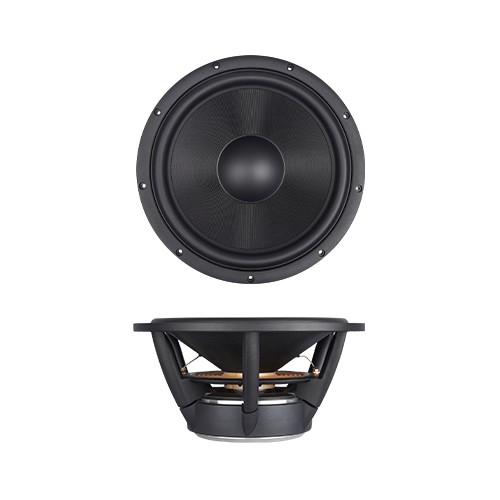

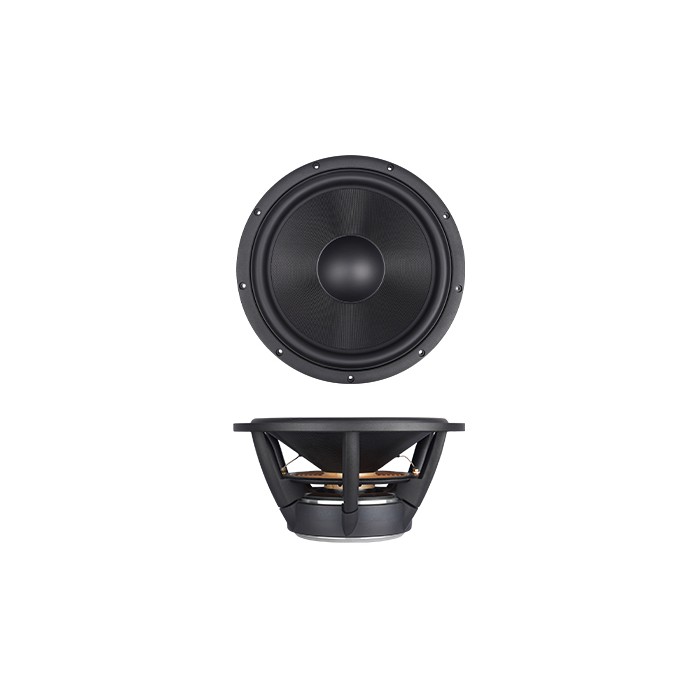

New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb
New 13½″ SATORI WO34HC-4 / Honeycomb

New 13½″ SATORI WO34HC-4 / Honeycomb

3 pcs.
In Stock
€ 349.00
Tax included

Features

  • Rigid honeycomb cone (black fiberglass skin layers)
  • Large vented motor system with undercut pole piece and dual shorting rings
  • Vented cast aluminum chassis
  • Linear symmetric suspension
  • Soft low damping rubber surround
  • 3″ copper voice coil with non-conductive fiberglass former
  • Long life silver lead wires
Quantity Unit discount You Save
4 10% € 139.60
8 15% € 418.80

(0)
13" | 4 Ω | 200 W

Brand



Specs

Nominal Impedance 4 Ω

DC resistance, Re 3.5 Ω

Voice coil inductance, Le 0.70 mH

Effective piston area, Sd 585 cm2

Voice coil diameter 75.6 mm

Voice coil height 24.6 mm

Air gap height 8 mm

Linear coil travel (p-p) 16.6 mm

Magnetic flux density 1.17 T

Magnet weight 3.52 kg

Net weight 9.64 kg

Free air resonance, Fs 20 Hz

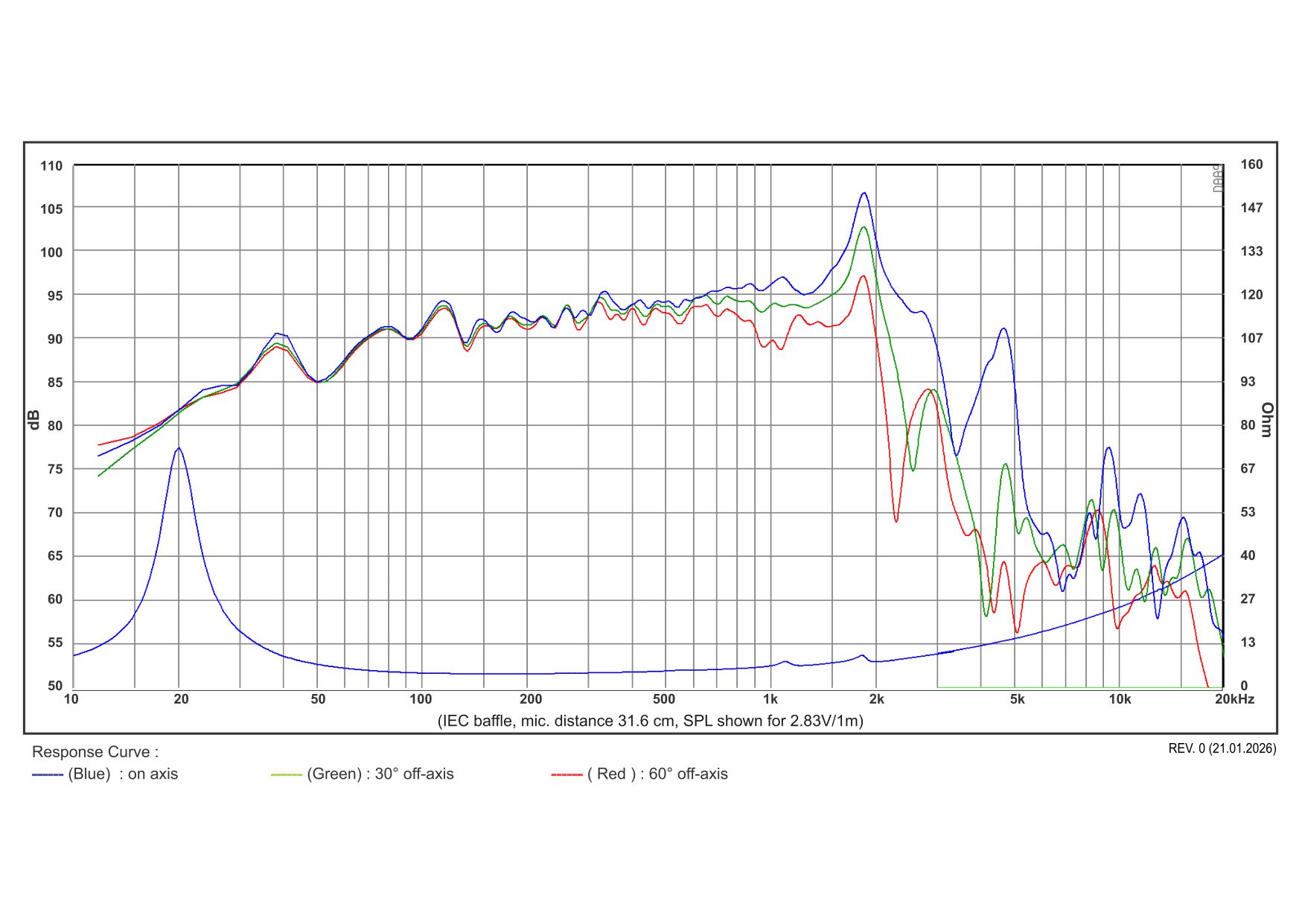

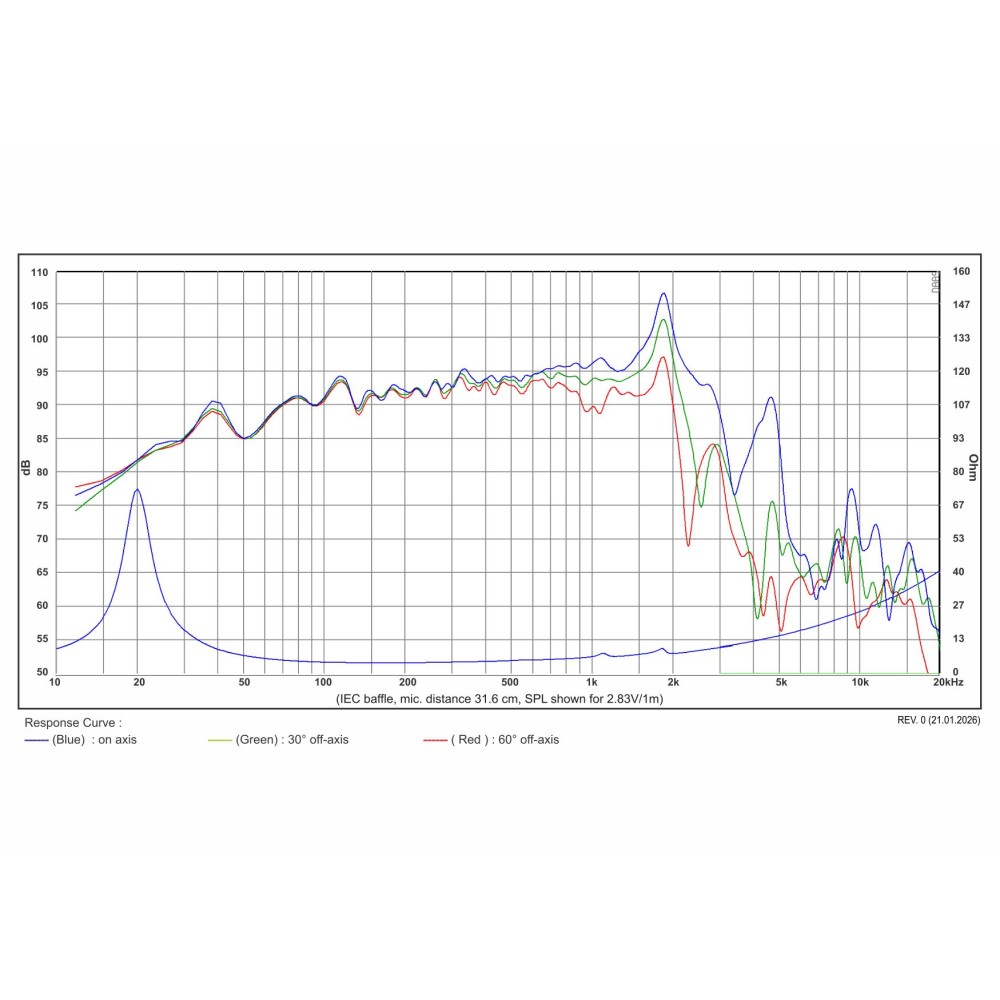

Sensitivity (2.83V/1m) 92.5 dB

Mechanical Q-factor, Qms 5.53

Electrical Q-factor, Qes 0.25

Total Q-factor, Qts 0.23

Moving mass incl. air,Mms 132 g

Force factor, Bl 15.1 Tm

Equivalent volume, Vas 233 liters

Compliance, Cms 0.48 mm/N

Mechanical loss, Rms 3.0 kg/s

Rated power handling* 200 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

Diameter
13"
Impedance
4 Ω
Power
200 W
Series
SATORI
