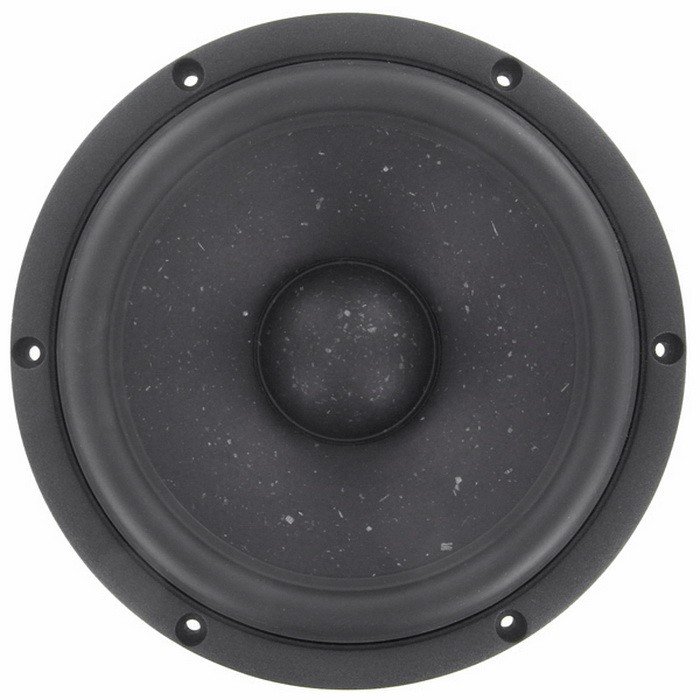

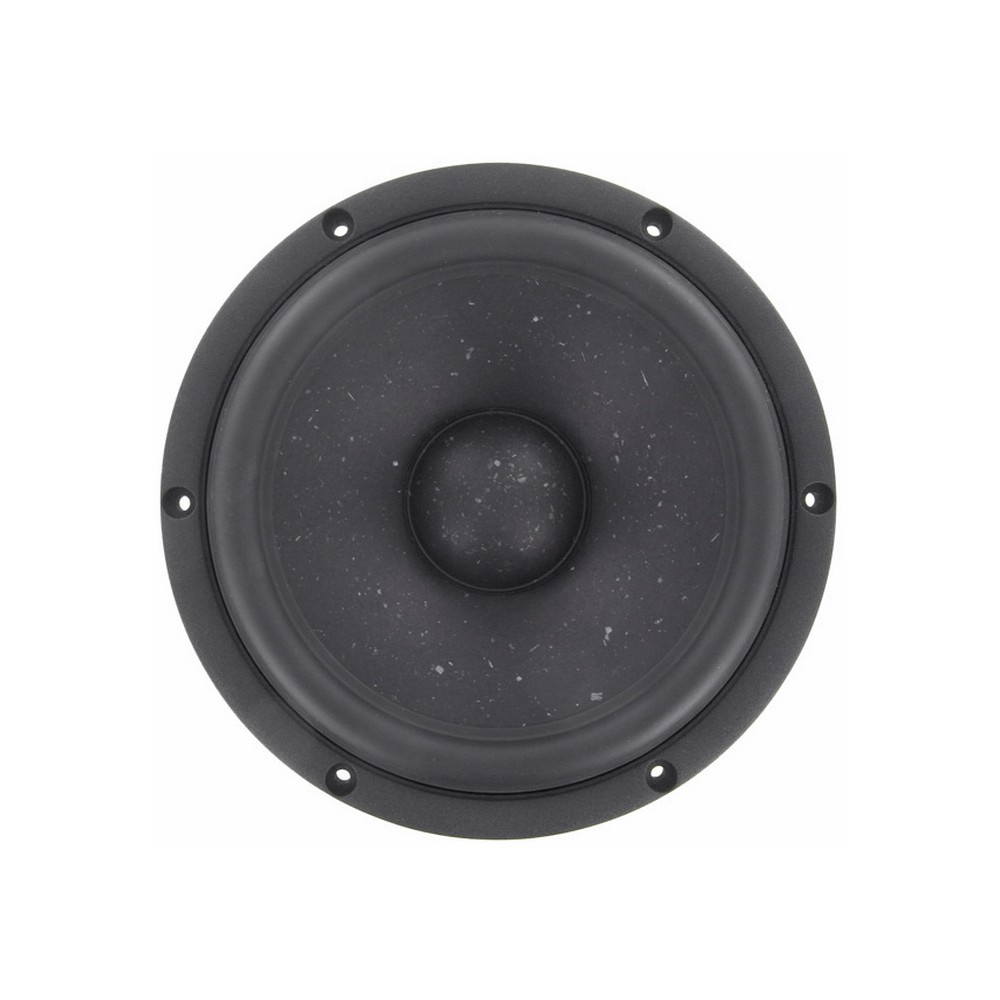

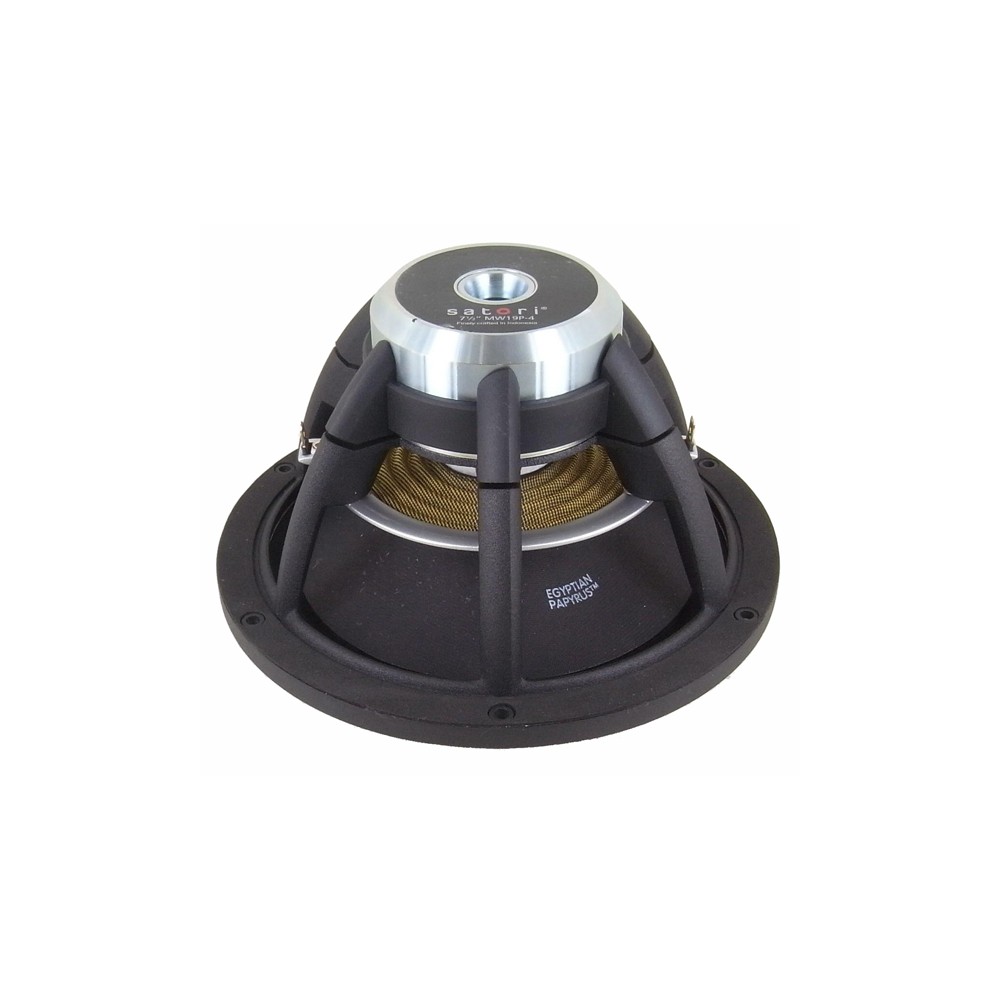

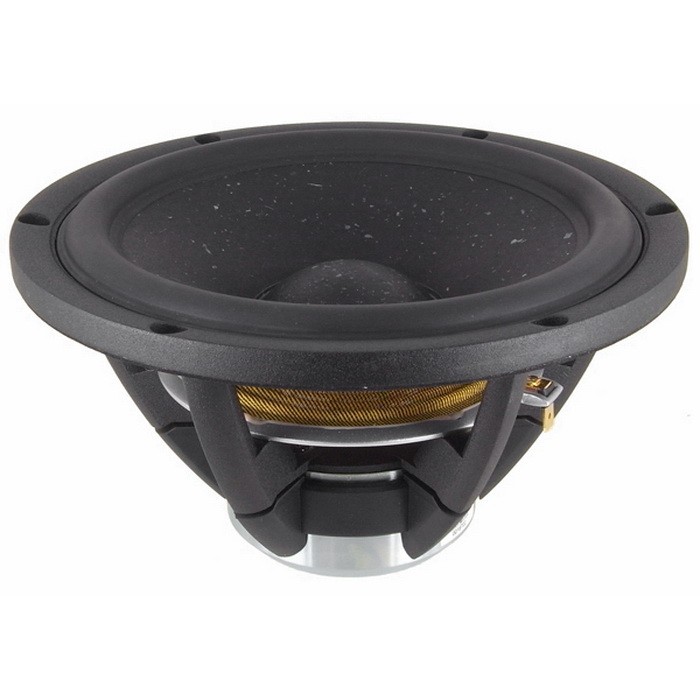

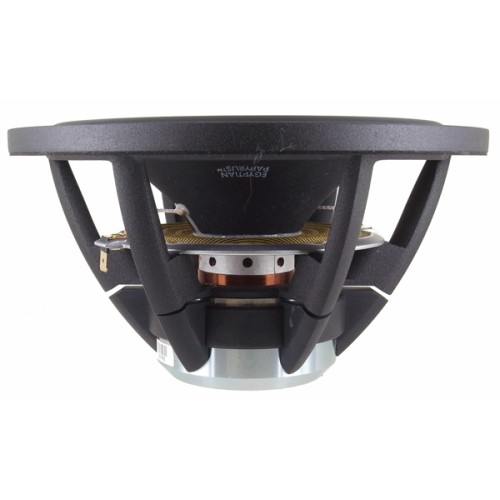

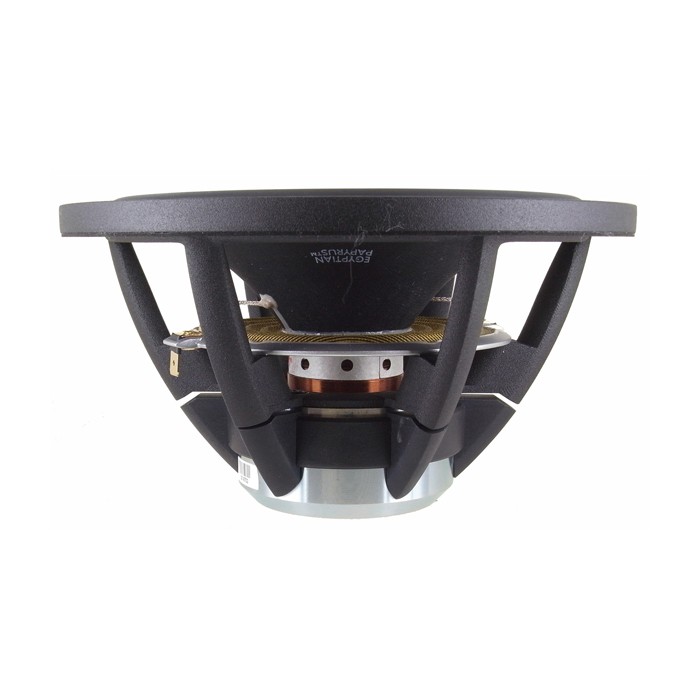

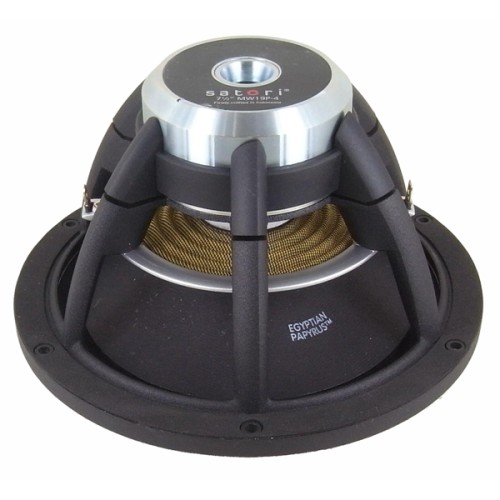

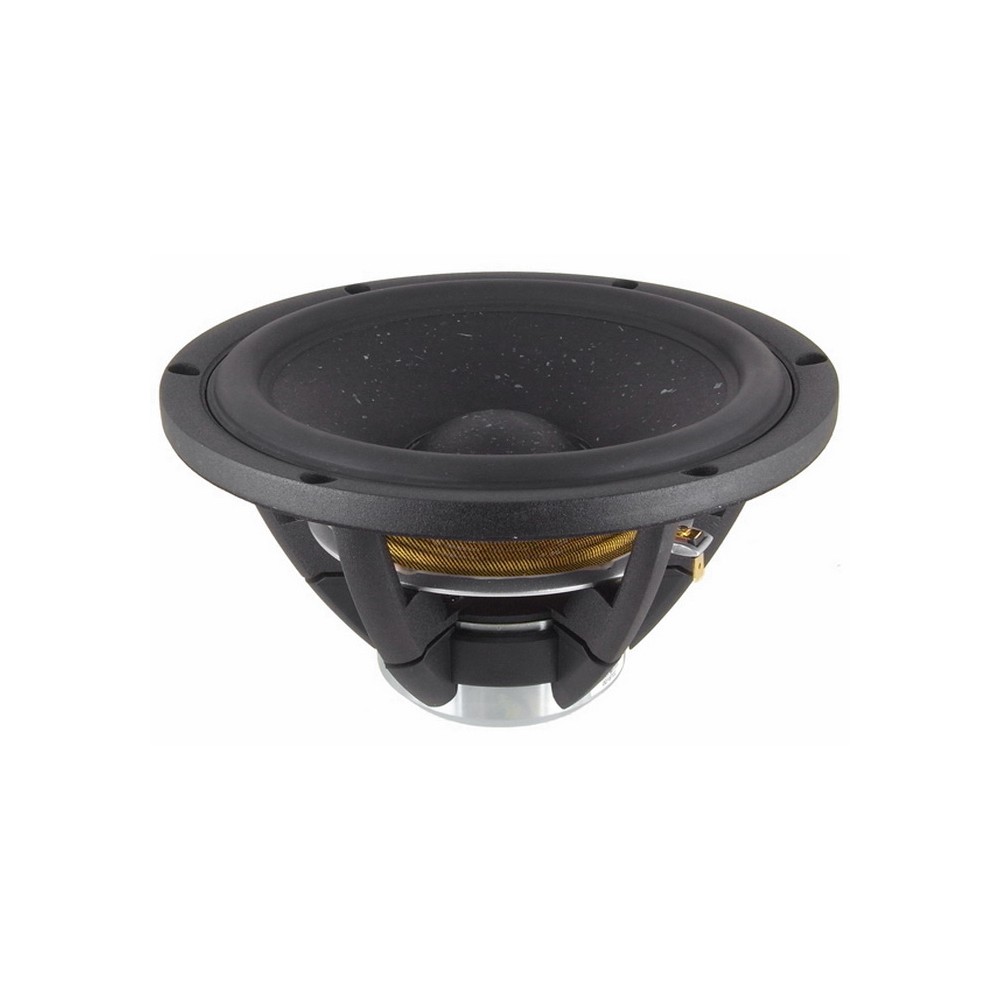

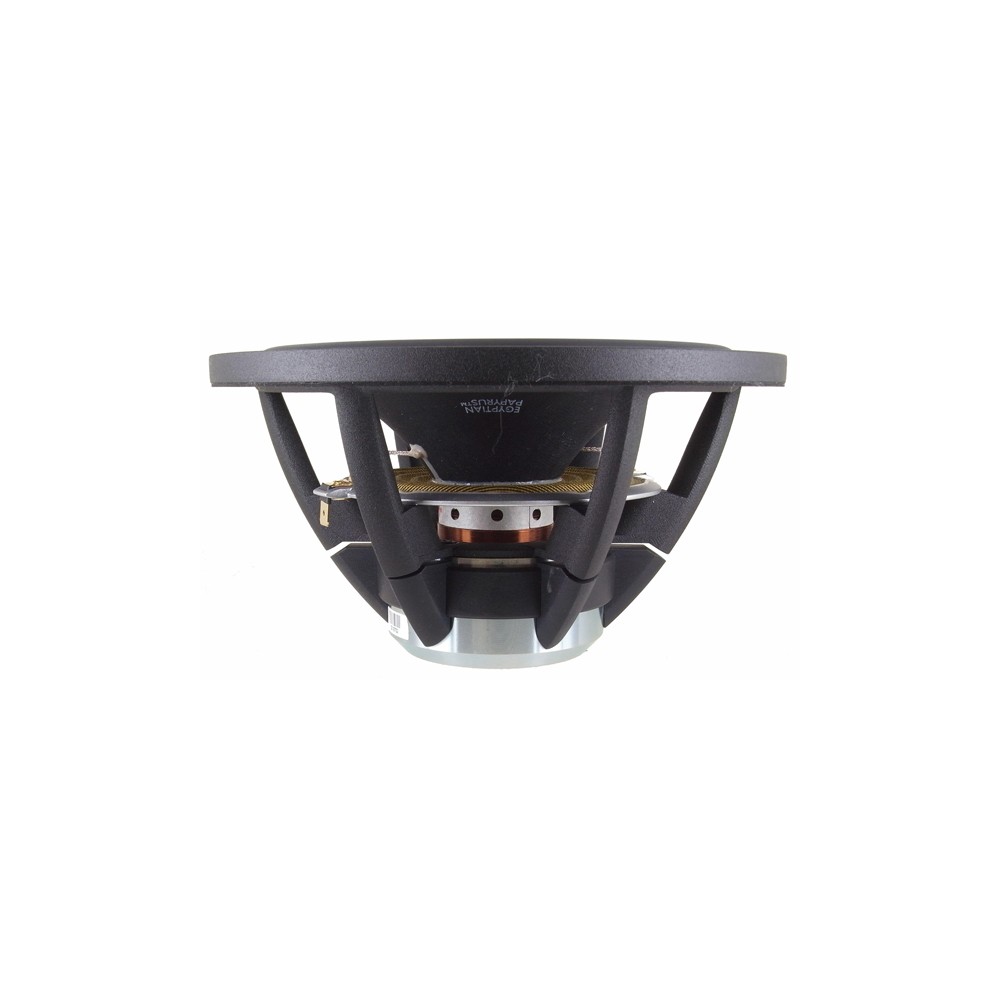

Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm
Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm

Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer - 4 ohm

IMPORTED_SB_ACOUSTIC_198
8 pcs.
In Stock
€ 199.00
Tax included

Satori is a Buddhist term for enlightenment.  The word literally means "understanding".  Satori translates as a flash of awareness.

Satori drivers are designed for subtlety and realism.

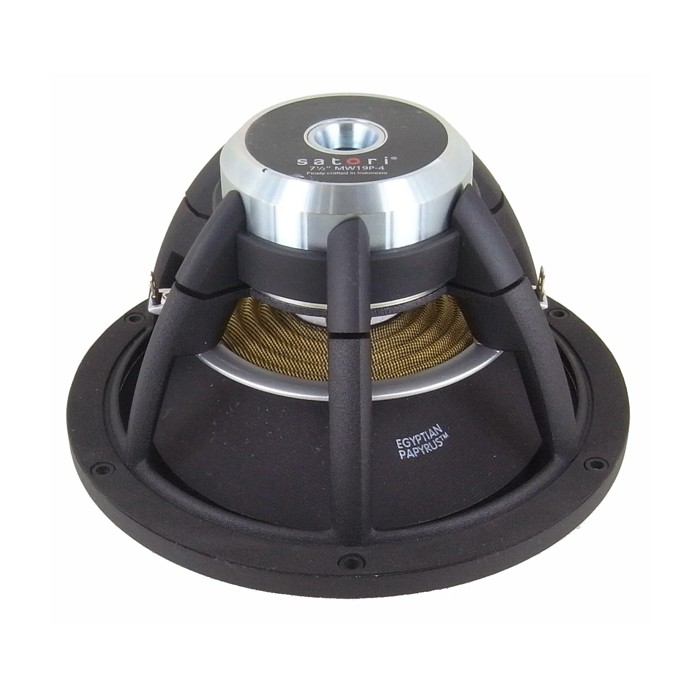

  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece for reduced compression
  • Low piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
(0)
7.5" | 4 Ω | 70 W

Brand



Nominal Impedance 4 Ω

DC resistance, Re 3.4 Ω

Voice coil inductance, Le 0.14 mH

Effective piston area, Sd 158 cm2

Voice coil diameter 39 mm

Voice coil height 19.6 mm

Air gap height 6 mm

Linear coil travel (p-p) 13.6 mm

Magnetic flux density 1.1 T

Magnet weight 0.15 kg

Net weight 1.48 kg

Free air resonance, Fs 29 Hz

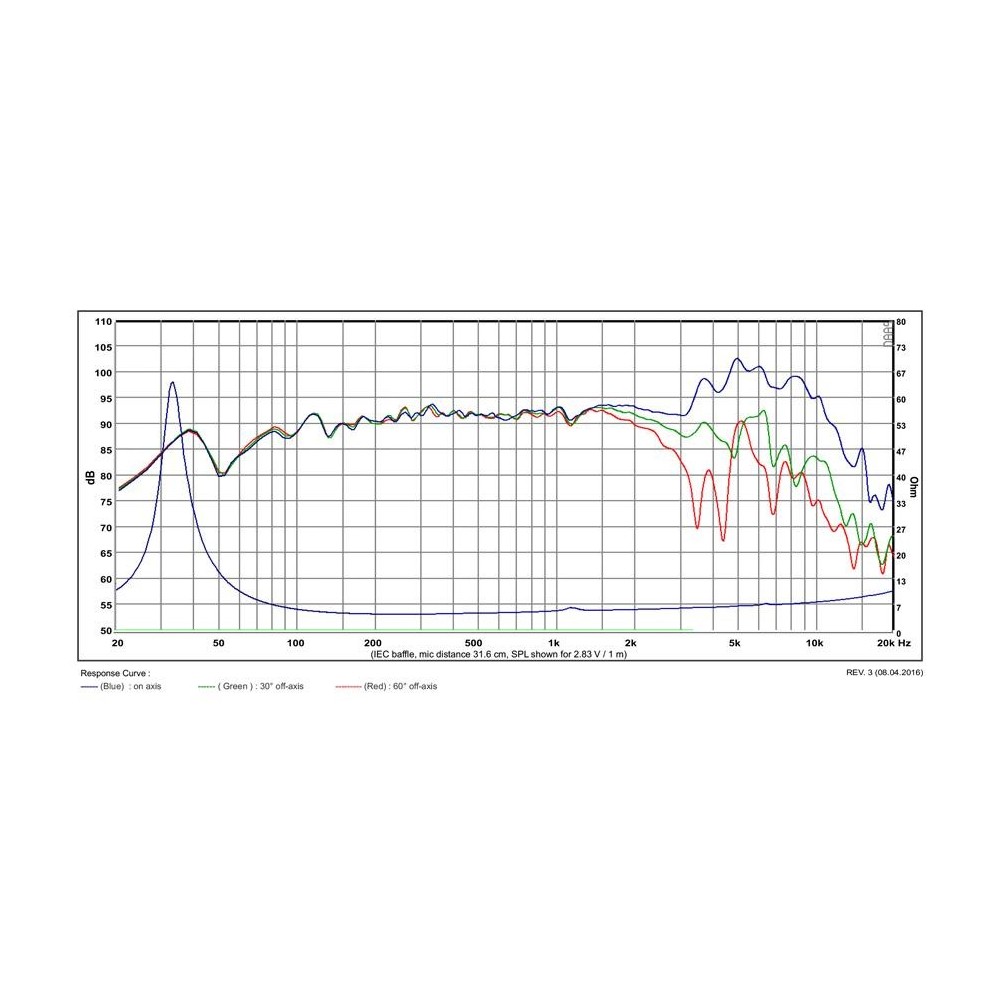

Sensitivity (2.83V/1m) 91.5 dB

Mechanical Q-factor, Qms 4.53

Electrical Q-factor, Qes 0.26

Total Q-factor, Qts 0.24

Moving mass incl. air,Mms 17.4 g

Force factor, Bl 6.5 Tm

Equivalent volume, Vas 61 liters

Compliance, Cms 1.73 mm/N

Mechanical loss, Rms 0.7 kg/s

Rated power handling* 70 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

Diameter
7.5"
Impedance
4 Ω
Power
70 W
Series
SATORI
Material
Aluminum
Egyptian Papyrus
