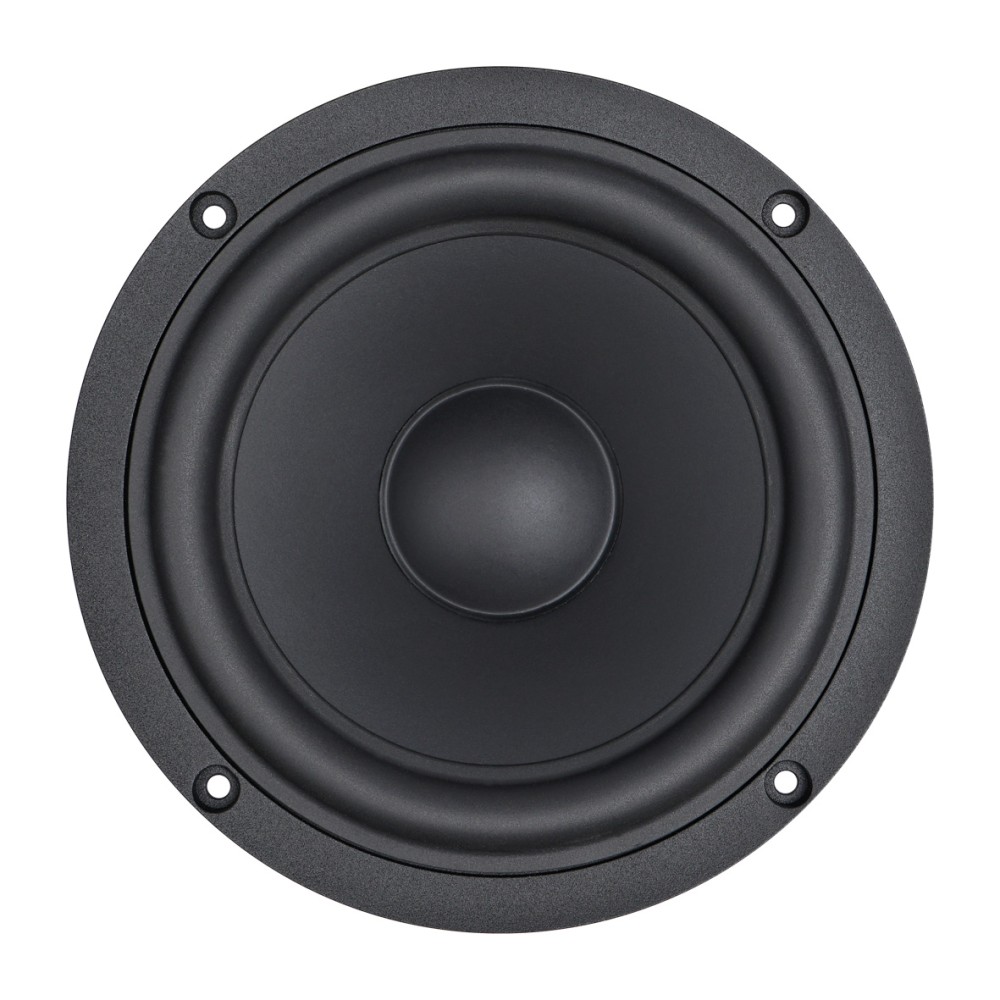

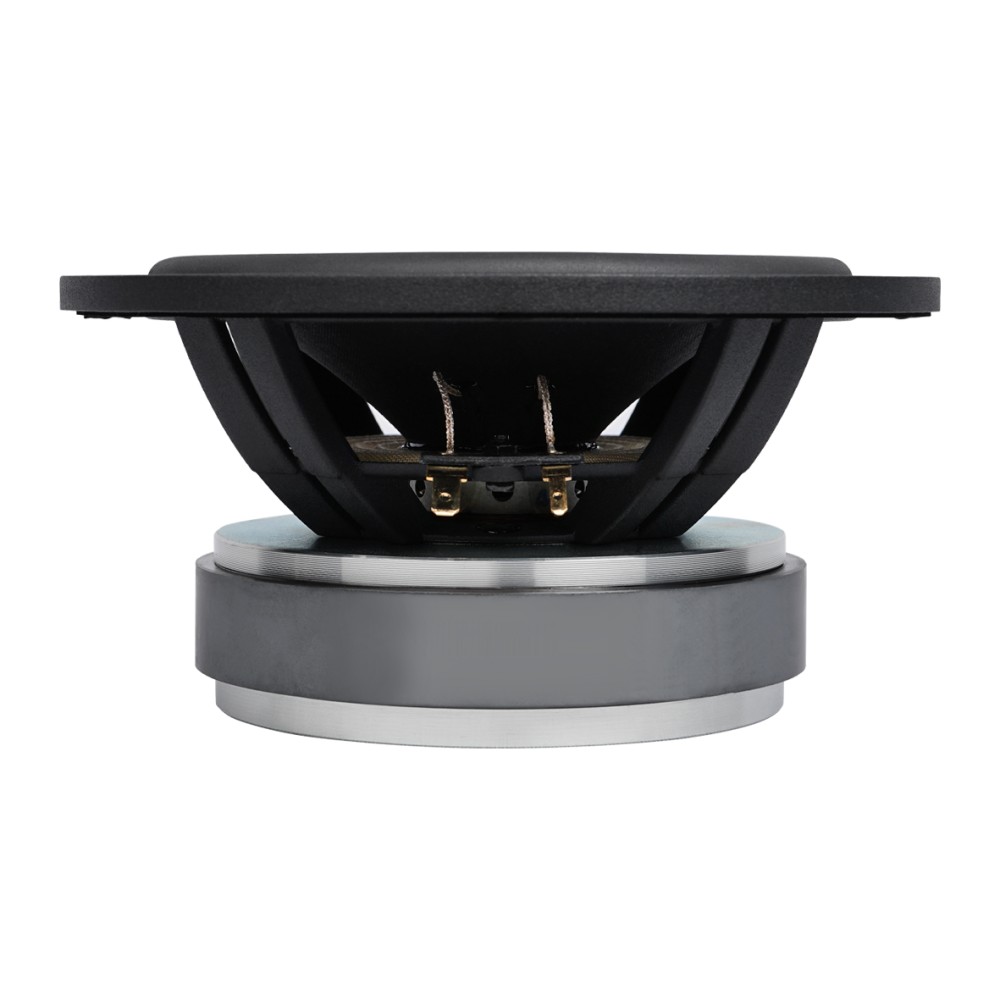

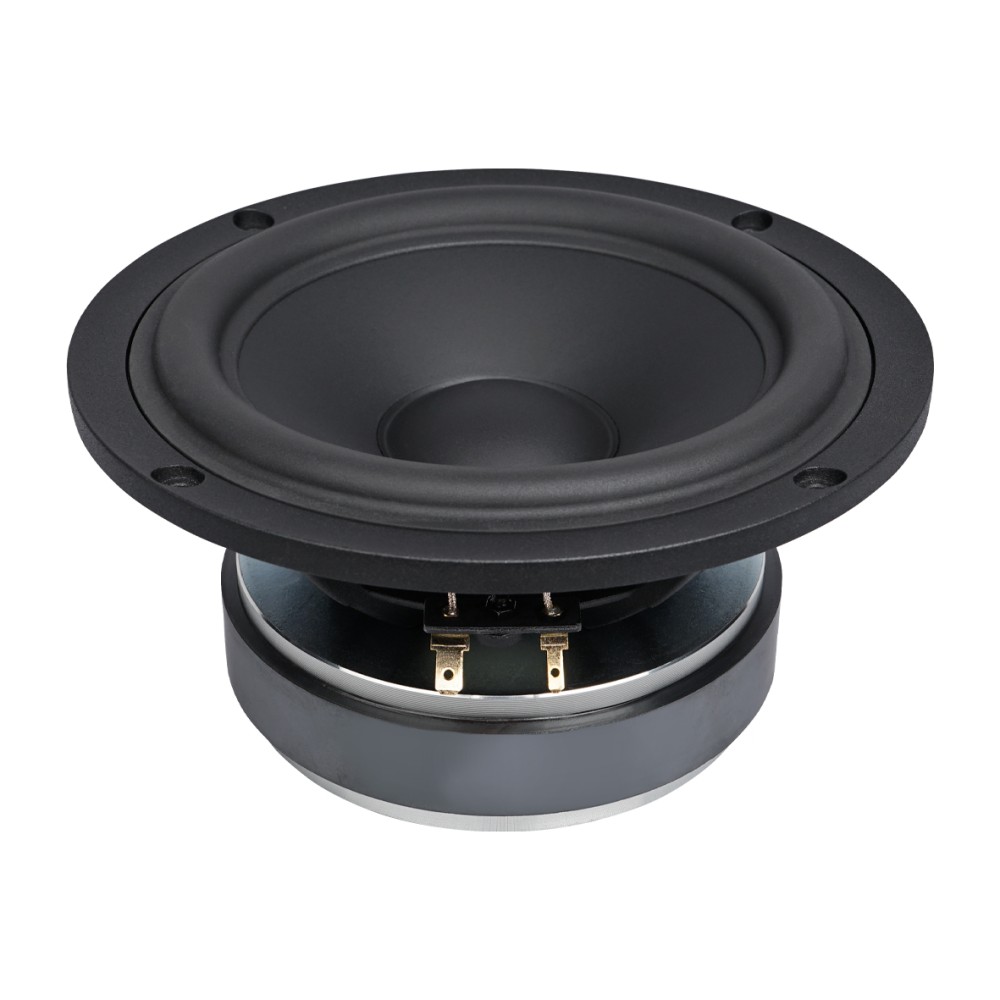

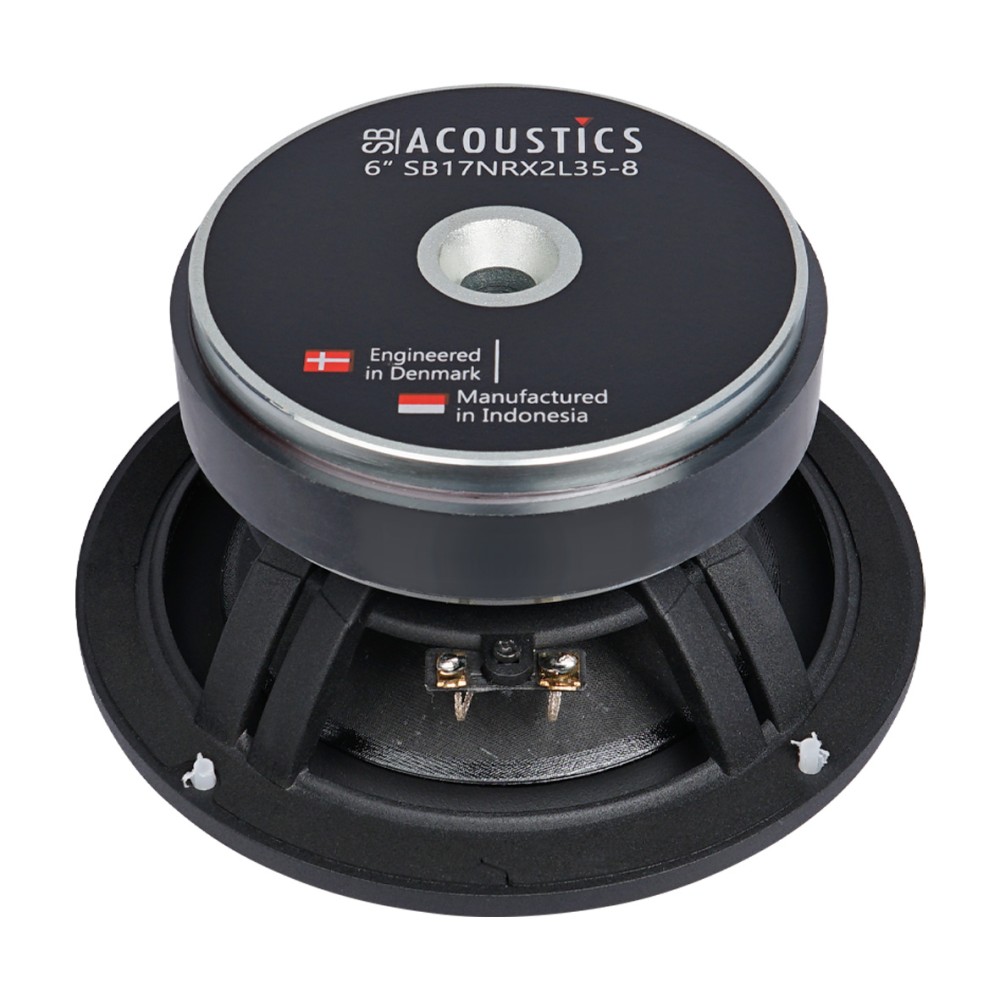

SB Acoustics SB17NRX2L35-8 / Norex Midbass speaker 6″

12 pcs.
In Stock
€ 74.65
Tax included

Features

  • Vented cast aluminum chassis for optimal strength and low compression
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for transient response
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extra large motor with extended copper sleeve on pole piece
  • Vented coil former
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression
(0)
6" | 8 Ω

Brand



Specs

Nominal Impedance 8 Ω

DC resistance, Re 5.7 Ω

Voice coil inductance, Le 0.16 mH

Effective piston area, Sd 118 cm2

Voice coil diameter 35.5 mm

Voice coil height 15.6 mm

Air gap height 6 mm

Linear coil travel (p-p) 9.6 mm

Magnetic flux density 1.1 T

Magnet weight 0.89 kg

Net weight 2.32 kg

Free air resonance, Fs 37.8 Hz

Sensitivity (2.83V/1m) 89 dB

Mechanical Q-factor, Qms 4.55

Electrical Q-factor, Qes 0.30

Total Q-factor, Qts 0.28

Moving mass incl. air,Mms 13.4 g

Force factor, Bl 7.84 Tm

Equivalent volume, Vas 26.1 liters

Compliance, Cms 1.32 mm/N

Mechanical loss, Rms 0.7 kg/s

Rated power handling* 50 W

* IEC 268-5, T/S parameters measured on drive units that are broken in
