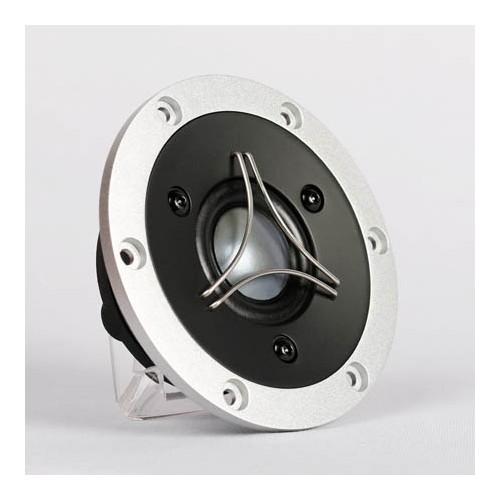

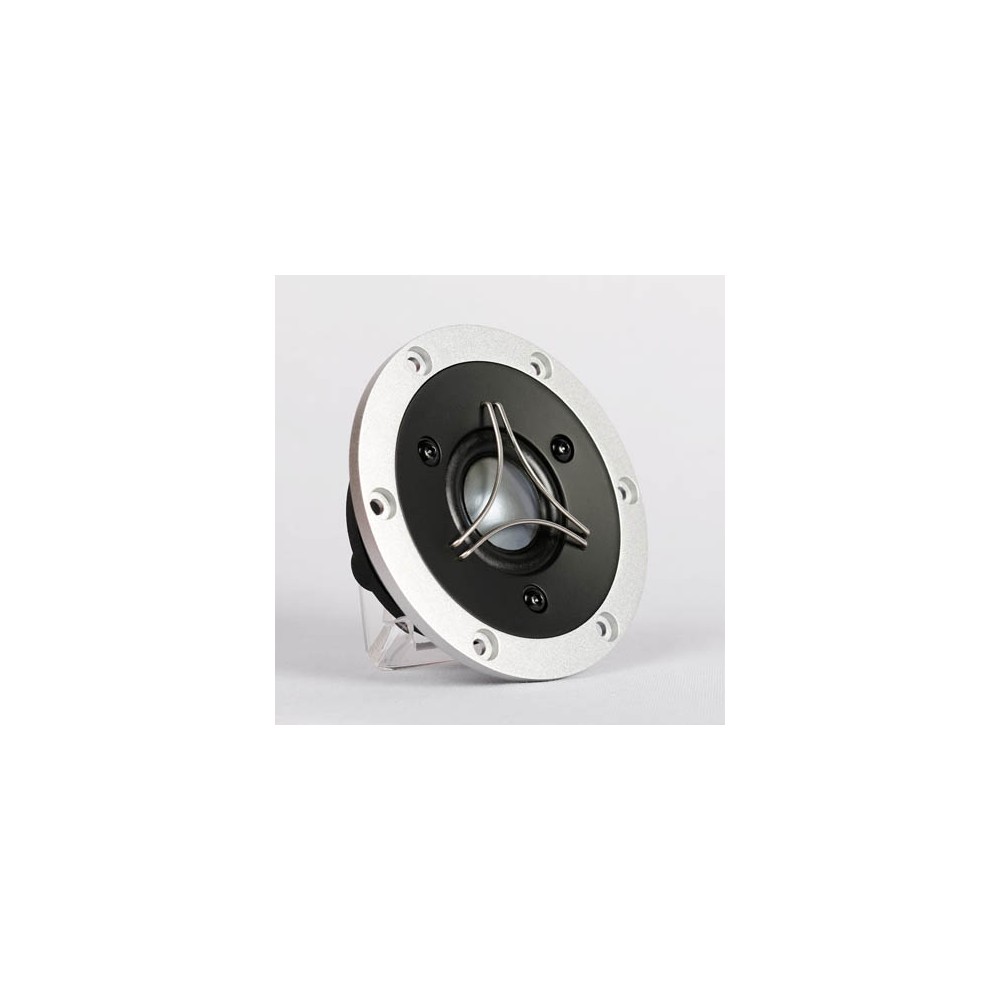

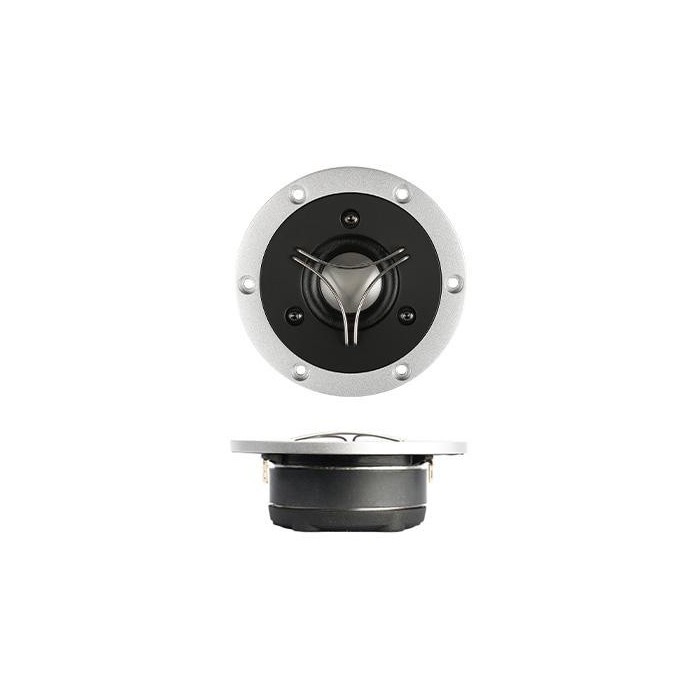

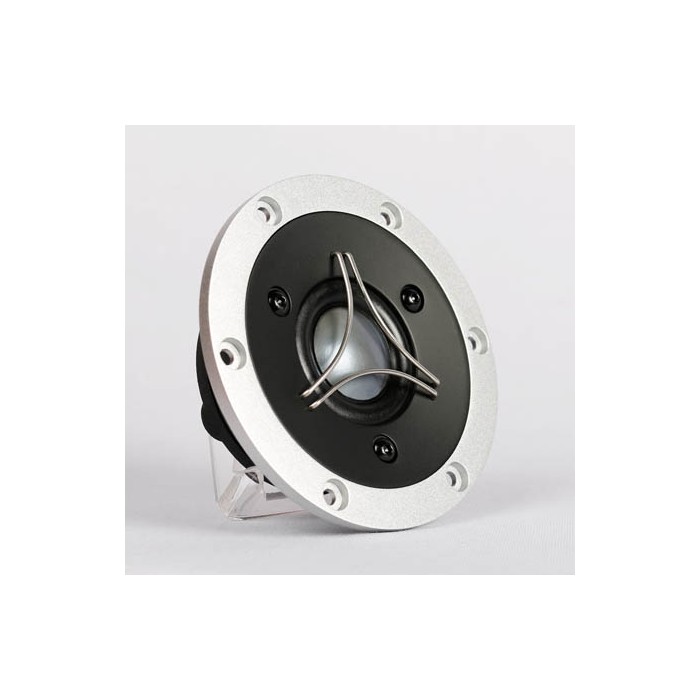

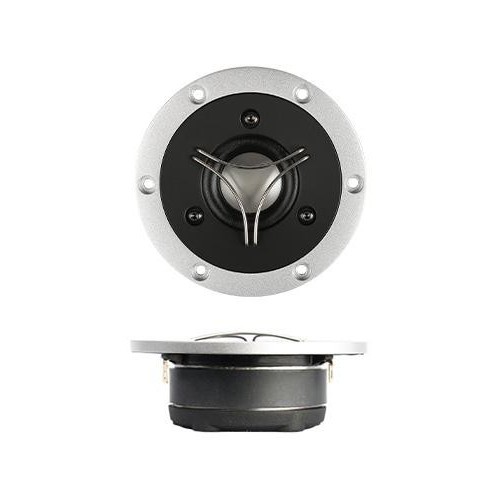

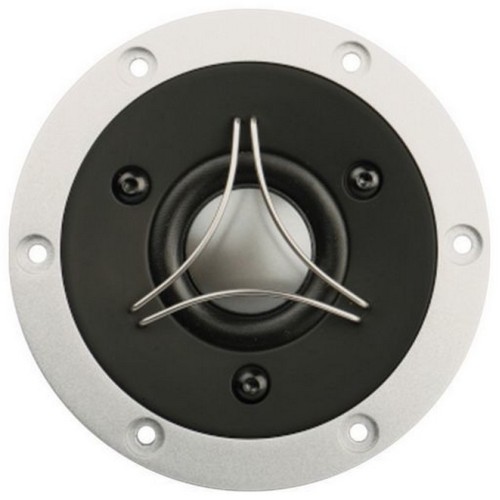

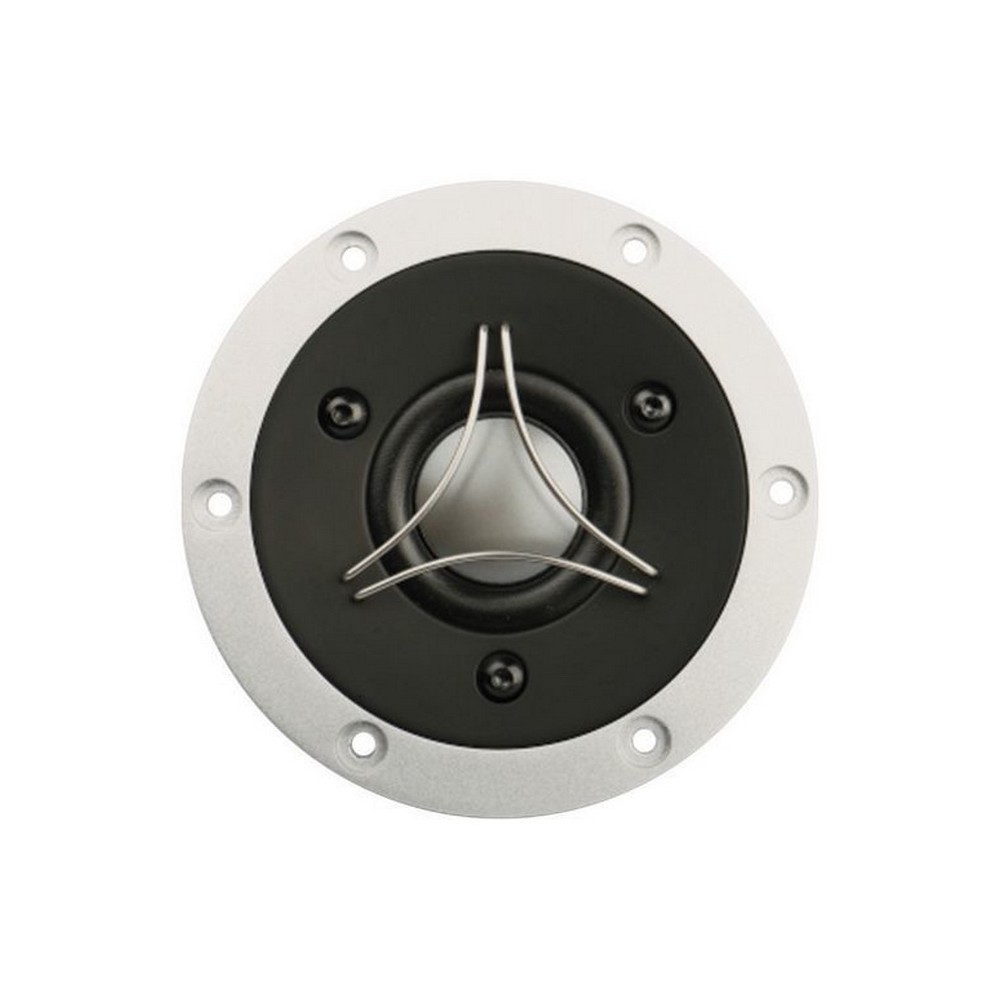

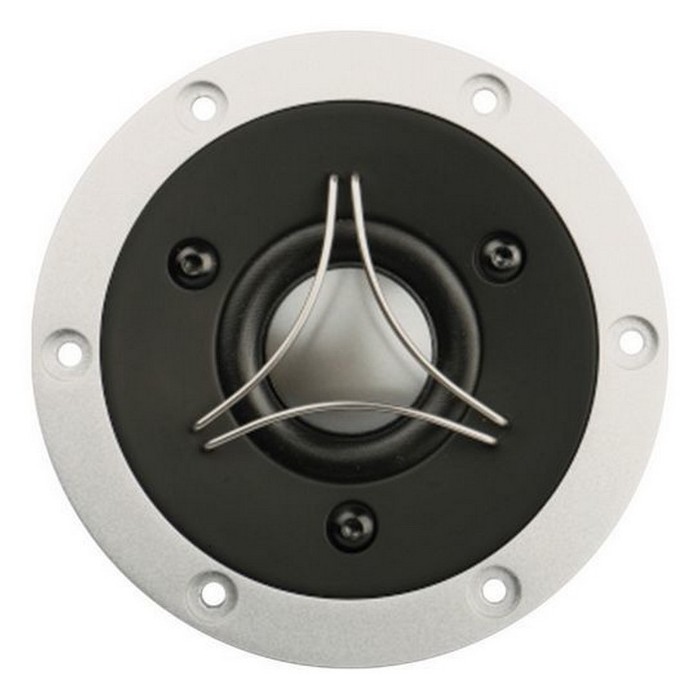

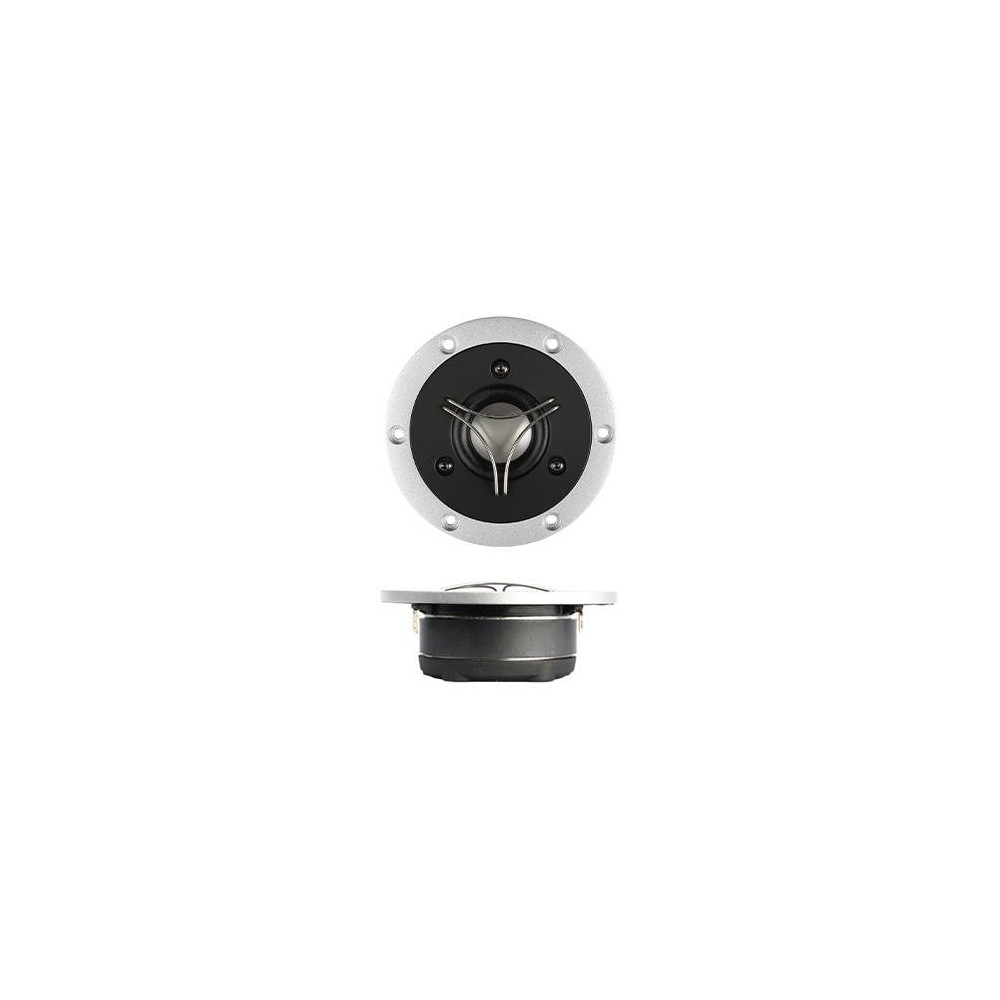

SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome
SATORI TW29B / Beryllium Dome

SATORI TW29B / Beryllium Dome

IMPORTED_SB_ACOUSTIC_84
Pre-order product
€ 483.17
Tax included
  • Beryllium dome for non-resonant high frequency extension
  • Two part aluminium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range
(0)
29mm | 4 Ω | 80 W

Brand



Nominal Impedance 4 Ω

DC resistance, Re 3.0 Ω

Voice coil inductance, Le 0.02 mH

Effective piston area, Sd 9.6 cm2

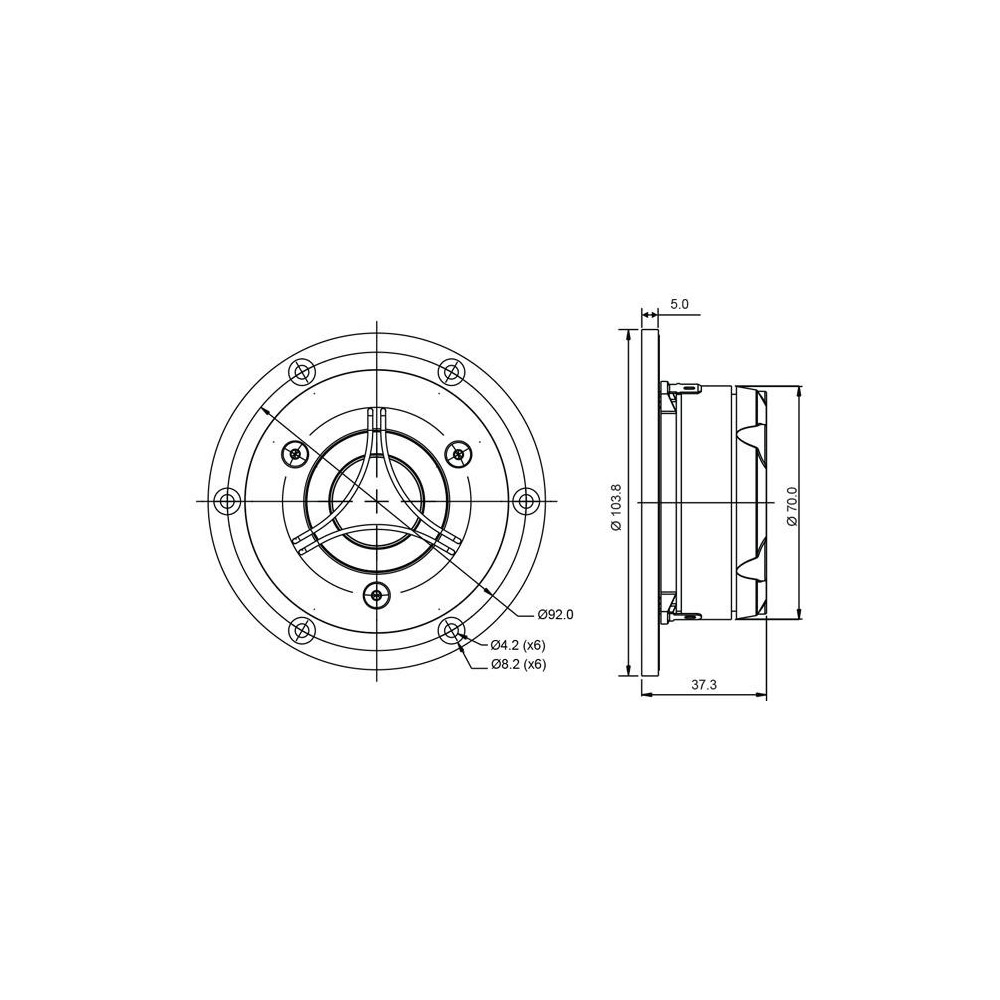

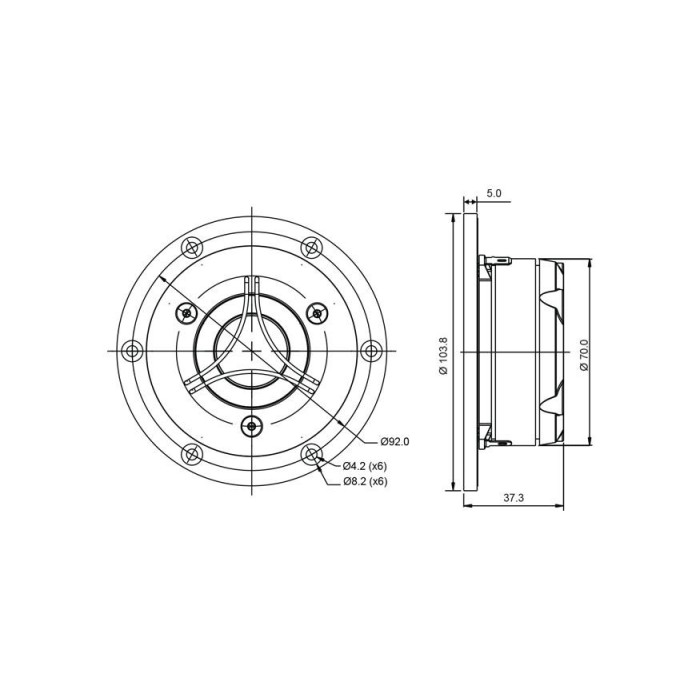

Voice coil diameter 29.0 mm

Voice coil height 2.0 mm

Air gap height 2.5 mm

Linear coil travel (p-p) 0.5 mm

Moving mass incl. air, Mms 0.46 g

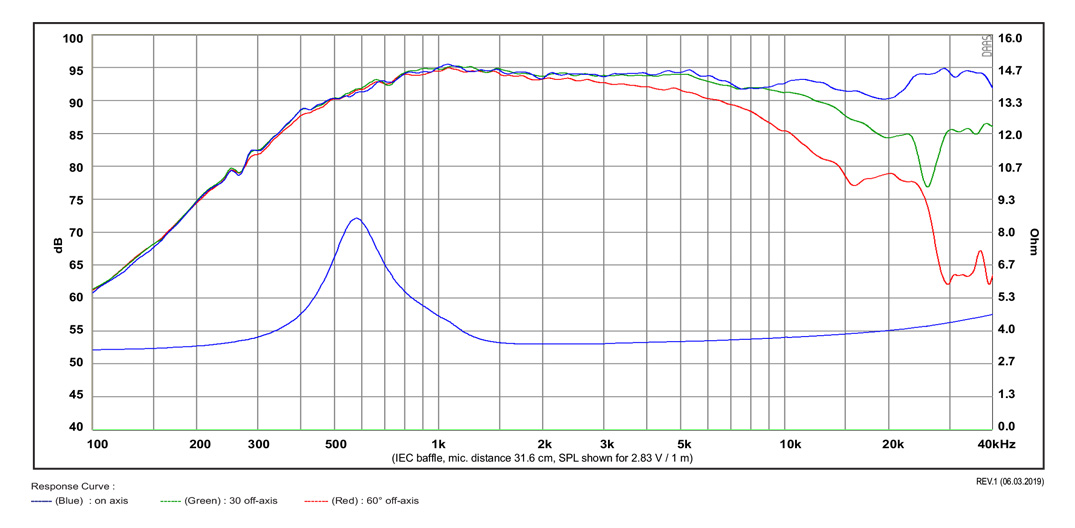

Free air resonance, Fs 600 Hz

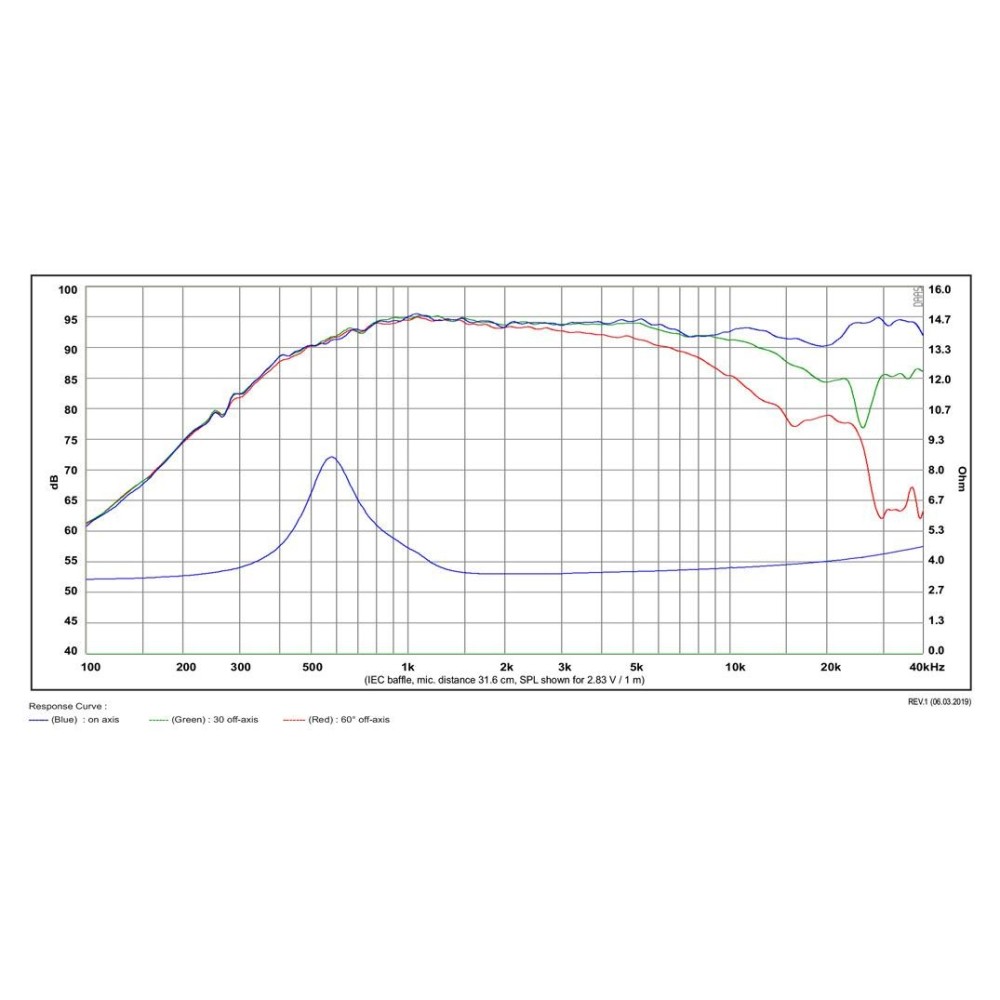

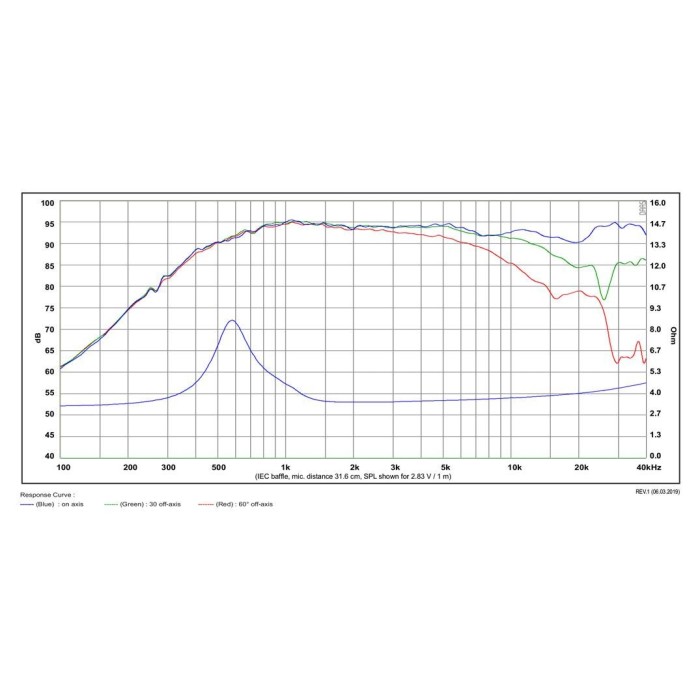

Sensitivity (2.83 V / 1 m) 92 dB

Mechanical Q-factor, Qms 2.9

Electrical Q-factor, Qes 1.3

Total Q-factor, Qts 0.9

Force factor, Bl 2.0 Tm

Rated power handling* 80 W

Magnetic flux density 1.0 T

Magnet weight 0.22 kg

Net weight 0.53 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

Diameter
29mm
Impedance
4 Ω
Power
80 W
Series
SATORI
Material
Beryllium
