Monacor HT-22/8
Monacor HT-22/8
Monacor HT-22/8
Monacor HT-22/8
Monacor HT-22/8
Monacor HT-22/8

Monacor HT-22/8

PROD129
Temporarily out of stock
€ 21.47
Tax included

HT-22/8

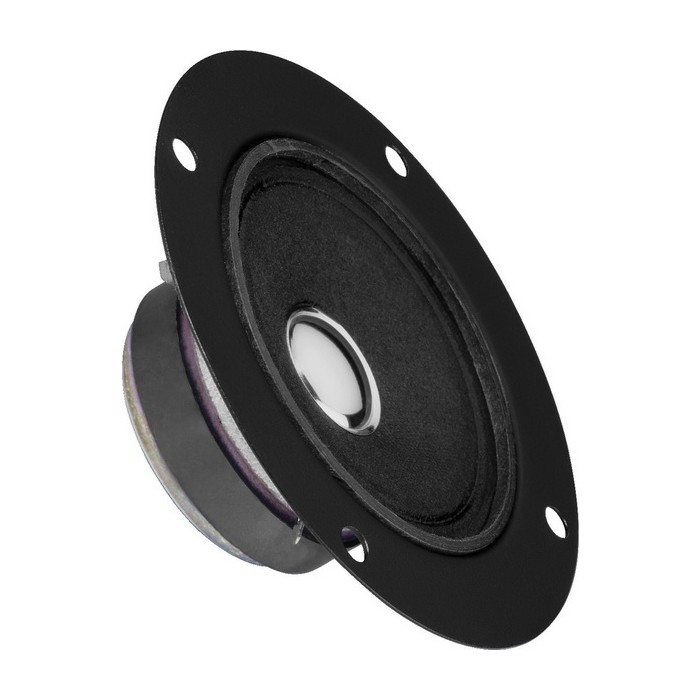

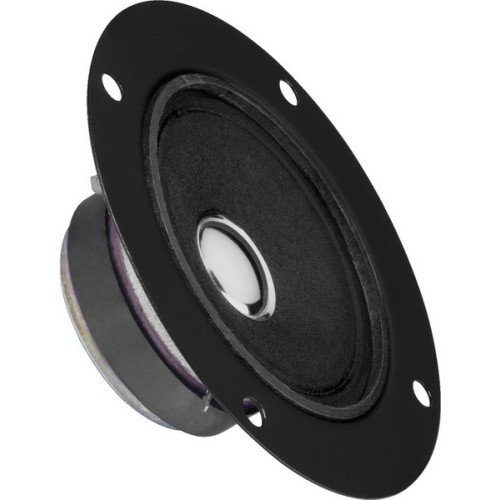

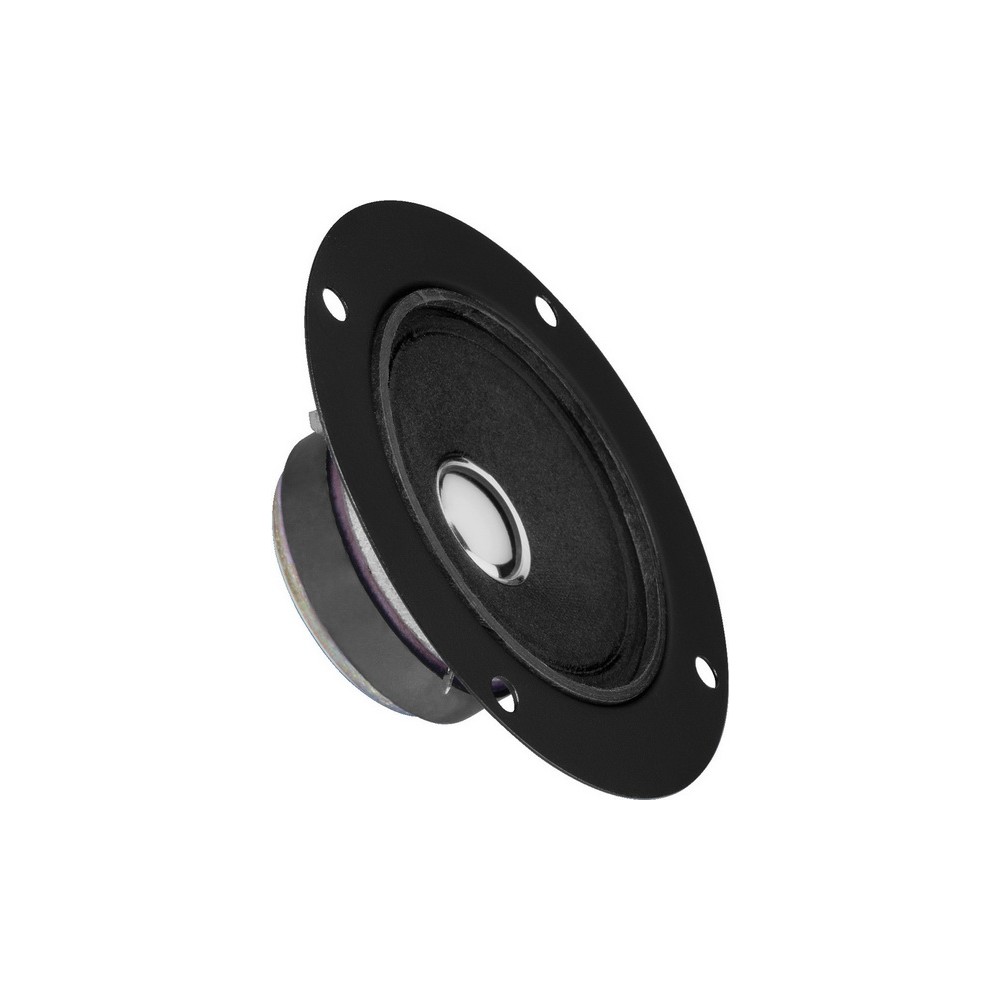

Cone tweeter, 10 W, 8 Ω

Classic tweeter for hi-fi, car hi-fi and for replacement purposes

Klang+Ton 02/2012

"The unit at the most favorable price was the surprise in the test ... provides the most balanced frequency response in front of the microphone ... very attractive price, to be used without any problems, offers best measured values."

Klang+Ton 02/2018

"Quite respectable. [...] considering the modest use of material, a remarkable performance.” (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)

Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
(0)

Brand



Technical specifications HT-22/8

Impedance (Z) 8 Ω

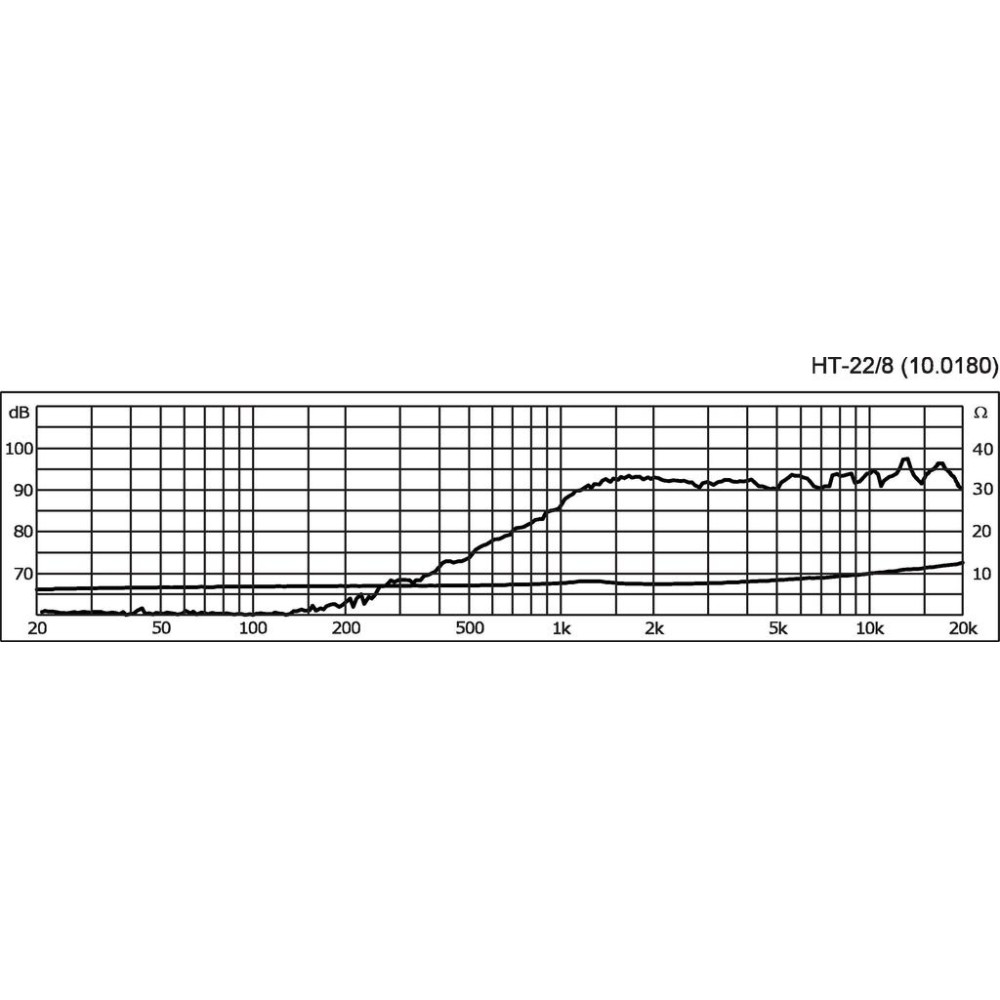

Frequency range fx-19,000 Hz

Resonant frequency (fs) 1,500 Hz

Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz

Power rating (RMS) 10 W

Peak music power output (MAX) 20 W

SPL 91 dB/W/m

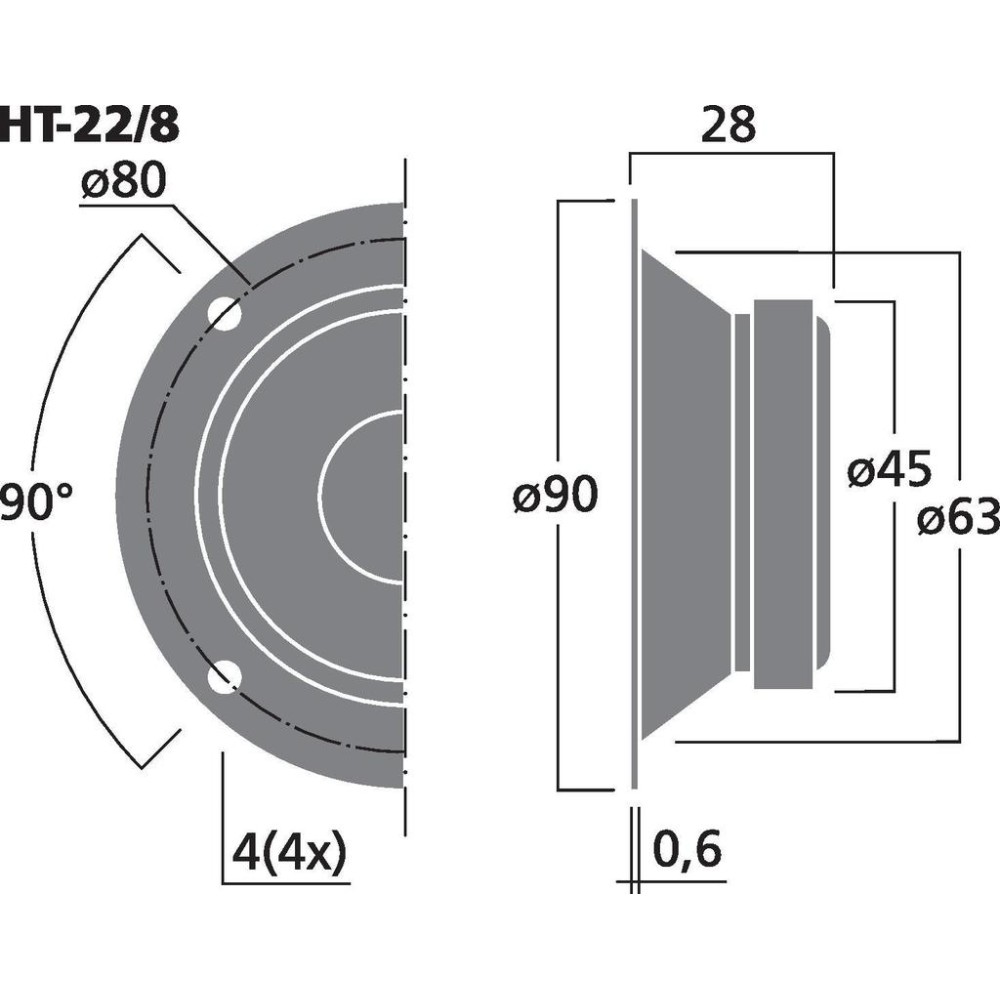

Voice coil diameter Ø 12 mm

Magnet diameter Ø 45 mm

Mounting cutout Ø 63 mm

Mounting depth 27.4 mm

Mounting hole diameter Ø 80 mm

Hole spacing X-axis 56 mm

Hole spacing Y-axis 56 mm

Dimensions Ø 90 mm x 28 mm

Outside diameter Ø 90 mm

Width Ø 90 mm

Depth 28 mm

Colour black

Admiss. ambient temp. 0-40 °C

Weight 0.14 kg

Packing unit 1

Type of speaker 2"

Packing dimensions (W x H x L) 0.095 x 0.035 x 0.095 m

Gross weight 0.154 kg

Net weight 0.14 kg
