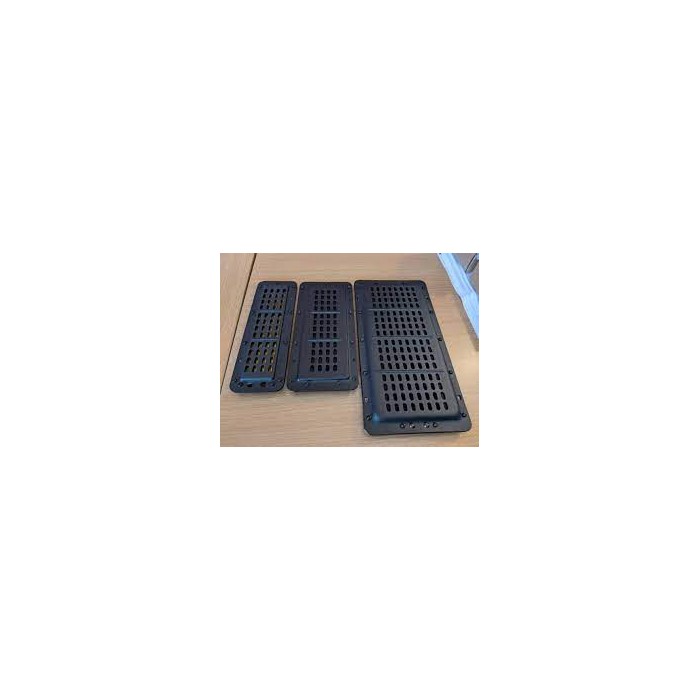

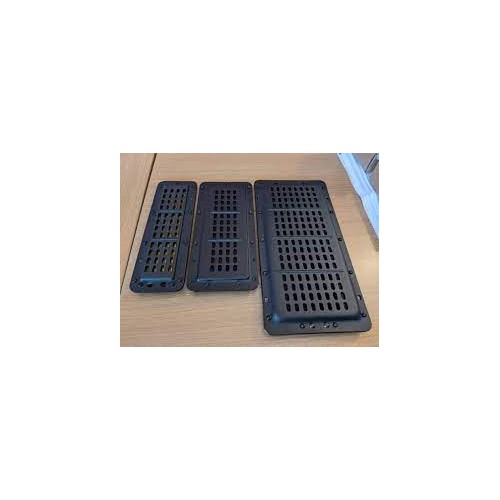

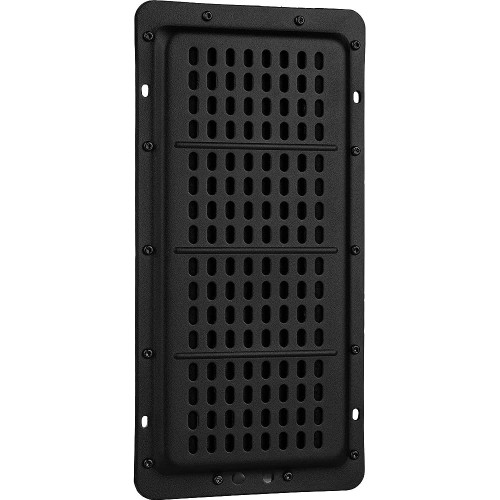

GRS PT5010-8 Planar Mid/Tweeter

In stock 2 pcs.

In Stock

€ 229.00

Tax included

Highlights

Extremely low mass diaphragm provides excellent transient response and accuracy
Large diaphragm produces high efficiency with incredible dynamics
Remarkably wide bandwidth for predictable transition to woofer and tweeter drivers
Open back delivers true dipole radiation for use in open baffle designs
Linear impedance simplifies crossover design
Shallow mounting depth for use in low profile designs

(0)

8 Ω | 70 W

Product description

Capable of delivering extremely wide bandwidth with low distortion, the GRS PT5010-8 open back planar driver is designed to deliver natural midrange response while remaining accurate to the highest frequencies. With an extremely lightweight diaphragm and a neodymium motor system, this driver is capable of excellent transient response with amazing dynamics. The open back construction produces true dipole radiation which is ideal for use in open baffle designs.

Product Details

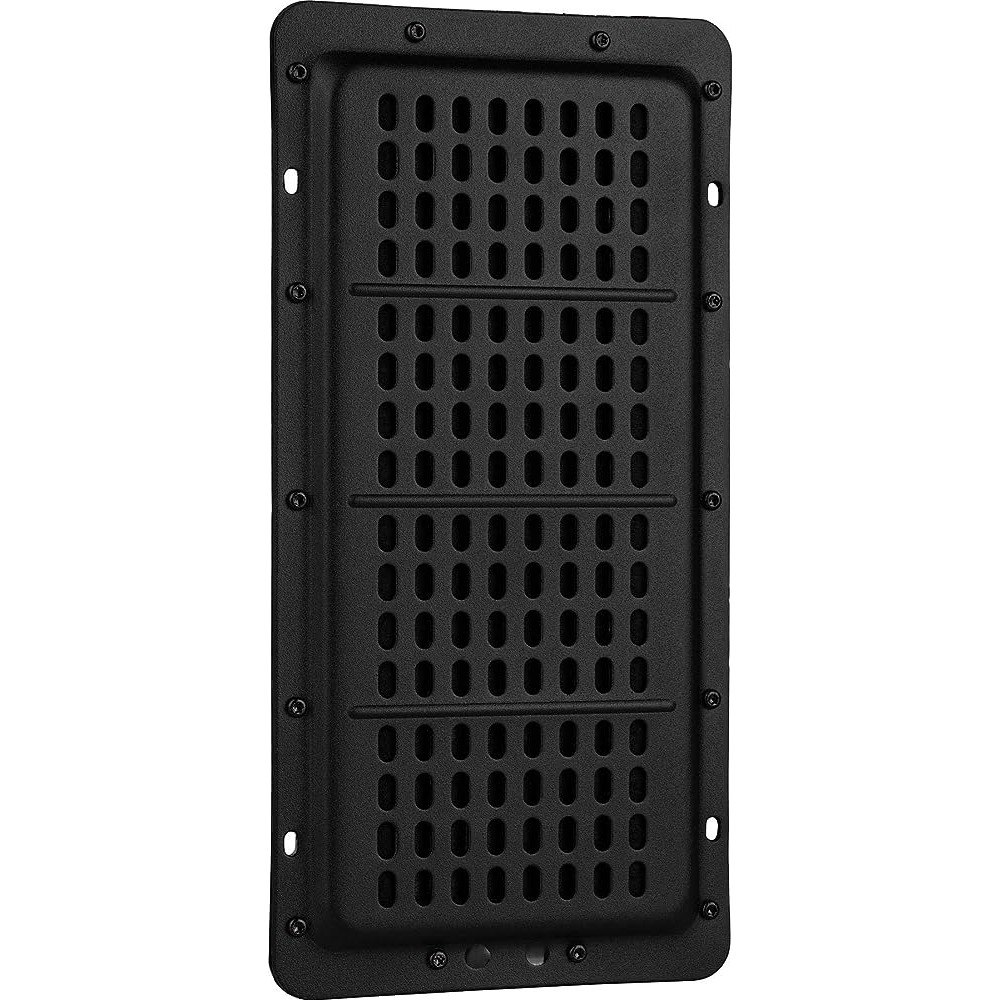

GRS PT5010-8 10" Planar Mid/Tweeter 8 Ohm

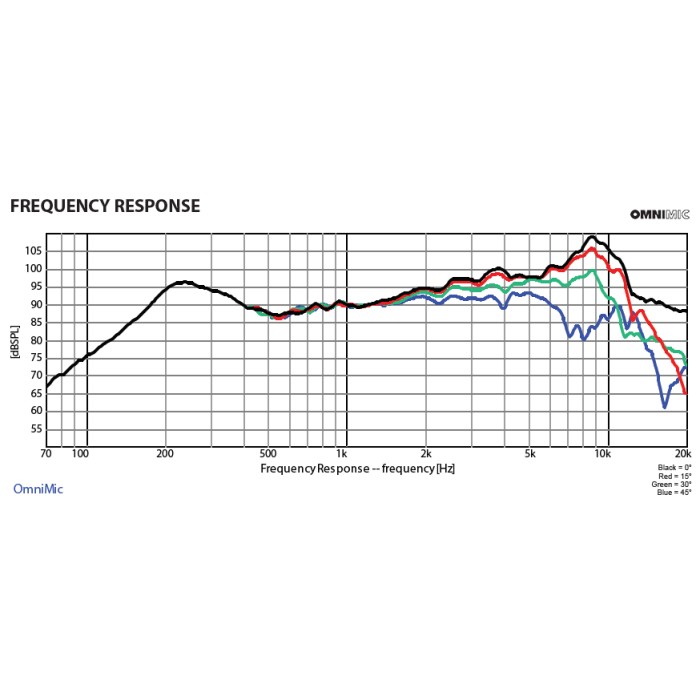

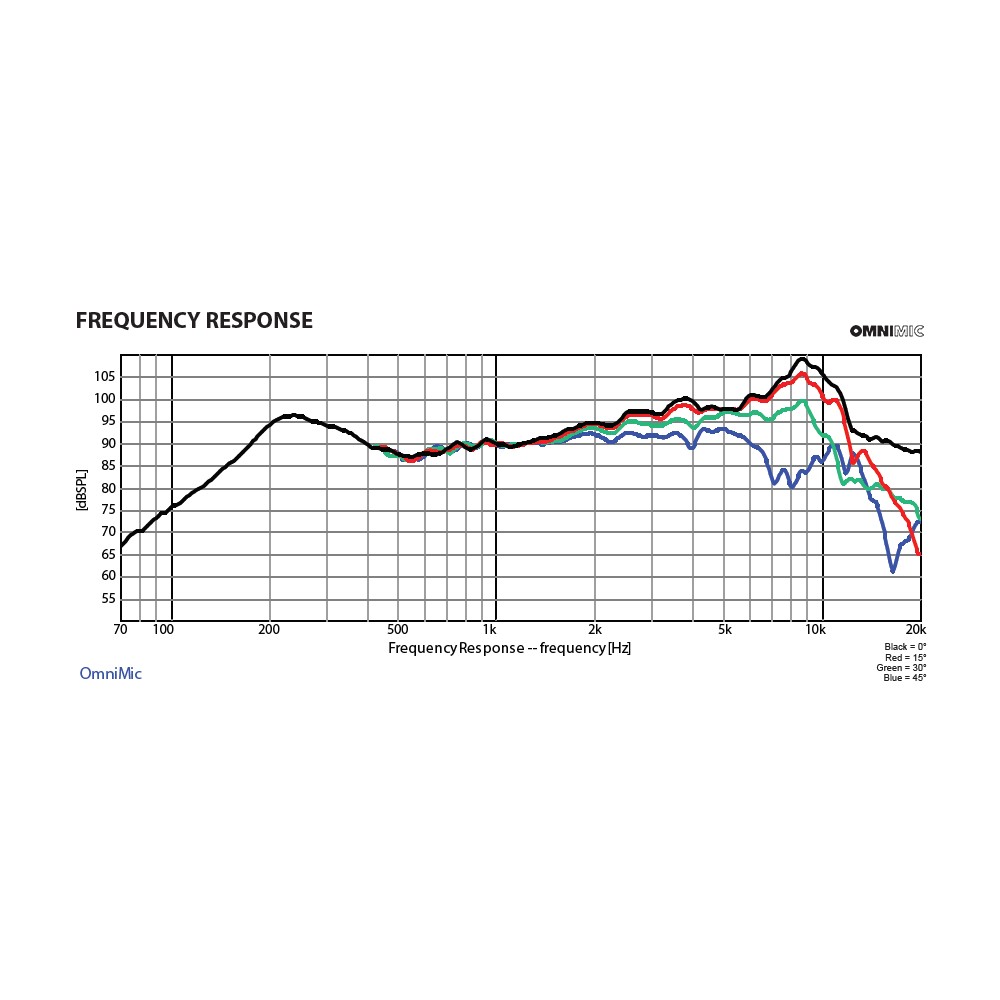

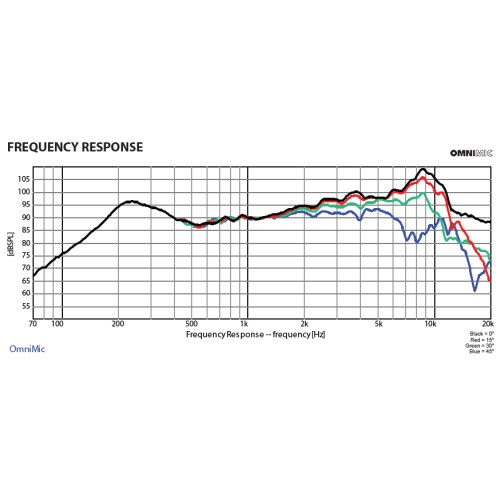

With the ability to provide low distortion output from 300-8,000 Hz, the GRS PT5010-8 open back midrange/tweeter is an excellent choice for use in 2-way designs or even as a drop in replacement for many existing systems. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm driven by 56 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and detail. With a nearly linear 6.8 ohm impedance keeps crossover design simple with predictable final results. In addition, the open back design gives this midrange/tweeter true dipole radiation making it the perfect choice for use in high end open baffle speaker designs.

Impedance: 8 Ω
Power: 70 W
Material: Aluminum
