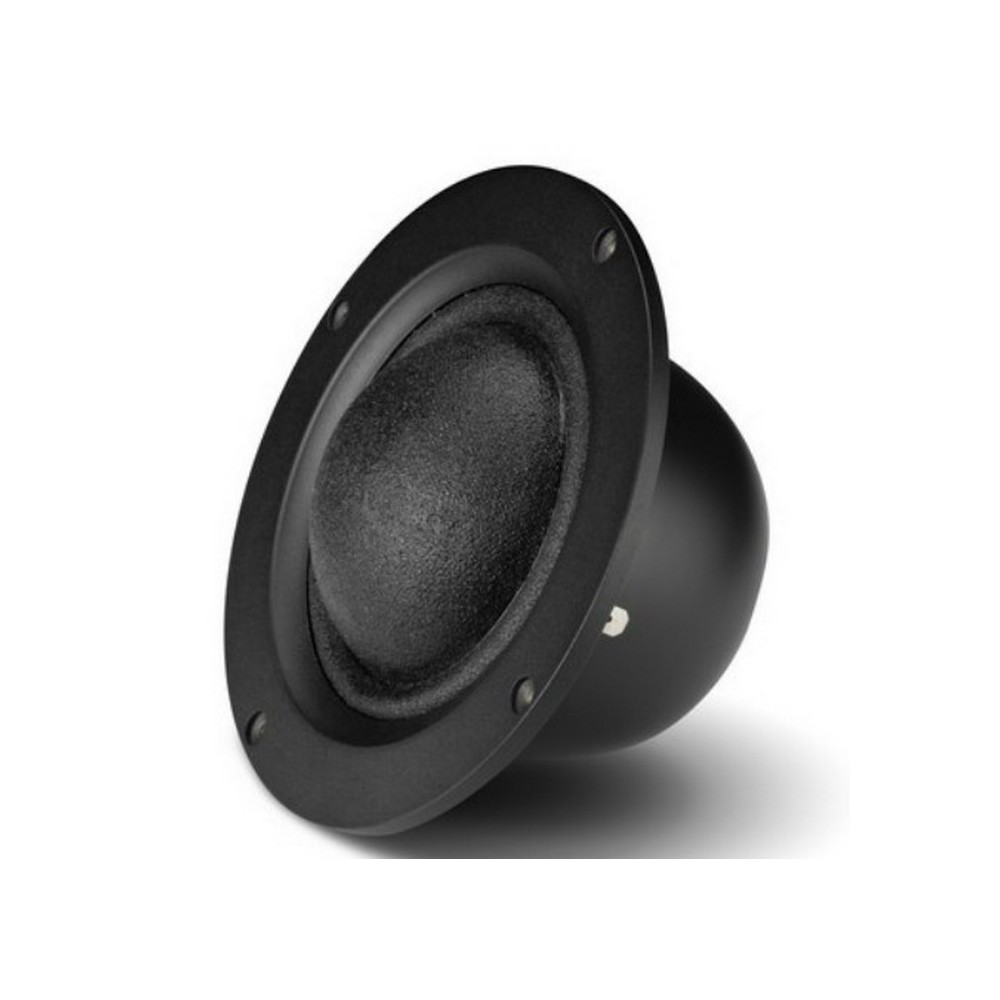

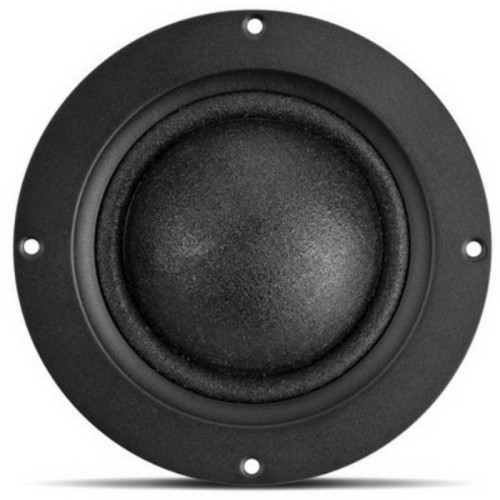

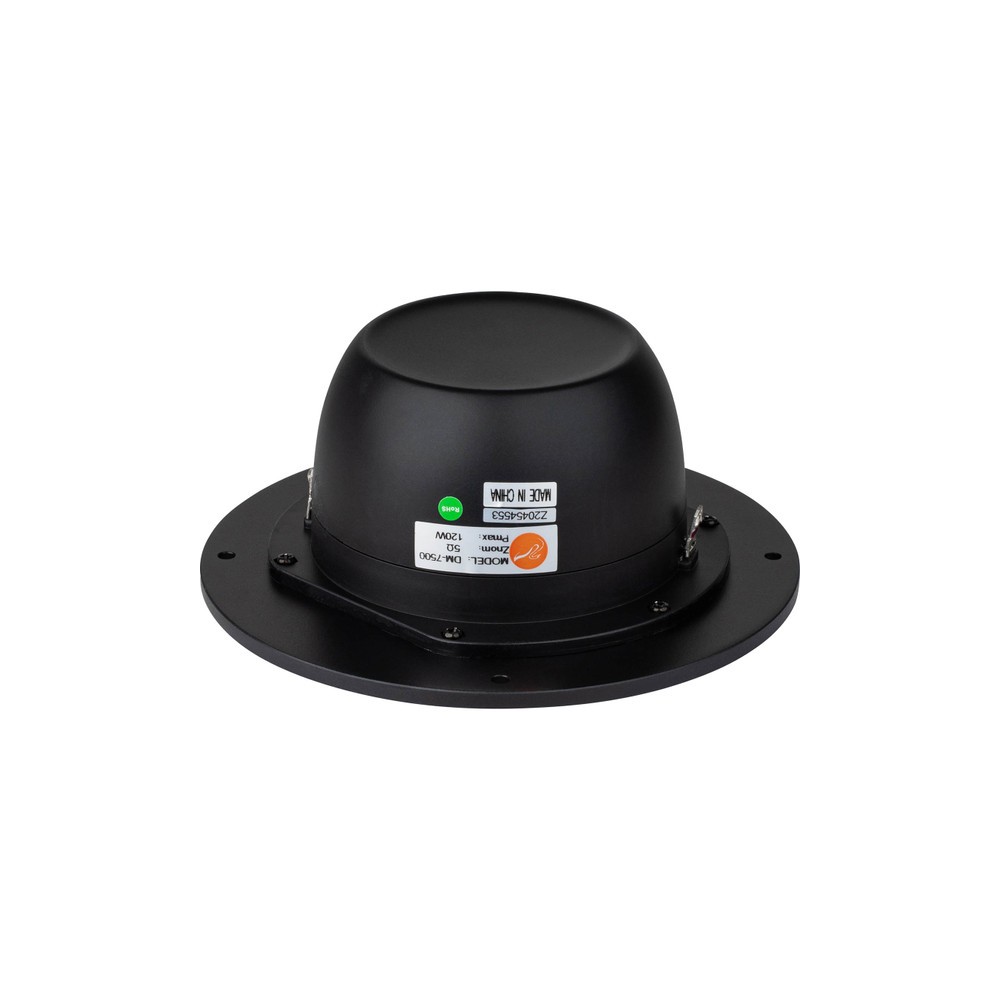

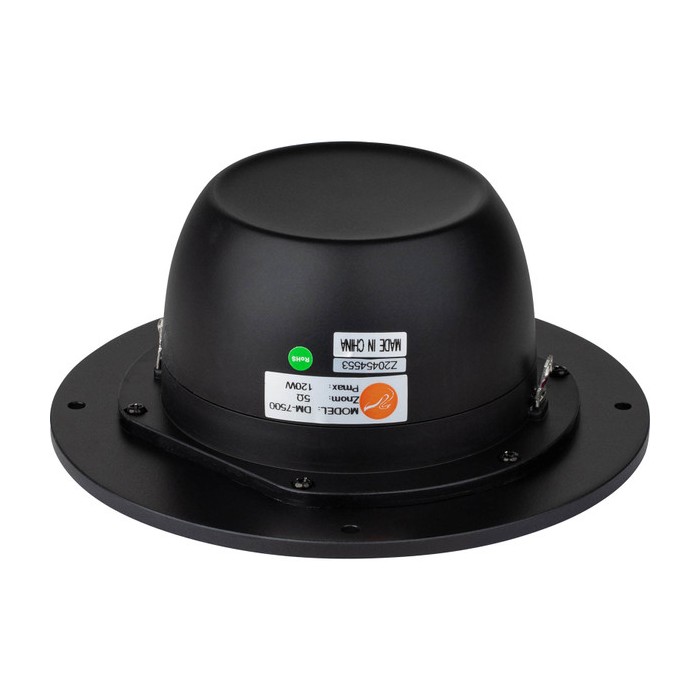

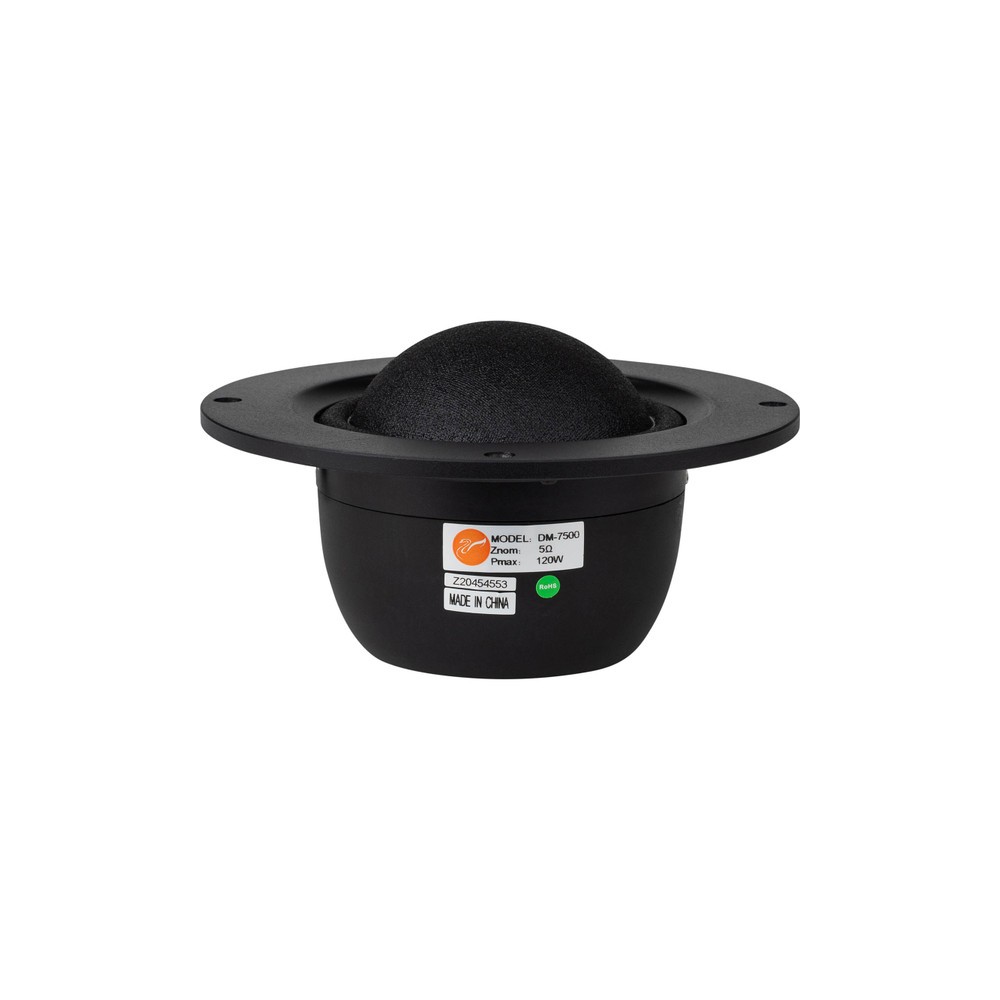

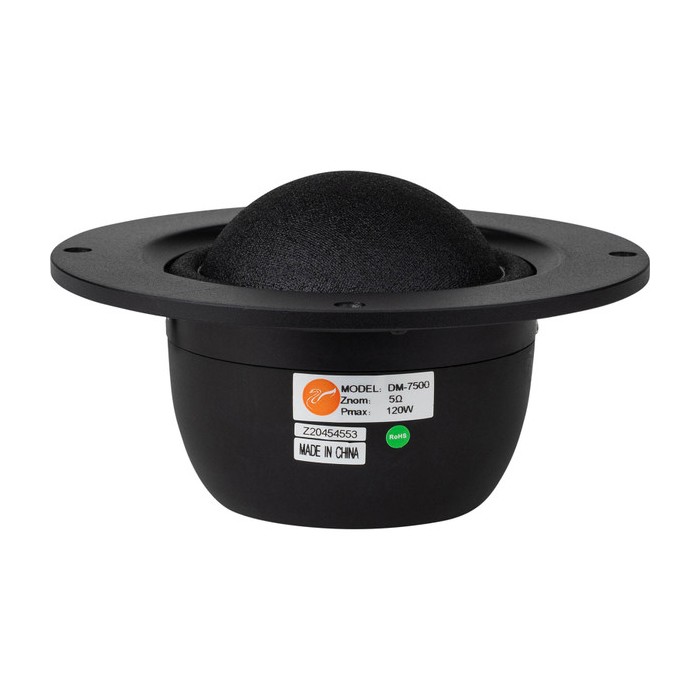

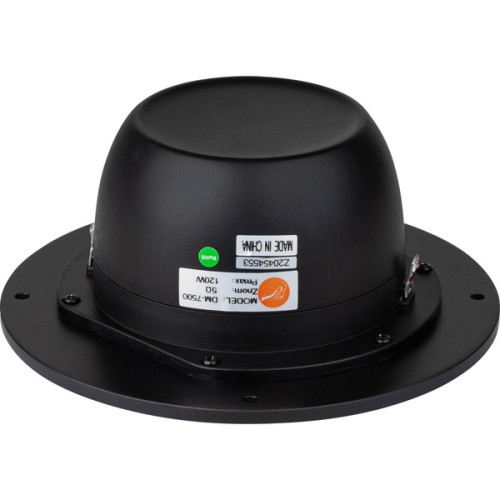

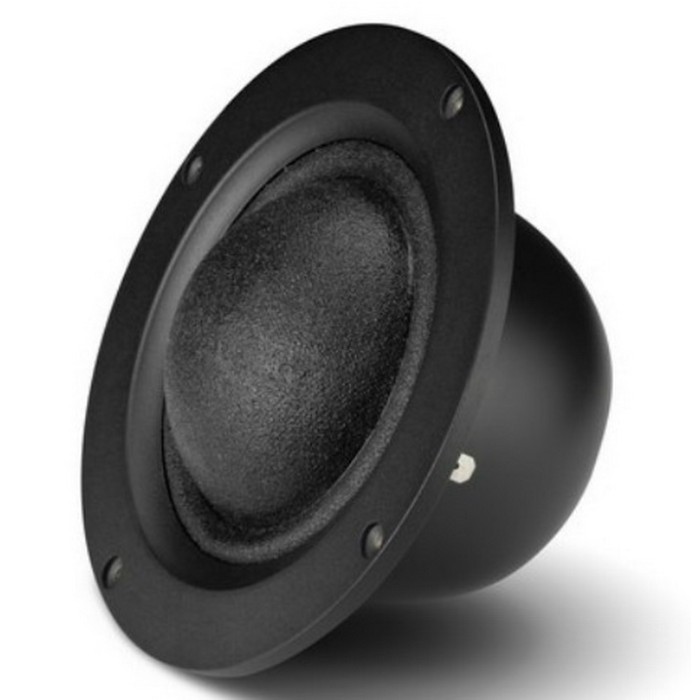

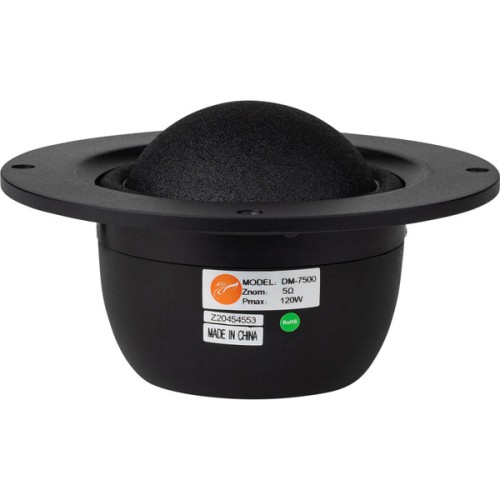

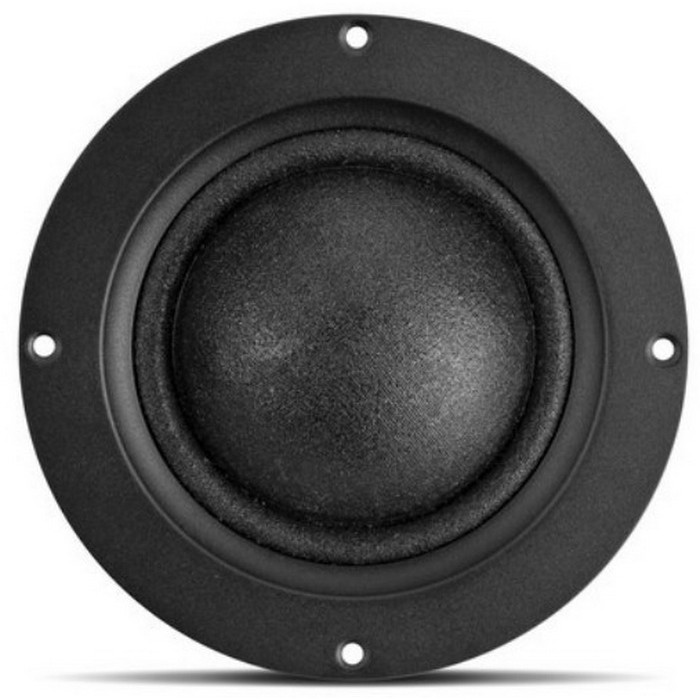

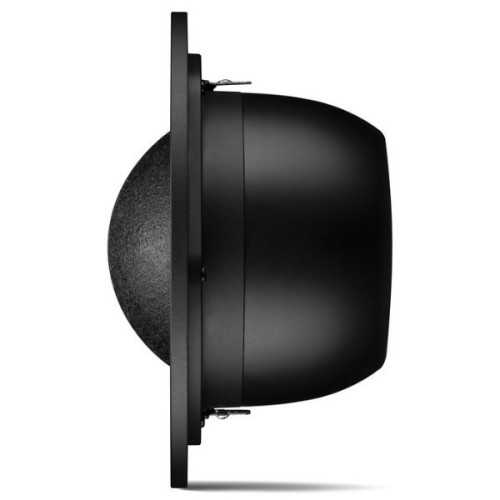

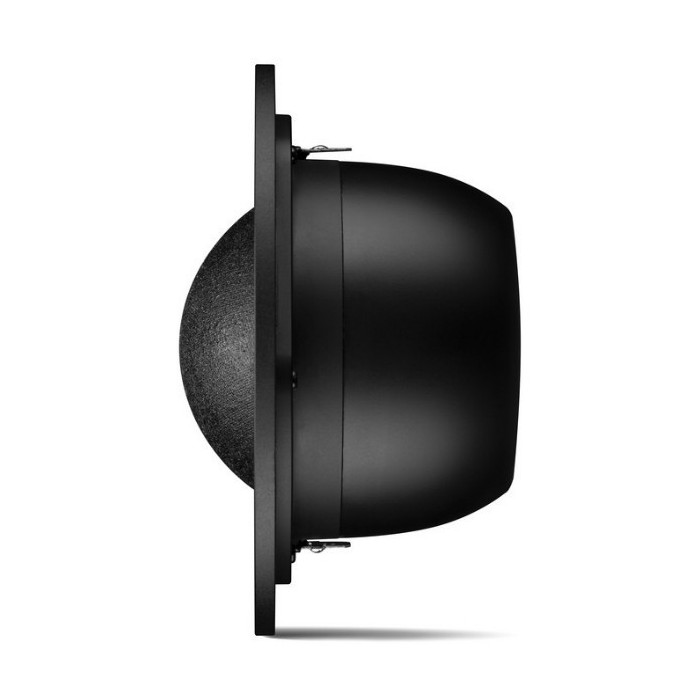

HiVi DM-7500 3" Soft Dome Midrange Driver 6 Ohm

HiVi DM-7500 3" Soft Dome Midrange Driver 6 Ohm

Name: HiVi DM-7500 3" Soft Dome Midrange Driver 6 Ohm
Brand: HIVI
SKU: PROD343
Price: 87.94 EUR
Availability: InStock

Reference PROD343

In stock 60 pcs.

In Stock

€ 87.94

Tax included

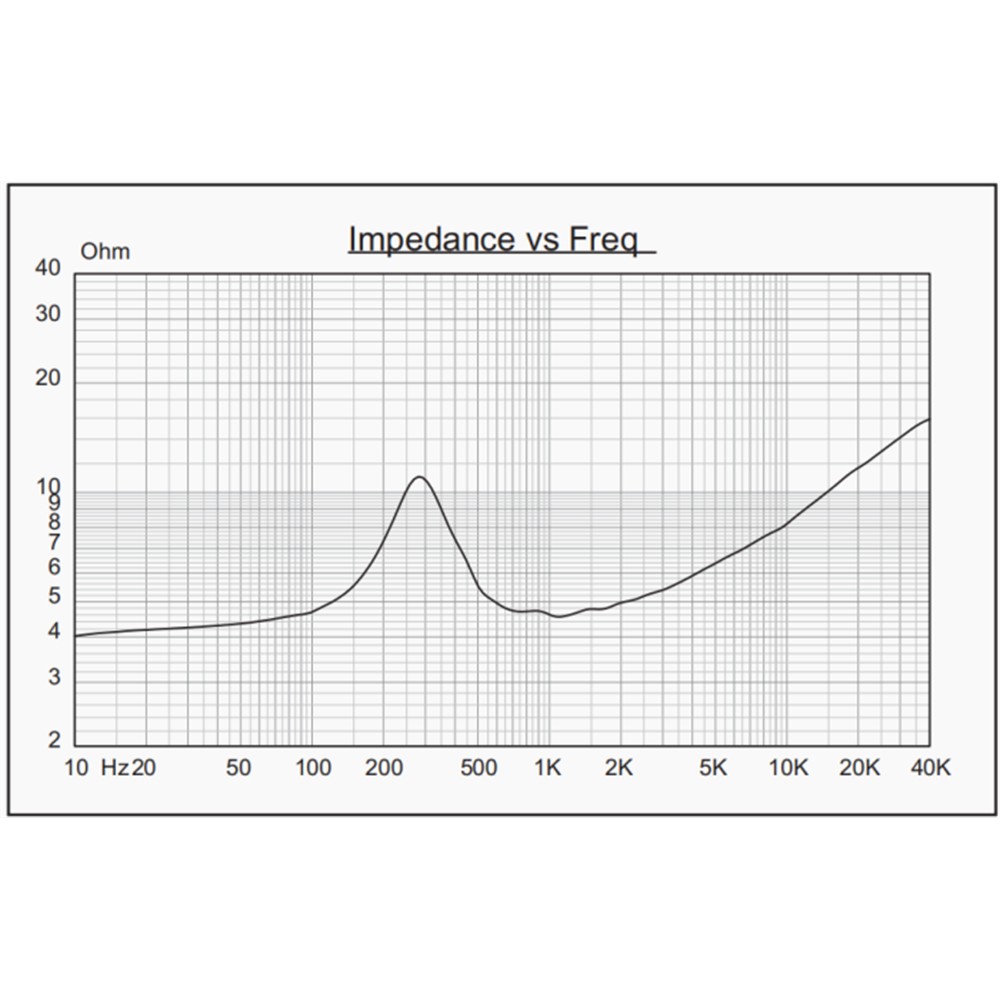

Nominal impedance Z 5 Q
Resonance frequency Fs 300 Hz
Rated power Pnom 20 W
Maximum power Pmax 120 W
Sensitivity (2.83V/1m) E 94 dB
Weight w 0.88 kg
Voice coil
Voice coil diameter ∅ 75 mm
DC resistance Re 4.1 Q
Voice coil wire - High temperature aluminum wire with copper coating
Voice coil - High temperature aluminum
Magnet material - High quality NdFeB
Recommended crossover point >350,<6000Hz

Quantity	Unit discount	You Save
4	8%	€ 28.14
6	15%	€ 79.15

(0)

3" | 5 Ω | 20 W

Swans DM-7500 75mm midrange speaker with silk film: new resonant structure with low distortion, diaphragm with special damping coating.

The sound quality is natural, accurate and transparent.

The high power voice coil with an aluminum frame is combined with a copper coated aluminum coil to increase the output power. The phase-biased resonant structure reduces the Q value of the device's resonant peak, reduces distortion, and extends the range of the low-frequency response. HiVi's unique two-magnet fully symmetric magnetic circuit (SMD) has a low-distortion resonant structure, phase leading, high sensitivity and further reduces distortion.

Thanks to the device's excellent performance indicators, wide acoustic frequency response and natural, full and transparent sound quality characteristics, the device is more flexible. Suitable for all kinds of Hi-end professional recording monitor speakers, advanced home theater AV system and three-way speaker system.

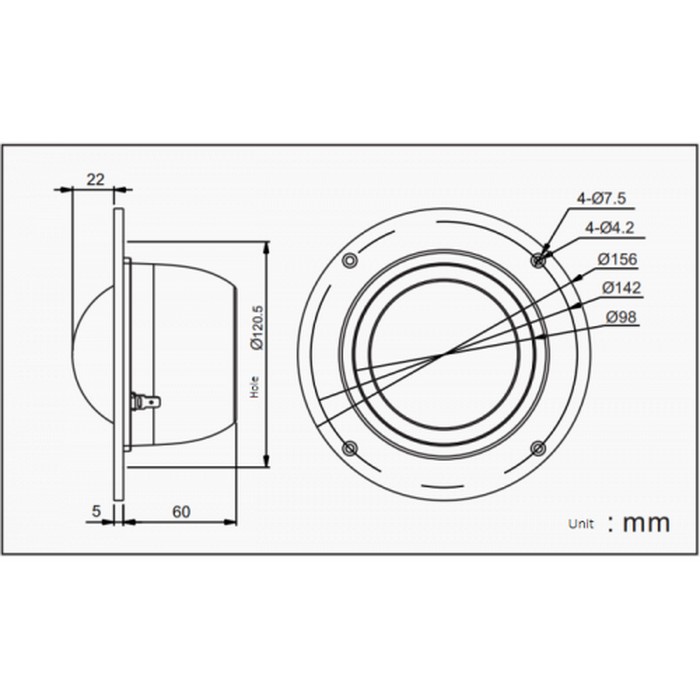

Diameter: 3"
Impedance: 5 Ω
Power: 20 W
Material: Aluminum
Textile
