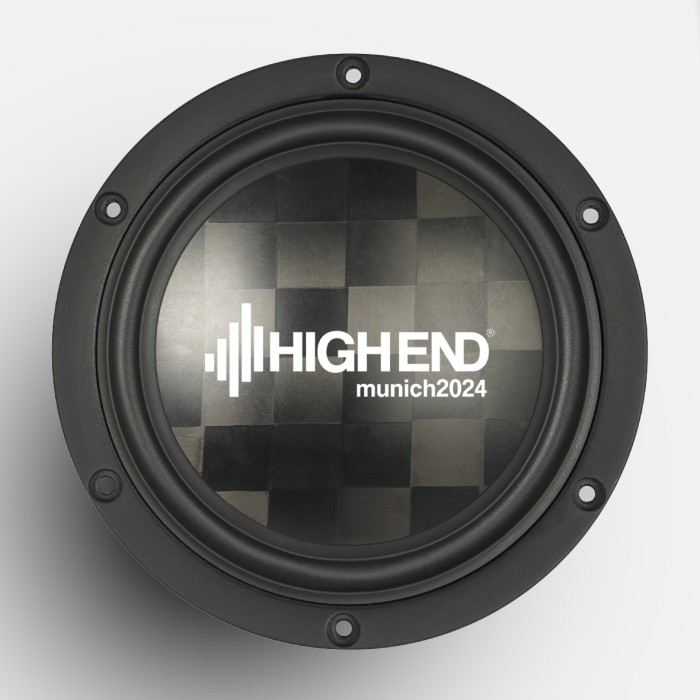

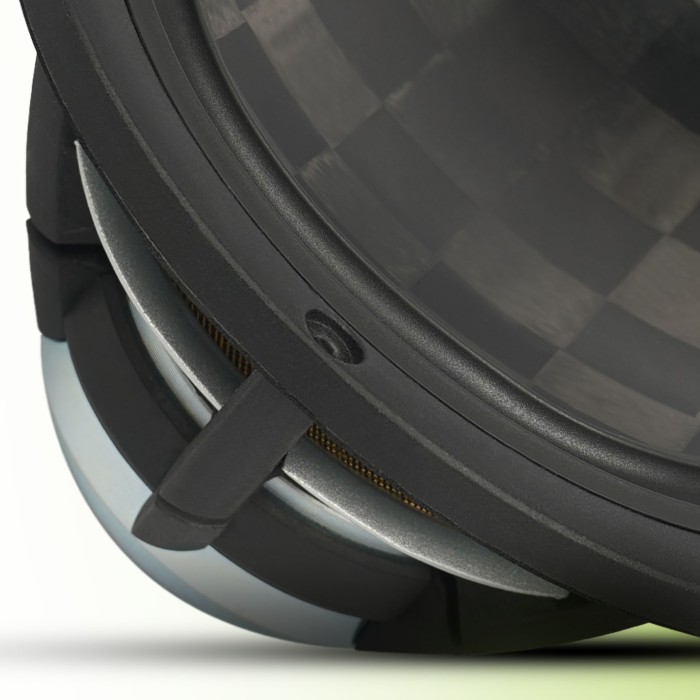

SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange
SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange

SB Acoustics 5″ SATORI MR13TX-4 / TeXtreme Cone Midrange

IMPORTED_SB_ACOUSTIC_62
2 pcs.
In Stock
€ 261.00
Tax included

Features

  • Advanced TeXtreme® cone
  • Vented aerodynamic cast aluminum chassis
  • Inverted soft low damping rubber surround
  • Advanced BIMAX spider
  • Powerful optimized low distortion neodymium motor system
  • Extended copper sleeve on pole piece
  • Non-conducting fiberglass voice coil former
  • Vented pole piece and voice coil
  • Light weight CCAW voice coil
  • Long life silver lead wires
Quantity Unit discount You Save
4 10% € 104.40
8 20% € 417.60

(0)
5" | 4 Ω | 30 W

Brand



Specs

Nominal Impedance 4 Ω

DC resistance, Re 3.4 Ω

Voice coil inductance, Le 0.11 mH

Effective piston area, Sd 69 cm2

Voice coil diameter 30.5 mm

Voice coil height 11 mm

Air gap height 5 mm

Linear coil travel (p-p) 6 mm

Magnetic flux density 1.08 T

Magnet weight 0.1 kg

Net weight 0.79 kg

Free air resonance, Fs 44 Hz

Sensitivity (2.83 V / 1 m) 90 dB

Mechanical Q-factor, Qms 4.98

Electrical Q-factor, Qes 0.28

Total Q-factor, Qts 0.27

Moving mass incl. air, Mms 7.2 g

Force factor, Bl 4.9 Tm

Equivalent volume, VAS 12.2 liters

Compliance, Cms 1.81 mm/N

Mechanical loss, Rms 0.4 kg/s

Rated power handling* 30 W

Diameter
5"
Impedance
4 Ω
Power
30 W
Series
SATORI
Material
Aluminum
Carbon
