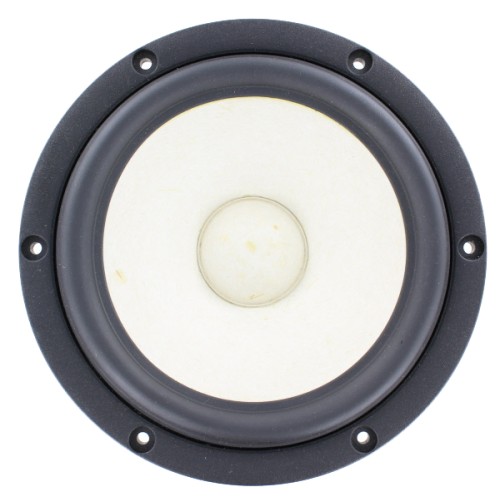

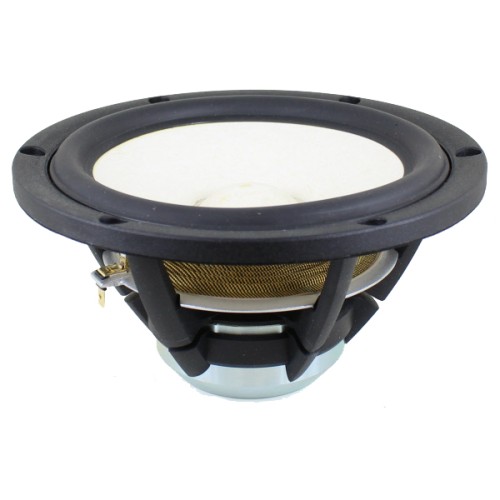

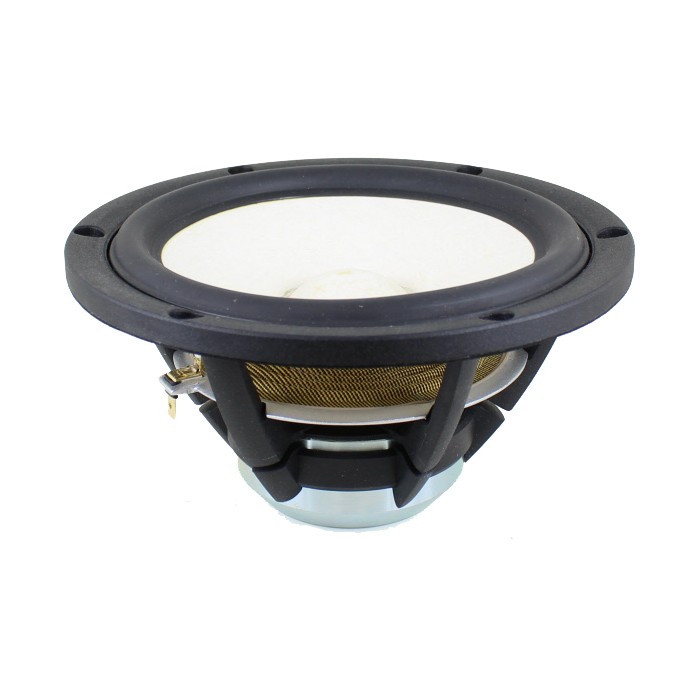

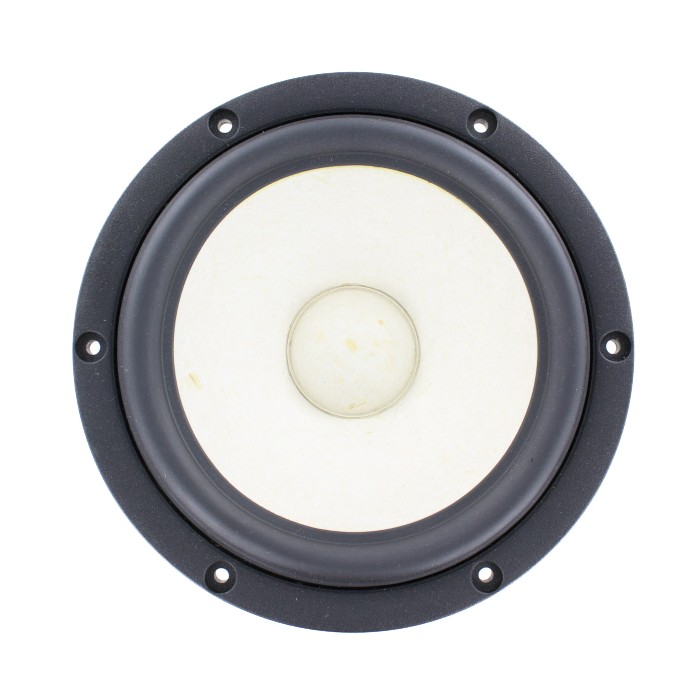

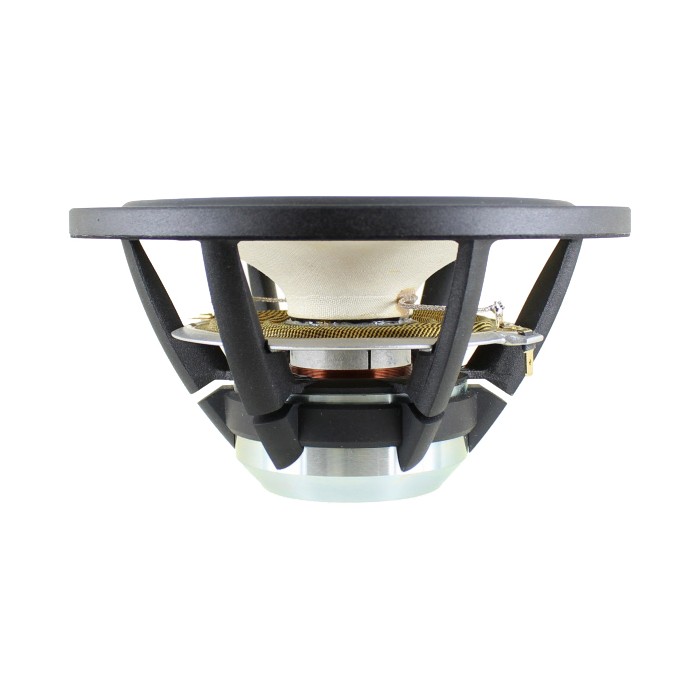

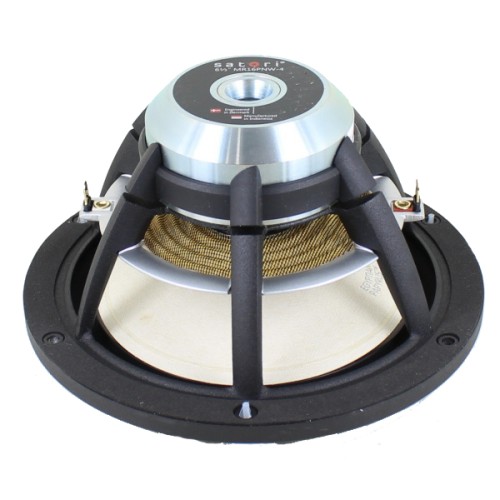

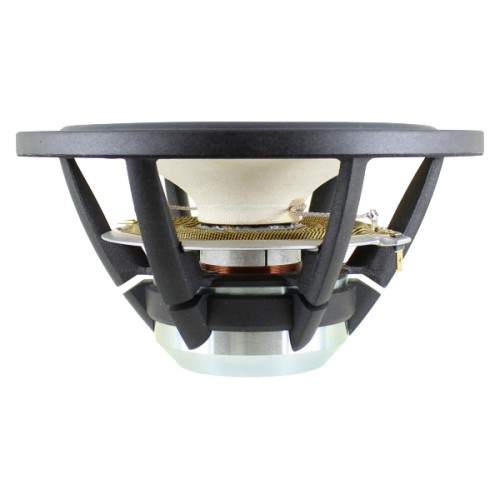

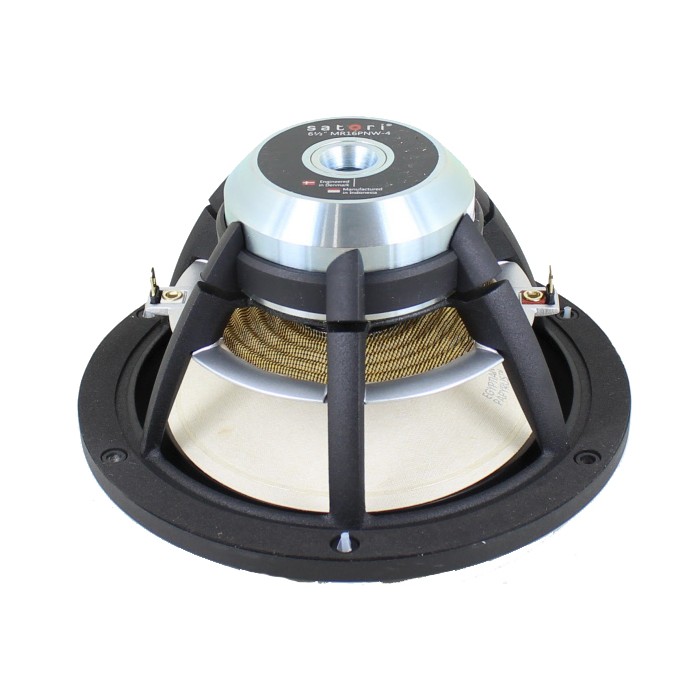

SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SATORI MR16PNW-8 Midrange speaker with 6″ Egyptian papyrus cone
SATORI MR16PNW-8 Midrange speaker with 6″ Egyptian papyrus cone
SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SB ACOUSTICS SATORI MR16PNW-4 6.5″ WHITE EGYPTIAN PAPYRUS CONE MIDRANGE – 4 OHM
SATORI MR16PNW-8 Midrange speaker with 6″ Egyptian papyrus cone
SATORI MR16PNW-8 Midrange speaker with 6″ Egyptian papyrus cone

SATORI MR16PNW-8 Midrange speaker with 6″ Egyptian papyrus cone

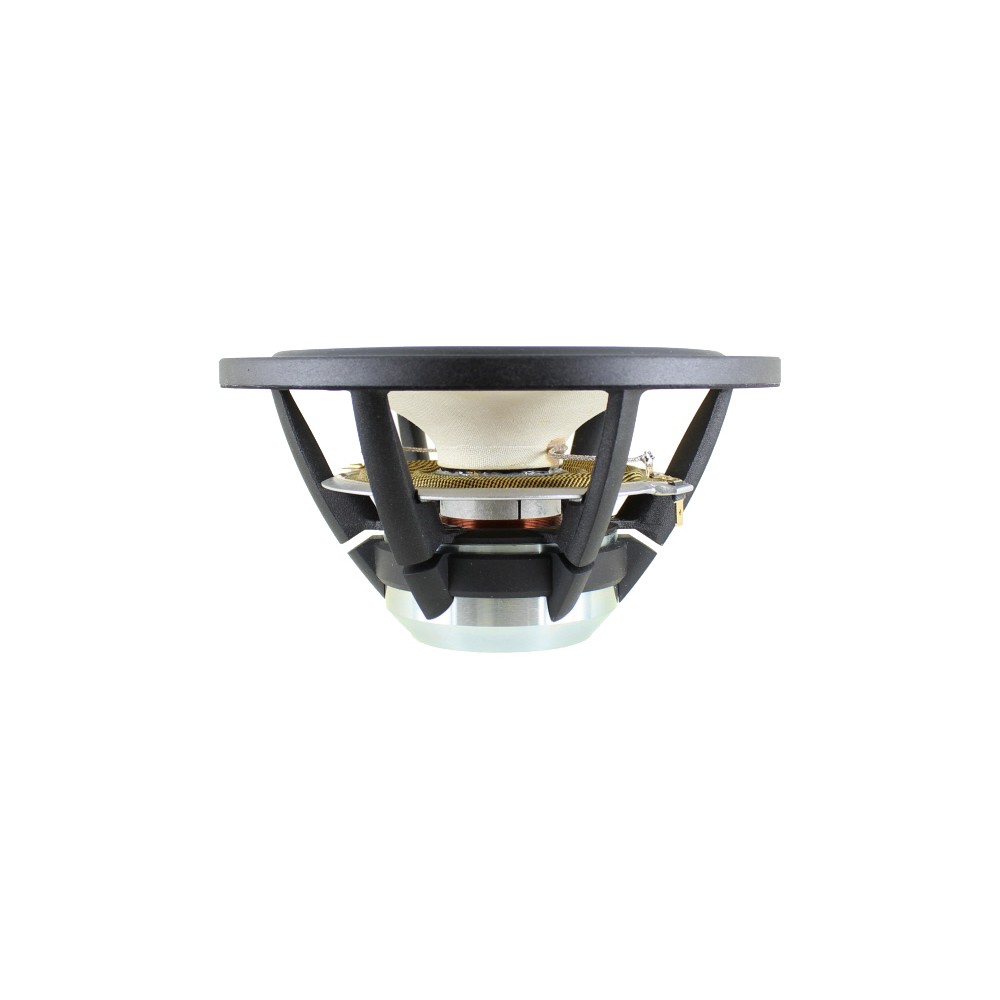

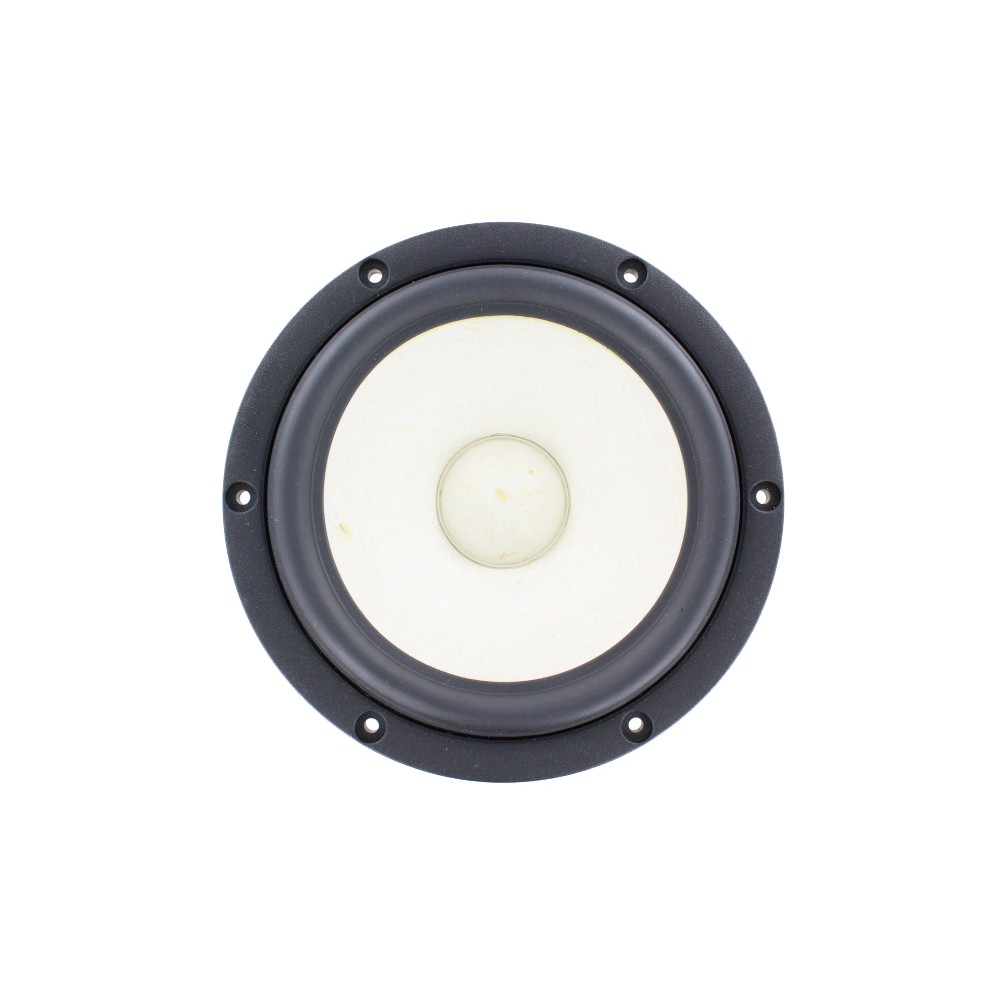

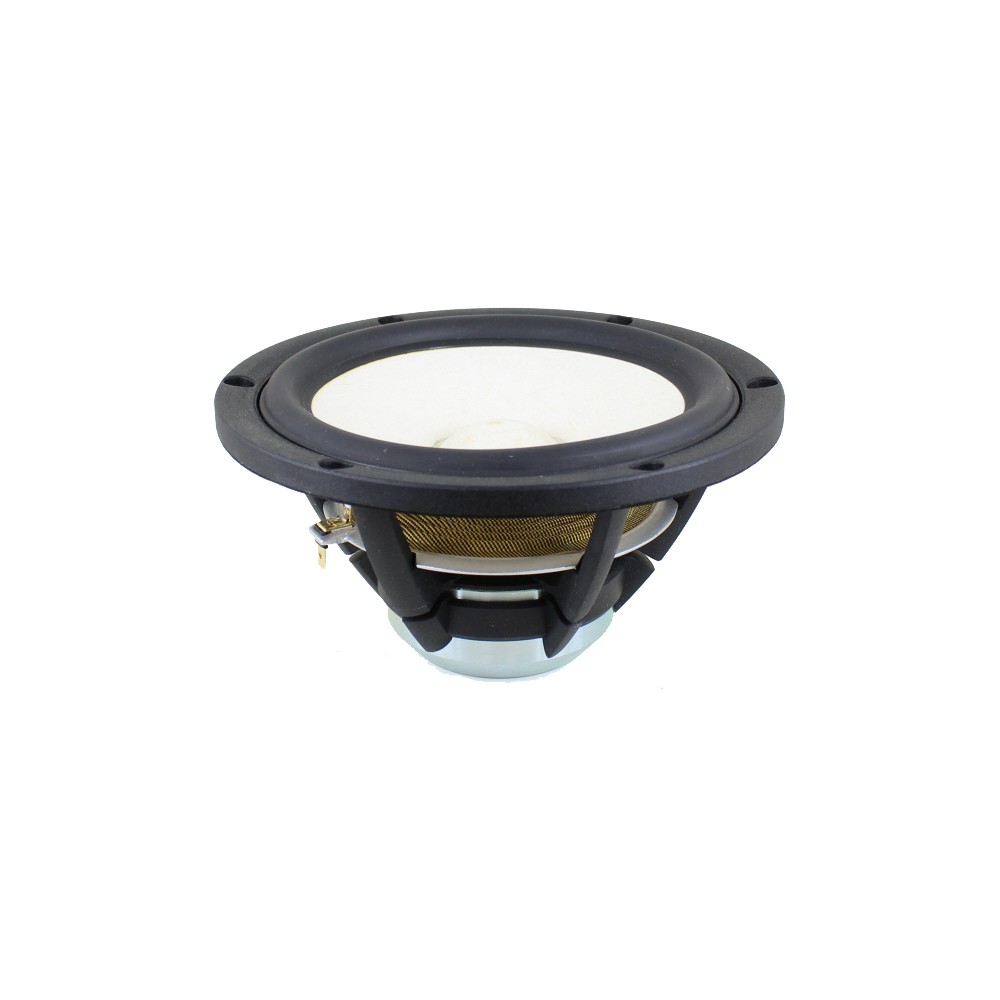

SATORI MR16PNW-8
2 pcs.
In Stock
€ 165.00
Tax included
  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • Low piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
  • Mode balanced cone for reduced break-up
Quantity Unit discount You Save
2 5% € 16.50
4 10% € 66.00

(0)
6" | 8 Ω | 30 W

Brand



Specs

Nominal Impedance 8 Ω

DC resistance, Re 6.2 Ω

Voice coil inductance, Le 0.11 mH

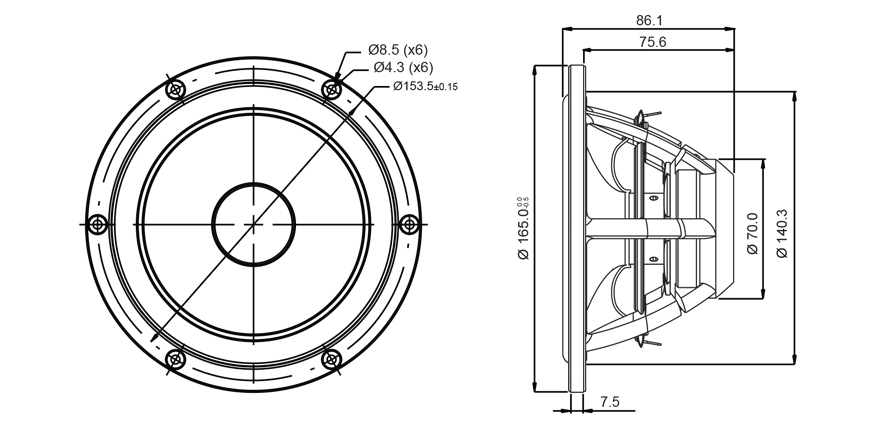

Effective piston area, Sd 119 cm2

Voice coil diameter 35.5 mm

Voice coil height 11.2 mm

Air gap height 5 mm

Linear coil travel (p-p) 6.2 mm

Magnetic flux density 1.17 T

Magnet weight (NEO) 0.13 kg

Net weight 1 kg

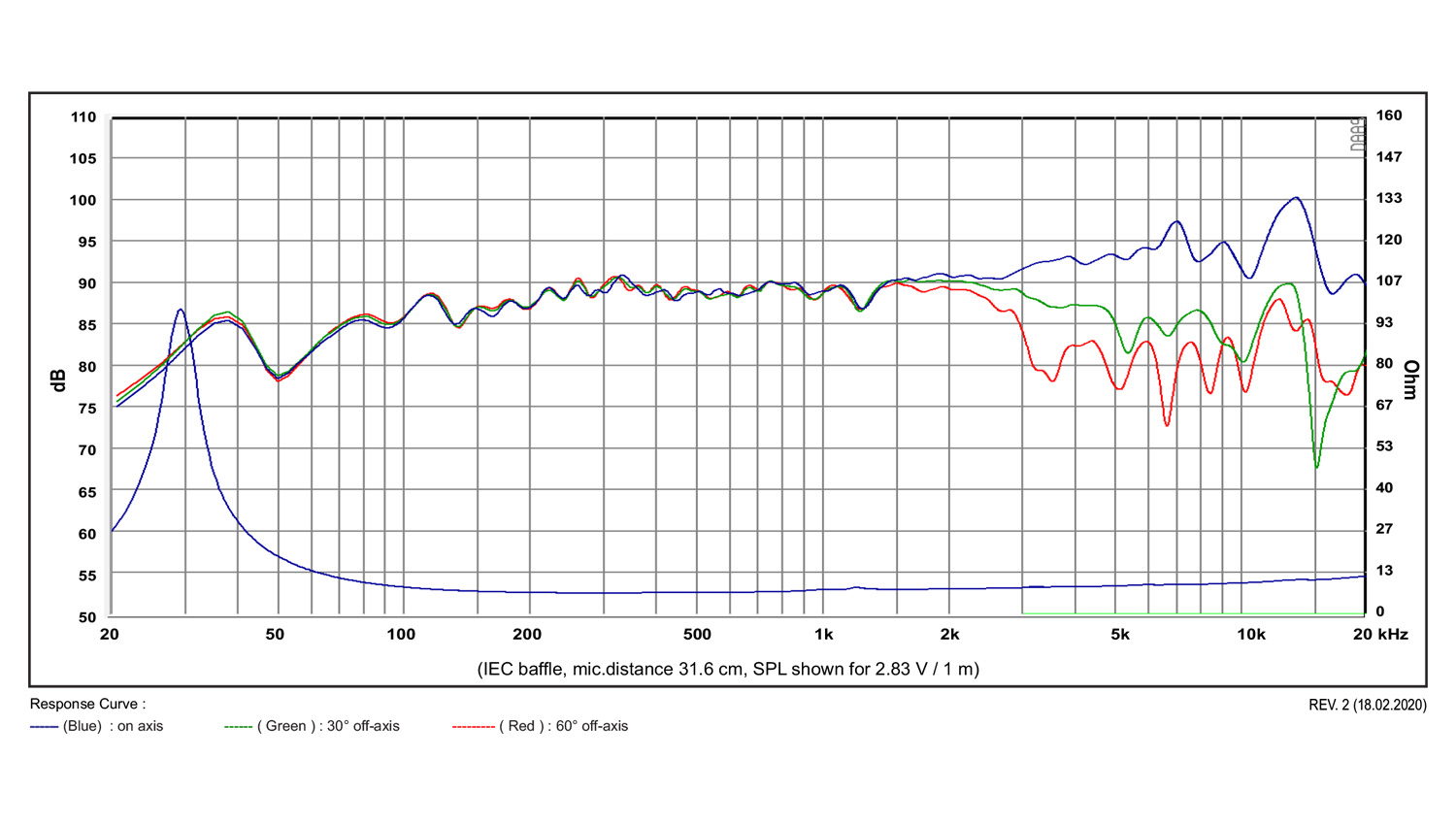

Free air resonance, Fs 31 Hz

Sensitivity (2.83 V / 1 m) 88.5 dB

Mechanical Q-factor, Qms 5.75

Electrical Q-factor, Qes 0.34

Total Q-factor, Qts 0.32

Moving mass incl. air, Mms 11.8 g

Force factor, Bl 6.5 Tm

Equivalent volume, VAS 44.8 liters

Compliance, Cms 2.23 mm/N

Mechanical loss, Rms 0.4 kg/s

Rated power handling* 30 W

* IEC 268-5, high-pass Butterworth, 200 Hz, 12 dB/oct.

Diameter
6"
Impedance
8 Ω
Power
30 W
Series
SATORI
Material
Aluminum
Egyptian Papyrus
