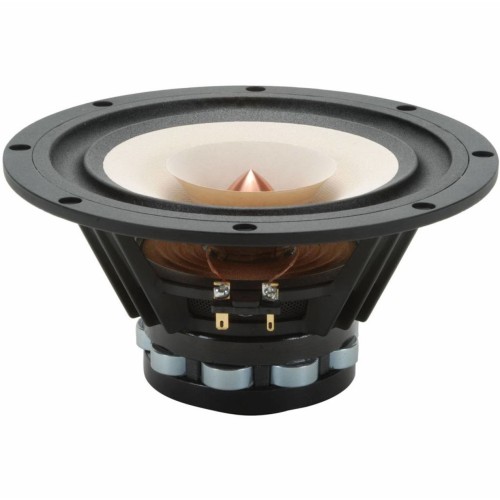

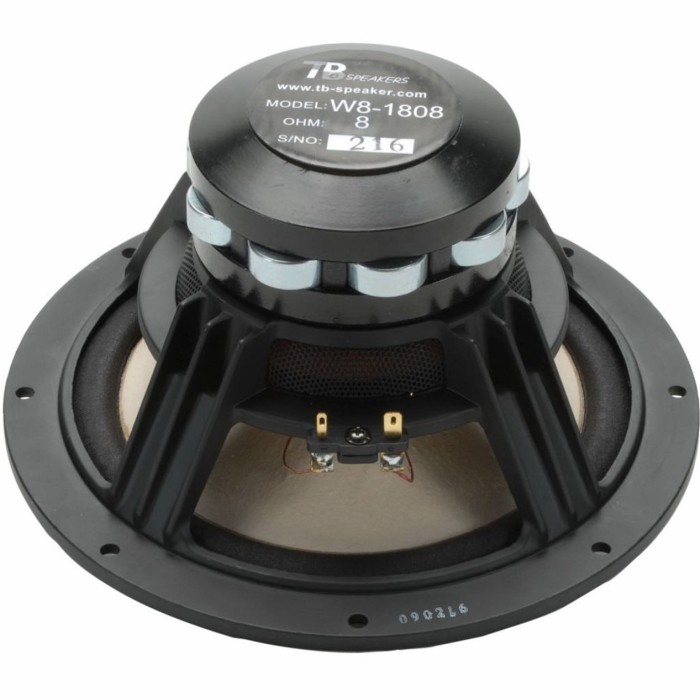

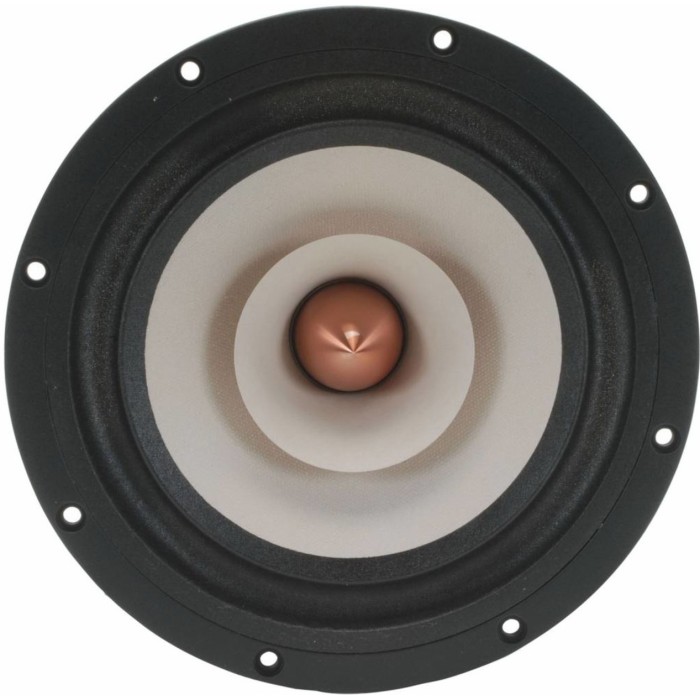

Tang Band W8-1808 8” Paper Full Range
Tang Band W8-1808 8” Paper Full Range
Tang Band W8-1808 8” Paper Full Range
Tang Band W8-1808 8” Paper Full Range
Tang Band W8-1808 8” Paper Full Range
Tang Band W8-1808 8” Paper Full Range

Tang Band W8-1808 8” Paper Full Range

Pre-order product
€ 369.00
Tax included

Description :

  • 8" of full range speaker design.
  • Neodymium magnet system, aluminum phase plug.
  • Underhung design, very low 2nd and 3rd distortion (low THD).
  • SPL = 93dB /M/W, Qts = 0.44.
  • Paper cone with fabric surround.
  • Unit : pc Gross Weight : 3.4kg
(0)
8" | 8 Ω | 30 W

Brand



Technical Parameters

SIZE：8" CATEGORY：Full Range

DIAPHRAGM MTL：Paper

SURROUND MTL：Fabric

NOMINAL IMPEDANCE：8 Ω

DCR IMPEDANCE：6.8 Ω

SENSITIVITY 1W/1m：93 dB

FREQUENCY RESPONSE：45-20K Hz

FREE AIR RESONANCE：45 Hz

VOICE COIL DIAMETER：38.5 mm

AIR GAP HEIGHT：14 mm

RATED POWER INPUT：30 W

MAXIMUM POWER INPUT：60 W

FORCE FACTOR, BL：5.28 TM

TYPE OF MAGNET：Neodymium

MOVING MASS：9.43 g

FERROFLUID ENHANCED：No

SUSPENSION COMPLIANCE：1282 uMN¯¹

EFFECTIVE PISTON AREA：0.022 M²

Levc：0.048 mH

Zo：26 Ω

X-max：5 mm

Vas：88.14 Litr

Qts：0.44

Qms：1.33

Qes：0.66

Diameter
8"
Impedance
8 Ω
Power
30 W
Material
Aluminum
Paper

Summary

0

(0 Reviews)

Select a row below to filter reviews.

  • 5
    (0)
  • 4
    (0)
  • 3
    (0)
  • 2
    (0)
  • 1
    (0)
You cannot post a review because you are not logged as a customer

Log in / sign up
Sort By

No customer reviews for the moment.

More products from this categoty:

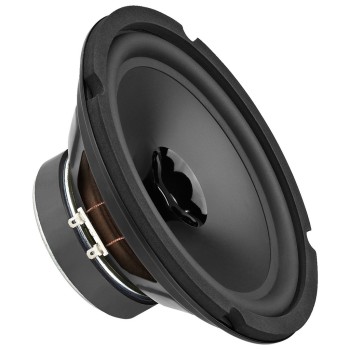

Monacor SPX-31M Monacor SPX-31M 2
