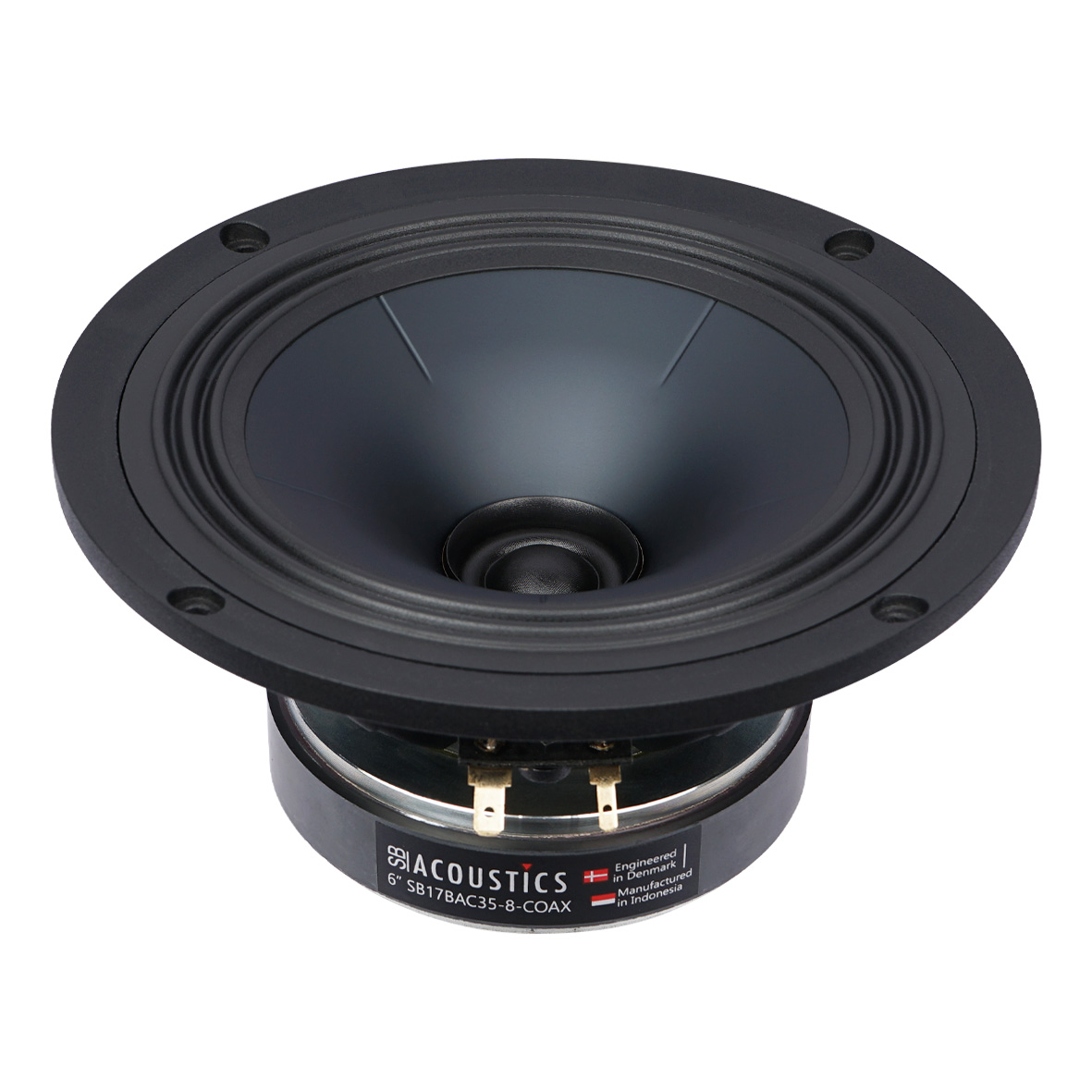

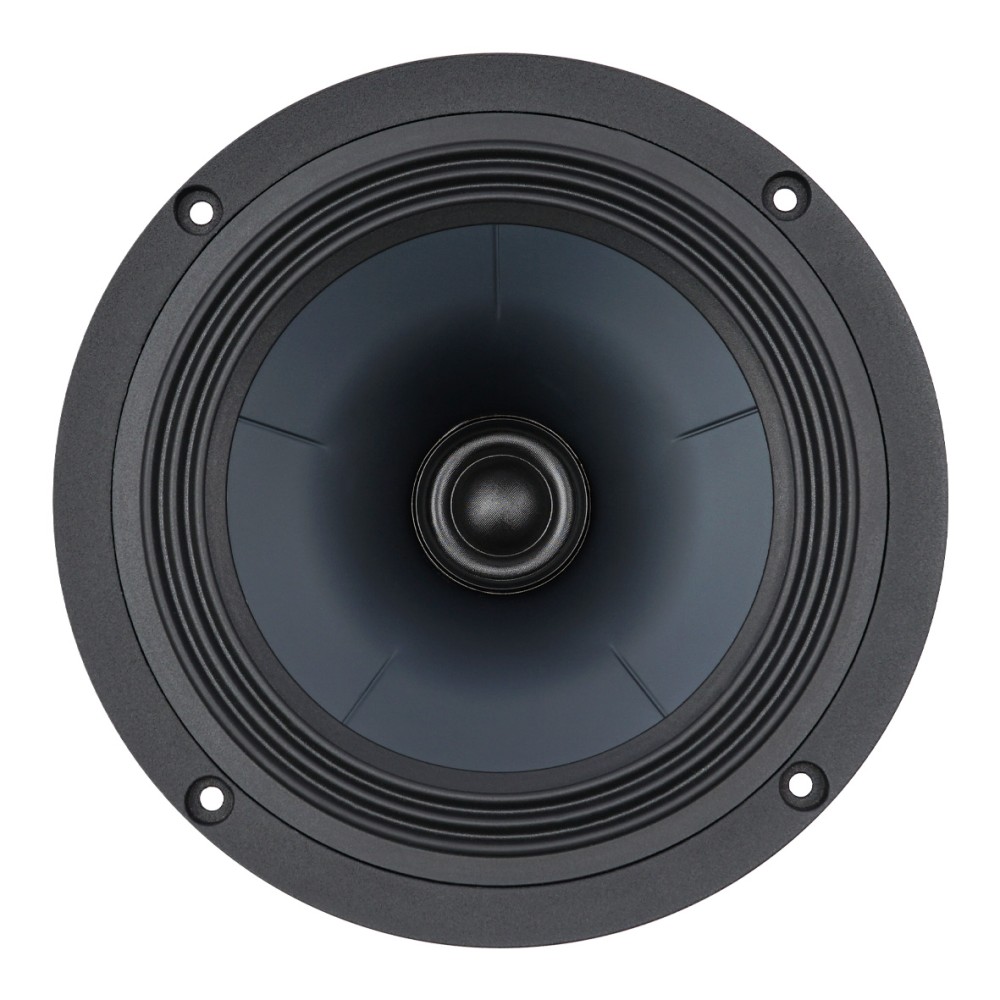

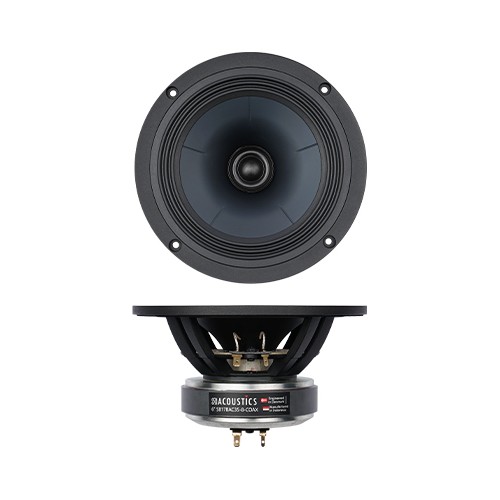

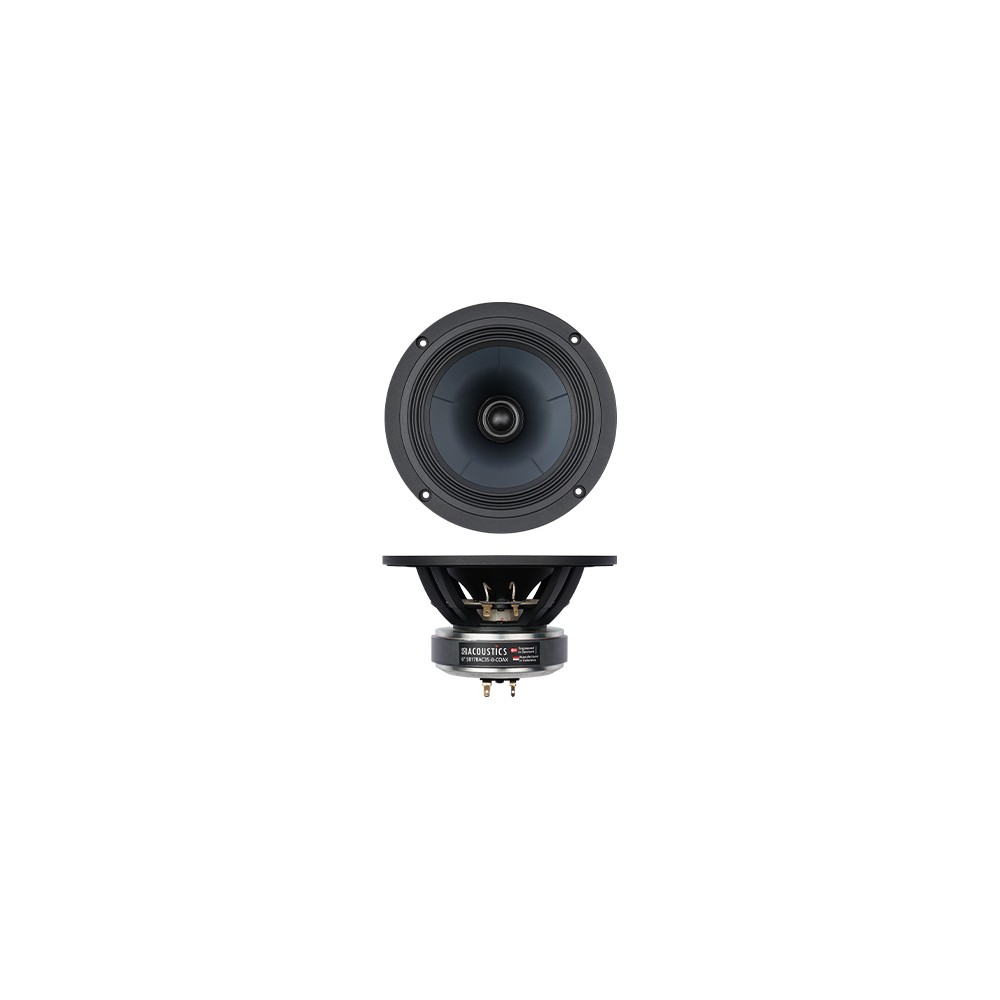

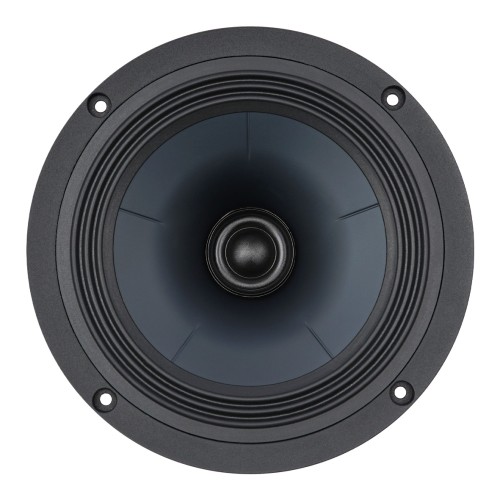

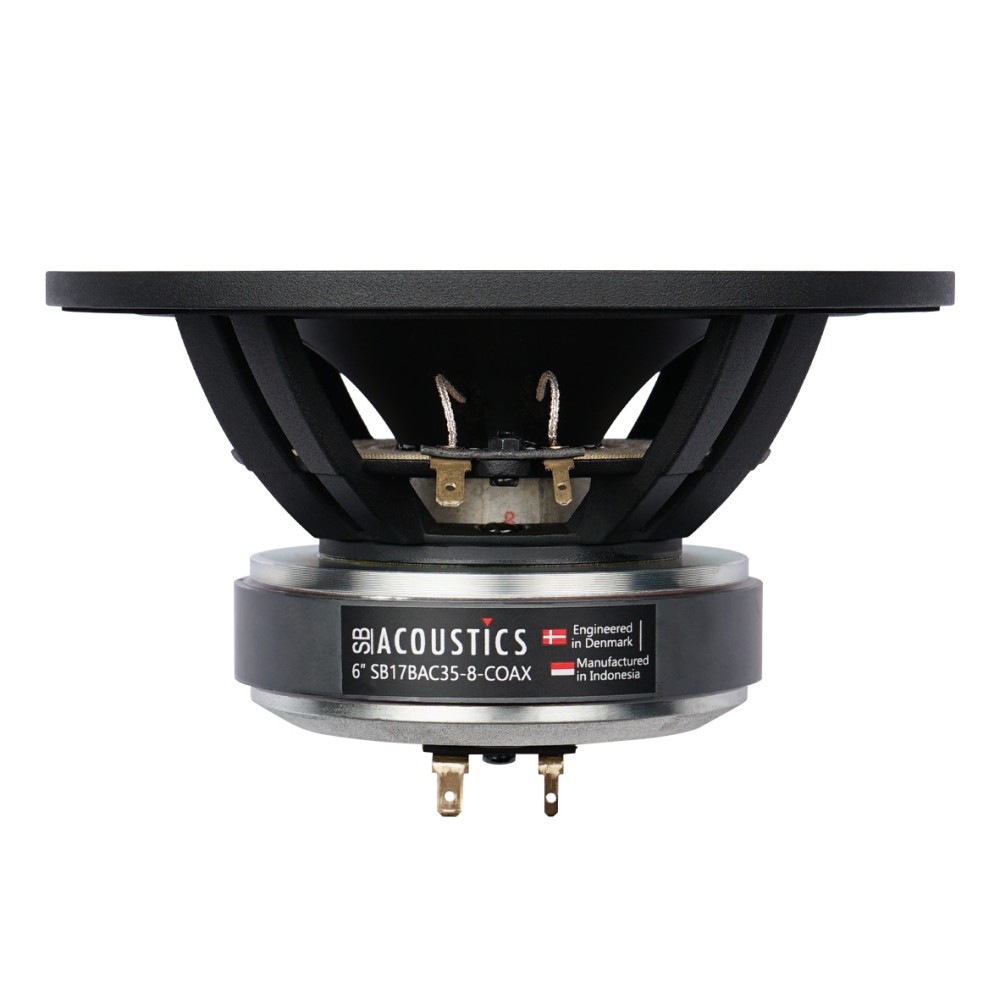

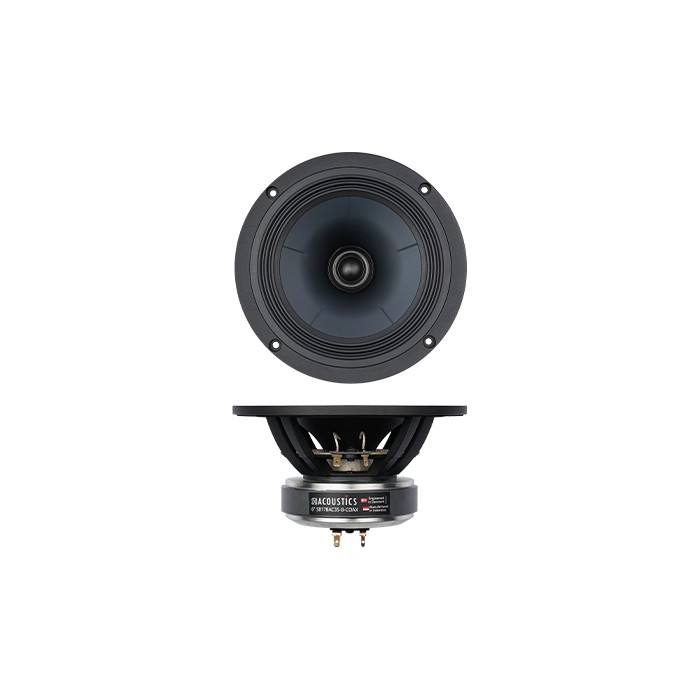

SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum
SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum

SB Acoustics SB17BAC35-8-COAX coaxial two-way speaker / aluminum

SB17BAC35-8-COAX
6 pcs.
In Stock
€ 139.00
Tax included

Features

  • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
  • Low profile rubber surround for minimum high frequency diffraction
  • Soft dome tweeter with neodymium motor, copper cap and rear chamber
  • Excellent high frequency directivity control
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • Light weight CCAW voice coil on fiberglass former
  • Vented cast aluminum chassis
  • Long life silver lead wires
(0)
6" | 8 Ω | 45W

Brand




Specs

SPECS WOOFER:

Nominal Impedance 8 Ω

DC resistance, Re 5.2 Ω

Voice coil inductance, Le 0.13 mH

Effective piston area, Sd 108 cm2

Voice coil diameter 35.5 mm

Voice coil height 11.2 mm

Air gap height 5 mm

Linear coil travel (p-p) 6.2 mm

Magnetic flux density 0.91 T

Magnet weight 0.54 kg

Net weight 1.63 kg

Free air resonance, Fs 35.2 Hz

Sensitivity (2.83V/1m) 88 dB

Mechanical Q-factor, Qms 4.1

Electrical Q-factor, Qes 0.36

Total Q-factor, Qts 0.33

Moving mass incl. air,Mms 10.2 g

Force factor, Bl 5.7 Tm

Equivalent volume, Vas 33.1 liters

Compliance, Cms 2.0 mm/N

Mechanical loss, Rms 0.55 kg/s

Rated power handling* 45 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.



SPECS TWEETER:

Nominal Impedance 4 Ω

DC resistance, Re 3.6 Ω

Voice coil diameter 20.4 mm

Voice coil height 1.7 mm

Air gap height 2 mm

Free air resonance, Fs 1350 Hz

Sensitivity (2.83V/1m) 93 dB

Rated power handling* 30 W

Magnetic flux density 1.02 T

Magnet weight 14.5 g

Net weight 55.74 g

Diameter
6"
Impedance
8 Ω
Power
45W
Material
Aluminum
